Skyclimber®
No. 3449001
| Unit space area | Ø 5.86 m |
| Safety space area | Ø 8.86 m |
| Height of unit | 5.00 m |
| Age range | 4+ |
| Number of users | 36 |
| Free fall height | 2.60 m |
| Heaviest component | 90 kg |
| Total weight | 680 kg |
| Assembly time | 5.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | anchor frame |
Play value and experience

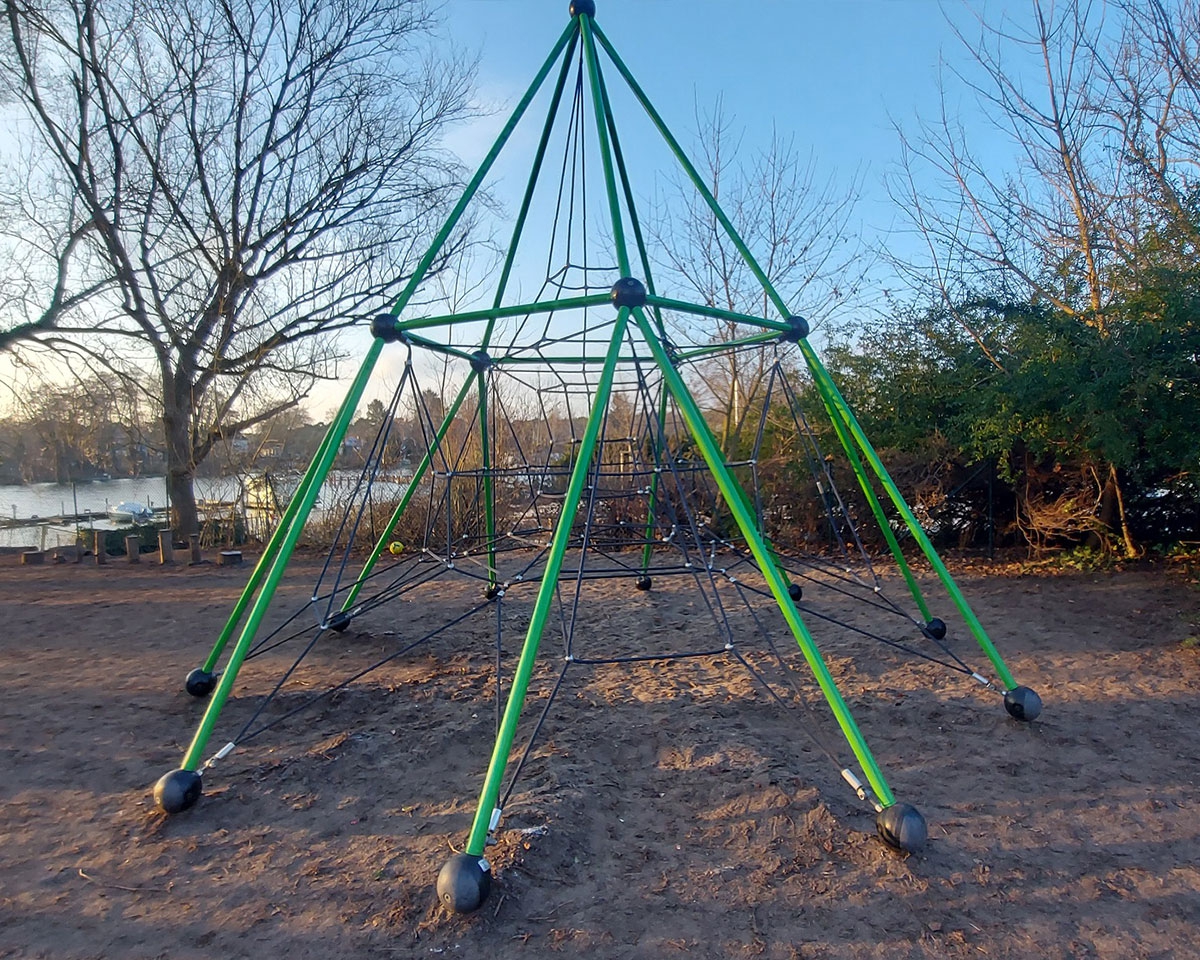

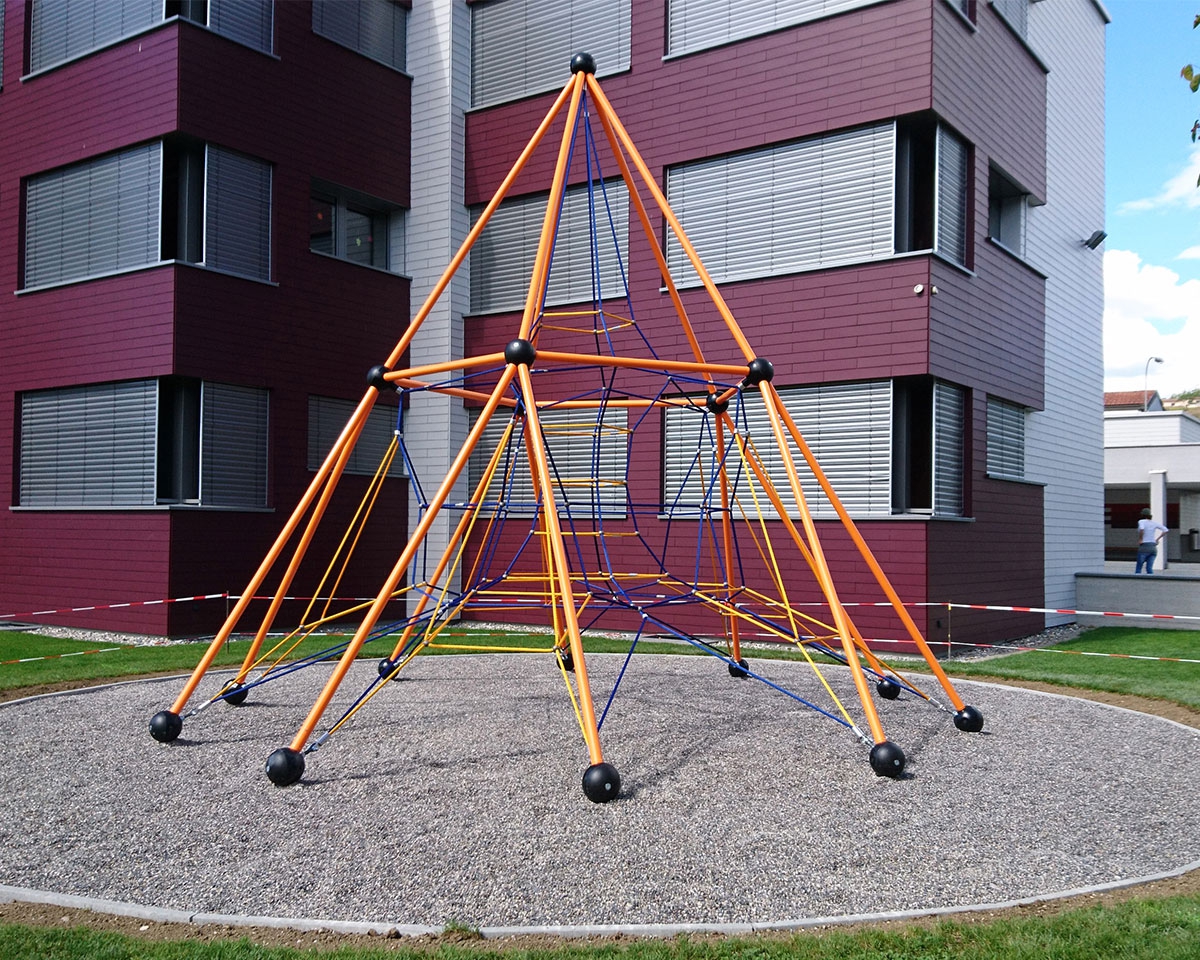

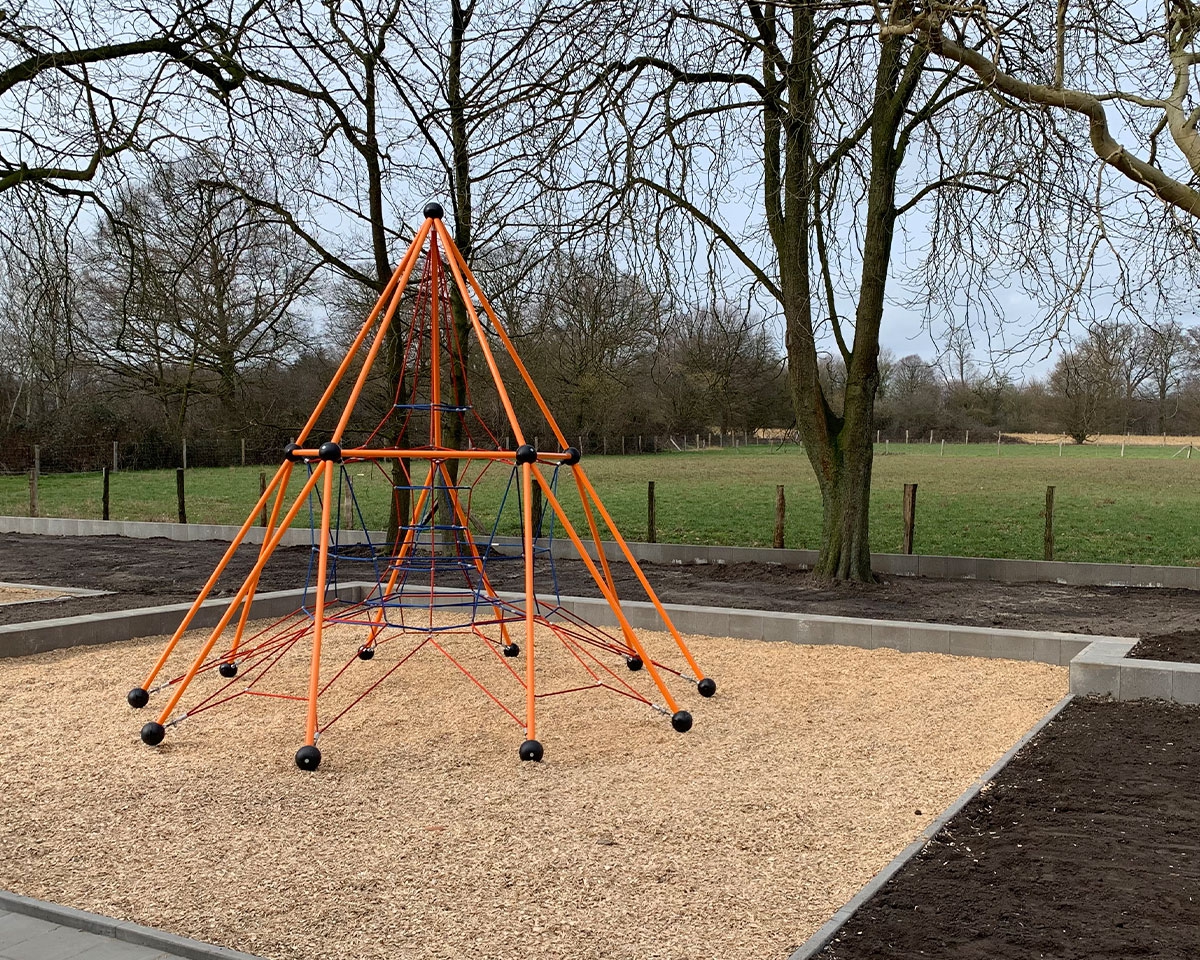

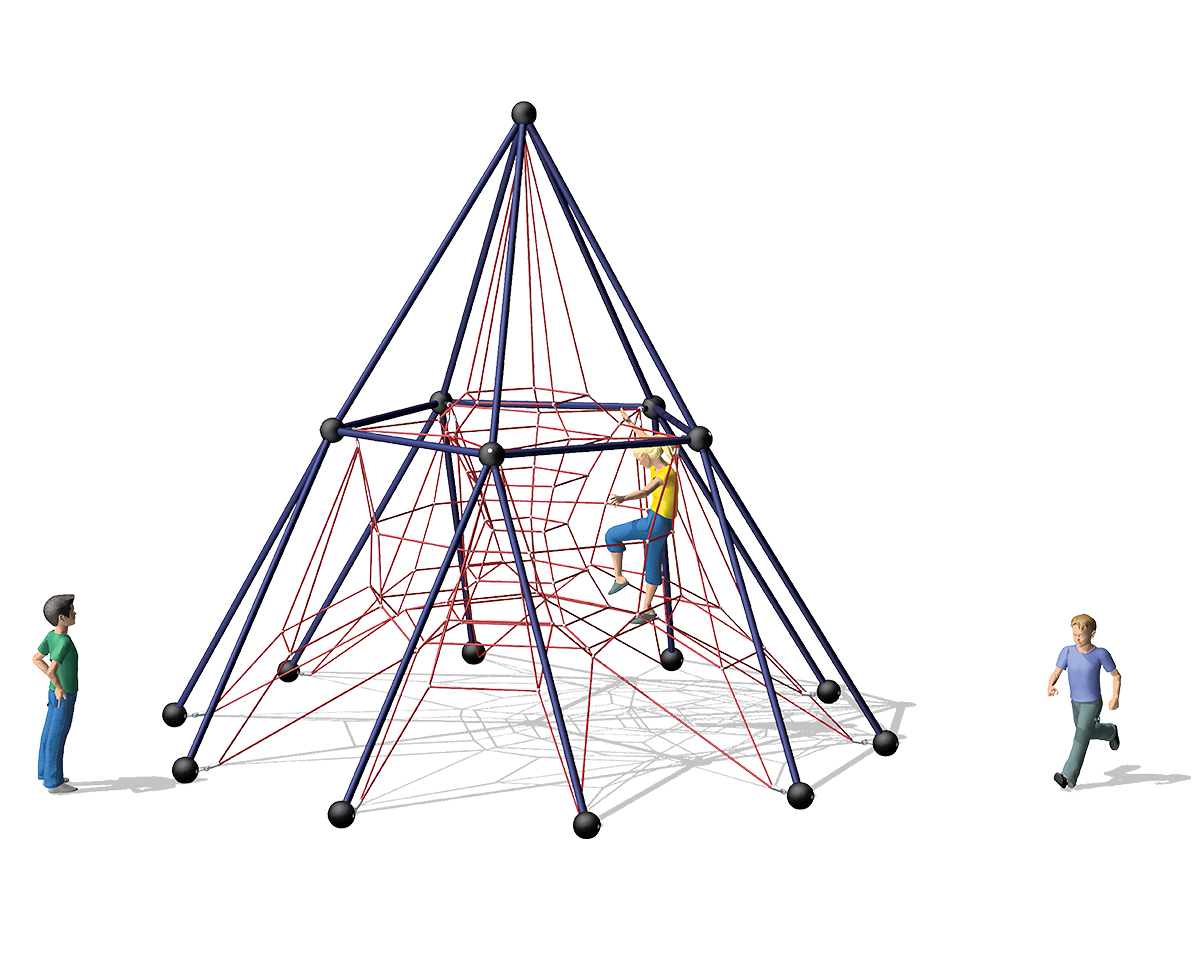

The Skyclimber® basic unit is a three dimensional climbing structure with an open and clearly defined form that enables children from the age of four to explore a wide range of movement routes in all directions and allows up to 36 users to climb, meet and find their own paths at the same time.
The spatial rope net can be climbed completely and encourages balance, coordination, strength control and three dimensional thinking while different heights and levels offer both easy and challenging routes for a wide range of abilities.
The approximately five metre high structure creates a strong sense of space and supports body awareness, orientation and self confidence through active movement.
Numerous encounter situations arise within the net, prompting users to pay attention to one another, cooperate and develop shared movement strategies, thereby strengthening communication, consideration and social interaction.
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Missouri green
Royal blue
Cosmos black
Silver grey
Nature
Autumn yellow
Possible additional elements
Climbing wall rectangular
Climbing wall triangular
Hand over hand ladder
Lying net
Slide
Climbing rope, internal
Climbing rope, external
Climbing ladder, internal
Hammock swing
Jungle bridge
V-bridge
Loop bridge
Bouncing bridge
Catwalk bridge
Rung bridge
Ropeway
Climbing net
Hand over hand loop rope
colorballs
Tender specification Skyclimber®
smb Skyclimber® basic unit
No. 3449001
Framework unit with dimensions: Ø 5.86 m, height 5.0 m; Required impact area: Ø 8.86 m;
Steel-tube framework made of Ø 60.3 mm steel tubes, protected against corrosion by spray zinc galvanizing and powder coating in a RAL color.
Hollow ball knots made of tempered steel with a diameter of 200 mm serve as connection points for the tubes and to accommodate the tension points on the space net. These are hot-dip galvanized and powder-coated in black (RAL 9005). The extremely robust polyamide (black) hollow ball cover seals the hollow ball knots after installation, protecting the tension points from weather conditions and unauthorized access.

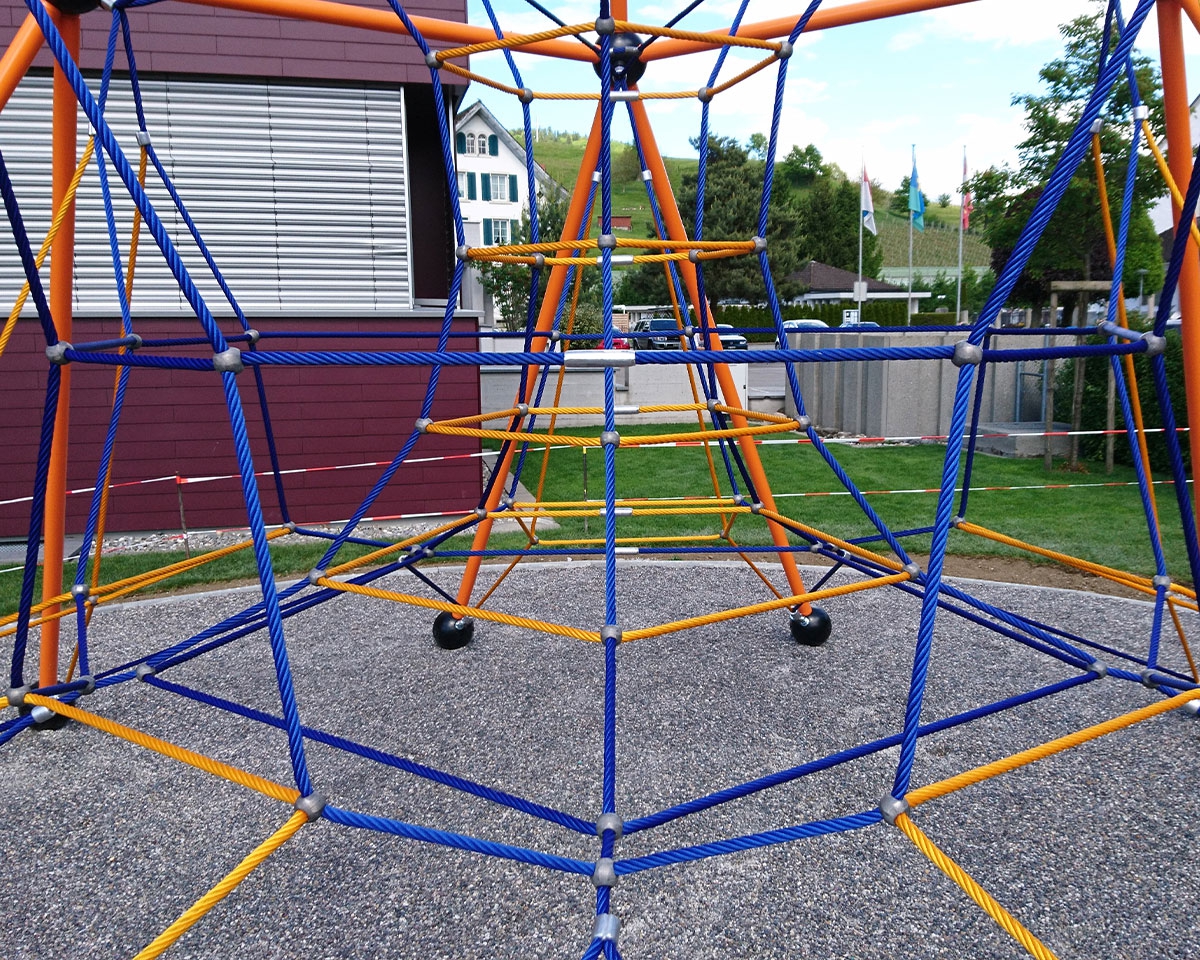

A 6-strand Hercules rope with a diameter of 18 mm is used to construct the space net; the rope intersections are hydraulically crimped using smb aluminum ball knots or smb aluminum T-clamps.
All ropes feature a durable, UV-resistant polyamide or polyester sheath. The space net is tensioned into the tubular framework using our SECUCOPE tensioning system, which makes installation and maintenance easy and allows multiple rope strands to be retensioned using a single tensioning point. This closed tensioning system completely eliminates the need for shackle and eyelet connections.
A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
