Hand over hand loop rope

No. 3449034

Number of users1 per meter
Assembly time0.50 hours
Installers2 persons
Length2.00 - 5.00 m

Play value and experience

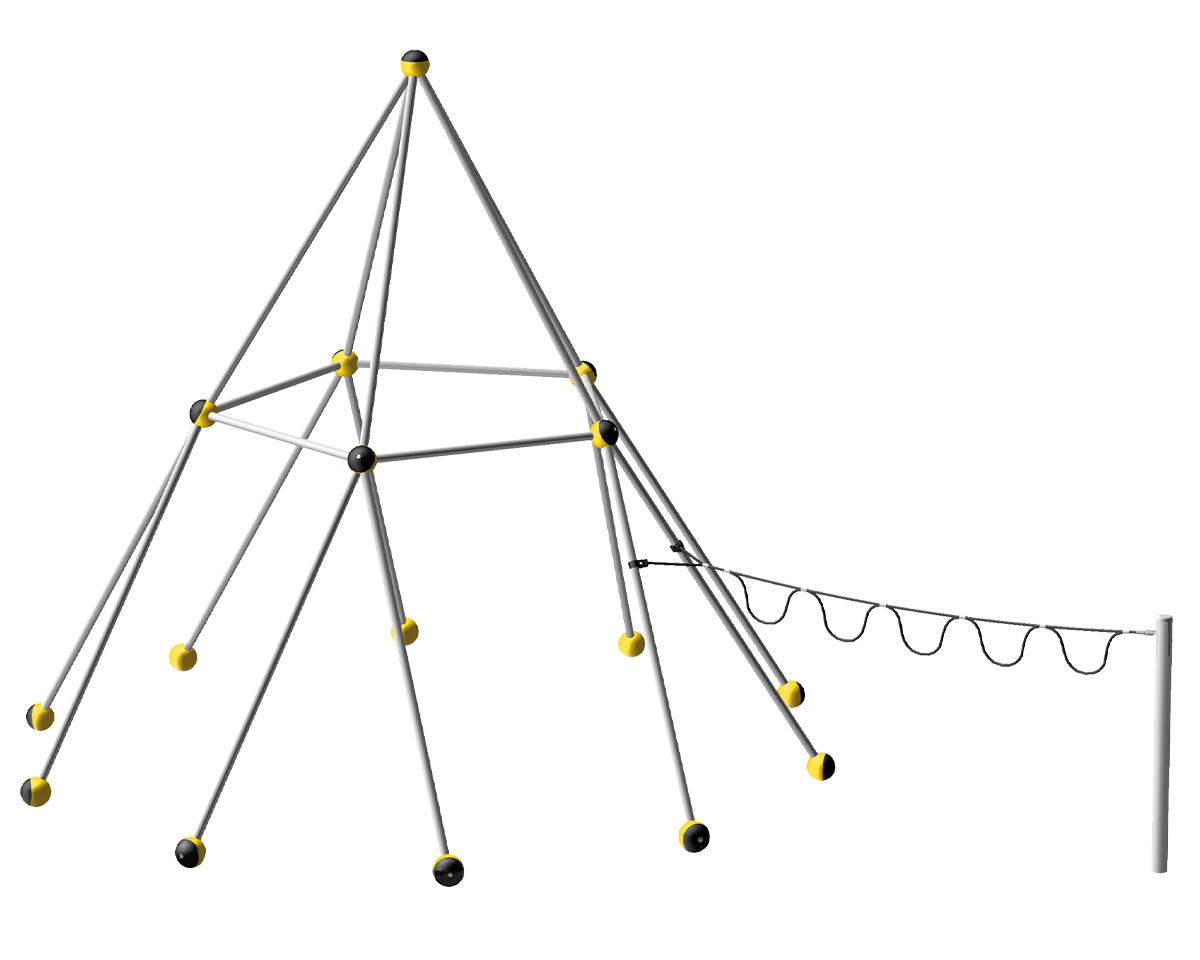

The hand over hand route consists of a loop rope that can be manufactured in lengths from 2 to 5 m and, due to its low installation height, deliberately creates a challenging movement situation for younger users.
The closely spaced loops allow first traversing experiences at an accessible height, yet the flexible suspension requires continuous adjustment of grip strength, body tension and rhythm.
Moving forward from loop to loop creates a flowing sequence of motion that develops endurance, coordination and awareness of the body’s centre of gravity while forming an exciting and demanding transition within the climbing structure.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Hand over hand loop rope

smb Hand over hand loop rope
consisting of:

smb Loop rope (first meter)
No. 3449034
Rope combination consisting of a horizontal rope with rope loops crimped onto it.
Made from 6-strand Hercules rope, 18 mm diameter, with a polyamide or polyester sheath.
The inner diameter of the rope loops is approx. 300 mm, and the distance between the centers of the rope loops is approx. 440 mm. The rope loops are crimped onto the horizontal rope using smb aluminum T-clamps. On the framework side, an additional rope is attached to the horizontal rope to create a V-shaped connection point on two framework tubes. Includes 2 smb tube clamps for attaching the fixing ropes to the framework tubes.

smb Loop rope (each following meter)
No. 34490340
Same design as the “first meter” model, but without end fittings and special accessories.

smb Loop rope entry post
No. 3449035
Made of Ø 108 mm steel tubing, attachment height 1700 mm, post height above play surface: approx. 1800 mm. Permanently protected against corrosion by hot-dip galvanizing and powder coating in a RAL color.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
