Climbing rope, external

No. 3449009

Number of users1
Assembly time0.25 hours
Installers1 person

Play value and experience
The external climbing rope adds an additional, freely accessible ascent point to the spatial structure and particularly challenges experienced climbers.
As a vertical route outside the net it requires precise gripping, strong pulling and stable body tension, while the freely moving rope demands continuous balance and forward planning of each move.
Climbing upward creates an intense spatial experience, builds confidence and encourages users to discover new ways into the structure. It also generates social play value, as waiting users watch, encourage and take turns when entering.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Climbing rope, external

smb Climbing rope, external, 3 m, post included
No. 3449009

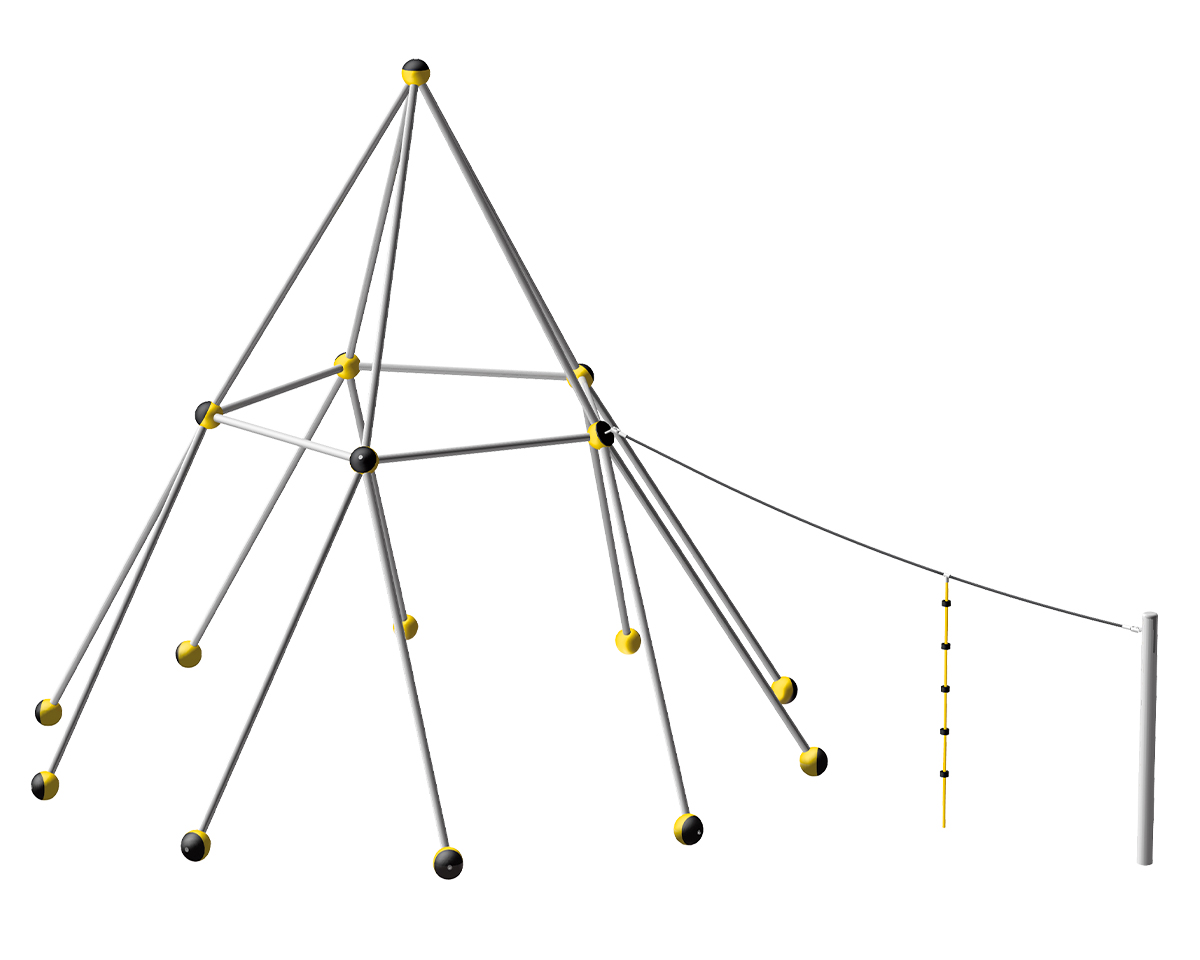

Combination of a horizontal suspension rope and a vertical climbing rope.
Installation takes place between a special hollow ball cover of the framework unit and a support post. The distance between the hollow ball and the post is 4000 mm.
Made of 6-strand Hercules rope, Ø 18 mm, with polyamide or polyester sheathing.
The length of the vertical rope from the play surface is approximately 2150 mm;
5 cylindrical climbing aids, each 60 mm in diameter and made of black plastic, are threaded onto the climbing rope and secured to it with screws. The lower attachment is made using an eye bolt that must be secured to an additional foundation.
The included support post is made of 108 mm diameter steel tubing and is permanently protected against corrosion by hot-dip galvanizing and powder coating in a RAL color; The post height above the playing surface is 1800 mm; the attachment height of the horizontal rope to the post is 1700 mm, and to the hollow ball approx. 2550 mm.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
