Bouncing bridge

No. 3449032

Number of users1 per meter
Assembly time0.50 hours
Installers2 persons
Length2.00 - 5.00 m

Play value and experience

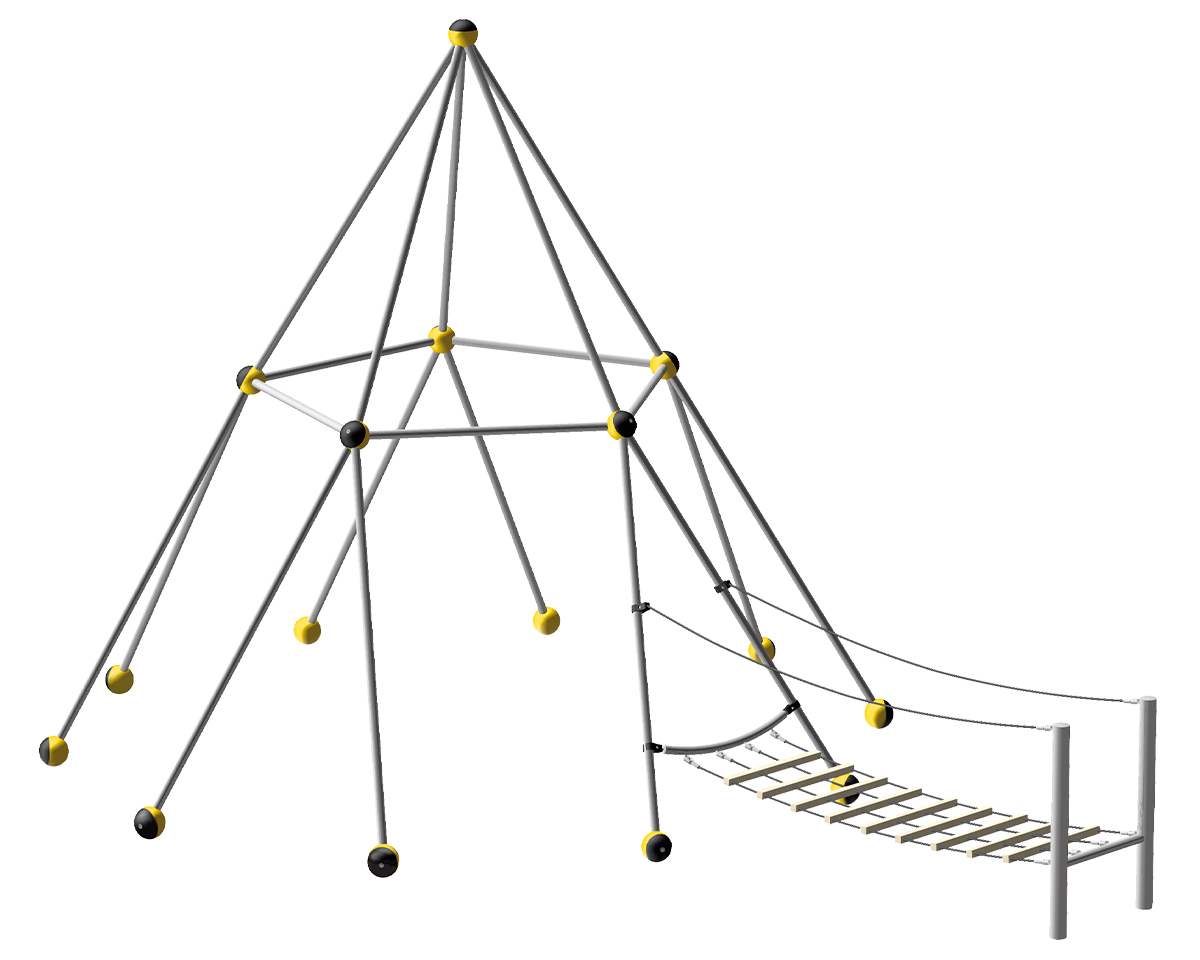

The bouncing bridge consists of wooden rungs attached to four lower ropes, forming a flexible, material rich walking surface, while two upper handrail ropes provide additional support.
The gentle, even sway creates a lively yet well controllable balance that feels secure while still demanding attention, rhythm and coordination, making the transition into the structure playful and motivating.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Bouncing bridge

smb Bouncing bridge
consisting of:

smb Bouncing bridge (first meter)
No. 3449032
Without support structure;
Rope net bridge made of six-strand Hercules rope, 16 mm diameter, with wooden rungs.
Model without side nets, featuring only a walking surface and two handrail ropes.
Entry height: 400 mm, post height above play surface: approx. 1350 mm (for bridge lengths of 5 m or more: 500 / 1450 mm), handrail rope attachment height: 850 mm, width: 750 mm (distance between handrail ropes). With robinia wood rungs (60 x 60 x 850 mm) threaded onto the tread cables; the clear spacing between the rungs is approx. 260 mm.
Includes special accessories for the basic unit, such as 1 tube bend Ø 60.3 mm for bridge mounting and 4 smb tube clamps for attaching the tube bend and the handrail ropes to the framework tubes. The tube bend not only serves as a mounting point for the bouncing bridge but also provides an entry aid from the bridge to the space net.

smb Bouncing bridge (each following meter)
No. 34490320
Same design as the “first meter” model, but without end fittings and special accessories.

smb Bouncing bridge entry post
No. 3449033
H-shaped support structure made of Ø 108 mm steel tubing with 2 cross tubes Ø 60.3 mm;
permanently corrosion protected by spray zinc galvanizing and powder coating in a RAL color.
Entry height: 400 mm, post height above play surface: approx. 1350 mm (for bridge lengths of 5 m or more: 500 / 1450 mm), total width: approx. 850 mm.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
