Ropeway

No. 3449022

Number of users1 per meter
Assembly time0.50 hours
Installers2 persons
Length2.00 - 5.00 m

Play value and experience

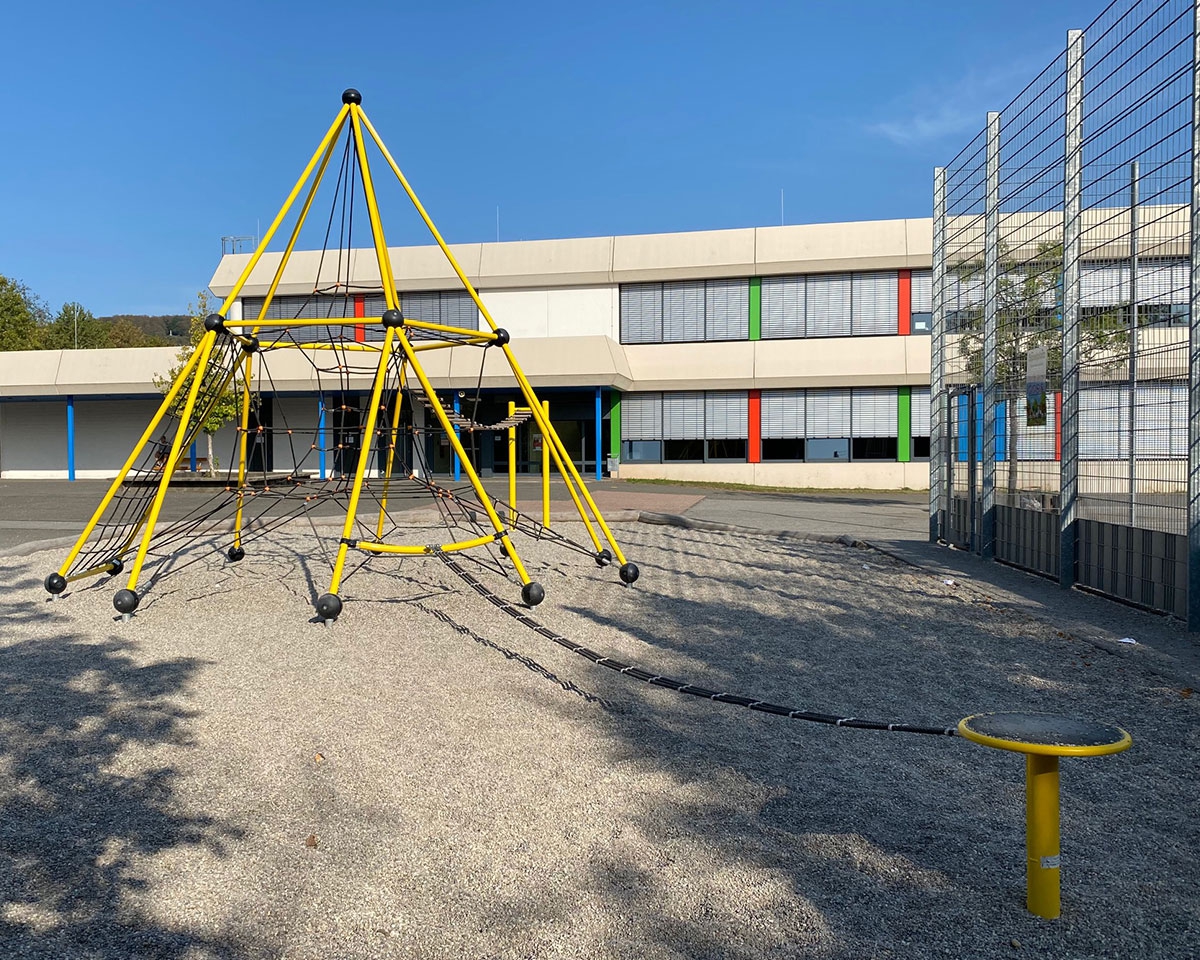

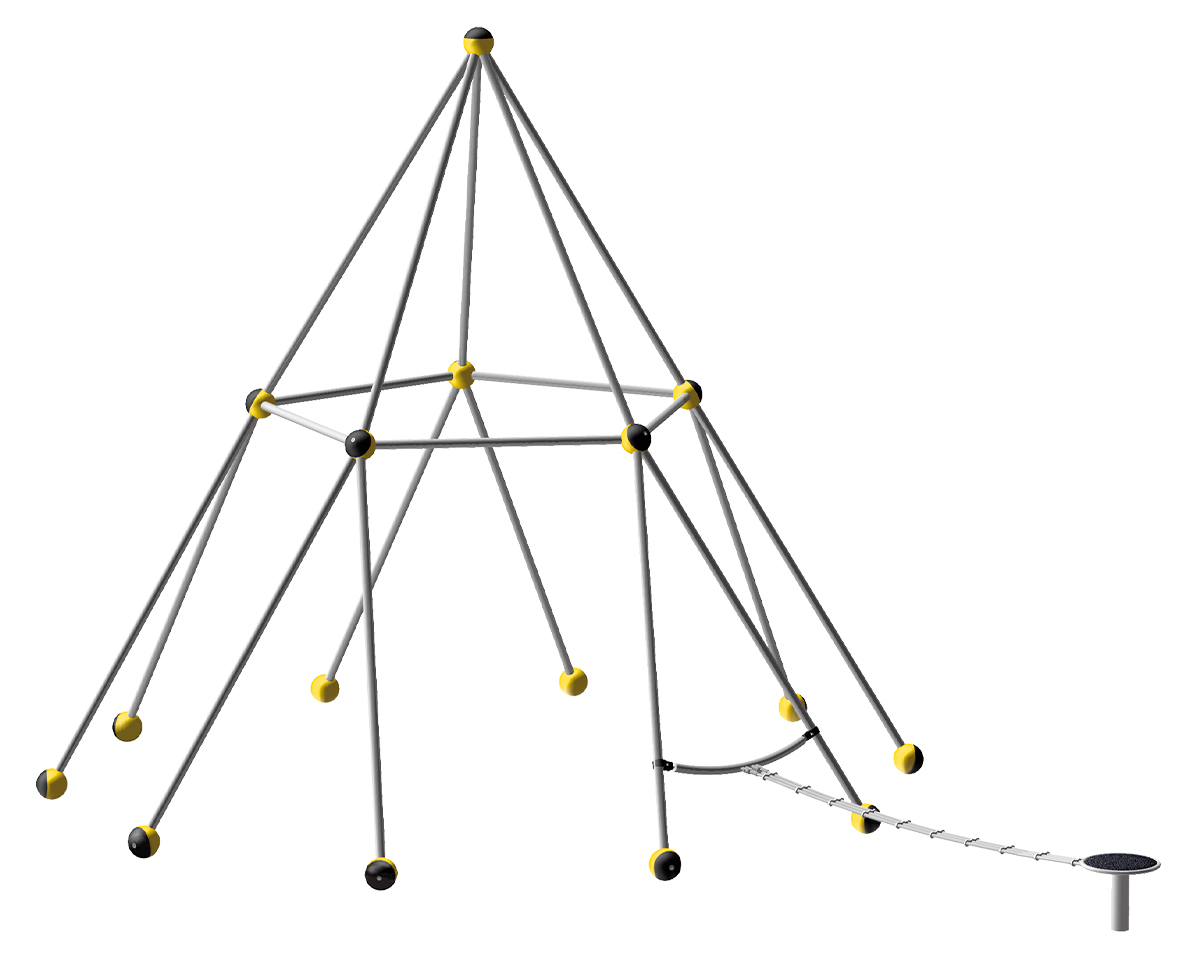

Ropeway Original connects the surrounding play area with the Skyclimber®, being attached on one side to the truss frame via a special bracket and on the other side to a Podium Circle S.
As a narrow and moving balancing element it forms a highly challenging entry route that requires a high level of balance, core stability and coordination and is particularly suited to advanced users.
The unstable rope surface demands precise weight shifting and strengthens motor control, concentration and confidence.
At the same time, the pathway remains clearly guided and allows a deliberate and self-directed entry into the structure.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

Tender specification Ropeway

smb Ropeway
No. 3449022

The ropeway consists of three robust Hercules ropes, each with a diameter of 20 mm, which are arranged side by side with a width of approx. 90 mm.
The three individual ropes are pressed together using special aluminum clamps.
The connection to the Podium circle S is made using two articulated M16 x 110 mm fork eye bolt connections.
An additional pipe bend with two welded M16 eye bolts is mounted on the Skyclimber to attach the floating band. The forks pressed onto the floating band are screwed onto these eye bolts.
This articulated connection ensures a long service life and enables optimum rope tension.

The steel pipe bow Ø 60.3 mm included in the scope of delivery is spray-galvanized and powder-coated in RAL color. It is fastened between the two sloping truss pipes with two smb pipe clamps TYPE S.
The pipe bend not only serves as a fastening for the suspension belt, but also provides an entry aid from the suspension belt to the Skyclimber's space net.

Color design: A wide range of colors is available for individual design.
