Jungle bridge

No. 3449015

Number of users1 per meter
Assembly time0.50 hours
Installers2 persons
Length2.00 - 5.00 m

Play value and experience

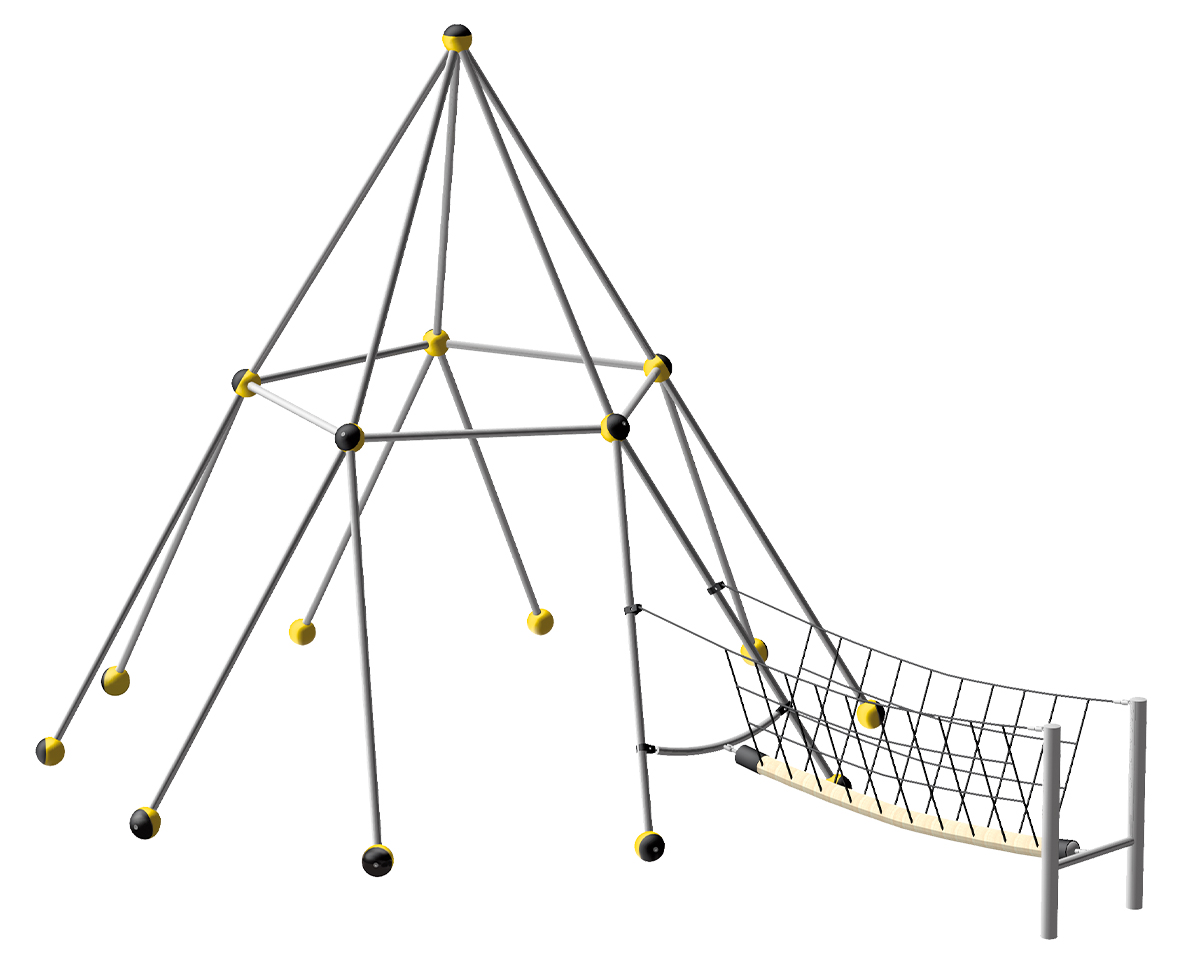

The jungle bridge connects the external play area with the Skyclimber® and creates an inviting, safe access point into the structure.
Walking across the moving rope with lateral hand support gives children the sensation of balancing on a real jungle rope while still being guided securely.
The flexible construction challenges balance, coordination and core stability and playfully prepares users for more complex climbing movements within the spatial net.
As a transition from ground level into the three dimensional structure it supports independent entry, encourages route finding and makes the first step into the climbing experience especially exciting.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Jungle bridge

smb Jungle bridge
consisting of:

smb Jungle bridge (first meter)
No. 3449015
Without support structure;
V-shaped rope net bridge with mooring rope made of six-strand polypropylene rope, Ø 130 mm, natural color; side nets and guardrail ropes made of 6-strand Hercules rope, Ø 16 mm.
Railing height approx. 850 mm, width: increasing from a tread width of 130 mm to 800 mm (distance between handrail cables). Distance between vertical ropes: min. 260 mm; side nets connected using smb stainless steel wire rope clamps; connections from the side nets to the handrail ropes using aluminum T-clamps. The mooring rope is pierced and threaded through the connecting lines to the side nets; both ends of the rope are sealed with thick-walled PE plastic sleeves, which secure the end fittings via an inserted steel plate. This prevents the rope ends from fraying or unraveling.
Includes special accessories for the basic unit, such as 1 tube bend Ø 60.3 mm for bridge mounting and 4 smb tube clamps for attaching the tube bend and the handrail cables to the framework tubes. The tube bend not only serves as a mounting point for the jungle bridge but also provides an entry aid from the bridge to the space net.

smb Jungle bridge (each following meter)
No. 34490150
Same design as the “first meter” model, but without end fittings and special accessories.

smb Jungle bridge entry post
No. 3449016
H-shaped support structure made of Ø 108 mm steel tubing with 2 cross tubes Ø 60.3 mm;
permanently corrosion protected by spray zinc galvanizing and powder coating in a RAL color.
Entry height: 400 mm, post height above play surface: approx. 1350 mm (for bridge lengths of 5 m or more: 500 / 1450 mm), total width: approx. 900 mm.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
