Climbing ladder, internal

No. 3449013

Number of users1
Assembly time0.25 hours
Installers1 person

Play value and experience

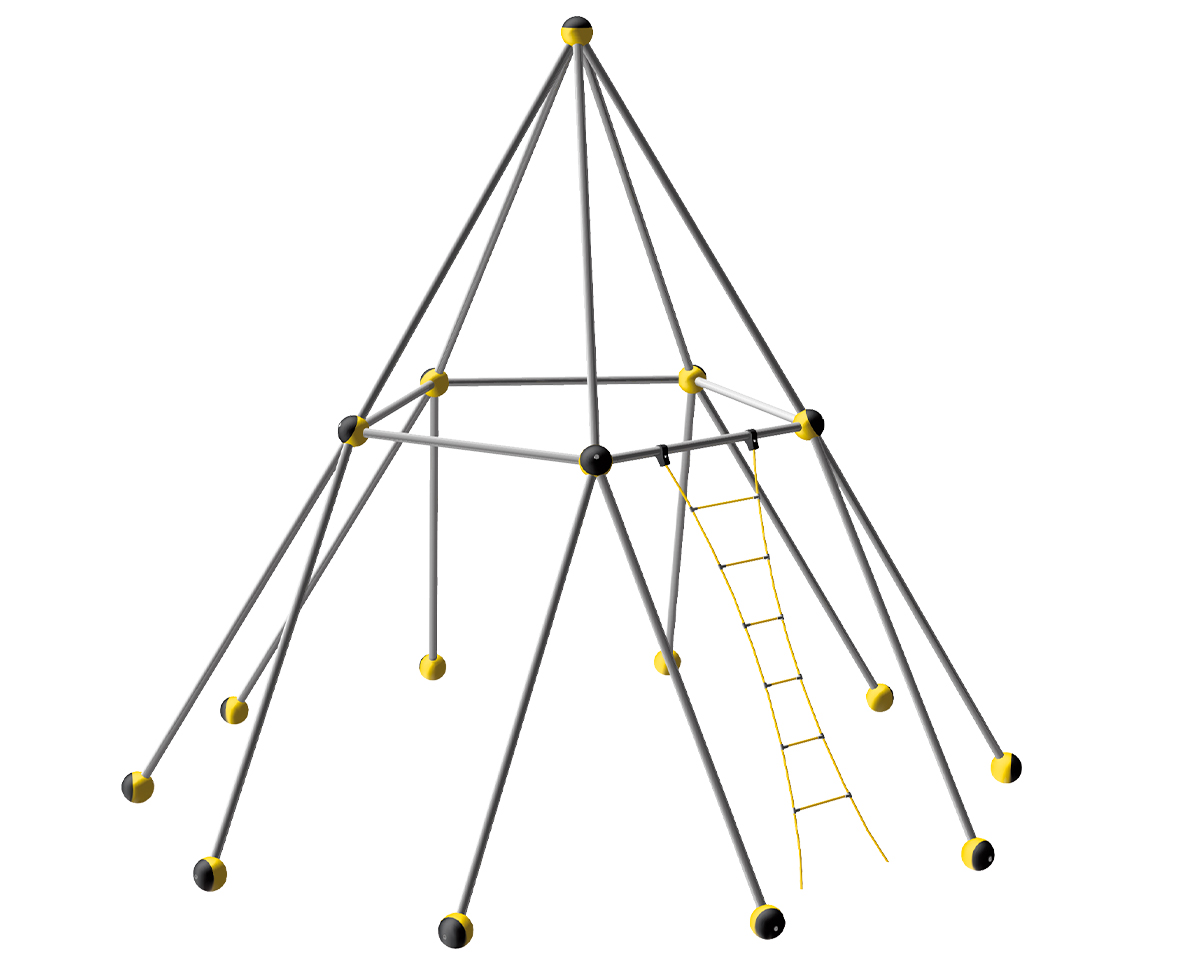

The internal climbing ladder is made entirely of rope, integrated into the three dimensional net structure of the Skyclimber® and attached to the truss frame as an additional access element.
The evenly spaced rope rungs allow first hand over hand experiences in a moving environment and require continuous adjustments of grip strength, body tension and coordination due to their flexible suspension.
Climbing up and down as well as transitioning sideways into the spatial net creates flowing movement sequences that support motor control, sense of rhythm and spatial awareness.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Climbing ladder, internal

smb Climbing ladder, internal
No. 3449013

Rope ladder with 7 cross ropes serving as rungs.
Made of Hercules rope, Ø 18 mm, length from play surface approx. 2500 mm, vertical spacing of the rungs approx. 330 mm. The cross ropes are available in various lengths from 265 to 580 mm, with both ends of the ladder tapering toward the center. The rungs are connected to the two vertical ropes using proven, hydraulically crimped aluminum T-clamps. The upper connection to the crossbar of the unit is made using two smb tube clamps included in the delivery; the lower connection is secured to the anchor frame with screws.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
