Hammock swing

No. 3449014

Number of users1
Assembly time0.50 hours
Installers1 person

Play value and experience

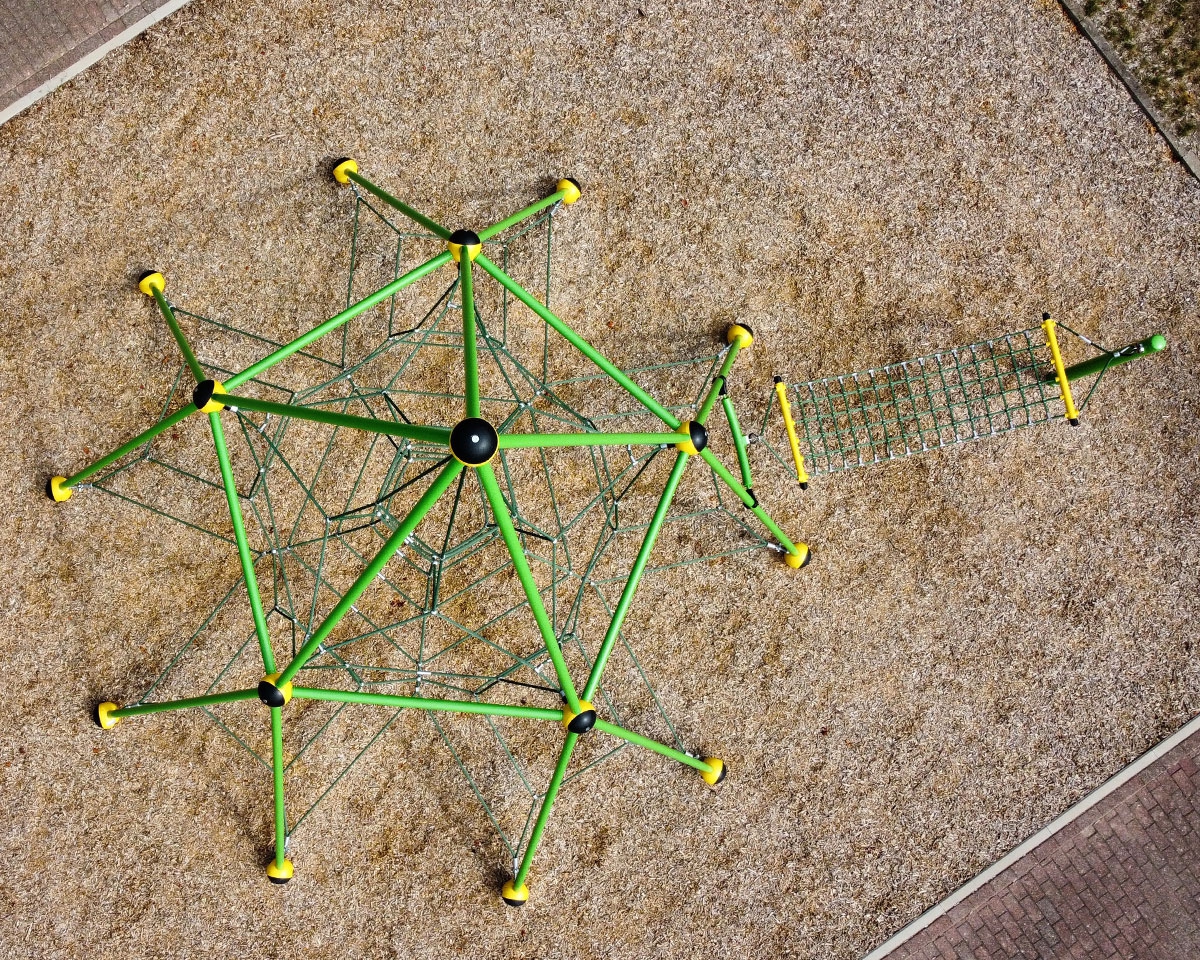

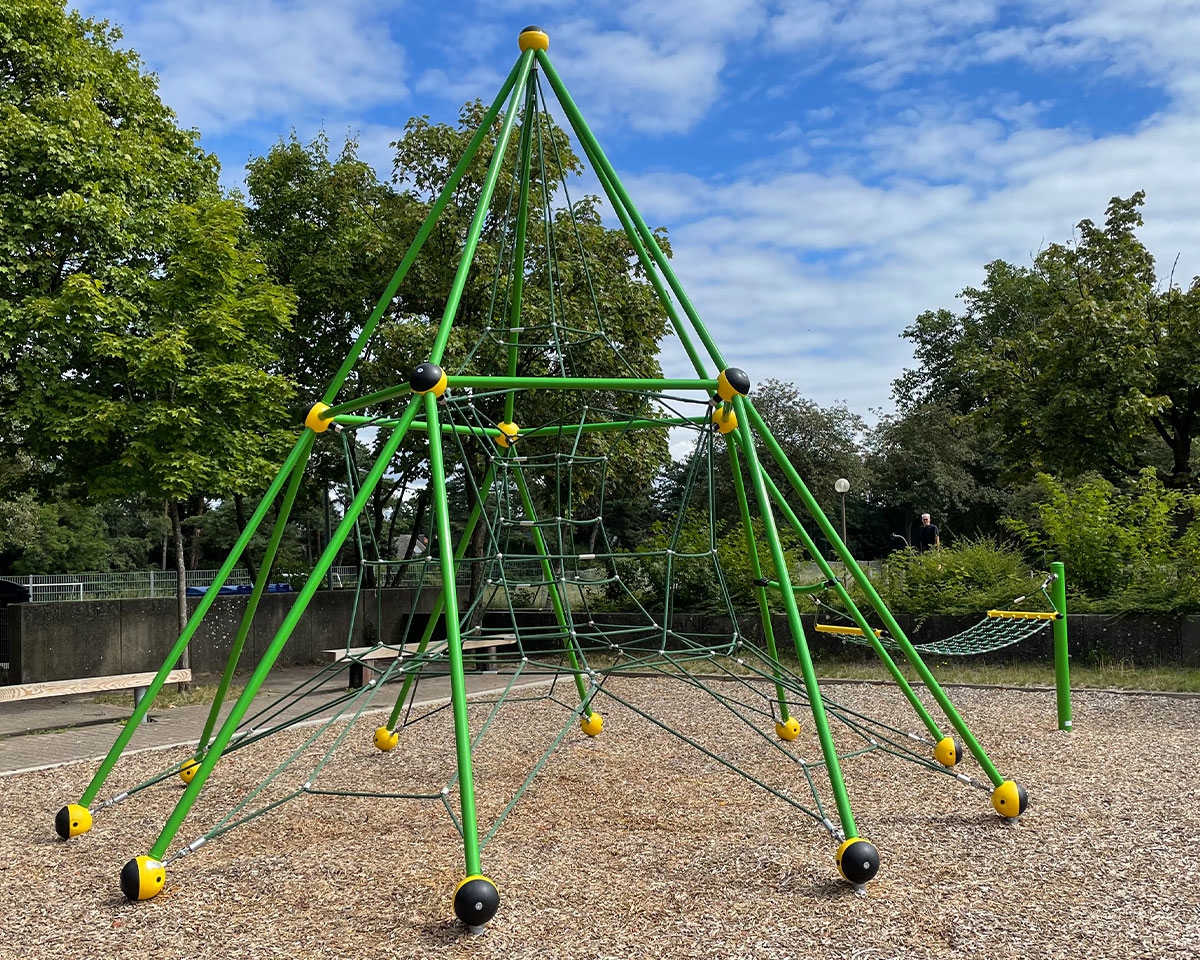

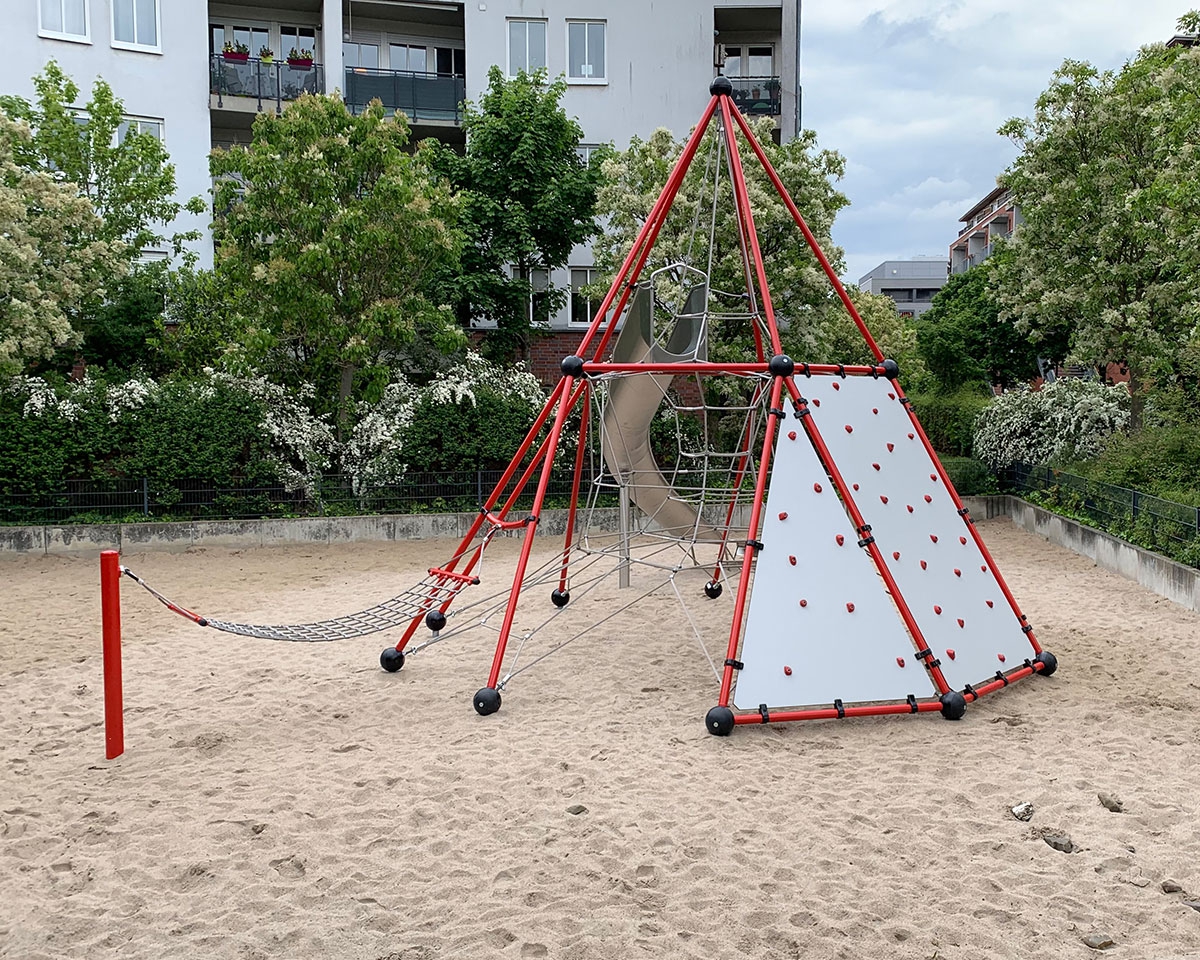

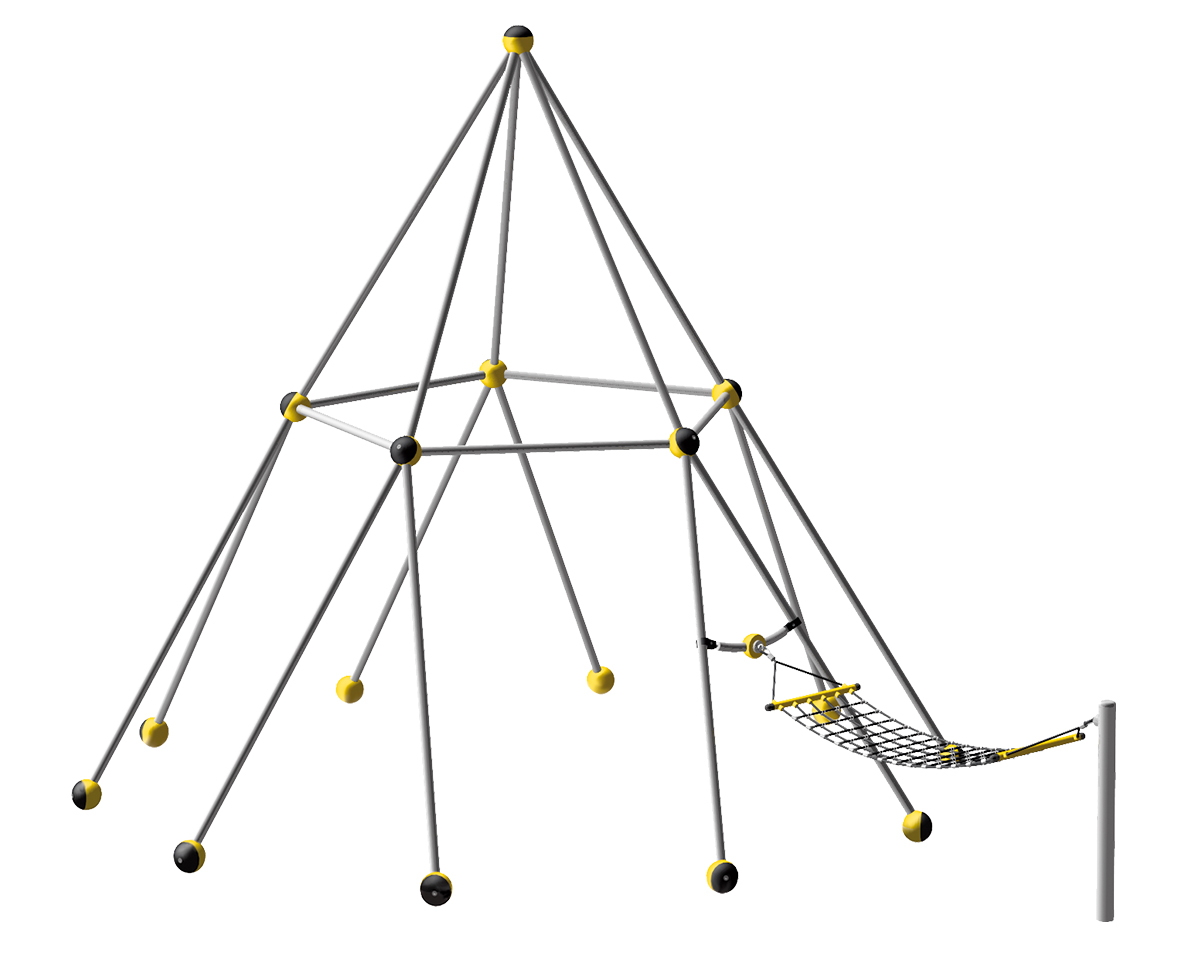

The hammock swing is mounted to the truss frame next to the Skyclimber® and creates a calm retreat beside the active climbing structure.
As a suspended surface it allows sitting, lying and gentle swinging, offering a clear counterpoint to dynamic climbing movements. Children can rest, observe, communicate and meet here before rejoining the climbing activity.
This combination of relaxation space and movement area creates smooth transitions between activity and participation and supports inclusive play for different needs and abilities.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Hammock swing

1x smb Hammock swing (post and attachments including)
No. 3449014
Length between spacers approx. 1900 mm,
Total length from center of tube bend to center of support post approx. 2900 mm, width 650 mm;
Includes end fasteners and special accessories for the basic unit, such as 1 tube bend (Ø 60.3 mm) for hammock mounting and 2 smb tube clamps for connecting the tube bend to the framework tubes.
Steel tube support post, Ø 108 mm, with a mount for the hammock, attachment height 1050 mm, total height of the post above the play surface: approx. 1160 mm.
Permanently corrosion-protected via hot-dip galvanizing and powder coating in a RAL color.
The hammock net is made of Hercules rope Ø 16 mm with a mesh size approx. 125 x 125 mm, rope connections with smb stainless steel wire rope clamps or aluminum T-clamps.
Double-sided, ball-bearing suspension made of V2A stainless steel; spacers made of spray zinc galvanized and powder-coated steel tube, Ø 60.3 mm.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
