Climbing wall rectangular

No. 3449005

Number of users3
Assembly time0.75 hours
Installers2 persons

Climbing wall rectangular (unicolor) climbing holds included

The climbing wall is made of a high-quality HPL material and is available in various colours.

Play value and experience

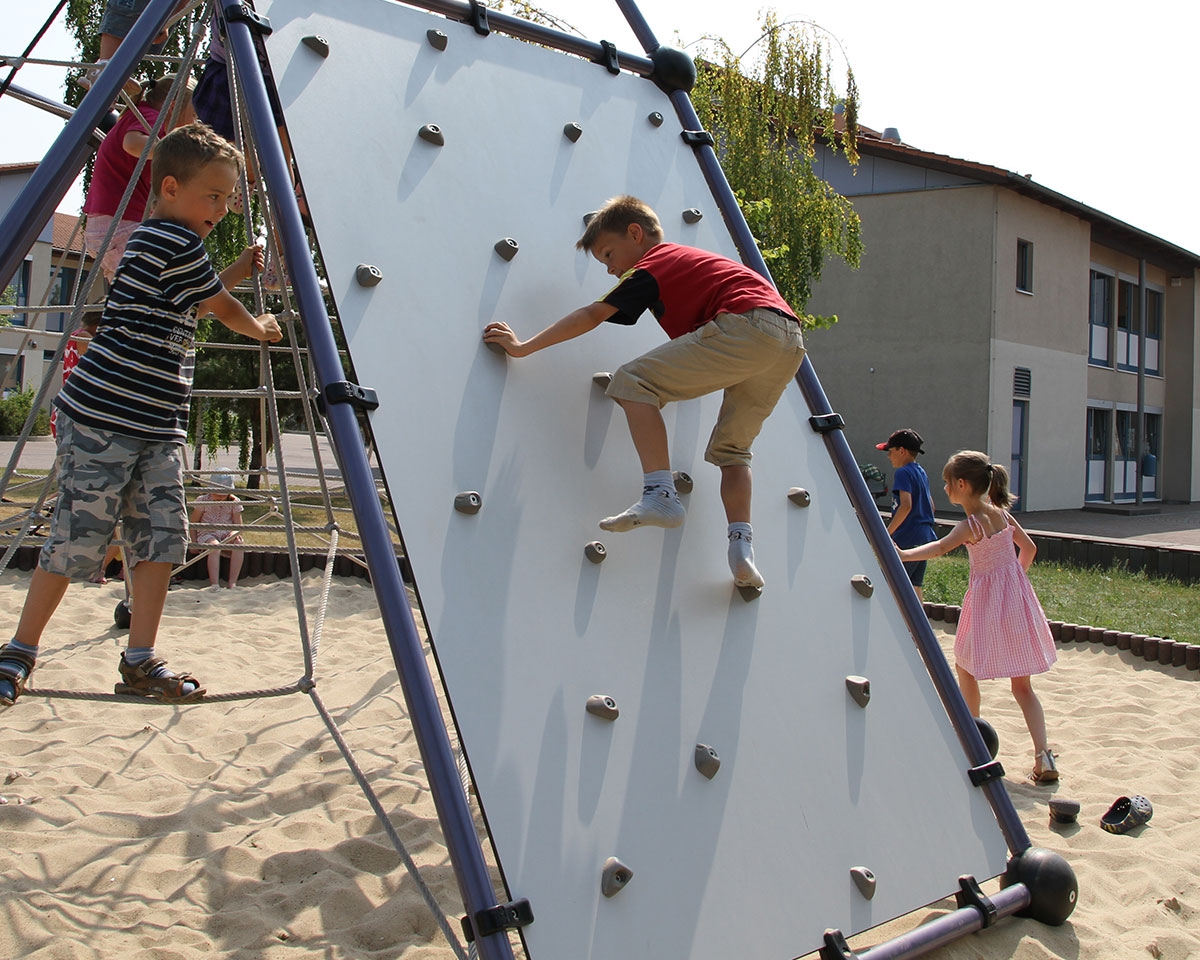

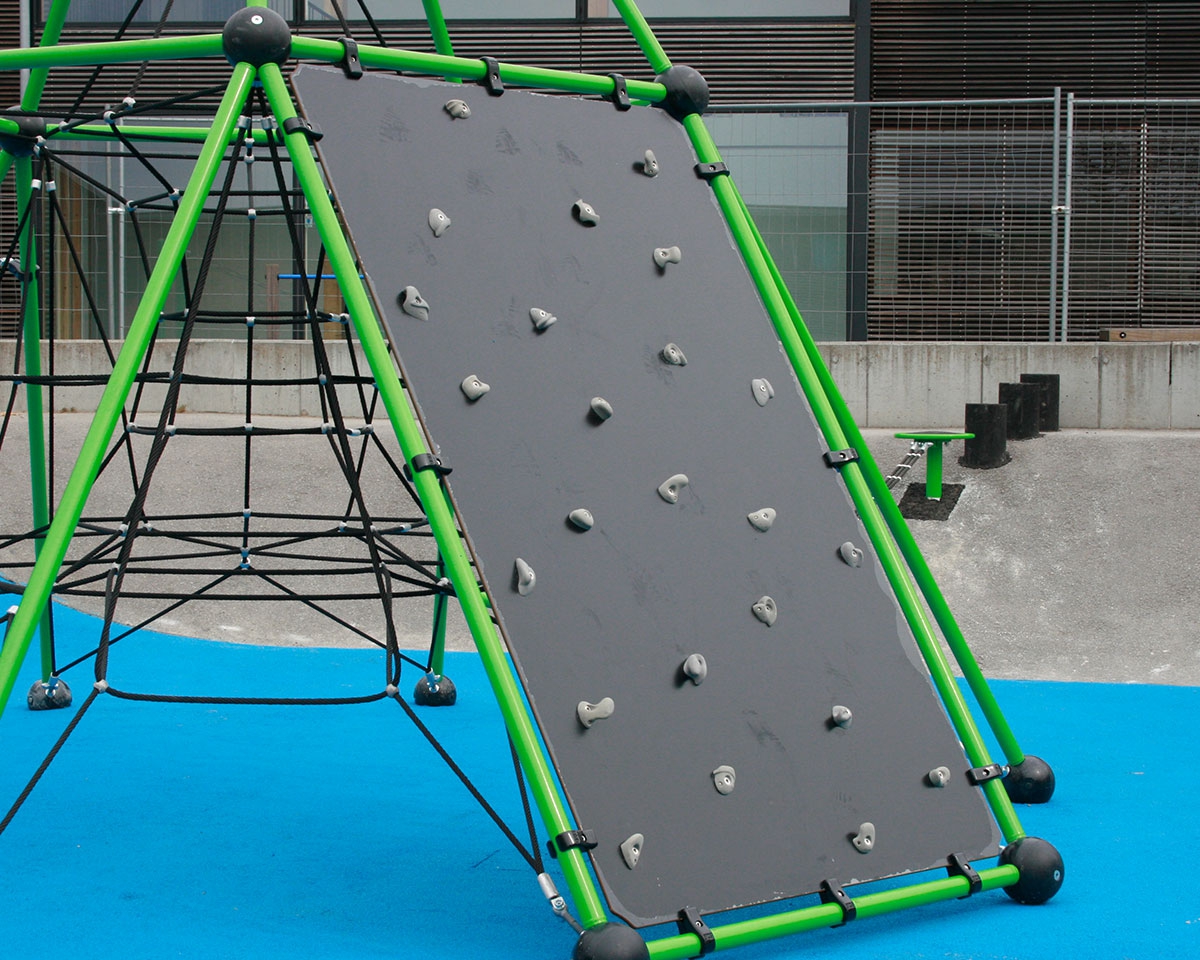

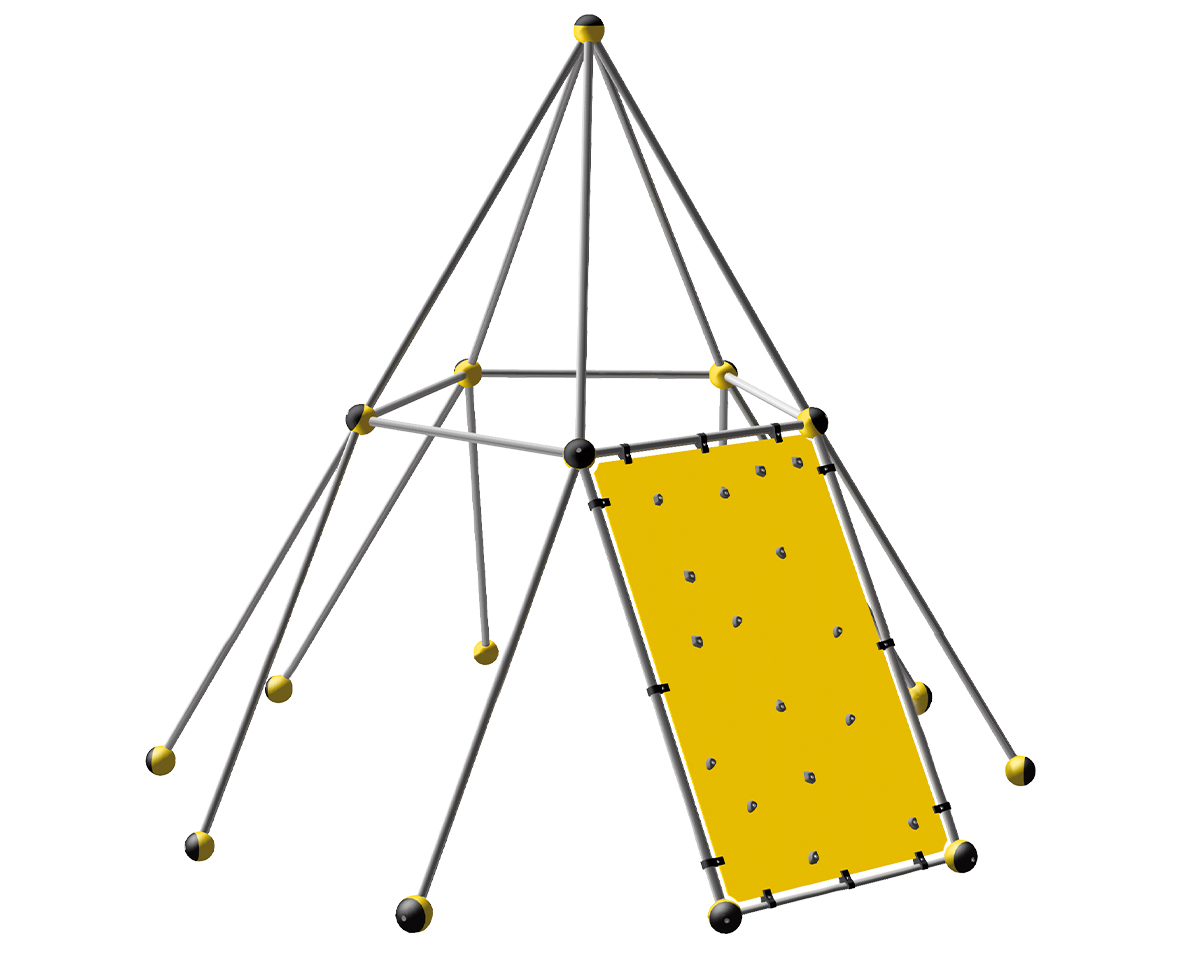

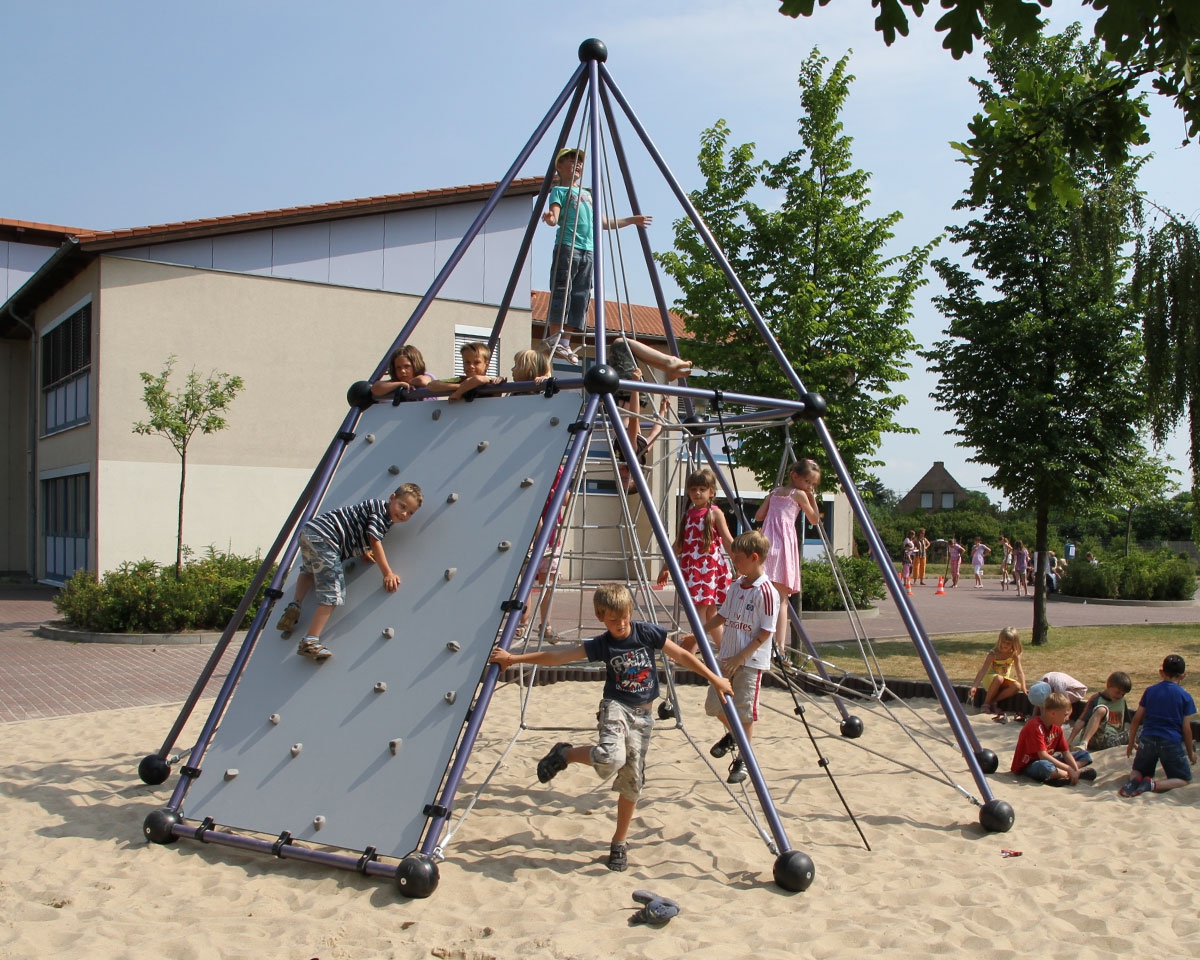

The rectangular climbing wall for Skyclimber® offers a clearly structured climbing surface that creates new vertical and horizontal routes within the three dimensional rope structure.
Irregularly arranged climbing holds provide varied grip positions and encourage children to plan their movements consciously, shift their weight precisely and try out different solutions when ascending or traversing.
This promotes strength, coordination and sure footedness while also supporting spatial orientation within the structure.
Individual colour choices for the panel and climbing holds according to the colour card allow for visual contrast and targeted design for inclusive play spaces, making routes easier to recognise and use.
The element expands the movement possibilities of the Skyclimber with a flat, tactile climbing task and creates additional meeting points, route options and opportunities for cooperative play.


Selectable colors for climbing walls

  • Stone greyStone grey
  • Oxide greenOxide green
  • Sunshine yellowSunshine yellow
  • Chilli redChilli red
  • AnthraciteAnthracite
  • Royal blueRoyal blue

Selectable colors for climbing holds

  • BlueBlue
  • YellowYellow
  • RedRed
  • GreenGreen
  • GreyGrey
  • VioletViolet

Note: Other colors are available on request.

Tender specification Climbing wall rectangular

smb Climbing wall rectangular
No. 3449005

Made from CNC-machined 13 mm thick HPL (High-Pressure Laminate) with excellent weather and UV resistance. Plate dimensions approx. 1620 x 2700 mm (WxH); includes 24 climbing holds mounted with zinc-plated screws and lock nuts, with the nuts covered by plastic protective caps. The climbing holds are manufactured using the patented EPS system, which prevents the hold or parts of it from falling off if it breaks. The climbing wall is attached to the tubular frame using 12 screw-on smb aluminum tube clamps, which are additionally powder-coated in RAL 9005, deep black. An additional horizontal framework tube for the lower attachment of the climbing wall is included in the scope of delivery.

Important:
When installing the climbing plate, the anchor frame must also be secured with ground anchors. These are included with the climbing plate.

A wide range of colors is available for the climbing plate and climbing holds, as shown in the smb ColorCard for rope play equipment.
