Climbing net

No. 3449012

Number of users1
Assembly time1.00 hour
Installers1 person

Play value and experience

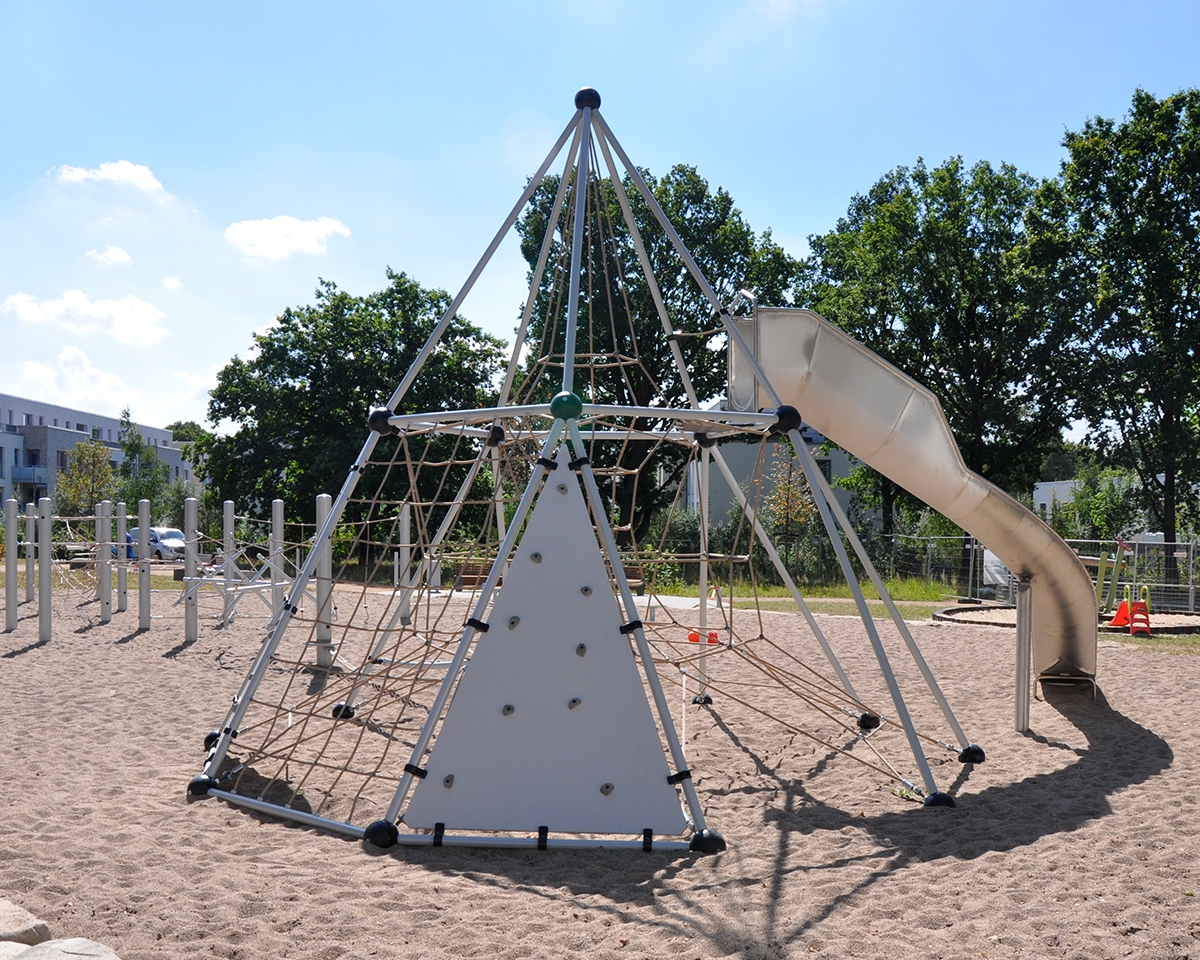

The large-mesh climbing net is installed as a laterally integrated add-on element on the Skyclimber® truss frame and creates an additional climbing surface with clearly defined movement tasks.
The wide mesh openings allow climbing over and diagonal routes as well as smooth transitions into the three-dimensional rope structure, promoting grip strength, secure foot placement, coordination and spatial awareness.
The flexible rope tension generates a dynamic, responsive balance that intensively trains body tension, movement planning and controlled climbing in the ropes.


Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Climbing net

smb Climbing net
No. 3449012

Made from 6-strand Hercules rope, Ø 16 mm, with a polyamide or polyester sheath.

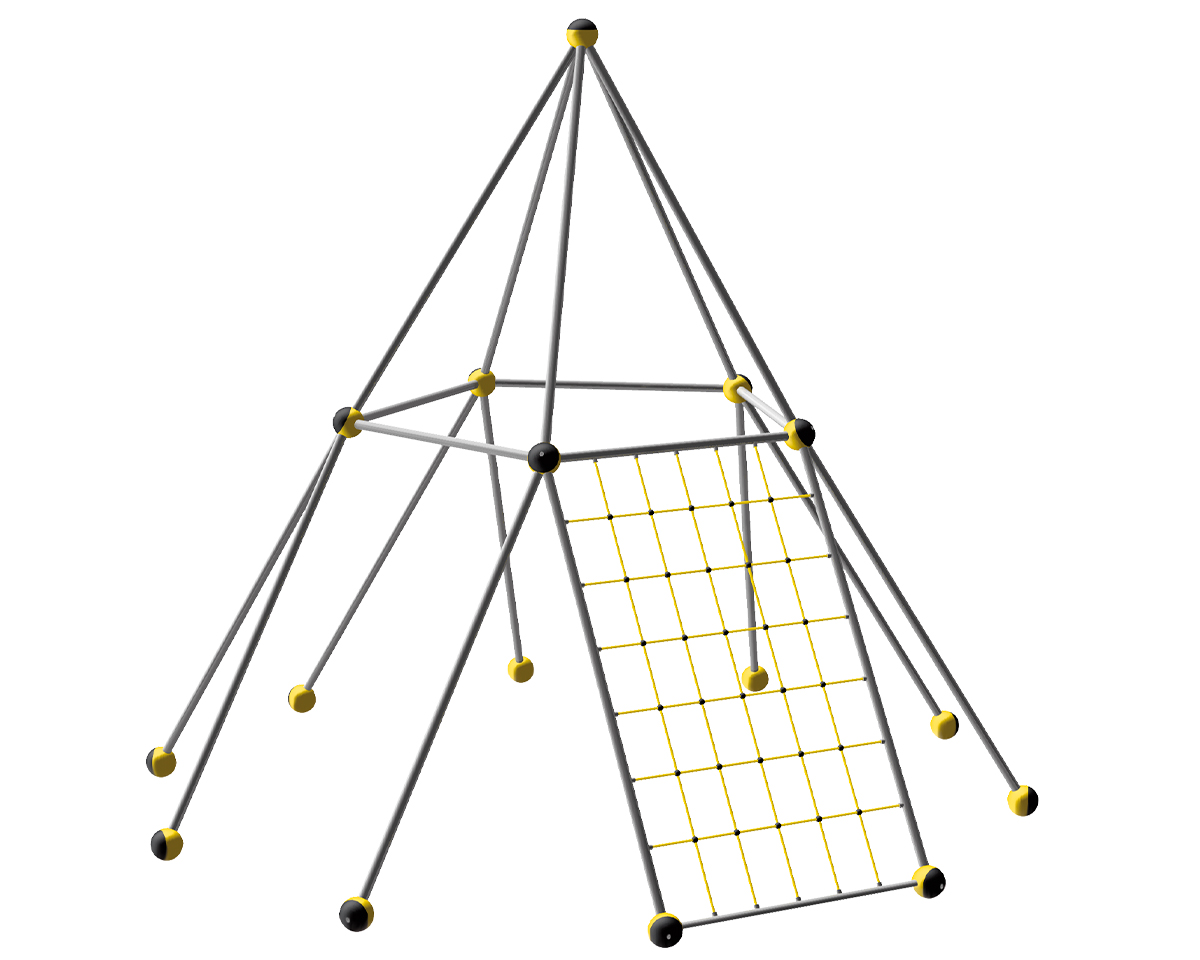

The net measures approx. 1700 x 2800 mm and provides an additional climbing option on the outside of the climbing frame. The rope intersections are connected using smb stainless steel wire rope clamps; the mesh size is approx. 280 x 300 mm.
The mounting is achieved using 26 ROWOCON sleeves secured in the framework tubes, with no exposed screw connections. An additional horizontal framework tube for the lower connection of the mesh is included in the scope of delivery.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
