V-bridge

No. 3449017

Number of users1 per meter
Assembly time0.50 hours
Installers2 persons
Length2.00 - 5.00 m

Play value and experience

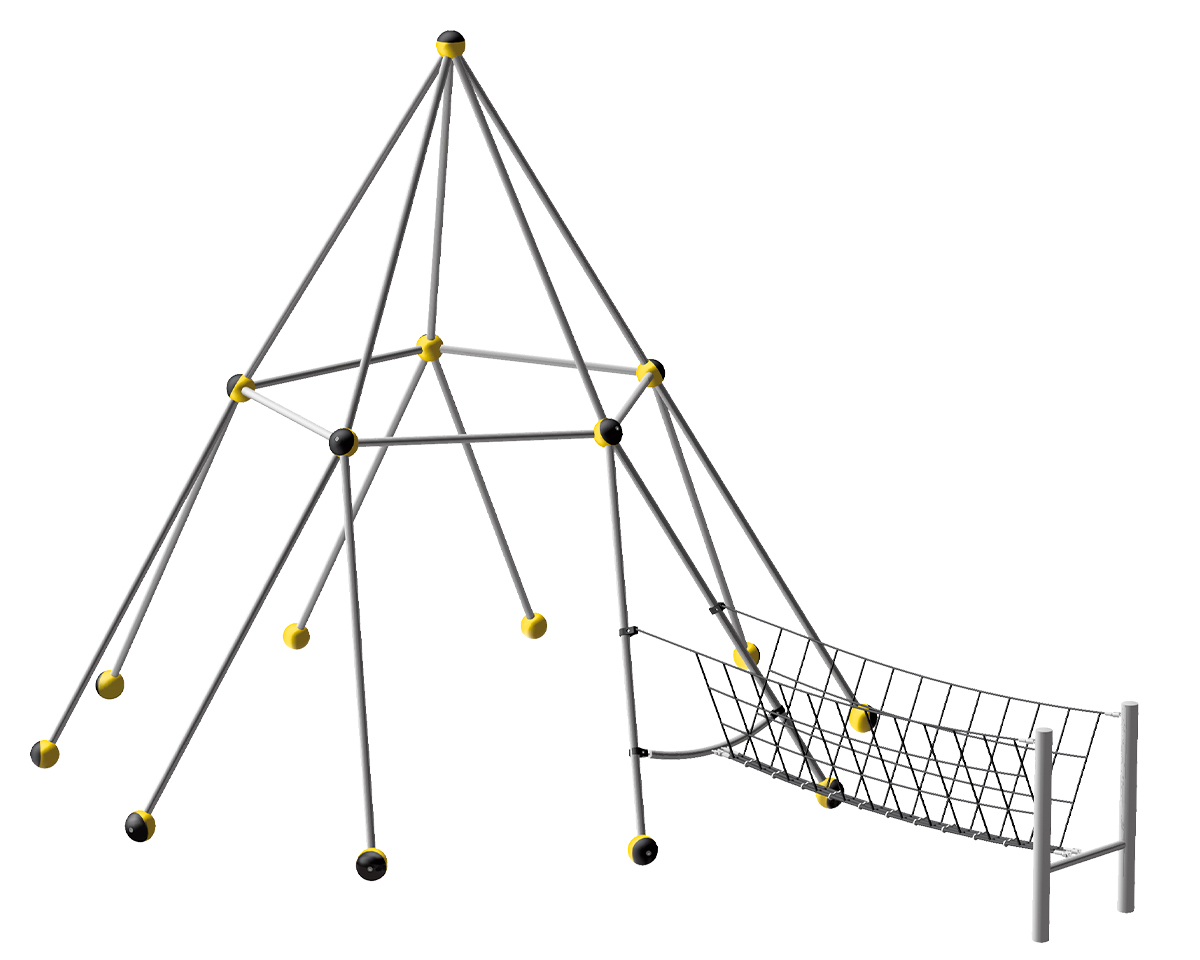

The V-bridge connects the external play area with the interior of the Skyclimber® and serves as a dynamic transition into the three dimensional net structure.
Instead of a jungle rope, ropes form the walking level, moving with every step and creating a responsive balance challenge.
With hand support it provides a safe yet demanding access into the unit, requiring continuous adjustment of grip strength, body tension and coordination.
The moving pathway supports the entry while still challenging attention, rhythm and spatial awareness, turning the transition from ground level into climbing into a consciously experienced movement sequence.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification V-Bridge

smb V-bridge
consisting of:

smb V-bridge (first meter)
No. 3449017
Without support structure;
V-shaped rope net bridge made of six-strand Hercules rope, Ø 16 mm;
railing height approx. 850 mm, width: starting at 90 mm and increasing to 800 mm (distance between handrail ropes). Distance between vertical ropes: min. 260 mm; side nets connected using smb stainless steel wire rope clamps; connections from the side nets to the handrail ropes using aluminum T-clamps.
Includes special accessories for the basic unit, such as 1 tube bend Ø 60.3 mm for bridge mounting and 4 smb tube clamps for attaching the tube bend and the handrail cables to the framework tubes. The tube bend not only serves as a mounting point for the V-bridge but also provides an entry aid from the bridge to the space net.

smb V-bridge (each following meter)
No. 34490170
Same design as the “first meter” model, but without end fittings and special accessories.

smb V-bridge entry post
No. 3449018
H-shaped support structure made of Ø 108 mm steel tubing with 2 cross tubes Ø 60.3 mm;
permanently corrosion protected by spray zinc galvanizing galvanizing and powder coating in a RAL color. Entry height: 400 mm, post height above play surface: approx. 1350 mm (for bridge lengths of 5 m or more: 500 / 1450 mm), total width: approx. 900 mm.

A wide range of colors is available for the ropes and steel components (for aluminum ball knots at an additional charge) in accordance with the smb ColorCard for rope play equipment.
