• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Information: A large number of further colors of the RAL-system or other color systems are possible.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

• Pearl white
  ≈ RAL 1013
• Beige
  ≈ RAL 1001
• Brick red
  ≈ RAL 3016
• Sky blue
  ≈ RAL 5015
• May green
  ≈ RAL 6017
• Black
  ≈ RAL 9004

Information: A large number of further colors are possible.

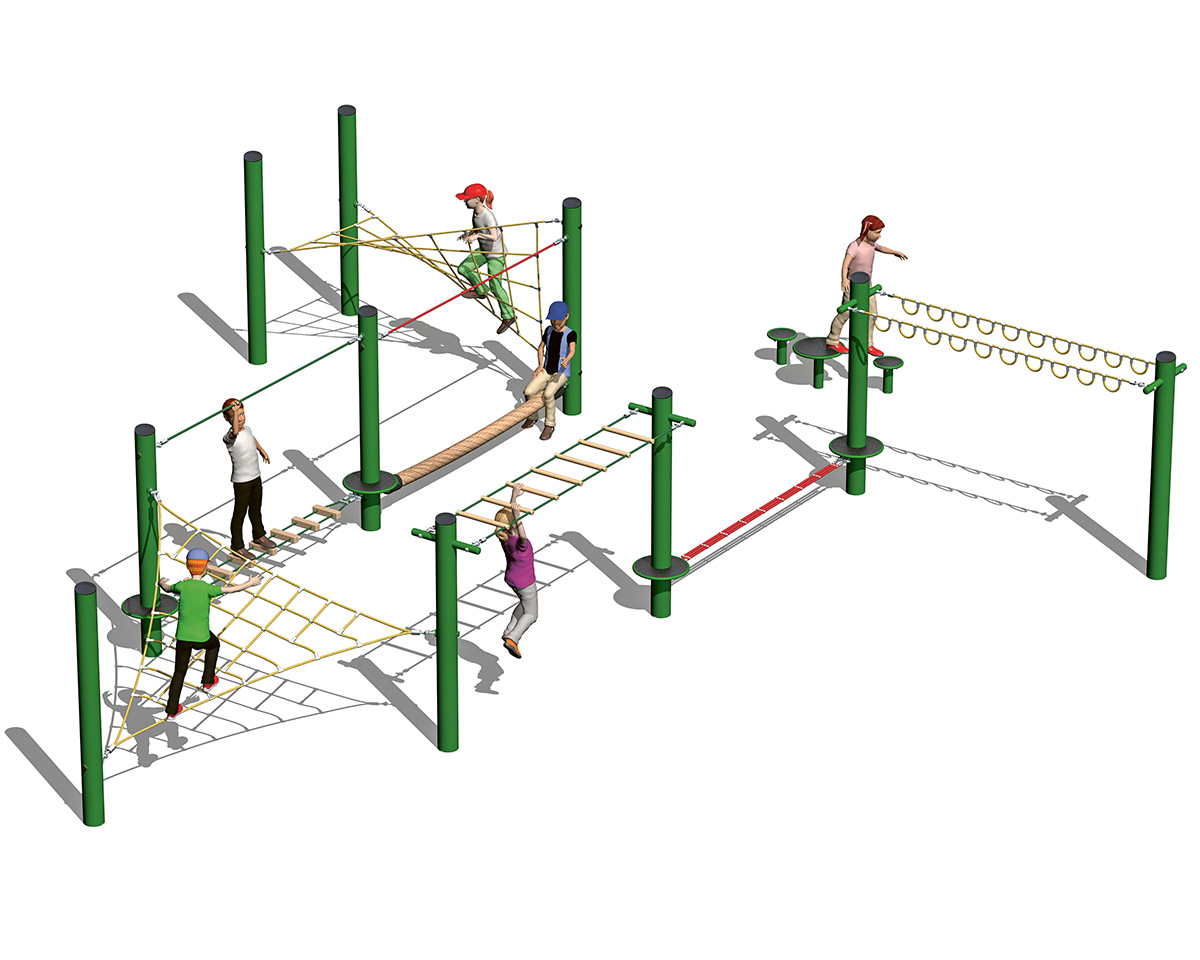

smb Adventure Park Junior Variant 8
No. 7220047
consistings of:

1x Jungle Lounge (3.00 x 3.00 x 3.00 m)
No. 7218053
The Jungle Lounge is an inclined play, seating, and reclining net made of sturdy Hercules ropes (Ø 18 mm) with galvanized steel strands and a durable, easy-grip polyamide and polyester yarn coating. The net intersections are connected using smb aluminum ball knots, and the outer sides of the net are attached to the edge ropes using aluminum T-clamps.
The net ends are connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M20) ensures a long service life and enables optimum rope tension.
The post spacing is 3.00 x 3.00 x 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Flea ladder (3,00 m)
No. 7218012
The flea ladder consists of two robust Hercules ropes, Ø 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The 500 mm long rungs are made of robinia wood with a Ø of 40 mm and are threaded onto the two ropes at intervals of approx. 350 mm and screwed in place.
The flea ladder is attached using an articulated fork eye bolt tensioning system M16 x 110 mm and sleeve nuts M16 x 50 mm to cross tubes (Ø 60.3 mm) welded to the support posts.
The cross tubes are permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Depending on the manufacturing length, the flea ladder is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Ropeway Original (3.00 m)
No. 7216001
The ropeway Original consists of three robust Hercules ropes, each with a diameter of 20 mm, which are arranged side by side with a width of approx. 90 mm.
The ropeway Original is attached with two M16 x 110 mm articulated fork eye bolt connections. The ropes are pressed together using special aluminum clamps.
This articulated connection ensures a long service life and enables optimal rope tension.
The ropeway Original is attached to the Twirlcon connection ring, the platform pedestal, or the platform plate with a round base. The platform plates are coated with rubber granulate.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Monkey swing (3.00 m)
No. 7218013
The Monkey Swing consists of robust Hercules ropes Ø 18 mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
Attached to the two parallel horizontal ropes are a series of rope loops arranged in a row. The number of hanging loops varies depending on the length of the element.
The Monkey Swing is connected to the support structure using a flexible tensioning system with fork eye bolts M16 × 110 mm and sleeve nuts M16 × 50 mm. The ropes are fixed to crossbars Ø 60.3 mm, which are welded to the support posts. These crossbars are permanently protected against corrosion by hot-dip galvanization followed by a powder coating in a RAL color of choice.
Depending on the production length, the Monkey Swing is suitable for a post spacing of up to 5.00 m (post center to post center).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Centipede (3.00 m)
No. 7218011
The centipede consists of robust Hercules ropes (Ø 16 mm and Ø 20 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating. The rungs, made of robinia wood with a square profile of 60 x 60 and a length of 260 mm, are threaded onto two ropes at intervals of approx. 290 mm and screwed in place.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system.
The rung element is connected to the respective platform plates (round base Ø 480 welded to the support posts and coated with rubber granulate) via an articulated fork-eye bolt connection. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the millipede is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Jungle bridge (3.00 m)
No. 7218014
The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

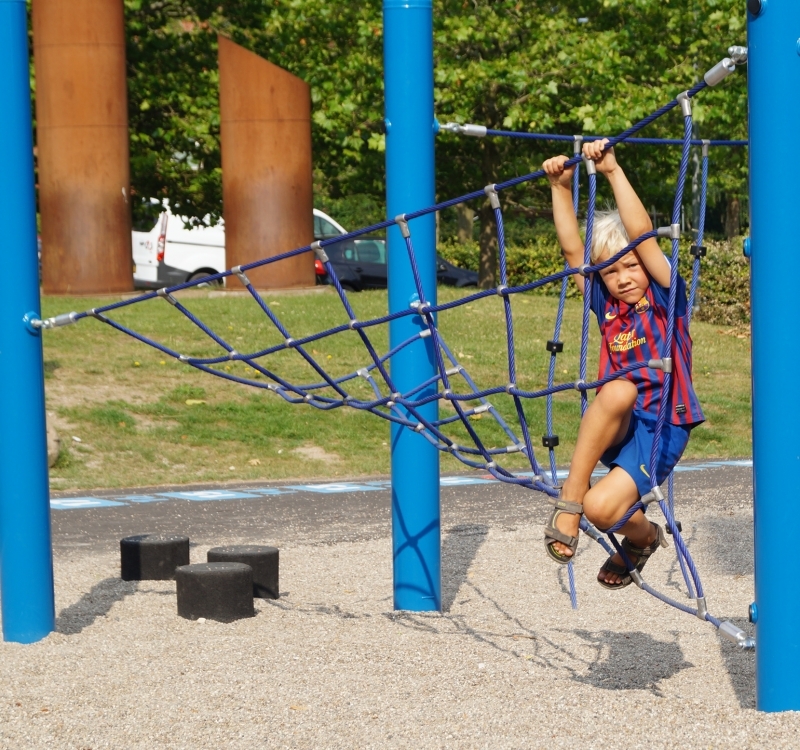

1x Twister (3.00 x 1.40 m)
No. 7218027
The twister consists of robust Hercules ropes (Ø 16 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating.
The net, rotated 90°, is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
The net intersection points are connected using stainless steel wire rope clamps, and the outer sides of the net are attached to the edge ropes with aluminum T-clamps.
The post spacing is 1.40 x 3.00 x 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

10x Support post big
No. 7218050
The large support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the playing level is 2070 mm and the total length is 3070 mm.
The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.
Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.
The minimum concrete grade is C20/25 (B25).

2x Plateau plate
No. 7218029
The Plateau plate is a round base with a diameter of 480 mm welded to the support posts and coated with rubber granulate.
It offers optional connection options for suspension straps and the millipede.
The platform plate is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

2x Small beetle
No. 7216400 (Concrete foundation)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The flange column made of steel tubing with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary.
The height above the play level is between 200 and 400 mm.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216500 (Flange anchorage)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The steel tube column with a diameter of 88.9 mm for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are screwed together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

1x Big beetle
No. 7216401 (Concrete foundation)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tube with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary. The height above the play level is between 100 and 500 mm.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216501 (Flange anchorage)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The steel tube stand column (Ø 88.9 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are bolted together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening material are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
