Jungle bridge

No. 7218014

Number of users1 per meter
Assembly time0.25 hours
Installers2 persons
Lengthup to 3.00 m

Suitable for Adventure Park Bambino and Junior.

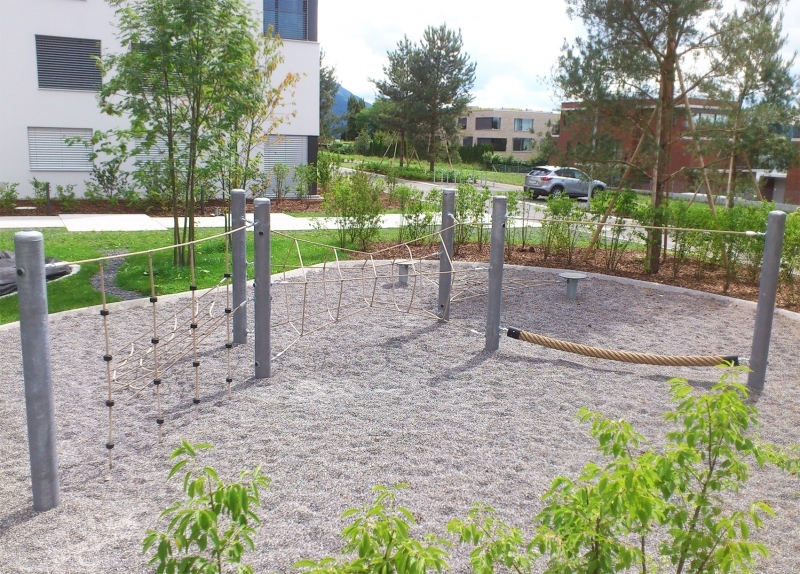

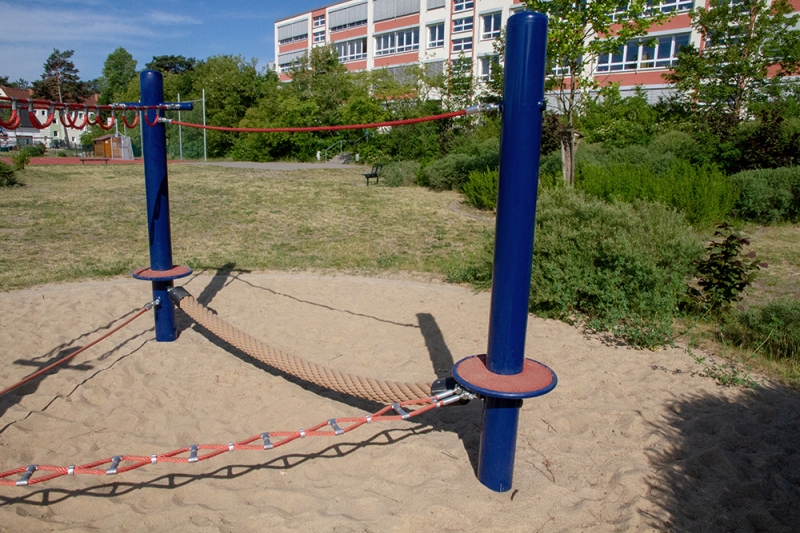

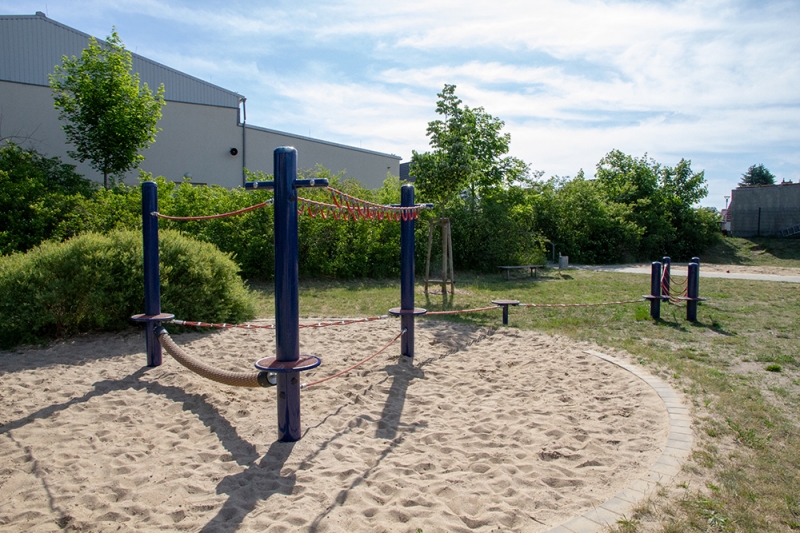

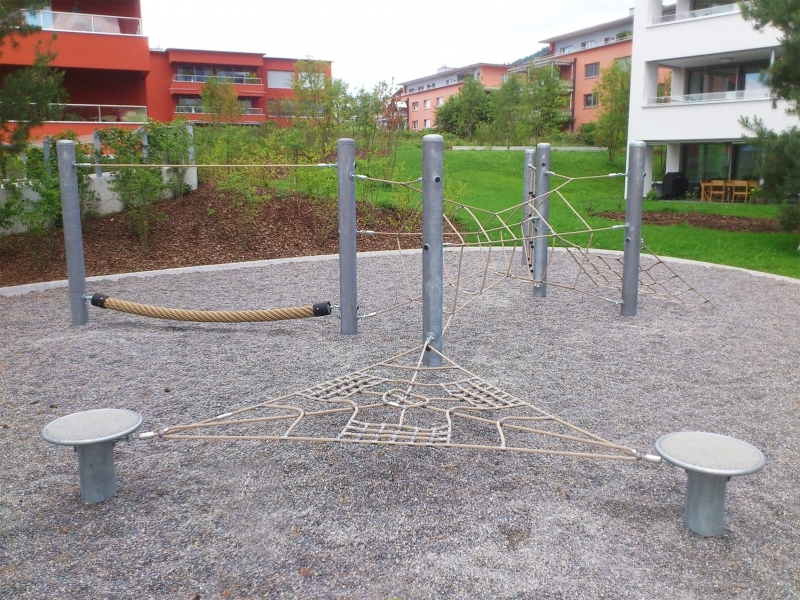

The Jungle Bridge is a dynamic linking element within the Adventure Park system that evokes the experience of crossing a gently swaying bridge deep in the jungle. A wide polypropylene rope forms the walking surface and is complemented by an upper handhold rope that supports confident movement. As children cross the bridge, the subtle motion challenges their balance, body control and movement planning, while encouraging concentration and a sense of adventure. The stable yet flexible rope construction makes balancing easier and builds confidence when moving on shifting surfaces. The Jungle Bridge is adaptable in length up to 3.00 m and can be flexibly integrated into Adventure Park combinations. In addition, the wide rope surface may be playfully discovered by children as a place to lie down for a short rest, observe their surroundings or experience the movement from a different perspective.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Jungle bridge

smb Jungle bridge
No. 7218014

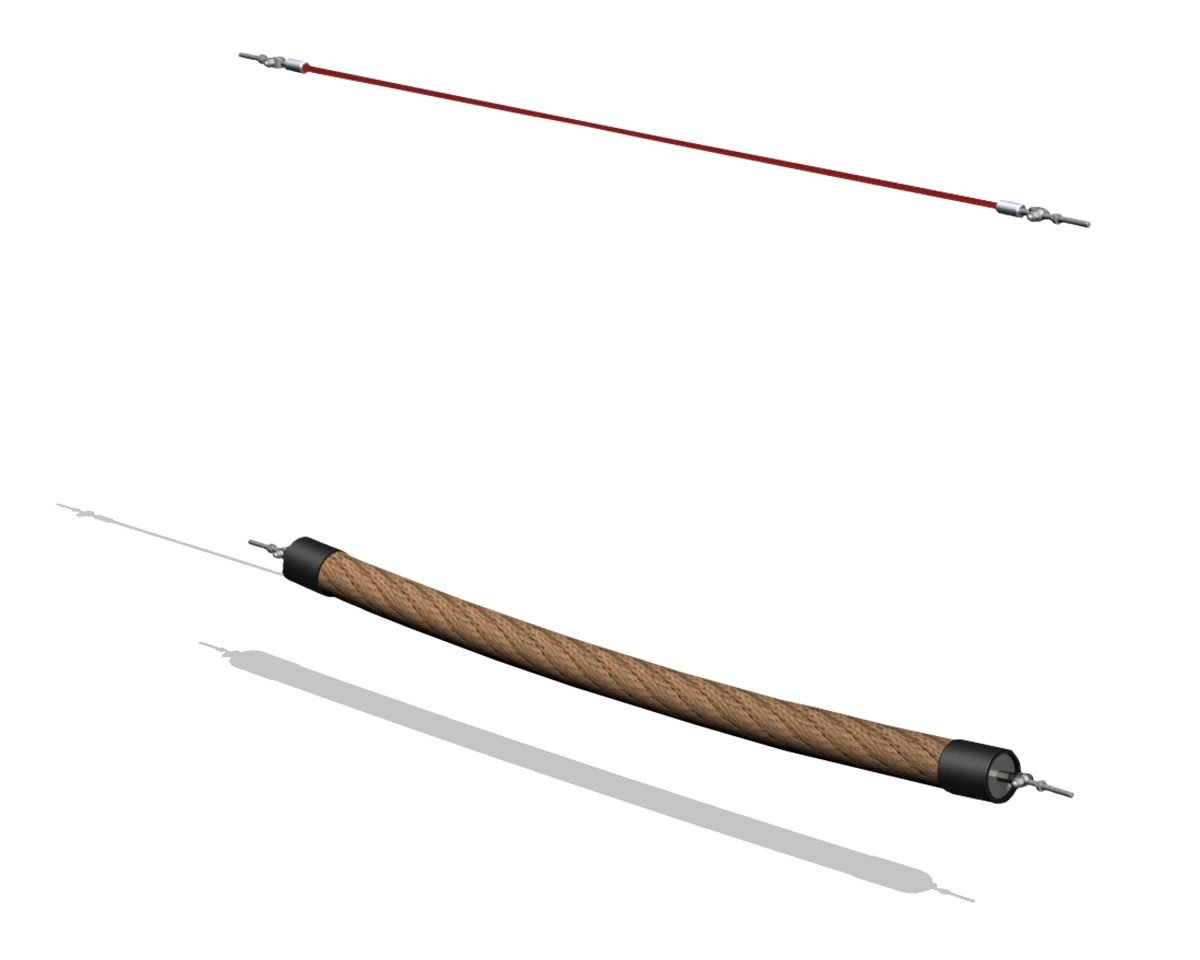

The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.

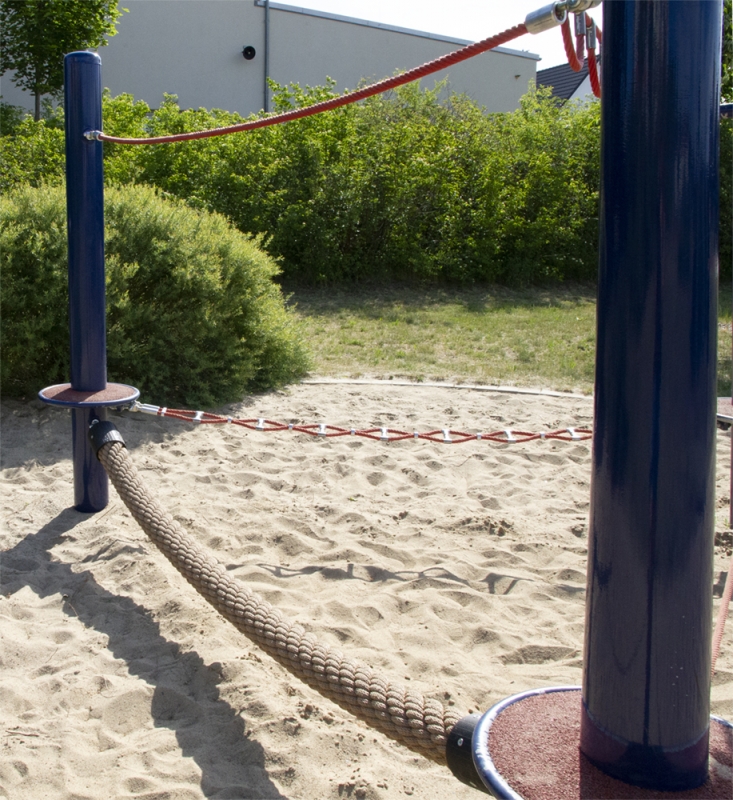

The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.

The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.

Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).

Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
