Support post big - Junior

No. 7218050

Unit space areaØ 0.17 m
Height of unit2.02 m
Total weight88 kg
Foundationsdepending on element max. 1.35 x 1.35 x 0.80 m
Total quantity of concretedepending on element max. 1.46 m³
Connection options15

Suitable for Adventure Park Junior.

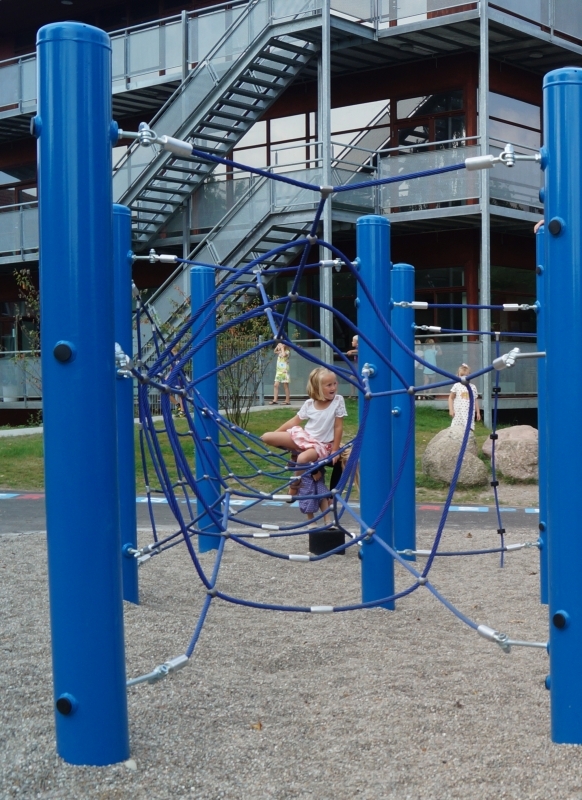

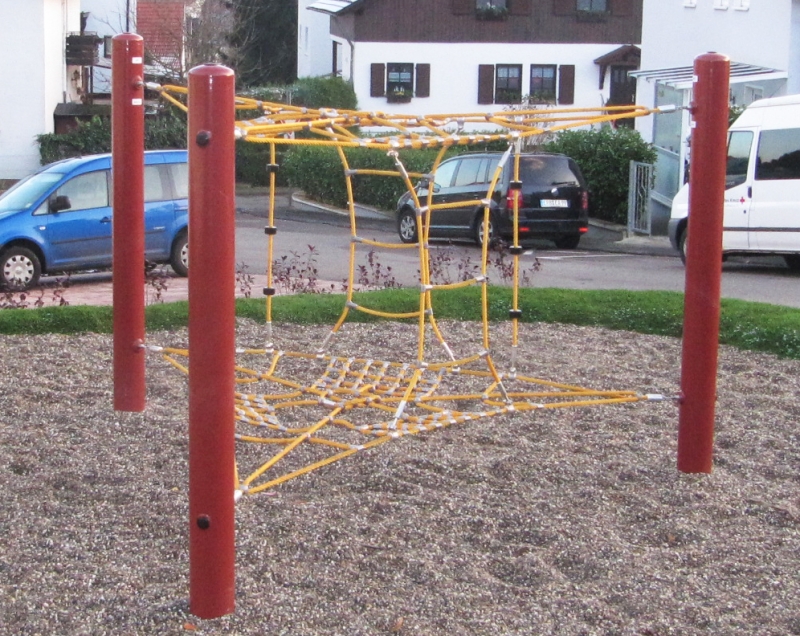

The Support Post Big is the connecting element in the Junior Adventure Park. Standing 2.02 m above the play level, it enables individual elements to be linked into an Adventure Park combination where climbing, balancing, hand-over-hand movement and three-dimensional climbing can be experienced. With up to 15 attachment points for different rope play elements, it offers great design flexibility when planning varied parcours. In addition to its use in the Adventure Park Junior series, the tall post also serves as a design feature and height accent in the Adventure Park Bambino, combining functionality with engaging spatial play value.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Support post big - Junior

smb Support post big - Junior
No. 7218050

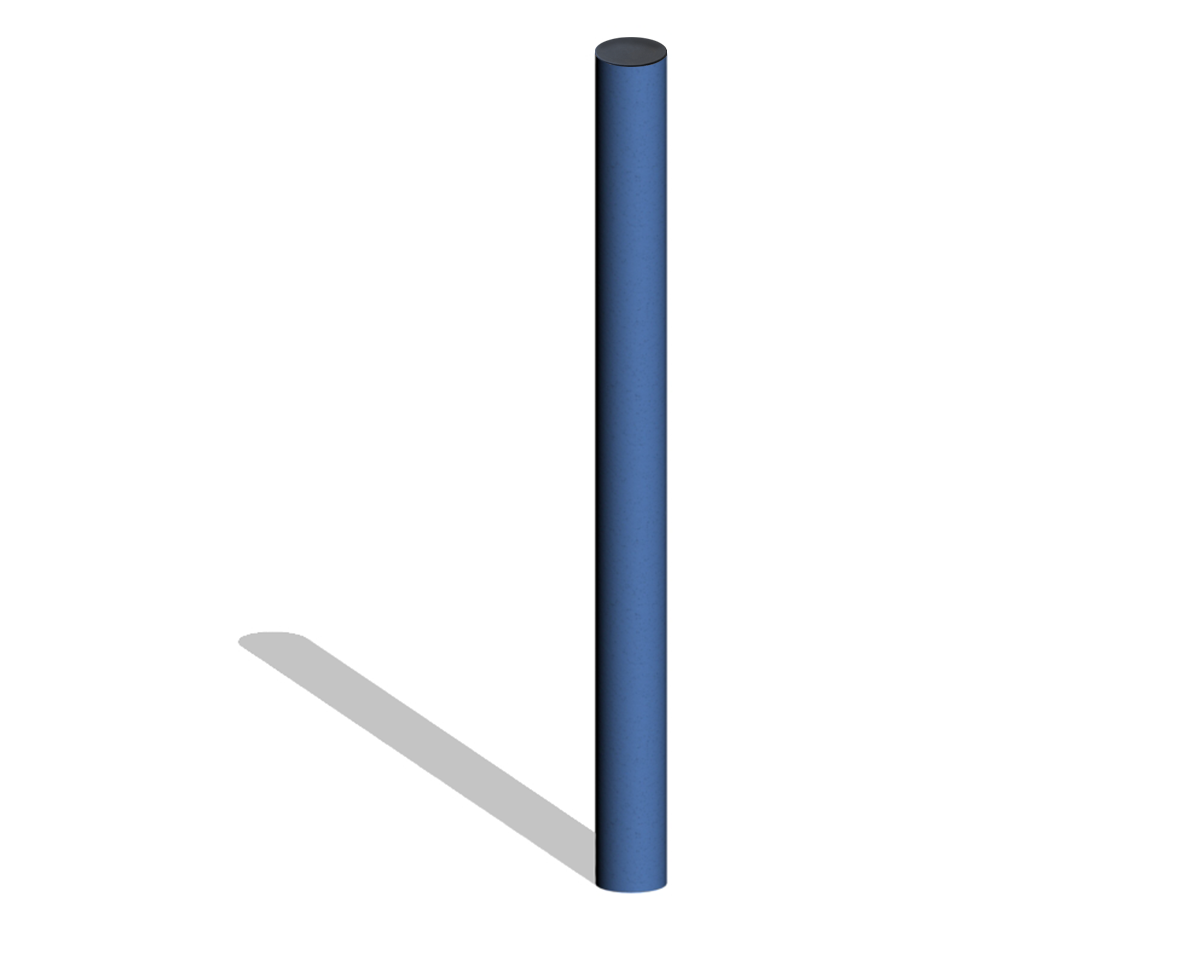

The large support post consists of a steel tube with a diameter of 168.3 mm.

It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.

The post height above the playing level is 2070 mm and the total length is 3070 mm.

The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.

Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.

The minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
