• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Information: A large number of further colors of the RAL-system or other color systems are possible.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

• Pearl white
  ≈ RAL 1013
• Beige
  ≈ RAL 1001
• Brick red
  ≈ RAL 3016
• Sky blue
  ≈ RAL 5015
• May green
  ≈ RAL 6017
• Black
  ≈ RAL 9004

Information: A large number of further colors are possible.

• Stone grey
• Oxide green
• Sunshine yellow
• Chilli red
• Anthracite
• Royal blue

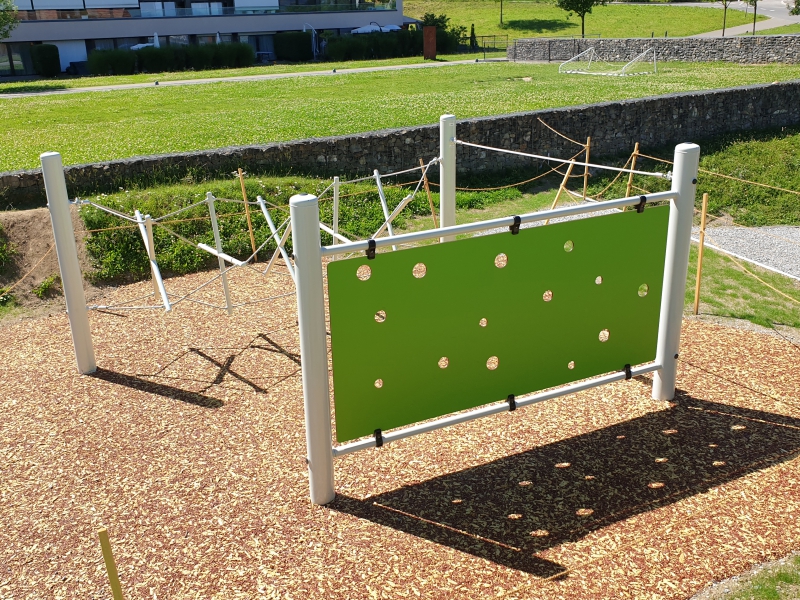

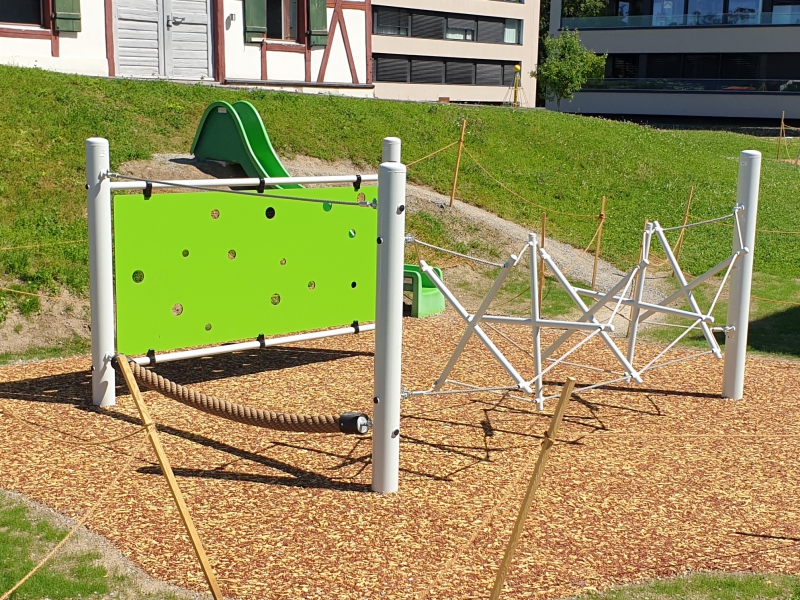

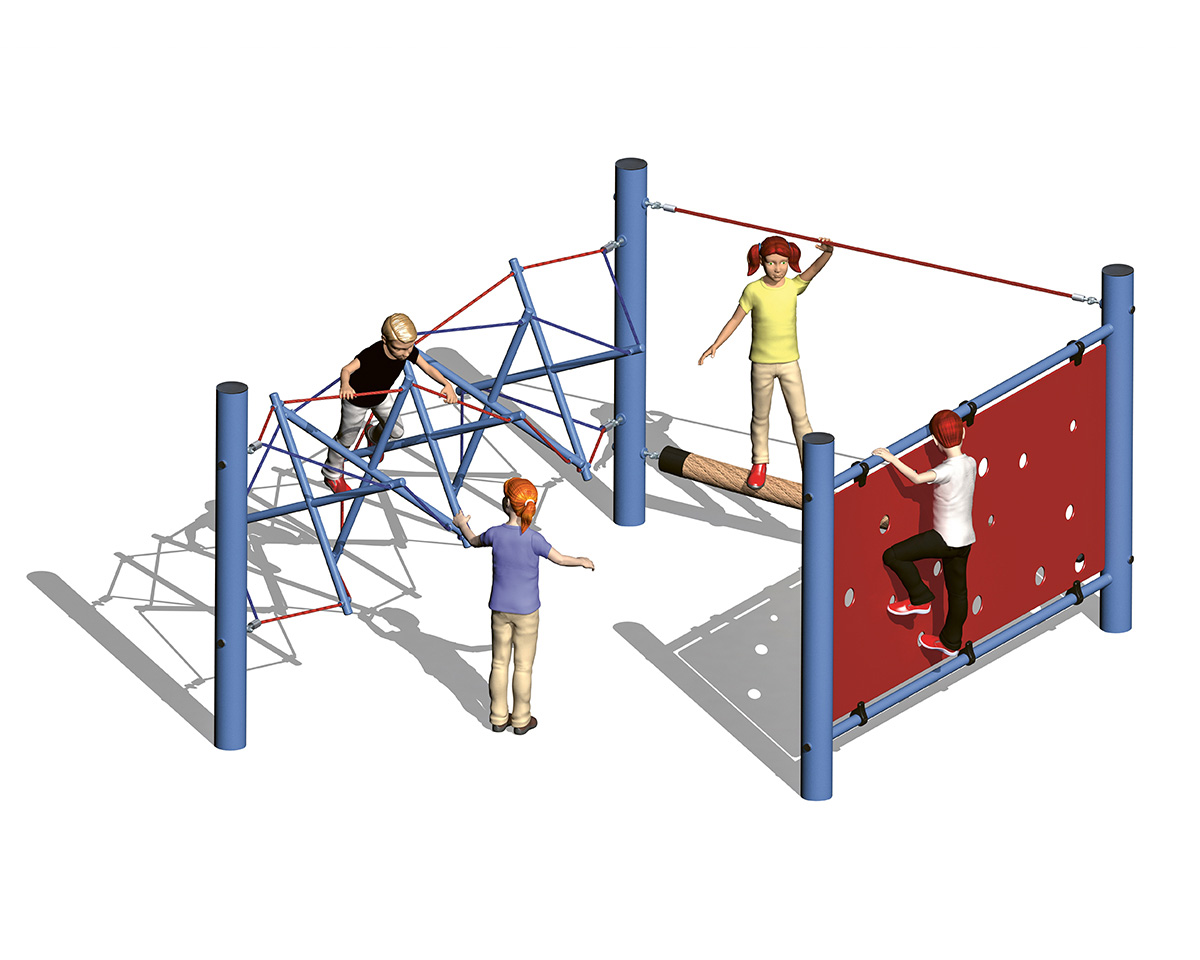

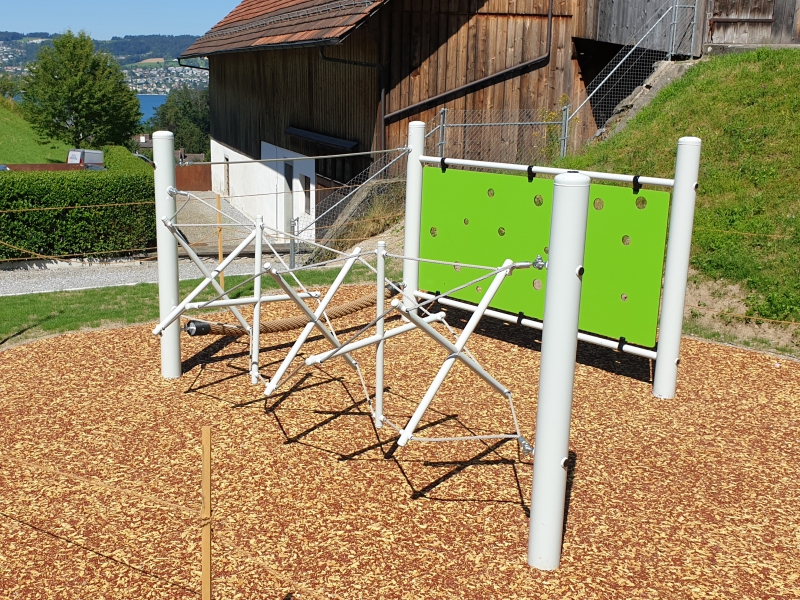

smb Adventure Park Junior Variant 2
No. 7220041
consistings of:

1x Jungle bridge (3.00 m)
No. 7218014
The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Crazy jungle (4.00 m)
No. 7218022
The Crazy Jungle consists of robust Hercules ropes, each with a diameter of 16 mm, with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating.
The five crosses, consisting of tubes with a diameter of 48 x 2.6 mm and a length of approx. 1200 mm, are permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The crosses have welded sleeves through which the ropes are fed and screwed in place.
The ropes describe a zigzag course through the crosses.
The four ropes are attached vertically to two posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system.
This articulated connection (M20) ensures a long service life and enables optimum rope tension.
The post spacing is 4 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

1x Climbing wall (3.00 m)
No. 7218023
The climbing wall consists of a climbing panel measuring 2797.3 x 1270 mm, which is mounted vertically between two horizontal tubes measuring Ø 60.3 x 2.9 mm.
The climbing wall is connected to the horizontal tubes using six screw-on smb aluminum tube clamps, type K. (The clamps are powder-coated in black RAL 9005).
The HPL climbing panel has various round holes (Ø 80–100 mm) to aid climbing.
The post spacing is 3 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

4x Support post big
No. 7218050
The large support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the playing level is 2070 mm and the total length is 3070 mm.
The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.

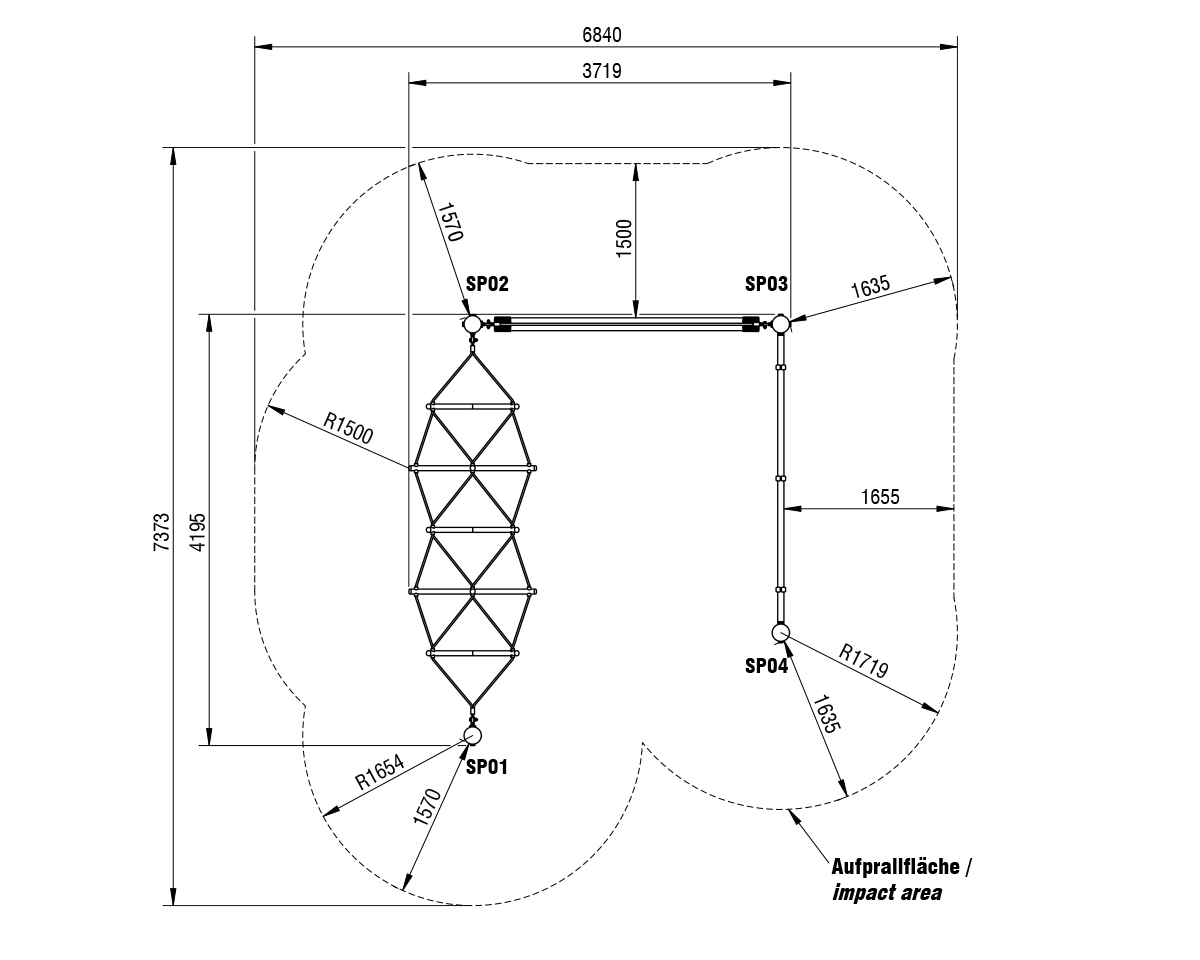

Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.
The minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
