• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Information: A large number of further colors of the RAL-system or other color systems are possible.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

• Pearl white
  ≈ RAL 1013
• Beige
  ≈ RAL 1001
• Brick red
  ≈ RAL 3016
• Sky blue
  ≈ RAL 5015
• May green
  ≈ RAL 6017
• Black
  ≈ RAL 9004

Information: A large number of further colors are possible.

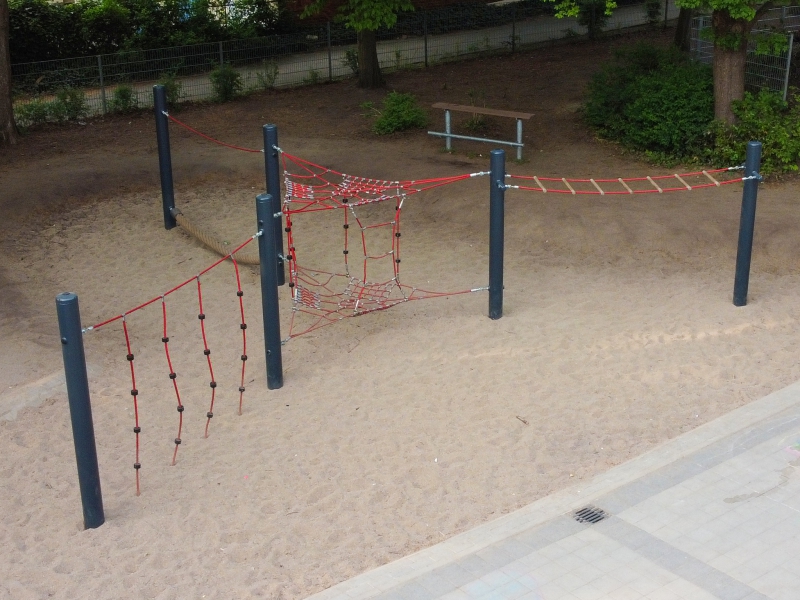

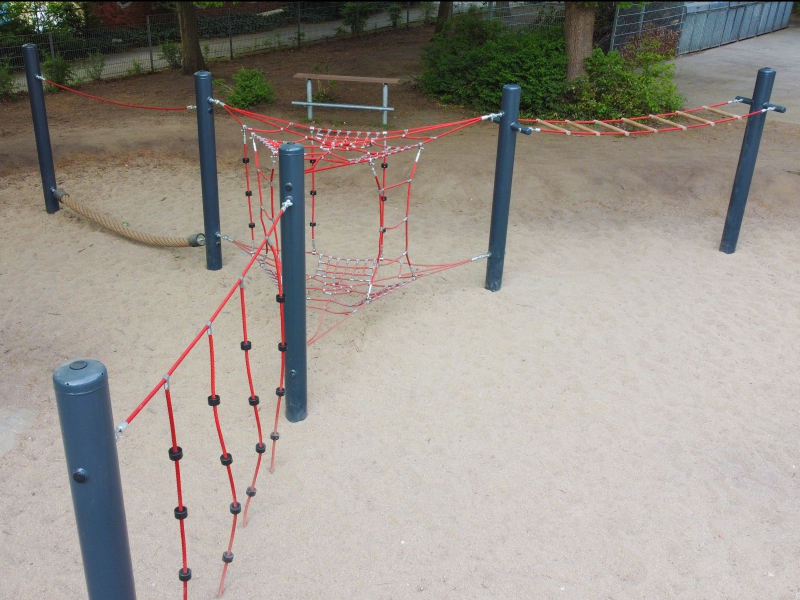

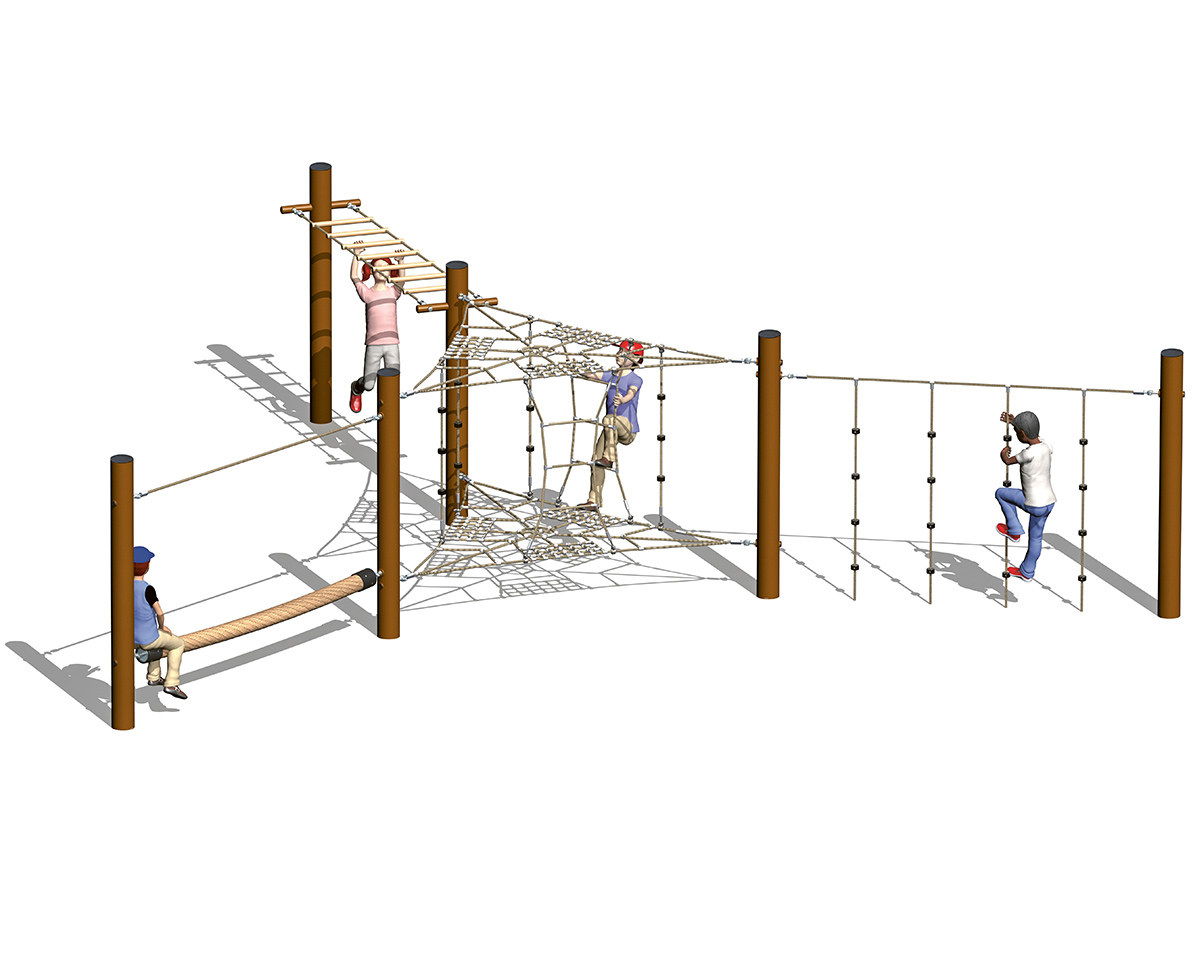

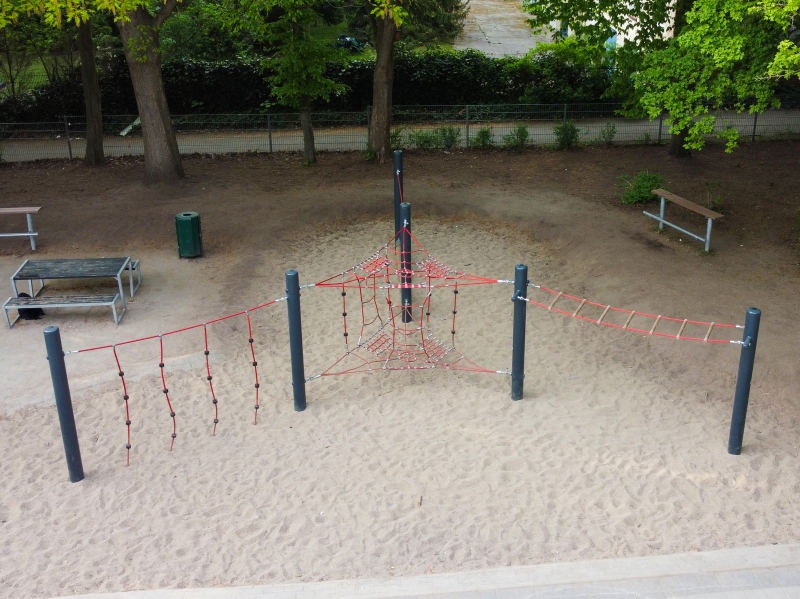

smb Adventure Park Junior Variant 3
No. 7220042
consistings of:

1x Raindrops (3.00 m)
No. 7218019
The raindrop consists of robust Hercules ropes, each with a diameter of 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The element consists of a horizontal rope and four vertical ropes (depending on the post spacing) with polyethylene climbing aids.
The horizontal rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the element with its horizontal ropes is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Jungle bridge (3.00 m)
No. 7218014
The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Flea ladder (3,00 m)
No. 7218012
The flea ladder consists of two robust Hercules ropes, Ø 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The 500 mm long rungs are made of robinia wood with a Ø of 40 mm and are threaded onto the two ropes at intervals of approx. 350 mm and screwed in place.
The flea ladder is attached using an articulated fork eye bolt tensioning system M16 x 110 mm and sleeve nuts M16 x 50 mm to cross tubes (Ø 60.3 mm) welded to the support posts.
The cross tubes are permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Depending on the manufacturing length, the flea ladder is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

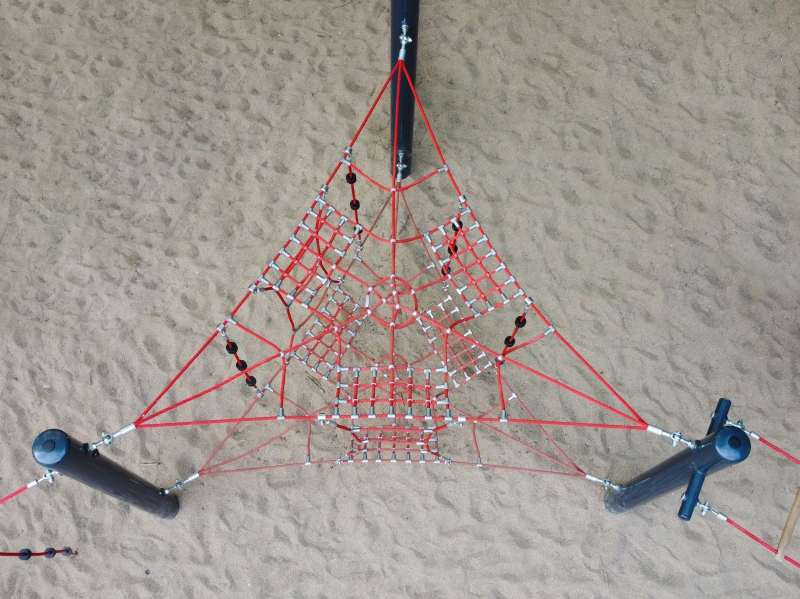

1x Spider cave (3.00 m)
No. 7218024
The Spider cave consists of robust Hercules ropes Ø 16 mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
The net cross-over points are connected using aluminum ball knots and stainless steel wire rope clips. The outer sides of the nets are fixed to the edge ropes with aluminum T-clamps.
Between the lower and upper triangular nets, four vertical climbing ropes are installed, each equipped with three black plastic climbing aids, along with two climbing ladders made of Hercules ropes.
The ends of this three-sided, prism-shaped net element are connected to the respective support posts using the internal and protected SECUCOPE® PLUS tensioning system. This flexible M20 connection ensures a long service life and allows for optimal rope tensioning.
The post spacing is 3.00 x 3.00 x 3.00 m (post center to post center).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

6x Support post big
No. 7218050
The large support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the playing level is 2070 mm and the total length is 3070 mm.
The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.
Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.
The minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
