Climbing wall with grip holes

No. 7218023

Number of users1 per meter
Assembly time0.40 hours
Installers2 persons
Length3.00 m

Suitable for Adventure Park Junior.

Play value and experience

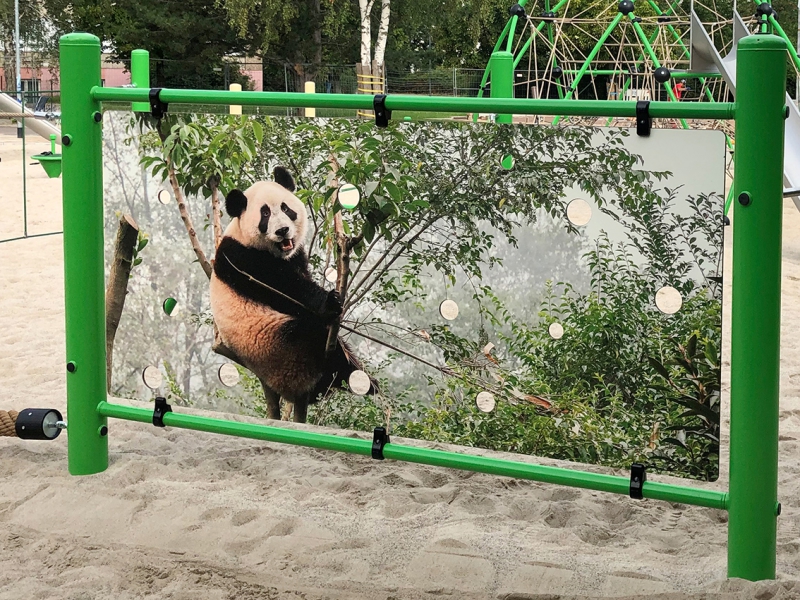

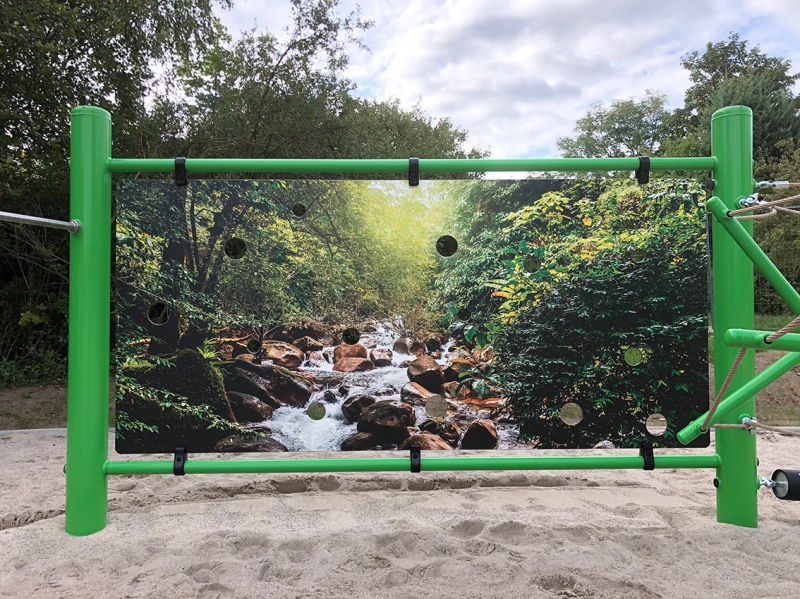

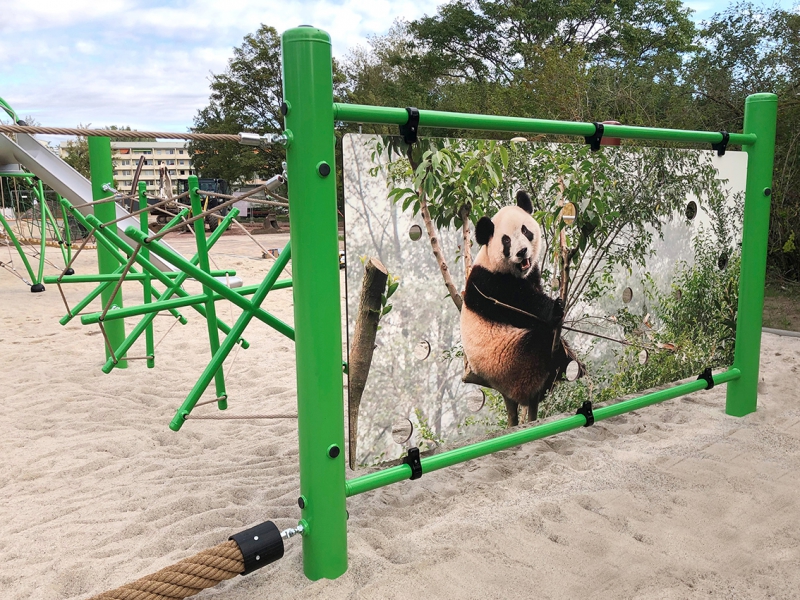

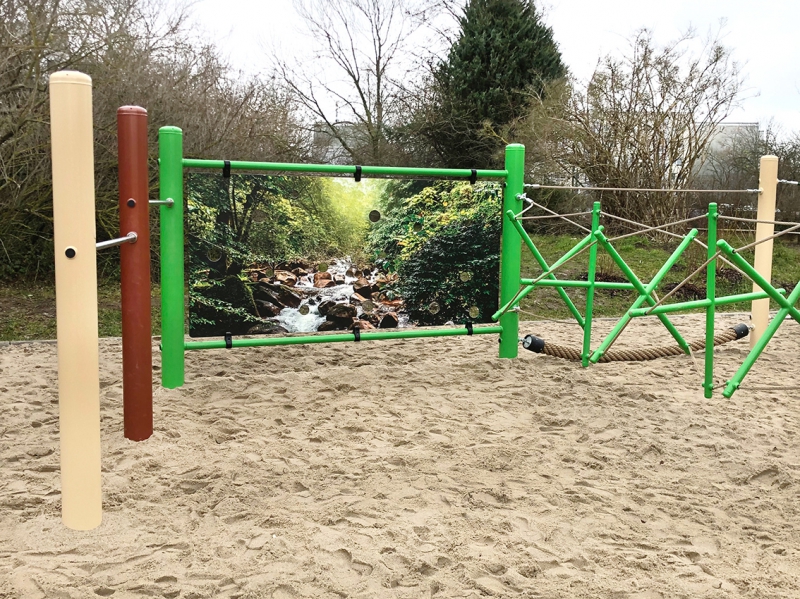

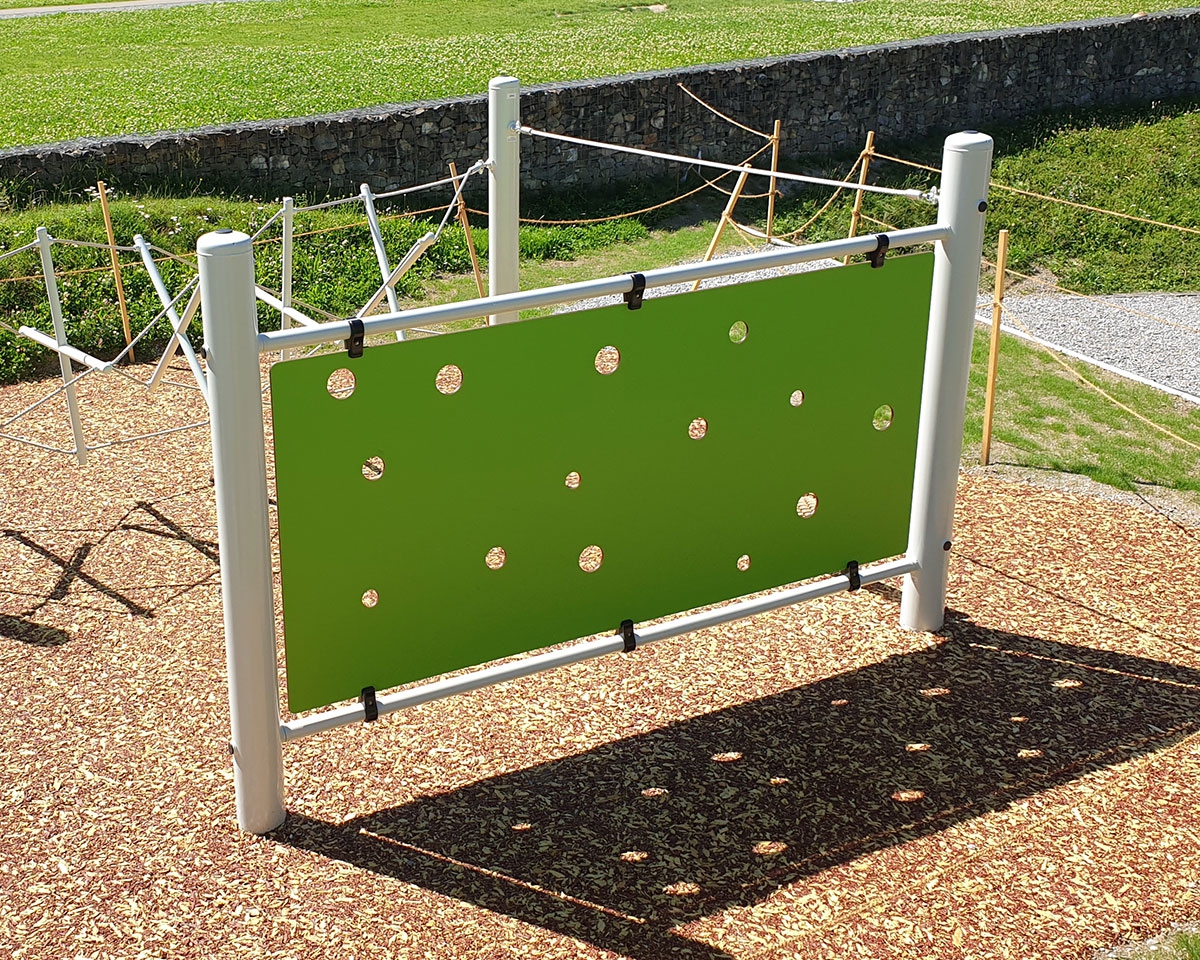

The climbing wall in the Adventure Park system offers a rich and engaging vertical play experience that encourages children to use strength, coordination and problem-solving in a playful and meaningful way. The wall is constructed from a sturdy panel mounted vertically between horizontal support tubes and features multiple round holes that serve both as grips and as openings for looking through, adding visual curiosity to the physical challenge. As children reach for and move between the holes, they develop hand-eye coordination and spatial awareness, and the opportunity to peek through or hide behind the openings deepens sensory exploration and imaginative play. When the climbing wall is accessed from both sides, children naturally communicate, coordinate their movements and support one another, which enhances social interaction, cooperation and shared problem-solving. This dual-sided play fosters awareness of othersactions and requires thoughtful planning of routes and timing, strengthening both motor and interpersonal skills. The climbing wall can be integrated project-specifically into an Adventure Park parcours and enriches the play environment with varied physical and cognitive challenges that invite children to explore, connect and engage together.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for climbing walls

  • Stone greyStone grey
  • Oxide greenOxide green
  • Sunshine yellowSunshine yellow
  • Chilli redChilli red
  • AnthraciteAnthracite
  • Royal blueRoyal blue

Tender specification Climbing wall with grip holes

smb Climbing wall with grip holes
No. 7218023

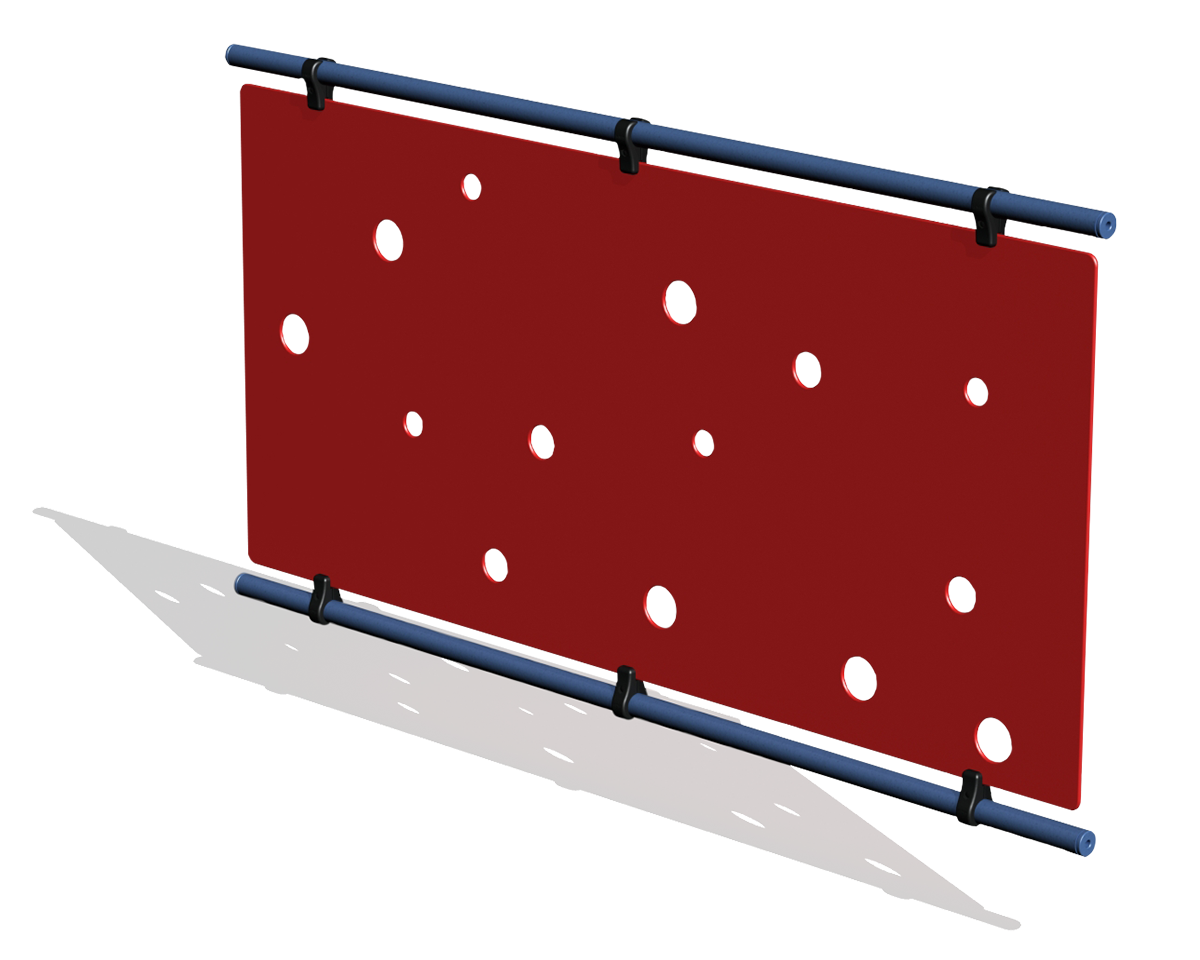

The climbing wall consists of a sturdy HPL climbing panel measuring 2,797.3 x 1,270 mm, which is mounted vertically between two horizontal steel tubes (Ø 60.3 × 2.9 mm).
It is secured using 6 screw-on smb aluminum pipe clamps, Type K, which are powder-coated in RAL 9005 (deep black) and ensure a secure connection to the horizontal tubes.
The HPL climbing panel features grip holes of varying sizes with diameters ranging from 80 to 100 mm, which serve as climbing aids and enable a wide range of movement patterns.
The required post spacing is 3,000 mm (center-to-center).
Note: Support posts are not included and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
