Ropeway Classic Variant 8

No. 7216229

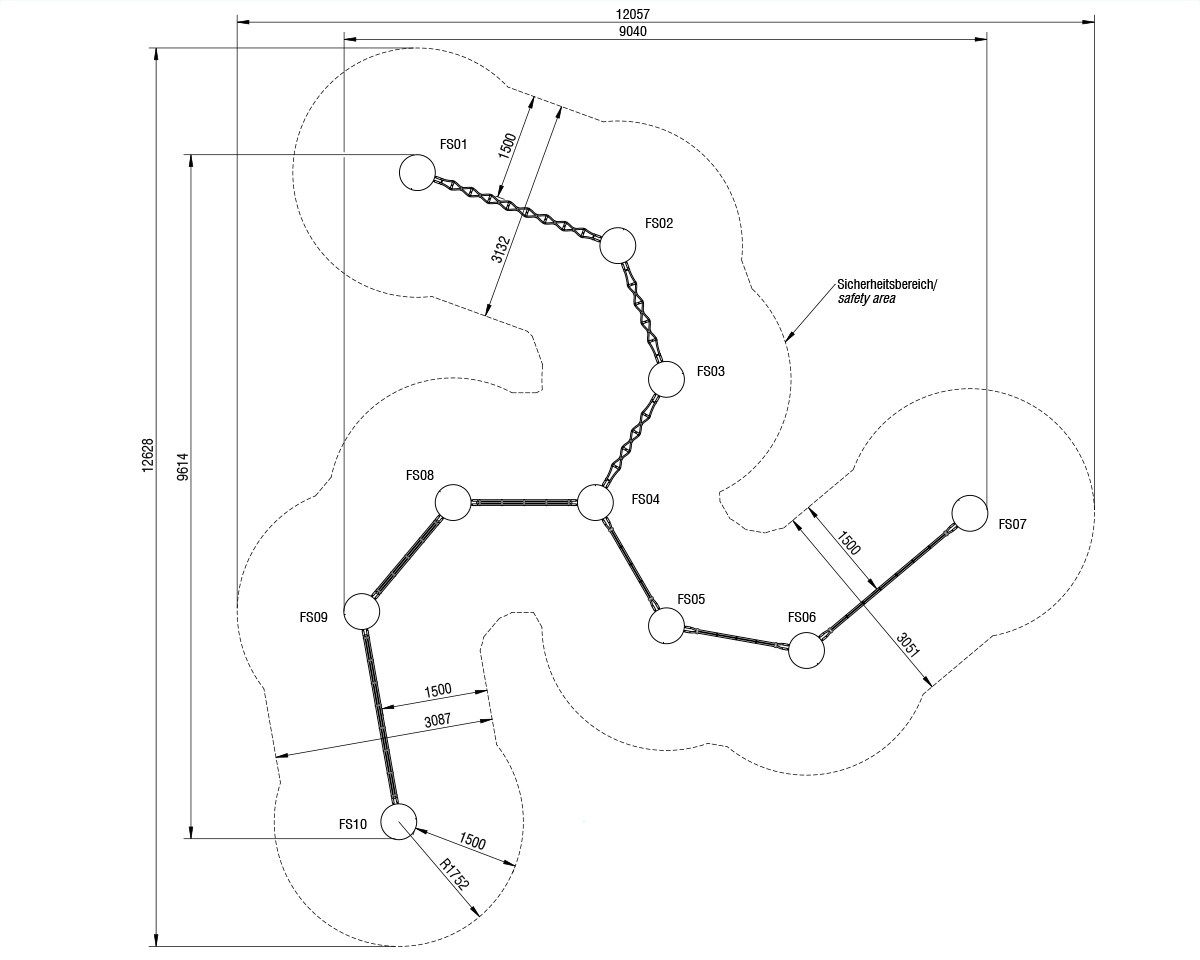

Unit space arealook at draft plan
Safety space arealook at draft plan
Height of unit0.47 m
Age range3+
Number of users25
Free fall height0.47 m
Heaviest component
     Sleeve foundation41.88 kg
     Flange variant32.40 kg
Total weight
     Sleeve foundation660.79 kg
     Flange variant565.99 kg
Assembly time9.00 hours
Installers2 persons
Foundations10 (1.00 x 1.00 x 0.80 m)
Total quantity of concrete8.00 m³

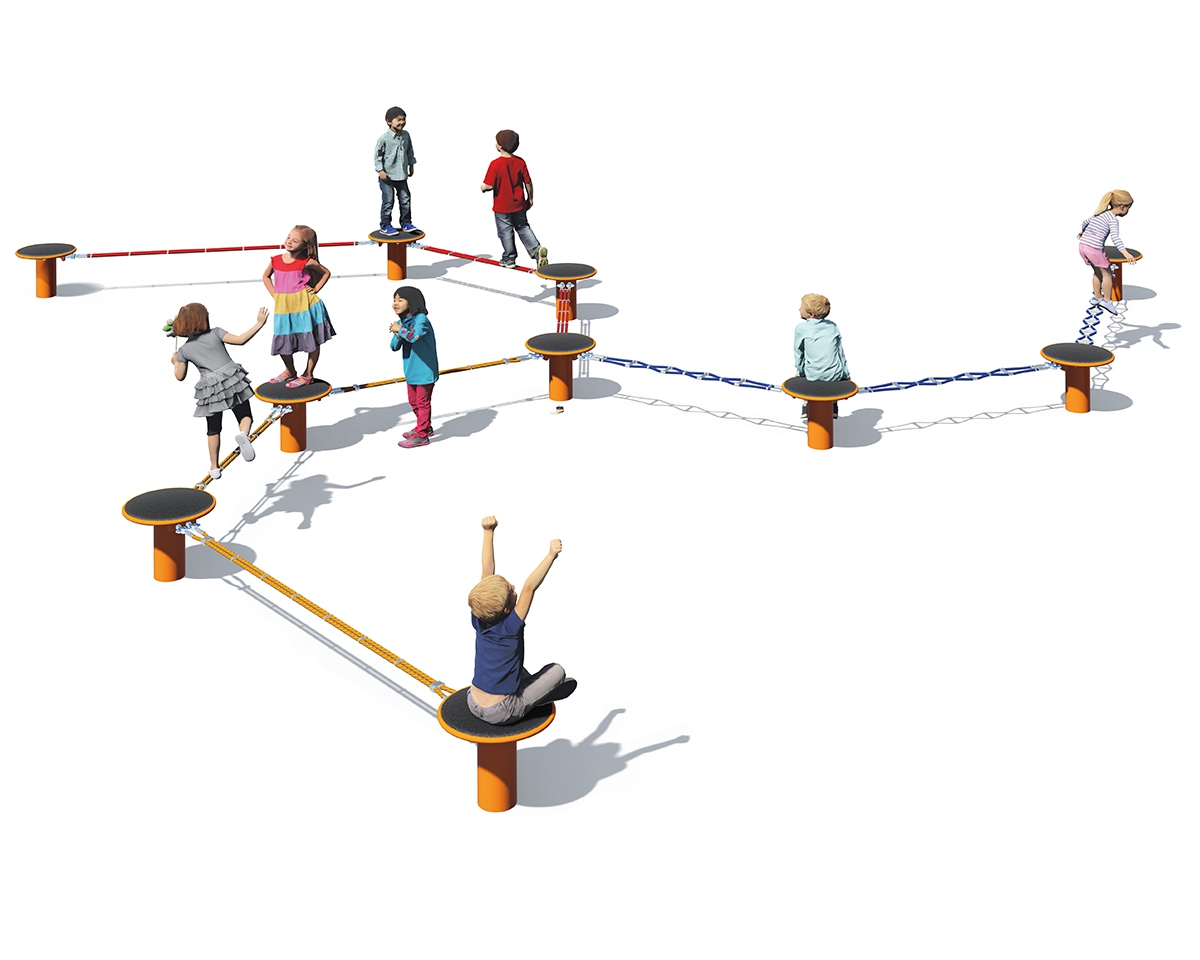

Classic Variant 8 consisting of several individual components:

2 Ropeways Original (2.00 m)
2 Ropeways Duplex (2.00 m)
2 Ropeways Cross (2.00 m)
1 Ropeway Original (3.00 m)
1 Ropeway Duplex (3.00 m)
1 Ropeway Cross (3.00 m)
10 Podium circle S


Play value and experience
Ropeway Classic Variant 8 is a versatile balancing course that supports and challenges children, teenagers and adults alike.
Different ropeways and Podium Circle S platforms form a shared movement landscape where balance, coordination and body awareness are specifically trained.
Users are encouraged to set personal movement goals, plan routes and gradually develop their abilities.
The platforms act as safe starting, transition and resting points, supporting orientation and interaction.
The setup invites users to balance together, support one another and master challenges in a playful way, promoting inclusive play, social skills and enjoyment of movement.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

Ropeway Classic individual components

  • Ropeway originalRopeway Original


  • Ropeway DuplexRopeway Duplex


  • Ropeway crossRopeway Cross


  • Ropeway pureRopeway Pure


  • Ropeway Podium Circle SPodium circle S


  • Ropeway Podium Circle MPodium circle M


  • Ropeway Podium Circle XLPodium circle XL


Features

Ropeway

General facts

Read more about our ropeway series Classic

and Flux.

Classic and Flux

Classic and Flux

Is it all the same? No way. Discover all advantages of our ropeway series.

Ropes

Our ropes

It doesn't matter: easy, normal or hard. We have

the right solution for every need.

Aufbau

Assembly

Get ready to learn how our components are connected.

Aufbau

Subsequently expandable?

Sure! Step by step on the way to a bigger

ropeway variant.

Architektenhinweis

Information for architects

This is how we define our measurements.
