Ropeway Classic Variant 1

No. 7216221

Unit space arealook at draft plan

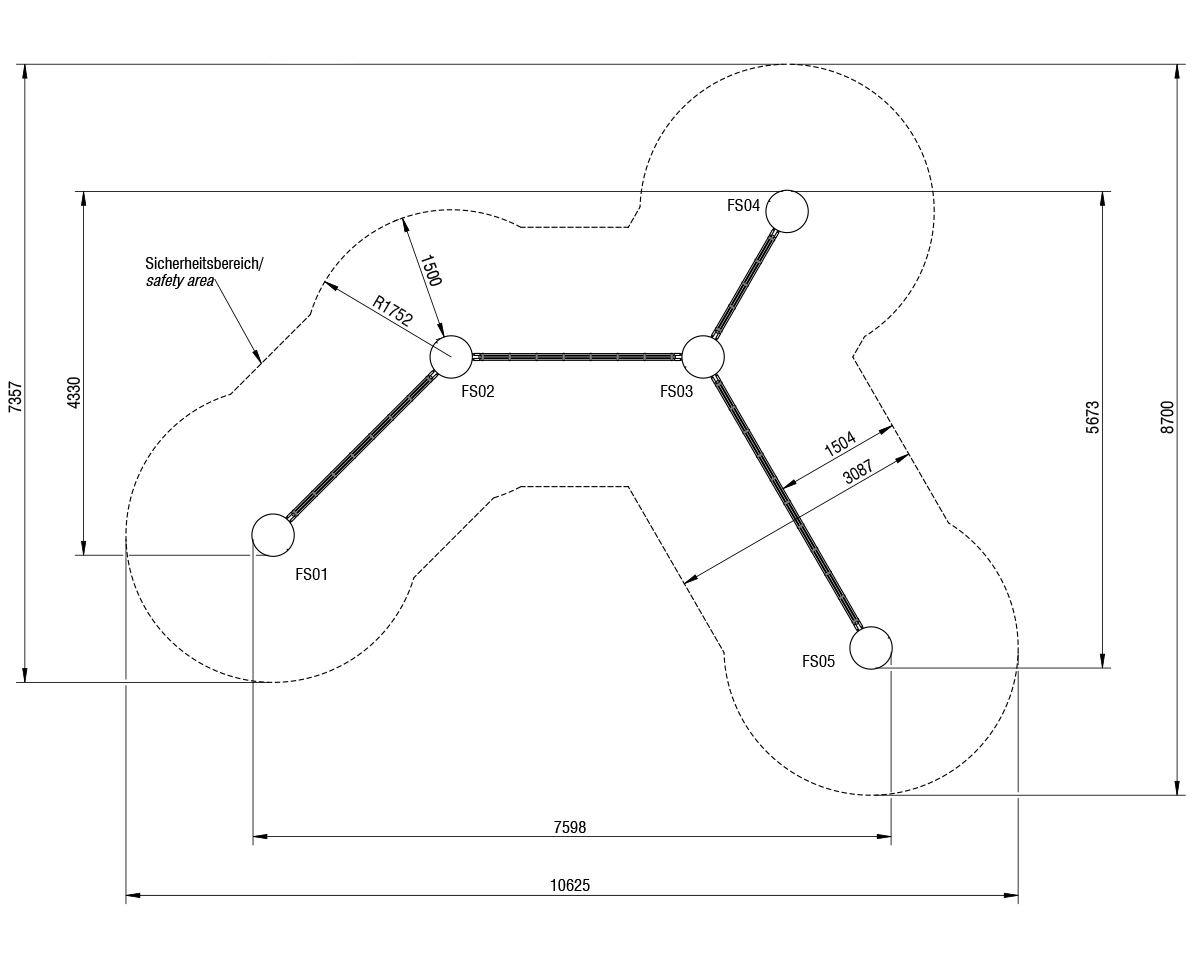

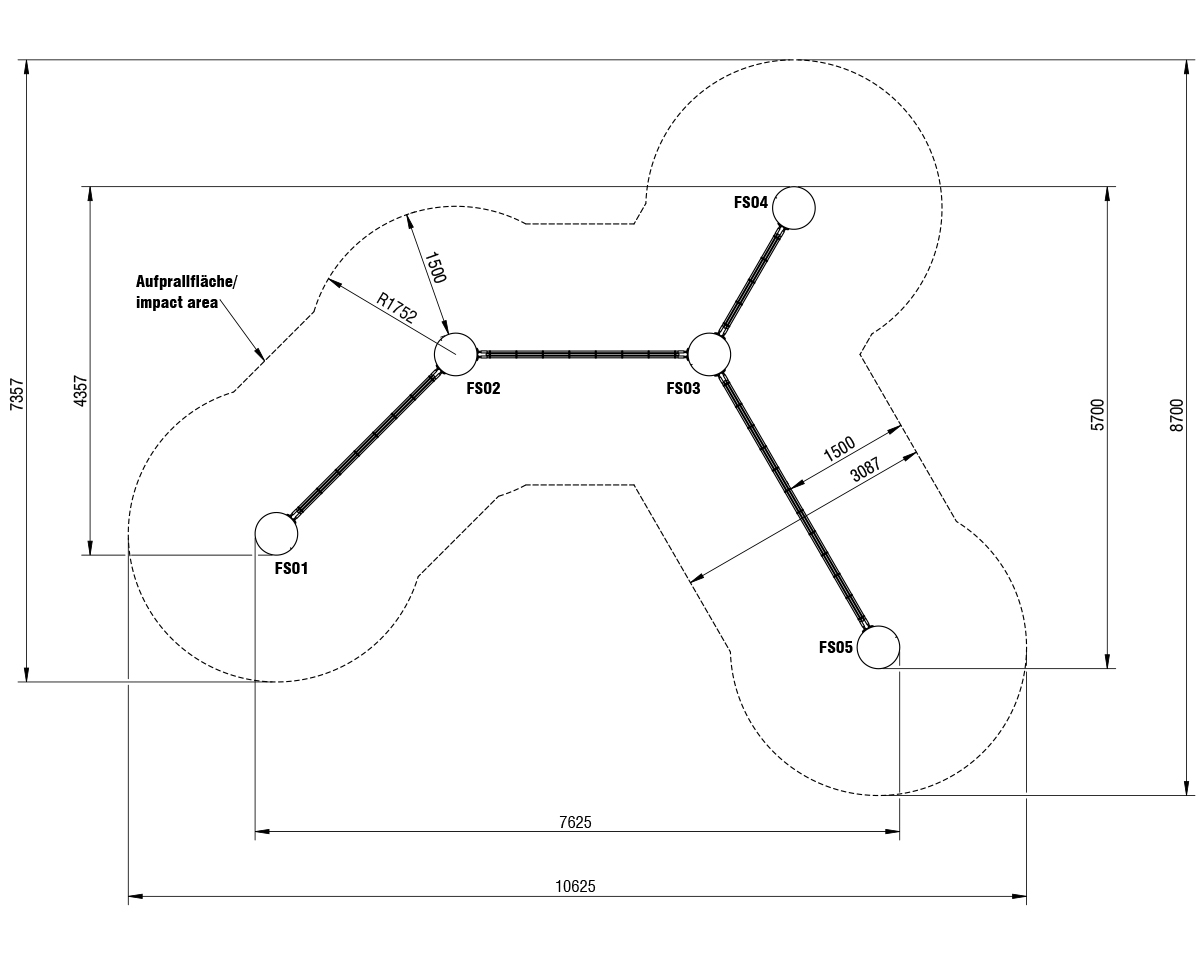

Safety space arealook at draft plan
Height of unit0.47 m
Age range3+
Number of users17
Free fall height0.47 m
Heaviest component
     Sleeve foundation41.88 kg
     Flange variant32.40 kg
Total weight
     Sleeve foundation332.15 kg
     Flange variant284.75 kg
Assembly time4.00 hours
Installers2 persons
Foundations5 (1.00 x 1.00 x 0.80 m)
Total quantity of concrete4.00 m³

Classic Variant 1 consisting of several individual components:

1 Ropeway Original (2.00 m)
2 Ropeways Original (3.00 m)
1 Ropeway Original (4.00 m)
5 Podium circle S


Play value and experience

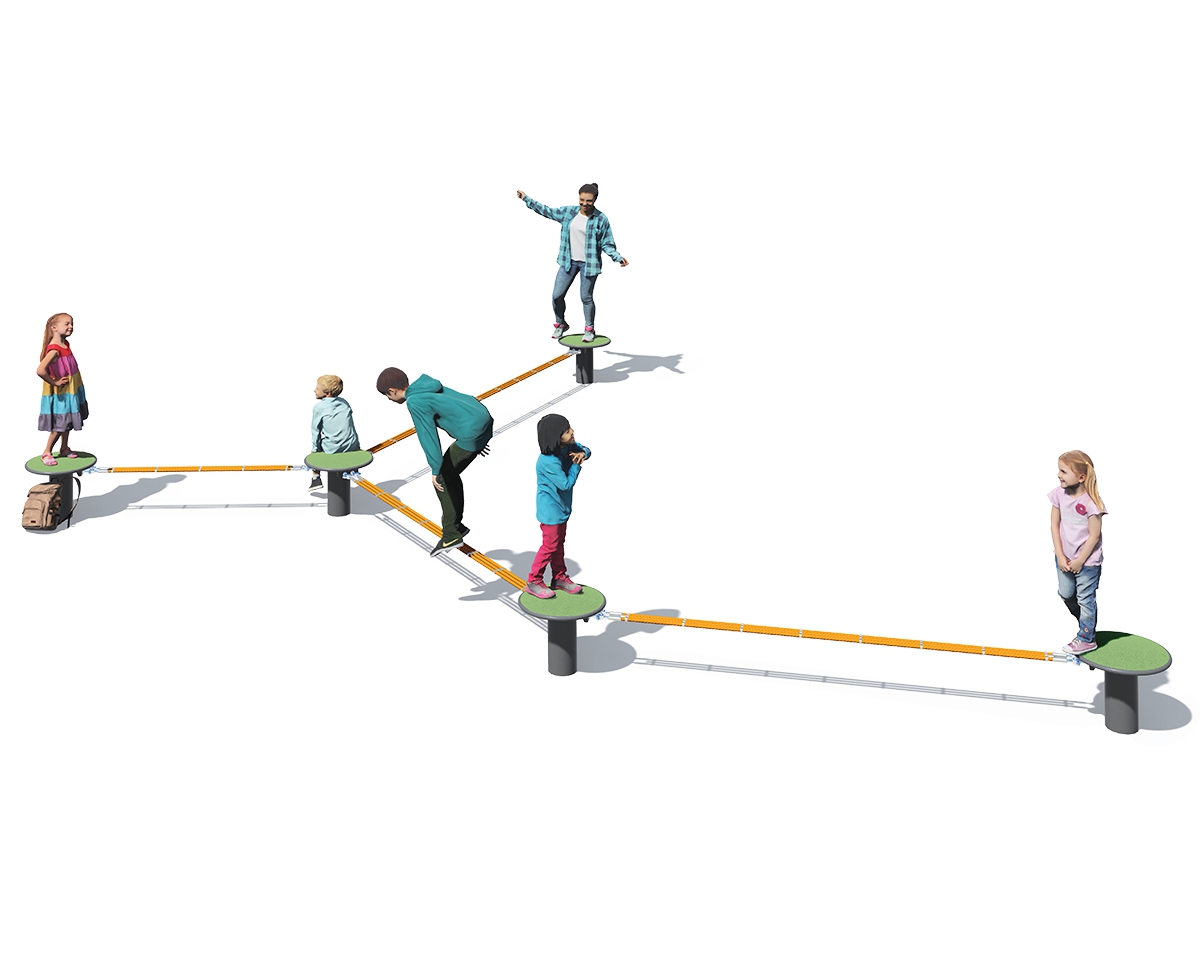

Ropeway Classic Variant 1 consists of one Schwebeband® Original with a length of 2.00 m, two Schwebeband® Original elements each measuring 3.00 m and one Schwebeband® Original with a length of 4.00 m, complemented by five Podium Circle S platforms.
The graduated arrangement of the band lengths allows an easy introduction to balancing while gradually increasing the level of difficulty. The longer the Schwebeband®, the more challenging it becomes to balance, as the band moves more dynamically and requires greater control, balance and body awareness.
Children, teenagers and adults can practice according to their individual abilities, gain confidence and progressively develop their motor skills. The Podium Circle S platforms serve as stable starting, transition and resting points, supporting independent movement between the elements.
Colorful design and clear contrasts enhance visual orientation and support inclusive use by people with different abilities. The setup encourages shared exploration, cooperation and turn-taking, strengthening both motor skills and social interaction.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

Ropeway Classic individual components

  • Ropeway originalRopeway Original


  • Ropeway DuplexRopeway Duplex


  • Ropeway crossRopeway Cross


  • Ropeway pureRopeway Pure


  • Ropeway Podium Circle SPodium circle S


  • Ropeway Podium Circle MPodium circle M


  • Ropeway Podium Circle XLPodium circle XL
