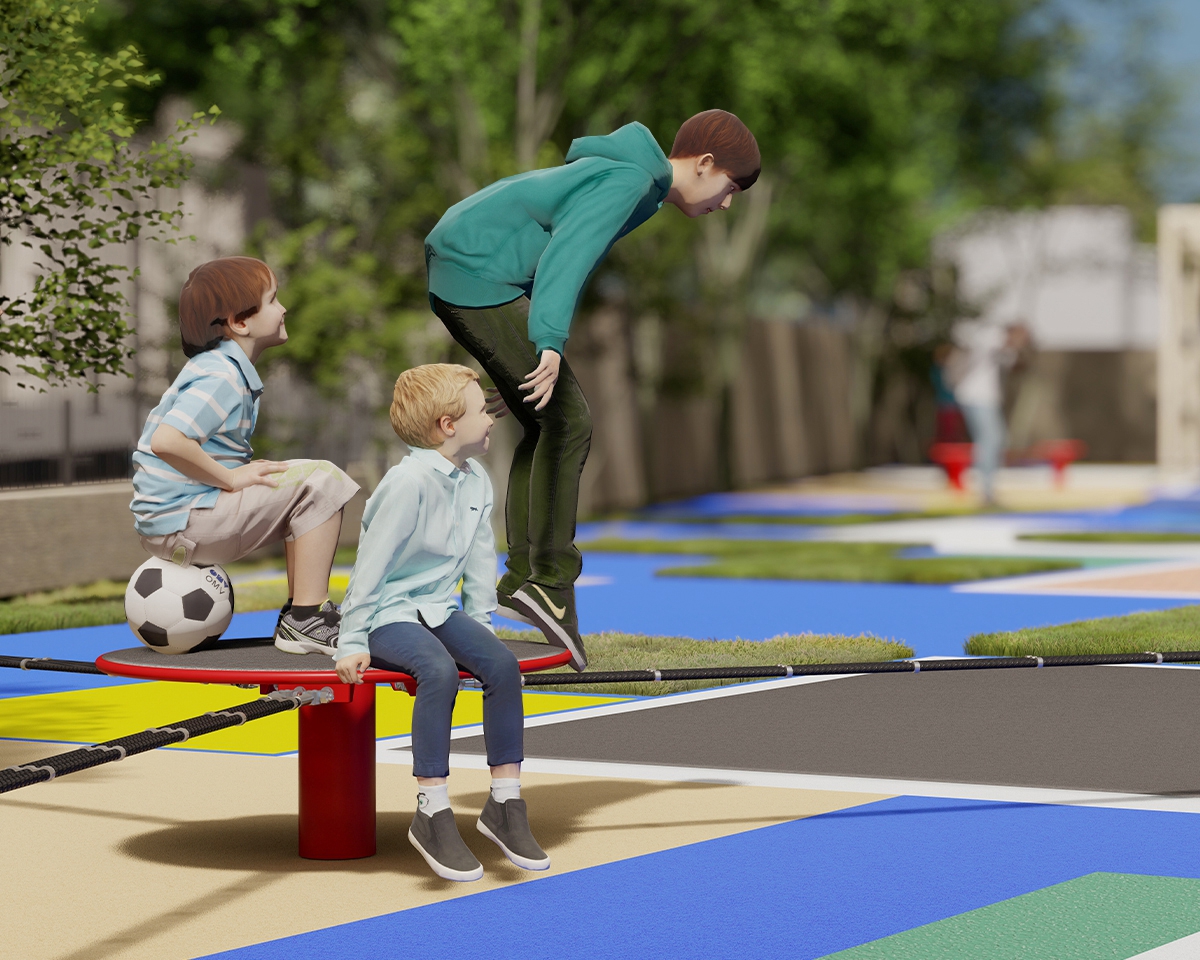

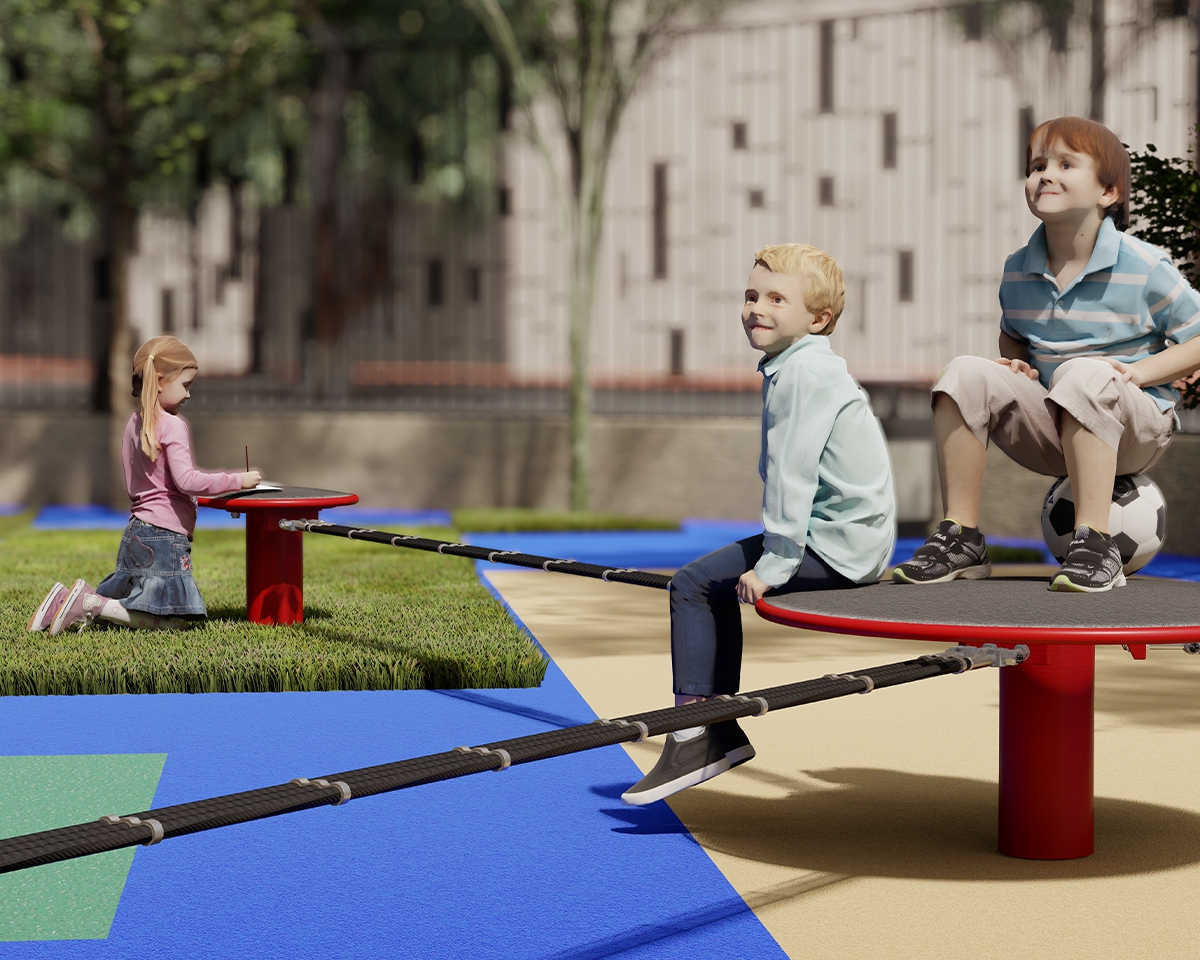

Podium circle XL

No. 7216202 (Sleeve foundation), 7216302 (Flange variant)

Unit space areaØ 1.03 m
Safety space areaØ 4.03 m
Height of unit0.47 m
Age range3+
Number of users3
Free fall height0.47 m
Heaviest component 52.58 kg
Total weight
     Sleeve foundation100.16 kg
     Flange variant90.68 kg
Assembly time0.25 hours
Installers1 person
Foundations 1.00 x 1.00 x 0.80 m
Total quantity of concrete0.80 m³

The platforms are made out of steel and protected against corrosion by a hot dip galvanizing . The subsequent color powder coating provides the appropriate finish.
The flanges have a diameter of 168.3 mm. The platform plates have a diameter of 1027 mm.
The surface of the platform is coated with rubber granulate and offers a secure hold.

The platform plate and the column are bolted together, thereby clamping the TWIRLCON connection ring to which the ropeways are attached.
The platform plate and the TWIRLCON connecting ring can be dismantled so that the system can be easily and inexpensively extended at a later date.

The height above play level is 470 mm.

Please note when planning:
Please bear in mind that the minimum degree between two balancing bounds that are connected to one platform has to be at least 72°!

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

Tender specification Podium circle XL (Sleeve foundation)

smb Podium circle XL (Sleeve foundation)
No. 7216202

The platform has a round base with a diameter of 1,027 mm. The surface is coated with colored rubber granulate.

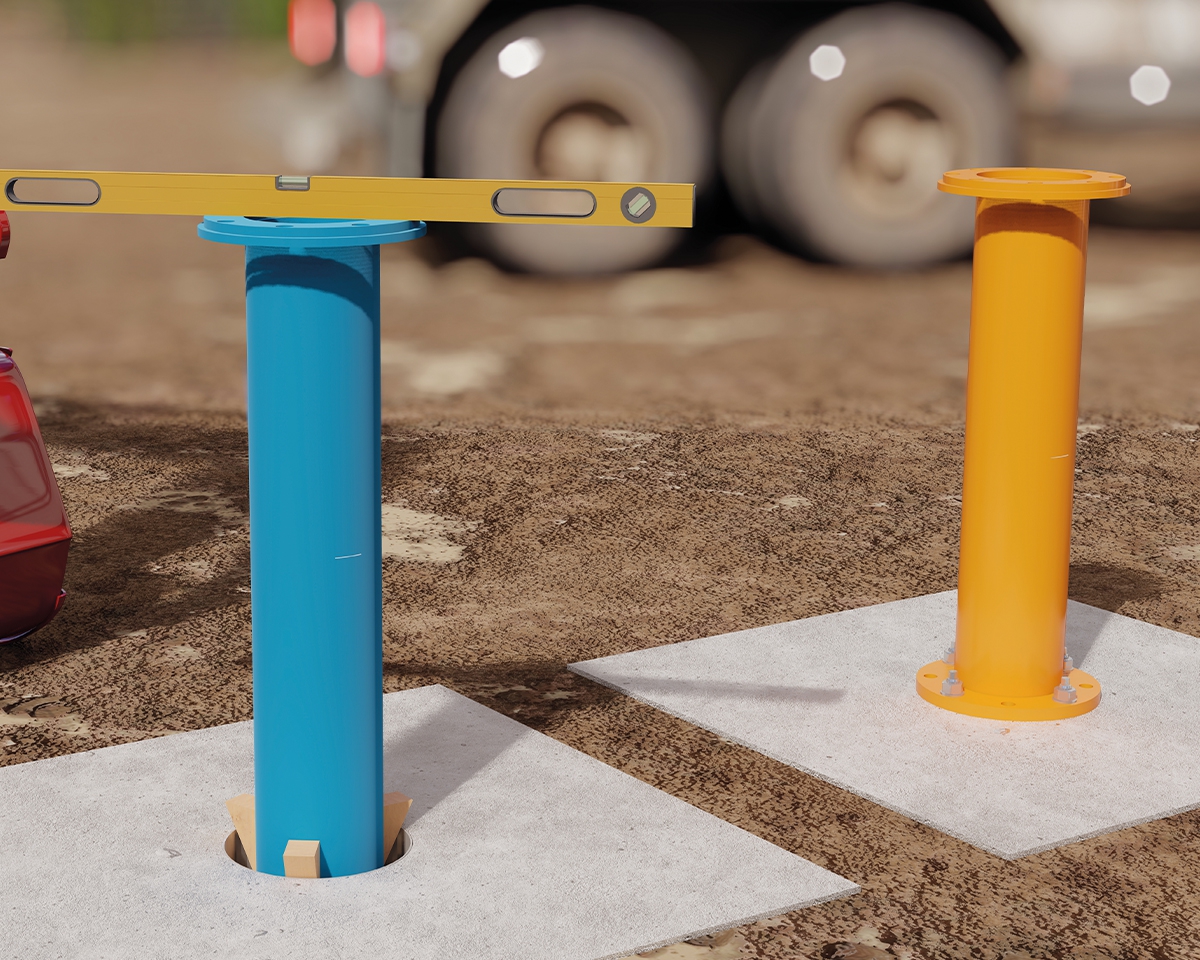

The steel tube column (D=168.3 x 6.3 mm) for embedding in concrete using a socket foundation is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and the column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.

The platform plate and the Twirlcon connection ring can be dismantled so that the system can be easily and cost-effectively expanded at a later date.

The height above the play level is 400 mm.

Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

Color options: A wide range of panel colors is available for individual design preferences.

Color options: A wide range of rope and panel colors is available for individual design preferences.

Tender specification Podium circle XL (Flange variant)

smb Podium circle XL (Flange variant)
No. 7216302

The platform has a round base with a diameter of 1027 mm. The surface is coated with colored rubber granulate.
The steel tube support column (D=168.3 x 6.3 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.

All components can be dismantled so that the system can be expanded easily and cost-effectively at a later date.

The height above the play level is 400 mm.
The four necessary dowels and the fastening materials are included in the scope of delivery.

Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

Color options: A wide range of rope and panel colors is available for individual design preferences.
