Ropeway Duplex

No. 7216008

Number of users1 per meter
Assembly time0.25 hours
Installers1 person
Max. length5.00 m

Difficulty: normal

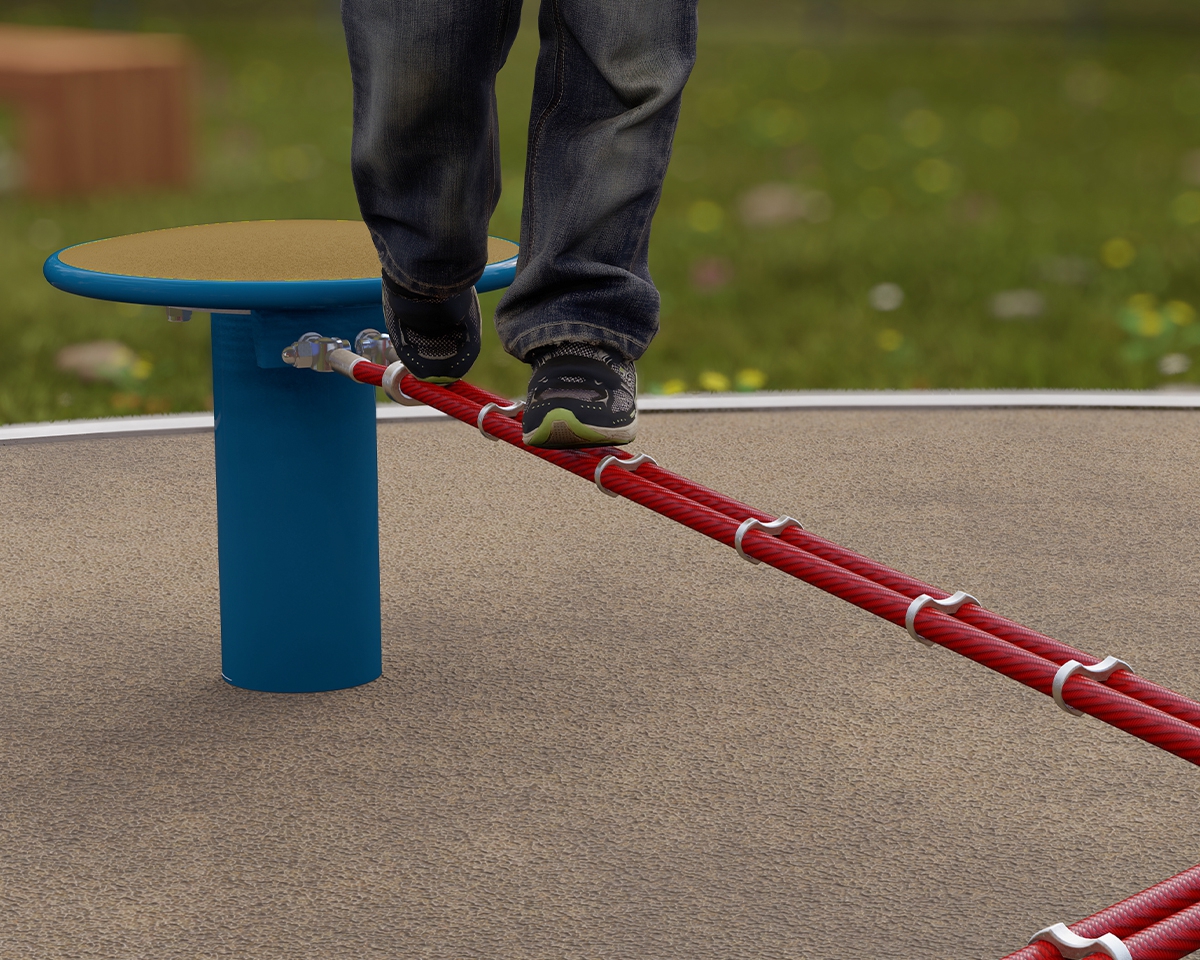

Ropeway Duplex is the next level after Ropeway Original and consists of two parallel Hercules ropes placed closely together. Compared to the Original, Duplex requires more balance, core tension and concentration, as the available surface for support is reduced and movements need to be more precisely controlled.
By using different lengths and a variety of colour or contrast combinations for the ropes, Duplex can be designed specifically for inclusive play and sports areas, enhancing visual orientation and accessibility for all users.
Ropeway Duplex can be used independently as a balancing course or combined with entry platforms and additional Ropeway elements to create varied movement landscapes that develop coordination skills, motor control and playful challenges.
Different entry platforms and coloured rope contrasts provide inclusive access, allowing children, youth and adults with varying experience levels and abilities to actively and independently balance, practice and interact with one another.


The ropeway variant Classic

The ropeway playground equipment is great to train the sense of balance in a playful way.

We offer a wide variety of combinations and individual solutions to suit the available space. You can choose from
slackline ropeway versions Original, Duplex, Cross and Pure and from a range of various platforms.

With your inspiration and our expert knowledge we can create exciting customized ropeway courses.

Ideal is the combination of several balancing bounds of the series Classic and Flux so that the construction is interesting for a wide range of age groups.

Please note when planning

Due to the low height of 400 mm, there are no requirements on the fall protection, so that the system can be installed on any surface.

Please bear in mind that the minimum degree between two balancing bounds that are connected to one platform has to be at least 72°!

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Ropeway Duplex

smb Ropeway Duplex
No. 7216008

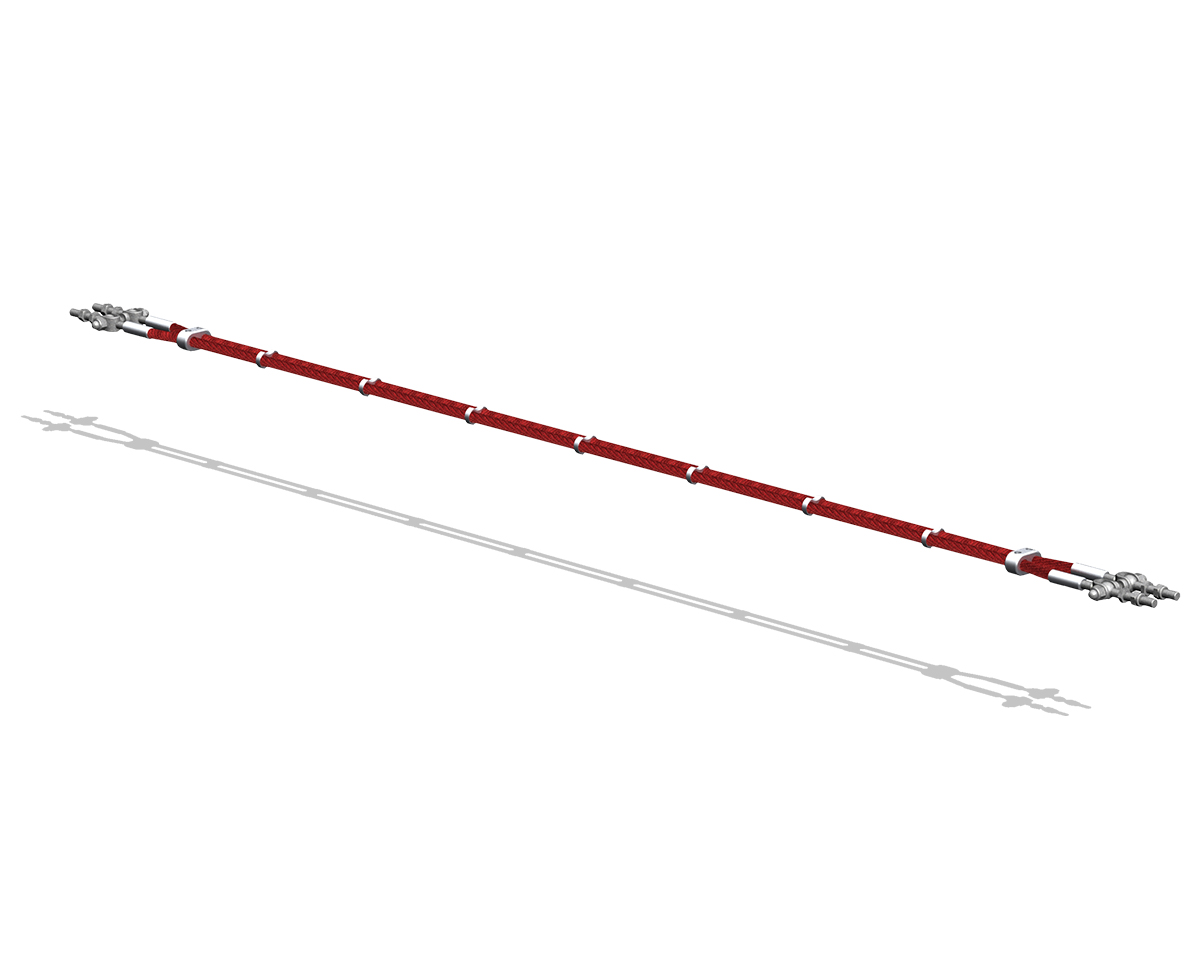

The ropeway Duplex consists of two robust Hercules ropes (Ø 20 mm) that run side by side. Total width approx.
60 mm.
The ropeway Duplex is attached with two articulated fork eye bolt connections (M16 x 110 mm) each. The ropes are pressed together by two special aluminum clamps.
This articulated connection ensures a long service life and enables optimum rope tension.
The ropeway DUPLEX is attached to the Twirlcon connection ring, the platform pedestal, or the platform plate with a round base. The platform plates are coated with rubber granulate.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
