Ropeway Cross

The ropeway playground equipment is great to train the sense of balance in a playful way.

We offer a wide variety of combinations and individual solutions to suit the available space. You can choose from
slackline ropeway versions Original, Duplex, Cross and Pure and from a range of various platforms.

With your inspiration and our expert knowledge we can create exciting customized ropeway courses.

Ideal is the combination of several balancing bounds of the series Classic and Flux so that the construction is interesting for a wide range of age groups.

Due to the low height of 400 mm, there are no requirements on the fall protection, so that the system can be installed on any surface.

Please bear in mind that the minimum degree between two balancing bounds that are connected to one platform has to be at least 72°!

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

smb Ropeway Cross
No. 7216007

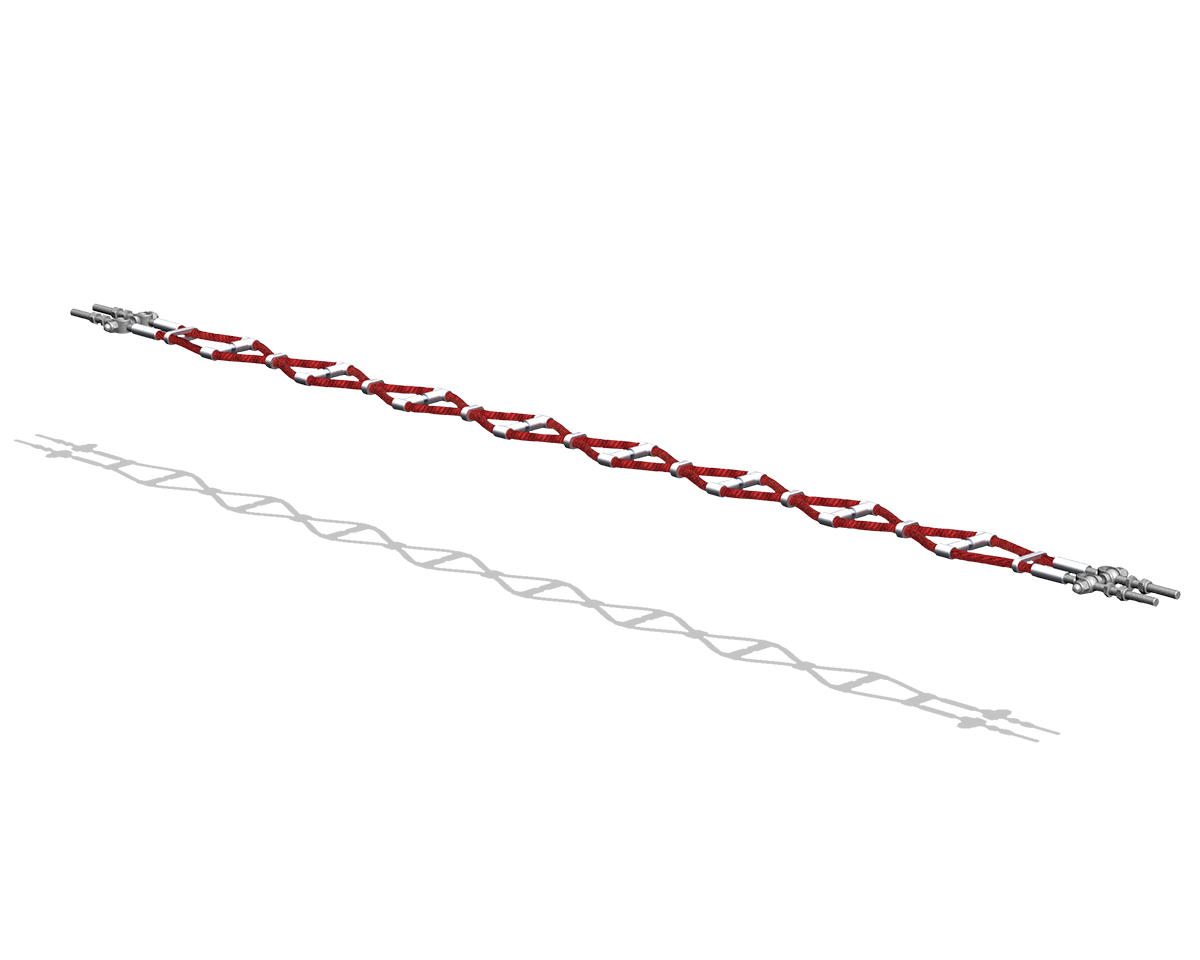

The ropeway Cross consists of two Hercules ropes (Ø 18 mm) running alternately alongside each other, approx. 130 mm wide.
The ropes are connected with T-clamps and aluminum round rods.

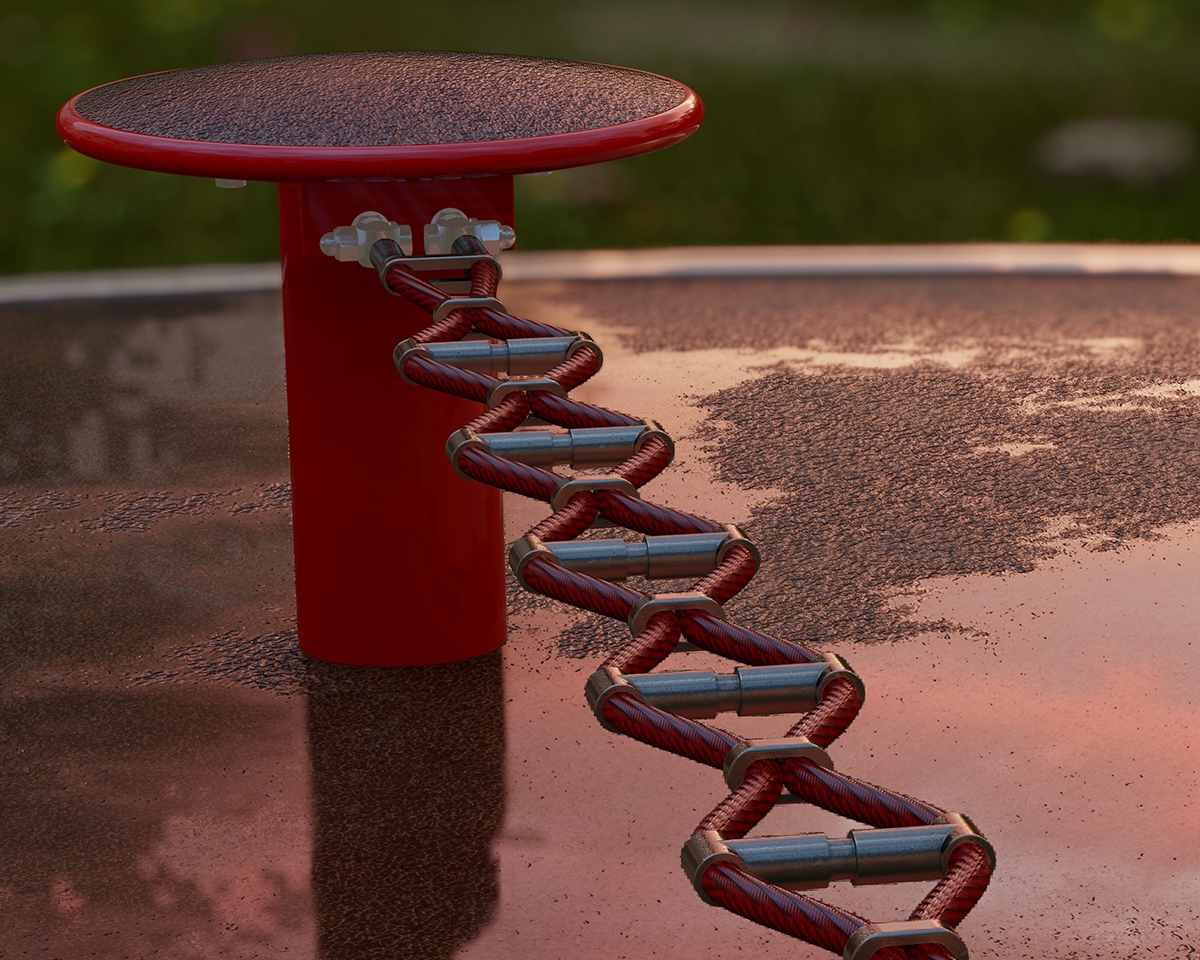

The contact points are pressed together using special aluminum clamps. The end fastenings consist of two articulated M16 x 150 mm fork eye bolt connections.
This articulated connection ensures a long service life and enables optimum rope tension.
The ropeway CROSS is attached to the Twirlcon connection ring, the platform pedestal, or the platform plate with a round base. The platform plates are coated with rubber granulate.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
