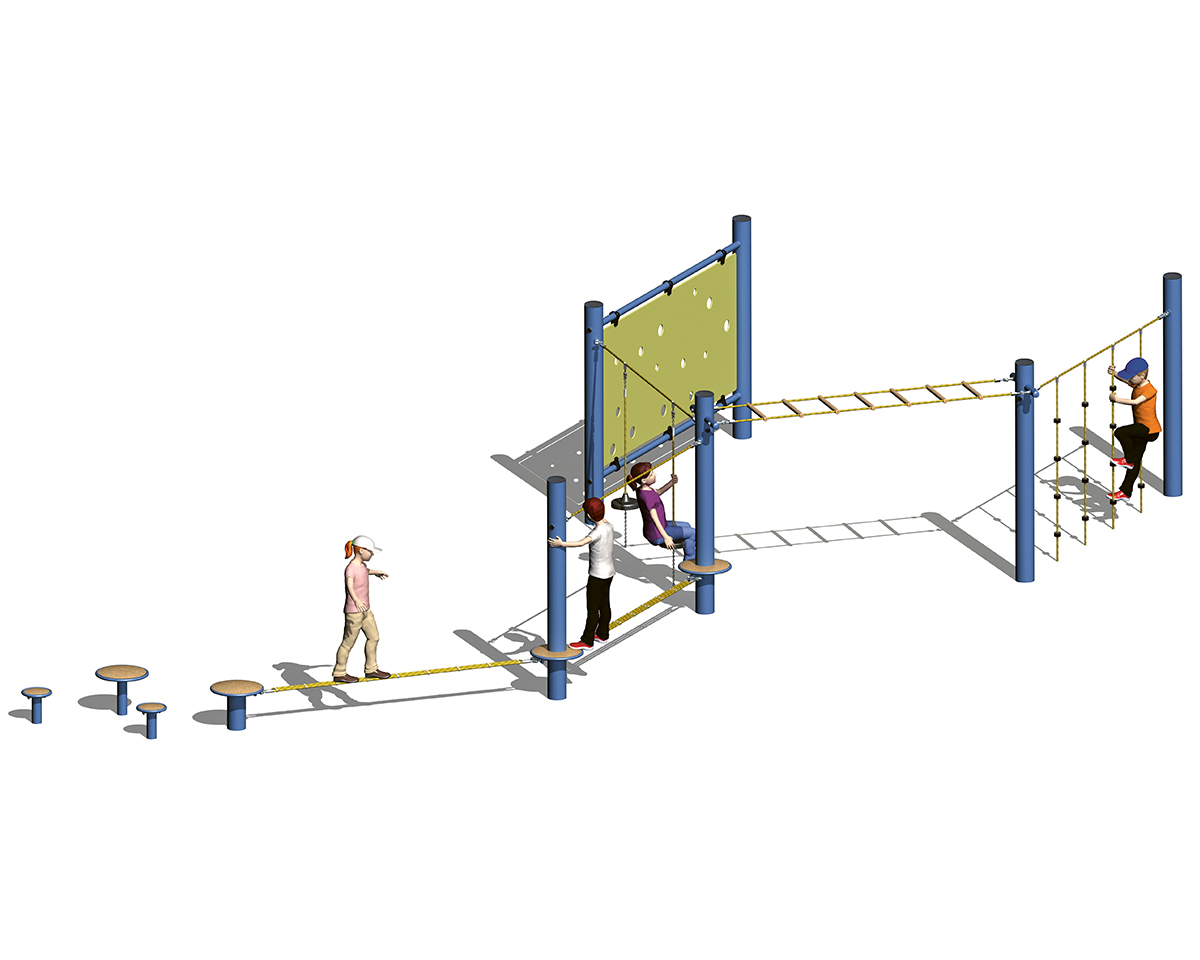

smb Adventure Park Junior Variant 6
No. 7220045
consistings of:

1x Ropeway Original (3.00 m)
No. 7216001
The ropeway Original consists of three robust Hercules ropes, each with a diameter of 20 mm, which are arranged side by side with a width of approx. 90 mm.
The ropeway Original is attached with two M16 x 110 mm articulated fork eye bolt connections. The ropes are pressed together using special aluminum clamps.
This articulated connection ensures a long service life and enables optimal rope tension.
The ropeway Original is attached to the Twirlcon connection ring, the platform pedestal, or the platform plate with a round base. The platform plates are coated with rubber granulate.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Floating bridge (3.00 m)
No. 7218016
A floating band consisting of 3 ropes, each with a diameter of 20 mm, running side by side, approx. 90 mm wide. End fastenings: 2 articulated fork eye bolt connections M16x110 mm each. The ropes are pressed together using special aluminum clamps.
Attached to two platform plates, each with a round base area of Ø480 mm and coated with rubber granulate.
The handrail rope of the suspension bridge consists of a robust Hercules rope, Ø 20 mm with galvanized steel strands and a durable and easy-grip yarn coating made of polyamide or polyester.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

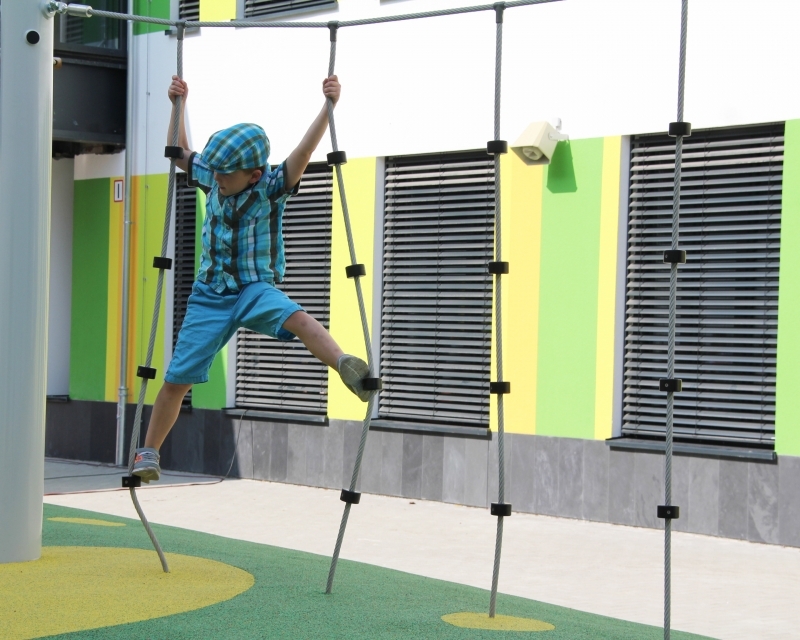

1x Raindrops (3.00 m)
No. 7218019
The raindrop consists of robust Hercules ropes, each with a diameter of 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The element consists of a horizontal rope and four vertical ropes (depending on the post spacing) with polyethylene climbing aids.
The horizontal rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the element with its horizontal ropes is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

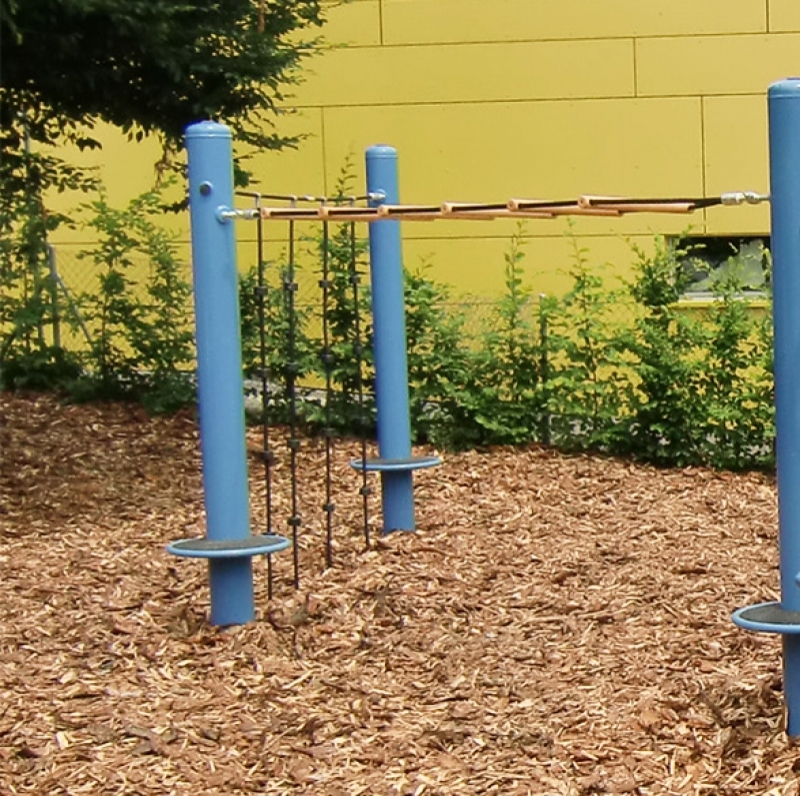

1x Flea ladder (3,00 m)
No. 7218012
The flea ladder consists of two robust Hercules ropes, Ø 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The 500 mm long rungs are made of robinia wood with a Ø of 40 mm and are threaded onto the two ropes at intervals of approx. 350 mm and screwed in place.
The flea ladder is attached using an articulated fork eye bolt tensioning system M16 x 110 mm and sleeve nuts M16 x 50 mm to cross tubes (Ø 60.3 mm) welded to the support posts.
The cross tubes are permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Depending on the manufacturing length, the flea ladder is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

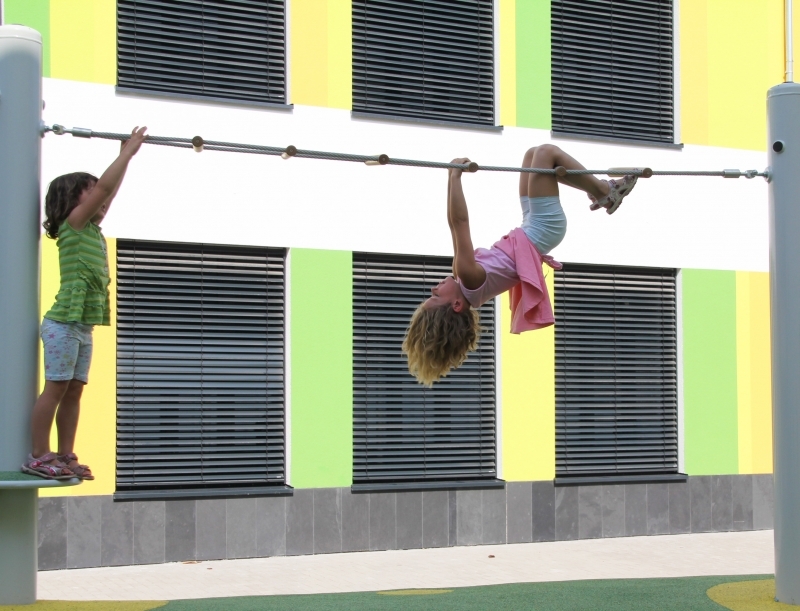

1x Liana park (3.00 m)
No. 7218015
The Liana Park consists of robust Hercules ropes Ø 18 mm and Ø 20 mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
The element features a horizontal rope and two pendulum seats made of rubber, designed for swinging and relaxing.
For the Adventure Park product series, we have further developed our proven SECUCOPE® PLUS tensioning system with fork eye bolt. It offers the advantage that the optimum degree of pretensioning can be set for each individual rope element between the posts. Furthermore, rope elongation due to use can be compensated during future maintenance intervals.
Depending on the production length, the Liana Park is suitable for a post spacing of up to 5.00 m (post center to post center).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

1x Climbing wall (3.00 m)
No. 7218023
The climbing wall consists of a climbing panel measuring 2797.3 x 1270 mm, which is mounted vertically between two horizontal tubes measuring Ø 60.3 x 2.9 mm.
The climbing wall is connected to the horizontal tubes using six screw-on smb aluminum tube clamps, type K. (The clamps are powder-coated in black RAL 9005).
The HPL climbing panel has various round holes (Ø 80–100 mm) to aid climbing.
The post spacing is 3 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

6x Support post big
No. 7218050
The large support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the playing level is 2070 mm and the total length is 3070 mm.
The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.
Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.
The minimum concrete grade is C20/25 (B25).

2x Small beetle
No. 7216400 (Concrete foundation)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The flange column made of steel tubing with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary.
The height above the play level is between 200 and 400 mm.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216500 (Flange anchorage)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The steel tube column with a diameter of 88.9 mm for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are screwed together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

1x Big beetle
No. 7216401 (Concrete foundation)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tube with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary. The height above the play level is between 100 and 500 mm.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216501 (Flange anchorage)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The steel tube stand column (Ø 88.9 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are bolted together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening material are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

1x Podium circle S
No. 7216200 (Sleeve foundation)
The platform has a round base with a diameter of 504 mm. The surface is coated with colored rubber granulate.
The steel tube column (D=168.3 x 6.3 mm) for embedding in concrete using a socket foundation is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and the column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.
The platform plate and the Twirlcon connection ring can be dismantled so that the system can be easily and cost-effectively expanded at a later date.
The height above the play level is 470 mm.
Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

or

No. 7216300 (Flange variant)
The platform has a round base with a diameter of 504 mm. The surface is coated with colored rubber granulate.
The steel tube column (D=168.3 x 6.3 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.
All components can be dismantled so that the system can be expanded easily and cost-effectively at a later date.
The height above the play level is 470 mm.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

Color options: A wide range of rope and panel colors is available for individual design preferences.
