Floating bridge

No. 7218016

Number of users1 per meter
Assembly time0.40 hours
Installers1 person
Lengthup to 5.00 m

Suitable for Adventure Park Junior.

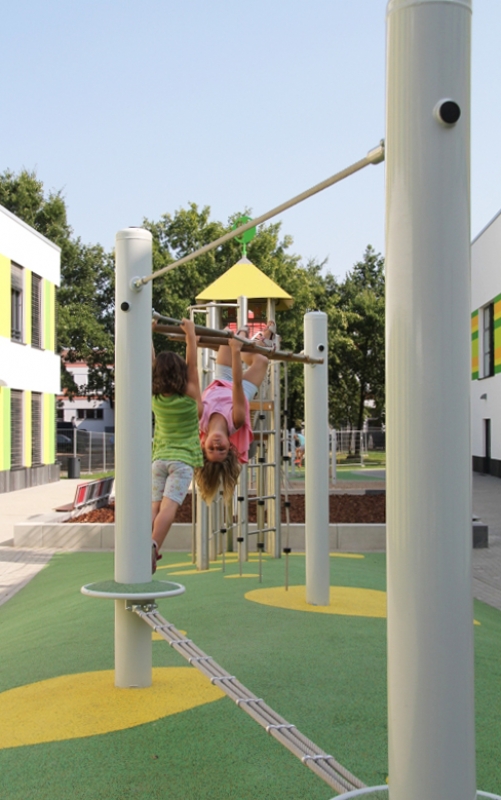

The Floating Bridge is a balancing and movement element from the Adventure Park system, equipped with ropes from the Schwebeband® Original. The flexible walking surface requires focused crossing and promotes balance, coordination and body control. Thanks to its modular design, the Floating Bridge can be flexibly combined with other Adventure Park elements. An overhead handrail rope provides additional support and safety while balancing and allows the creation of varied courses with different levels of difficulty.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

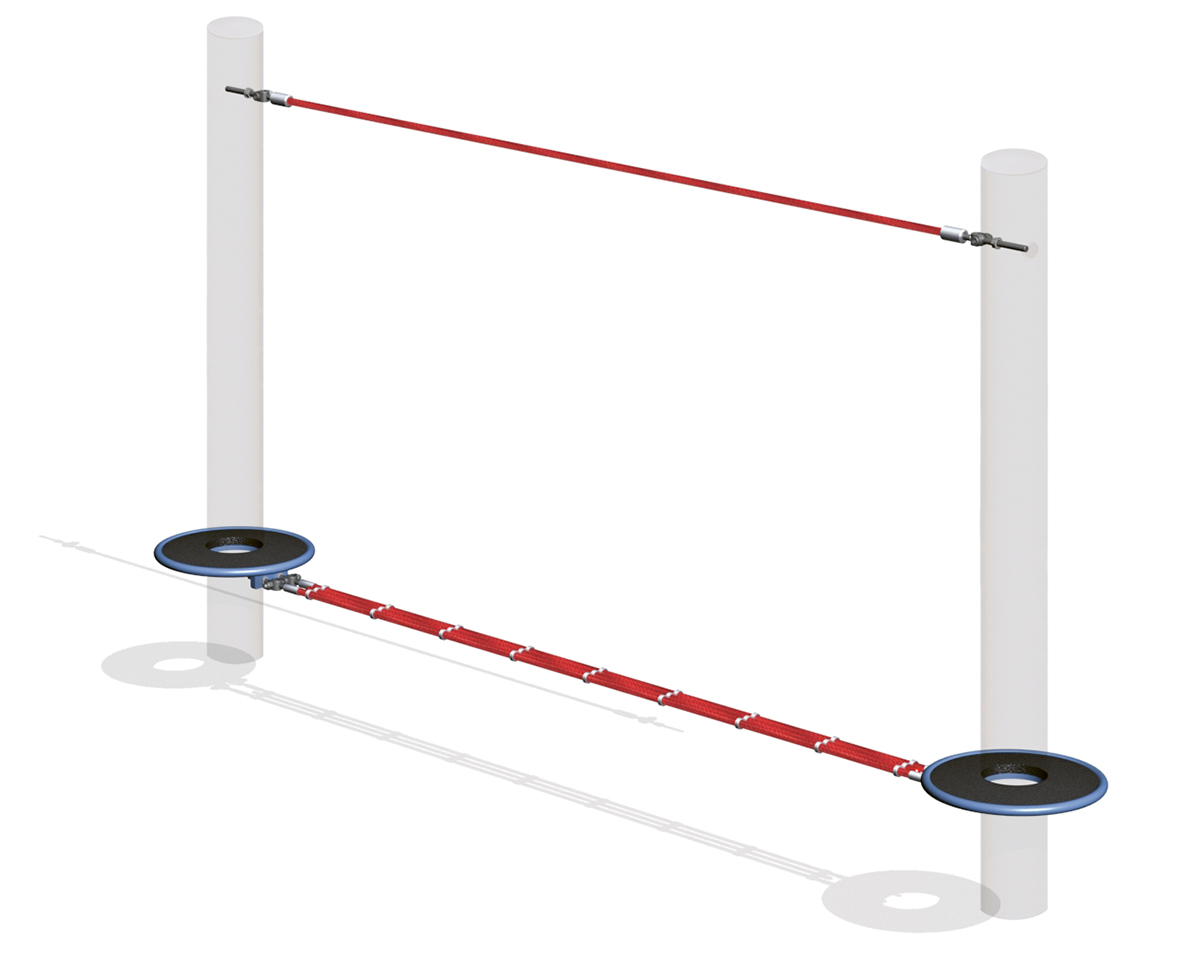

Tender specification Floating bridge

smb Floating bridge
No. 7218016

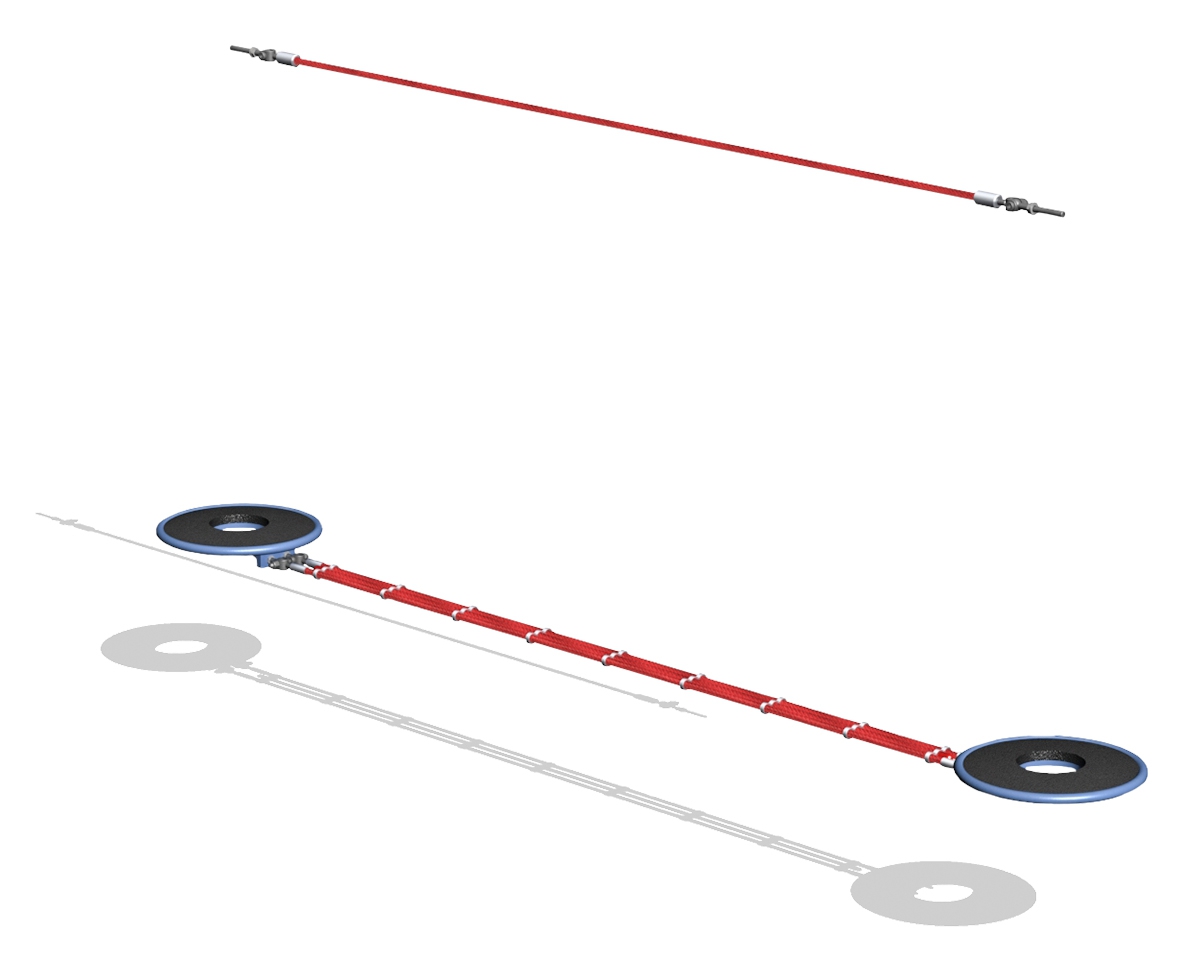

A floating band consisting of 3 ropes, each with a diameter of 20 mm, running side by side, approx. 90 mm wide. End fastenings: 2 articulated fork eye bolt connections M16x110 mm each. The ropes are pressed together using special aluminum clamps.

Attached to two platform plates, each with a round base area of Ø480 mm and coated with rubber granulate.

The handrail rope of the suspension bridge consists of a robust Hercules rope, Ø 20 mm with galvanized steel strands and a durable and easy-grip yarn coating made of polyamide or polyester.

Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
