• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Information: A large number of further colors of the RAL-system or other color systems are possible.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

• Pearl white
  ≈ RAL 1013
• Beige
  ≈ RAL 1001
• Brick red
  ≈ RAL 3016
• Sky blue
  ≈ RAL 5015
• May green
  ≈ RAL 6017
• Black
  ≈ RAL 9004

Information: A large number of further colors are possible.

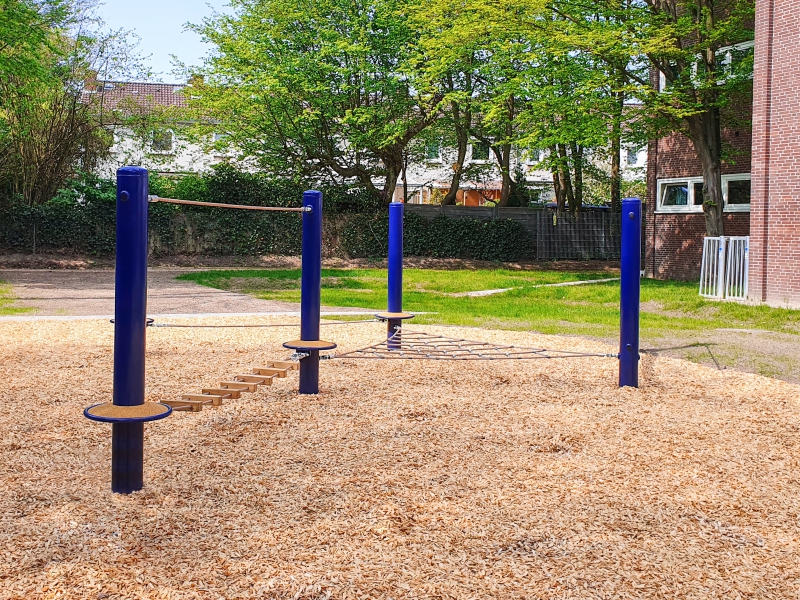

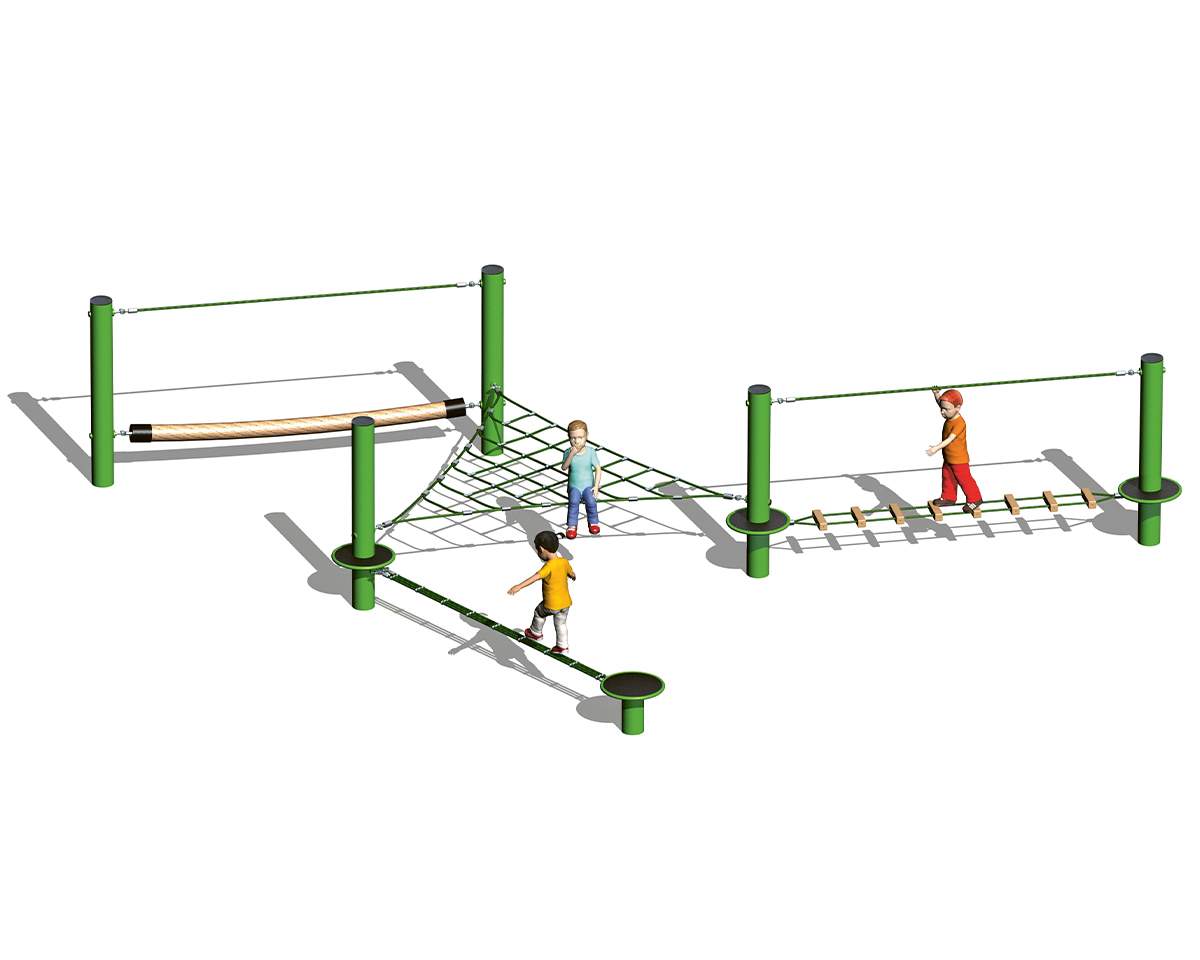

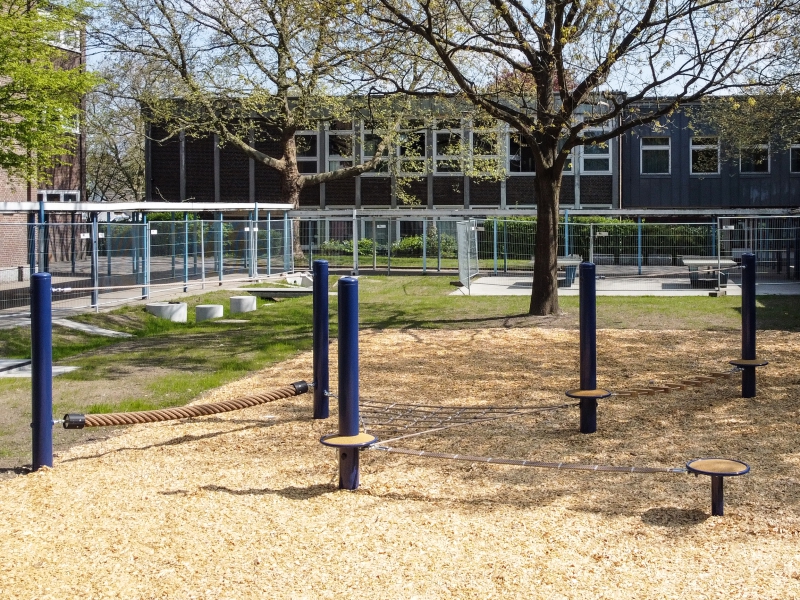

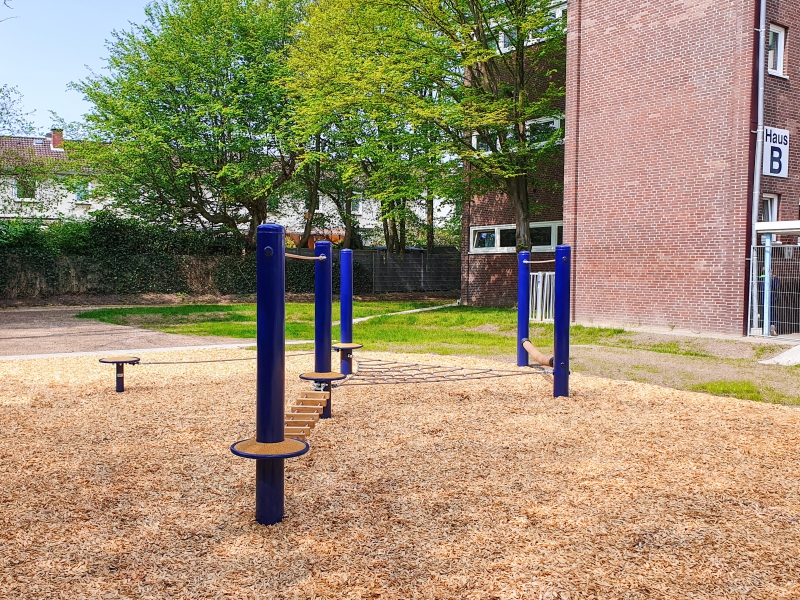

smb Adventure Park Bambino Variant 4
No. 7219043
consistings of:

1x Jungle bridge (3.00 m)
No. 7218014
The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Ropeway Original (3.00 m)
No. 7216001
The ropeway Original consists of three robust Hercules ropes, each with a diameter of 20 mm, which are arranged side by side with a width of approx. 90 mm.
The ropeway Original is attached with two M16 x 110 mm articulated fork eye bolt connections. The ropes are pressed together using special aluminum clamps.
This articulated connection ensures a long service life and enables optimal rope tension.
The ropeway Original is attached to the Twirlcon connection ring, the platform pedestal, or the platform plate with a round base. The platform plates are coated with rubber granulate.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Centipede (3.00 m)
No. 7218011
The centipede consists of robust Hercules ropes (Ø 16 mm and Ø 20 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating. The rungs, made of robinia wood with a square profile of 60 x 60 and a length of 260 mm, are threaded onto two ropes at intervals of approx. 290 mm and screwed in place.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system.
The rung element is connected to the respective platform plates (round base Ø 480 welded to the support posts and coated with rubber granulate) via an articulated fork-eye bolt connection. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the millipede is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Orchid leaf (3.00 x 3.00 x 3.00 m)
No. 7218054
The Orchid Leaf is a horizontal play, seating, and lounging net consisting of robust Hercules ropes (Ø 18 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating.
The net intersection points are connected using aluminum ball knots.
The outer sides of the net are attached to the edge ropes using aluminum T-clamps.
The ends of this triangular net are connected to the respective support posts using the internal and protected SECUCOPE PLUS tensioning system, which is easy to install. This articulated connection (M20) ensures a long service life and enables optimum rope tension.
The post spacing is 3.00 x 3.00 x 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

5x Support post small - Bambino
No. 7218051
The small support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the play level is 1770 mm and the total length is 2770 mm.
The post offers connection options for the articulated fork-eye bolt tensioning system M16 mm.
The small support post has a total of 10 connection options for adventure park elements.
It is anchored using a concrete foundation measuring 1.1 x 1.1 x 0.8 m.
The minimum concrete grade is C20/25 (B25).

1x Plateau plate
No. 7218029
The Plateau plate is a round base with a diameter of 480 mm welded to the support posts and coated with rubber granulate.
It offers optional connection options for suspension straps and the millipede.
The platform plate is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Podium circle S
No. 7216200 (Sleeve foundation)
The platform has a round base with a diameter of 504 mm. The surface is coated with colored rubber granulate.
The steel tube column (D=168.3 x 6.3 mm) for embedding in concrete using a socket foundation is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and the column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.
The platform plate and the Twirlcon connection ring can be dismantled so that the system can be easily and cost-effectively expanded at a later date.
The height above the play level is 470 mm.
Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

or

No. 7216300 (Flange variant)
The platform has a round base with a diameter of 504 mm. The surface is coated with colored rubber granulate.
The steel tube column (D=168.3 x 6.3 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together, thereby clamping the Twirlcon connection ring to which the suspension straps are attached.
The Twirlcon connection ring offers a maximum of 5 connection options with a minimum angle of 72°.
All components can be dismantled so that the system can be expanded easily and cost-effectively at a later date.
The height above the play level is 470 mm.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation measuring 1.0 x 1.0 x 0.8 m.
The minimum concrete grade is C20/25.

Color options: A wide range of rope and panel colors is available for individual design preferences.
