| Unit space area | Ø 0.17 m |
| Height of unit | 1.72 m |
| Total weight | 80 kg |
| Foundations | 1.10 x 1.10 x 0.80 m |
| Total quantity of concrete | 0.97 m³ |
| Connection options | 10 |
Suitable for Adventure Park Bambino and Junior.

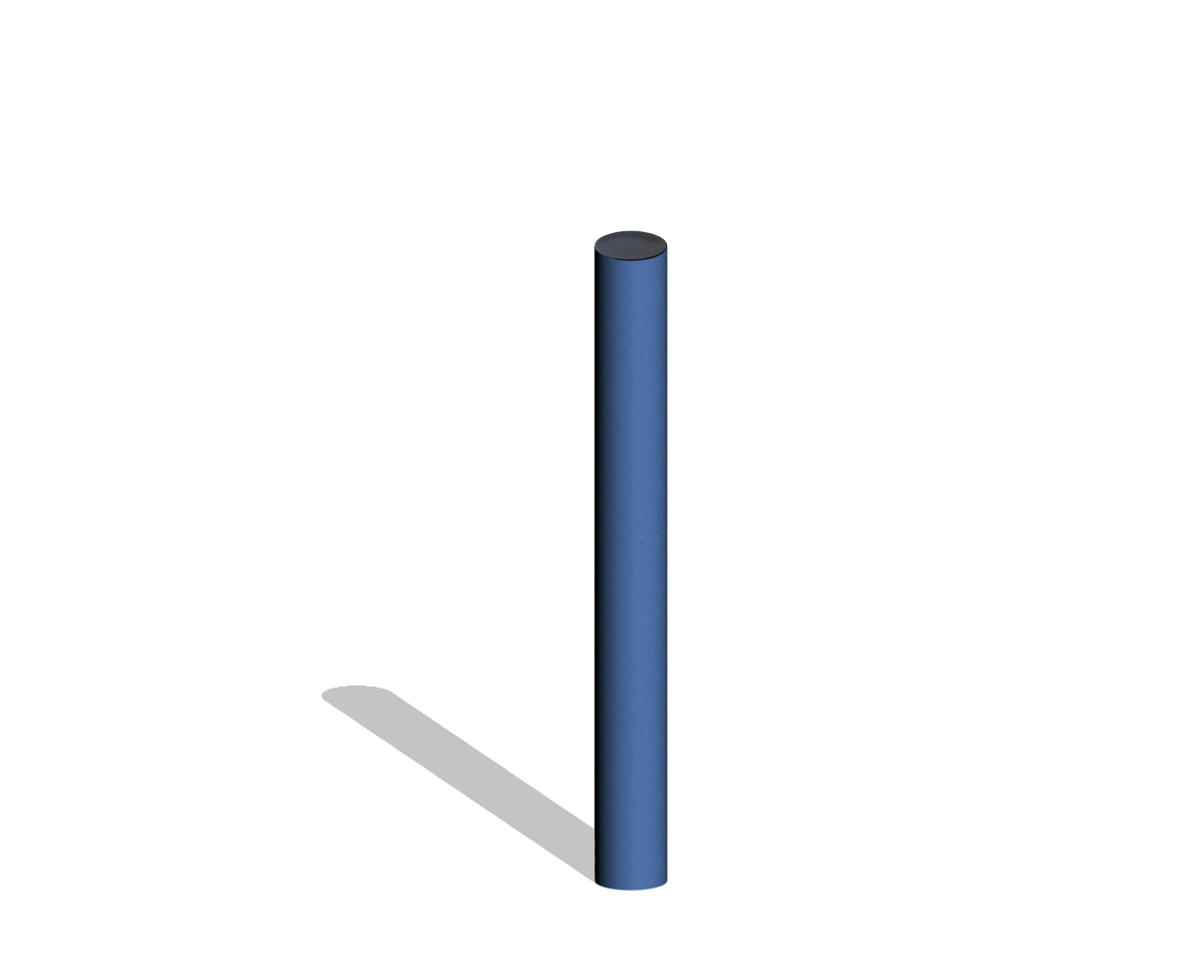

The support post small consists of a steel tube Ø 168.3 mm.
This is permanently protected against corrosion by hot-dip galvanizing and subsequent color powder coating in a RAL color.
The support post small has a total of 10 connection options for Adventure Park elements.
For the Adventure Park product series, we have further developed our proven SECUCOPE® PLUS tensioning system with fork eye bolt. It offers the advantage that the optimum degree of pretensioning can be set for each individual rope element between the posts. Furthermore, the rope elongation due to use can be compensated at the following maintenance intervals.
Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!
Selectable standard colors for steel parts:
Information: A large number of further colors of the RAL-system or other color systems are possible.
