• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Information: A large number of further colors of the RAL-system or other color systems are possible.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

• Pearl white
  ≈ RAL 1013
• Beige
  ≈ RAL 1001
• Brick red
  ≈ RAL 3016
• Sky blue
  ≈ RAL 5015
• May green
  ≈ RAL 6017
• Black
  ≈ RAL 9004

Information: A large number of further colors are possible.

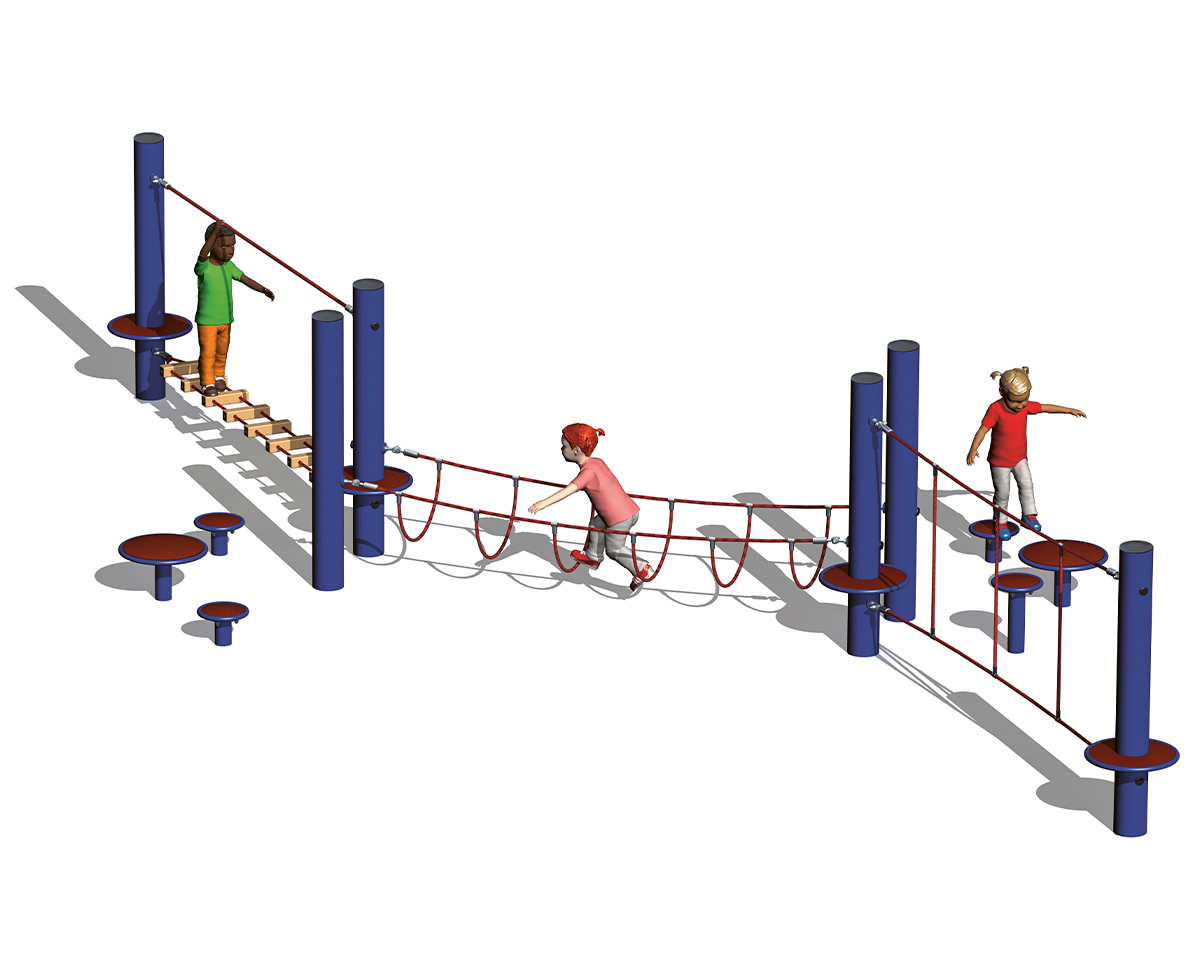

smb Adventure Park Bambino Variant 6
No. 7219045
consistings of:

1x Bamboo net (3.00 m)
No. 7218020
The bamboo net consists of robust Hercules ropes (Ø 18 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating.
The element consists of two horizontal ropes and three vertical ropes.
The vertical ropes are attached to the horizontal ropes with aluminum T-clamps.
The horizontal ropes are connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system.
This articulated connection (M16) ensures a long service life and enables optimum rope tension.
The bamboo net is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Centipede (3.00 m)
No. 7218011
The centipede consists of robust Hercules ropes (Ø 16 mm and Ø 20 mm) with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating. The rungs, made of robinia wood with a square profile of 60 x 60 and a length of 260 mm, are threaded onto two ropes at intervals of approx. 290 mm and screwed in place.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system.
The rung element is connected to the respective platform plates (round base Ø 480 welded to the support posts and coated with rubber granulate) via an articulated fork-eye bolt connection. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the millipede is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Tiger trail (3.00 m)
No. 7218057
The Tiger trail consists of robust Hercules rope, Ø 18 mm, with galvanized steel strands and a durable, easy-grip polyamide or polyester yarn coating.
The element consists of two horizontal ropes and six loop ropes. The loop ropes are attached to the horizontal ropes with aluminum T-clamps.
The horizontal ropes are connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
The Tiger trail is suitable for a post spacing of up to 4 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

6x Support post small - Bambino
No. 7218051
The small support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the play level is 1770 mm and the total length is 2770 mm.
The post offers connection options for the articulated fork-eye bolt tensioning system M16 mm.
The small support post has a total of 10 connection options for adventure park elements.
It is anchored using a concrete foundation measuring 1.1 x 1.1 x 0.8 m.
The minimum concrete grade is C20/25 (B25).

2x Plateau plate
No. 7218029
The Plateau plate is a round base with a diameter of 480 mm welded to the support posts and coated with rubber granulate.
It offers optional connection options for suspension straps and the millipede.
The platform plate is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

4x Small beetle
No. 7216400 (Concrete foundation)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The flange column made of steel tubing with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary.
The height above the play level is between 200 and 400 mm.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216500 (Flange anchorage)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The steel tube column with a diameter of 88.9 mm for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are screwed together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

2x Big beetle
No. 7216401 (Concrete foundation)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tube with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary. The height above the play level is between 100 and 500 mm.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216501 (Flange anchorage)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The steel tube stand column (Ø 88.9 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are bolted together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening material are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
