Activity bar variant 8

No. 9710217

Unit space area5.30 x 4.61 m
Safety space area8.30 x 7.61 m
Height of unit3.10 m
Age range4+
Number of users9
Free fall height1.47 m
Heaviest component45 kg
Total weight329 kg
Assembly time2.50 hours
Installers2 persons
Foundations10 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete2.88 m³

Activity bar variant 8 consisting of several individual components:
9x Activity bar
2x Post S (length 0.95 m - connection height of the horizontal bar: 0.85 m)
2x Post M (length 1.25 m - connection height of the horizontal bar: 1.15 m)
2x Post L (length 1.55 m - connection height of the horizontal bar: 0.85 m, 1.15 m und 1.45 m)
3x Post extended (length 2.60 m - connection height of the horizontal bar: 0.85 m, 1.15 m und 1.45 m)
1x Post extended (length 3.10 m - connection height of the horizontal bar: 0.85 m, 1.15 m und 1.45 m)

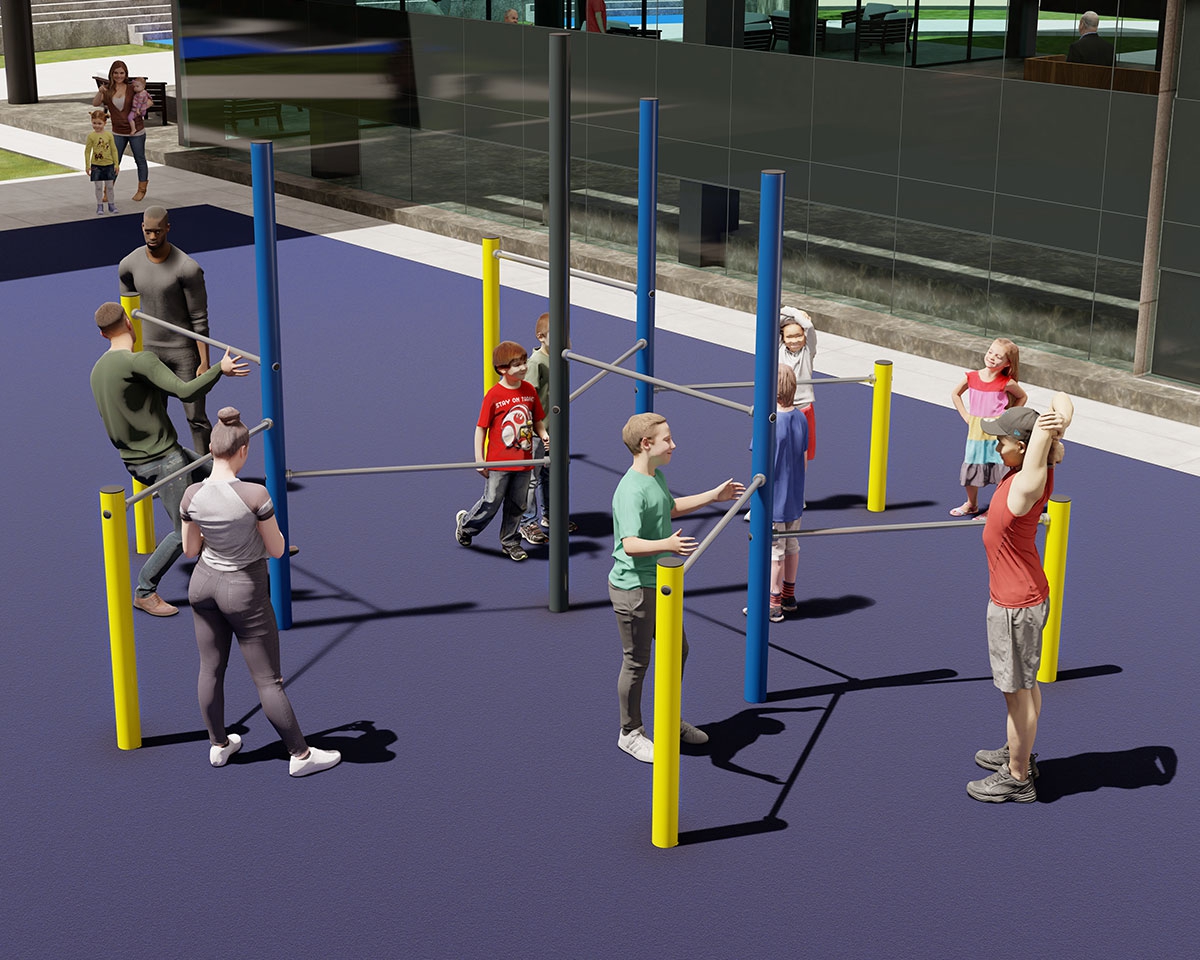

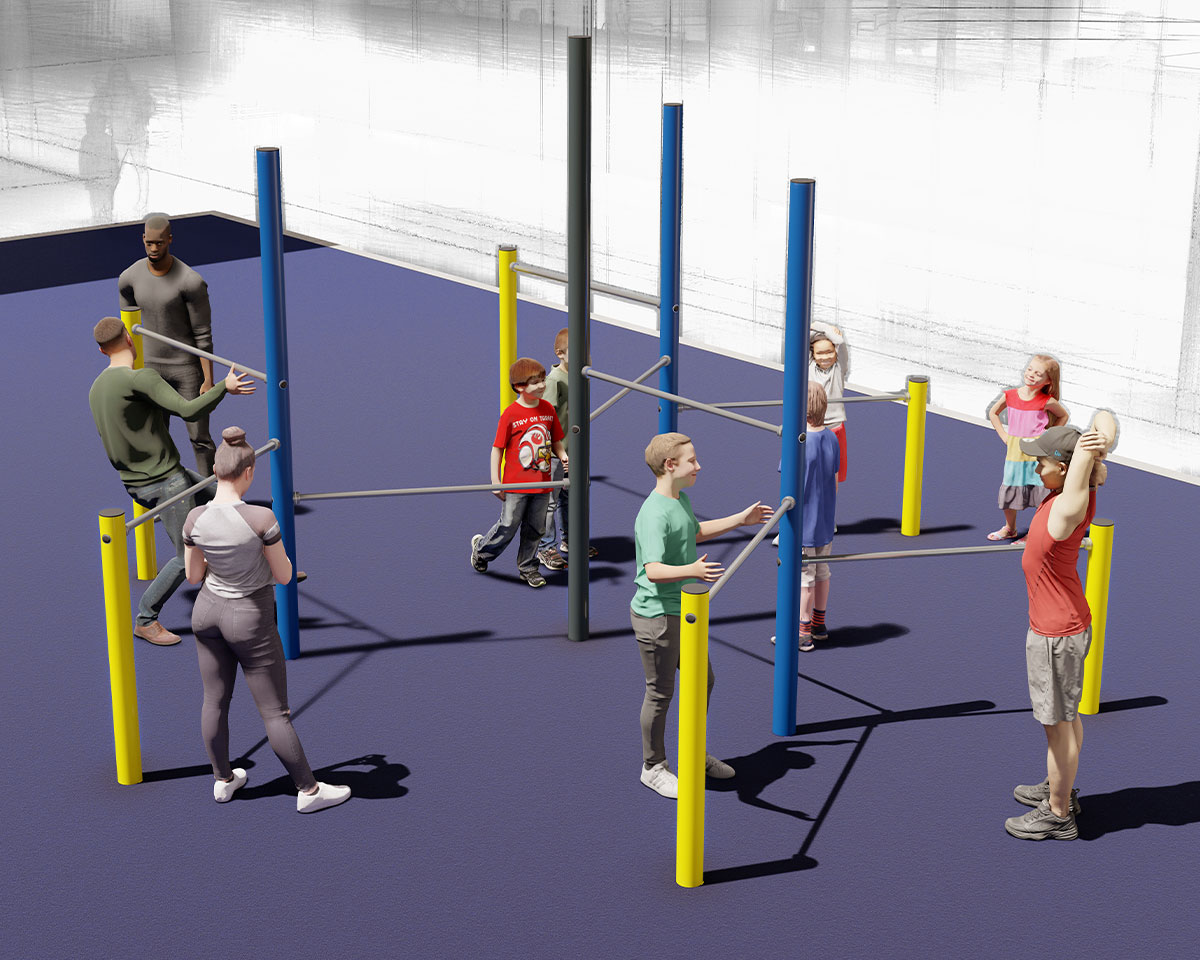

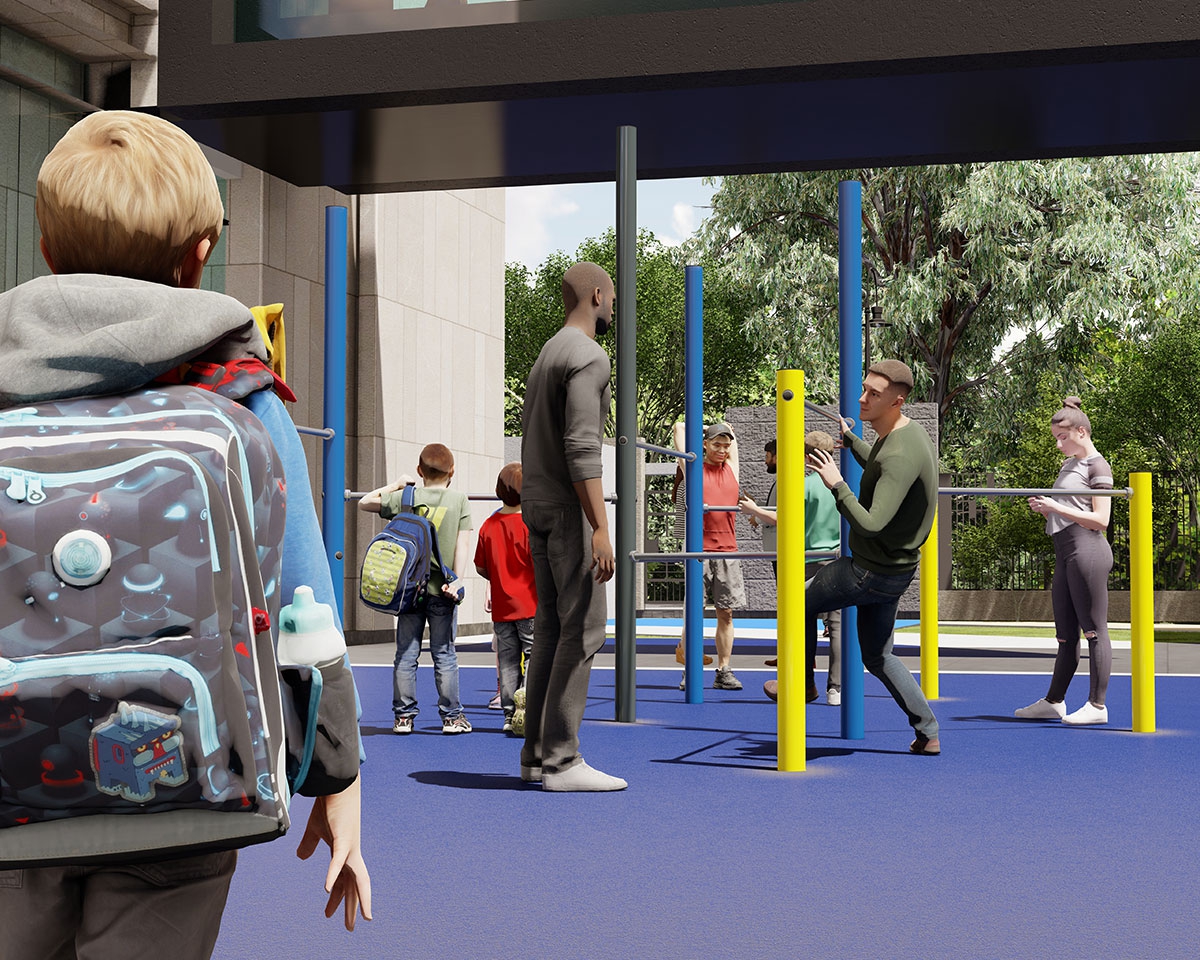

Radially arranged activity bar combination – focus on coordination and communication

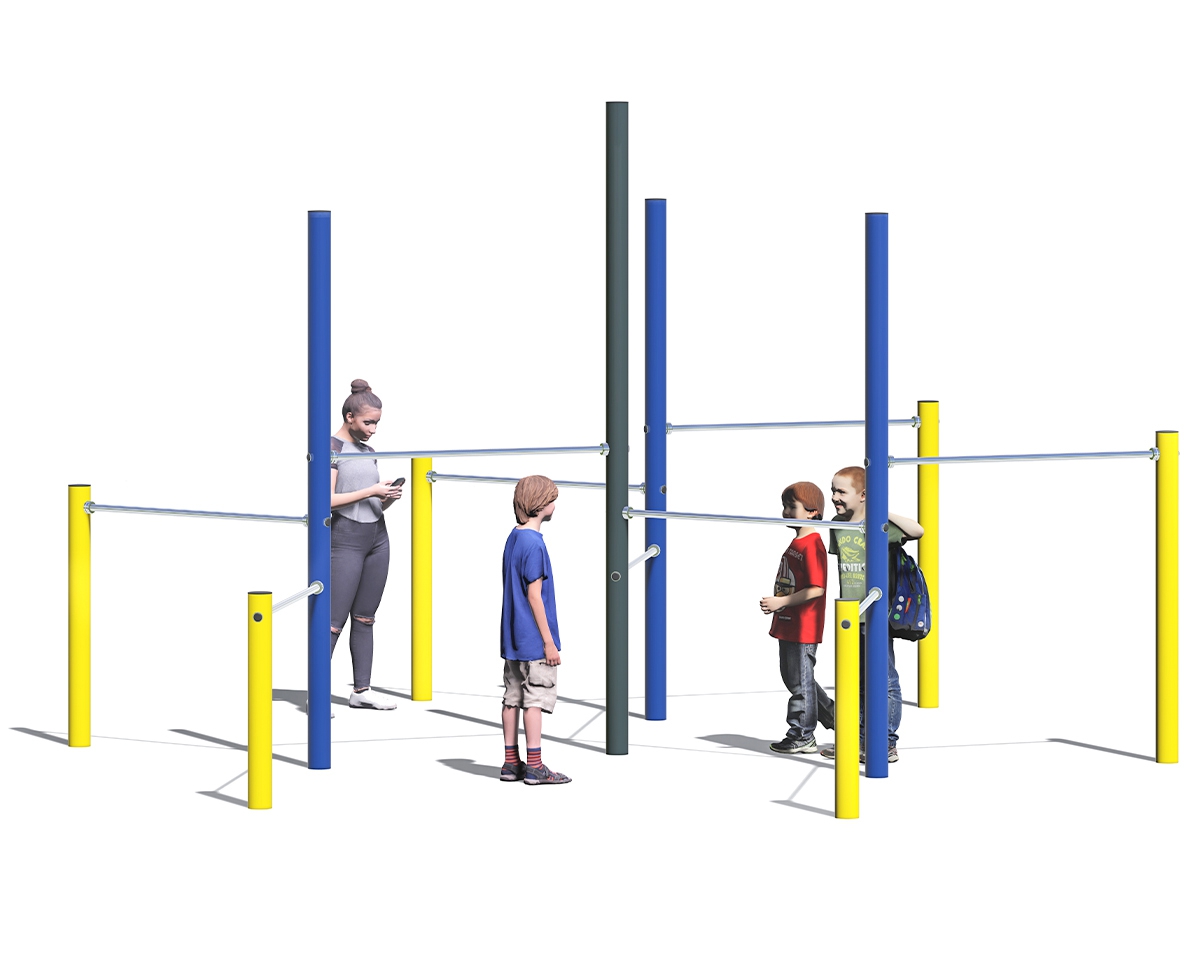

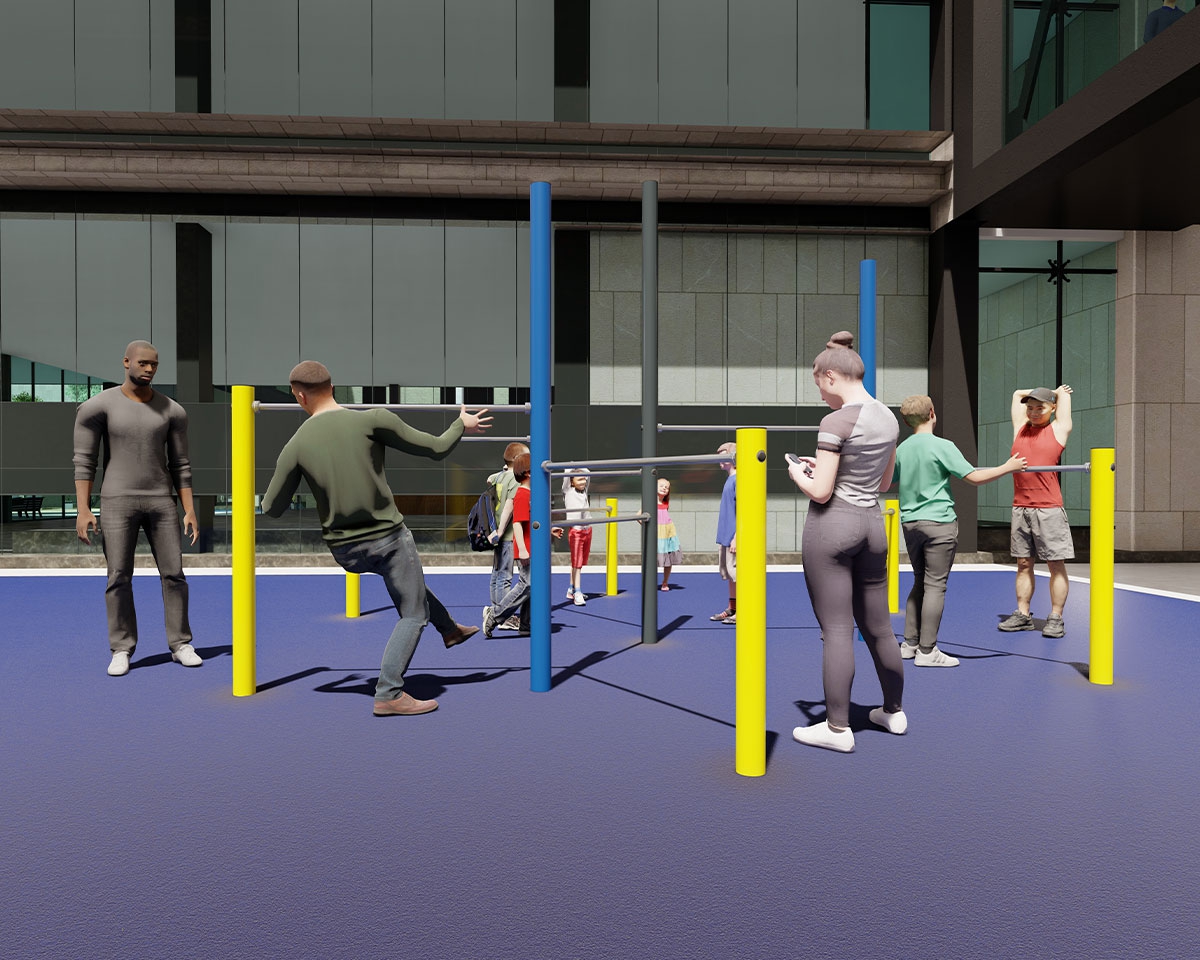

This exciting activity bar combination consists of ten vertical support posts of varying heights, connected by nine horizontal bars.

The bars are mounted at heights ranging from 0.85 m to 1.45 m and the entire structure is designed for maximum fall height of 1.50 m.
The activity bars are arranged at 120° angles to each other, creating an open, evenly accessible layout that allows use from multiple directions.

The staggered height arrangement of the support posts is a key design feature.
It not only enables a functional differentiation of movement options but also creates a striking visual presence in the space.

The varying post heights form a dynamic silhouette that is clearly visible from a distance, positioning the structure as an attractive focal point within the play or movement area.
This deliberate design makes the bar combination not just a piece of sports equipment, but also an architectural highlight.

The nine activity bars connect the posts at different heights and angles, resulting in a versatile range of movement possibilities.

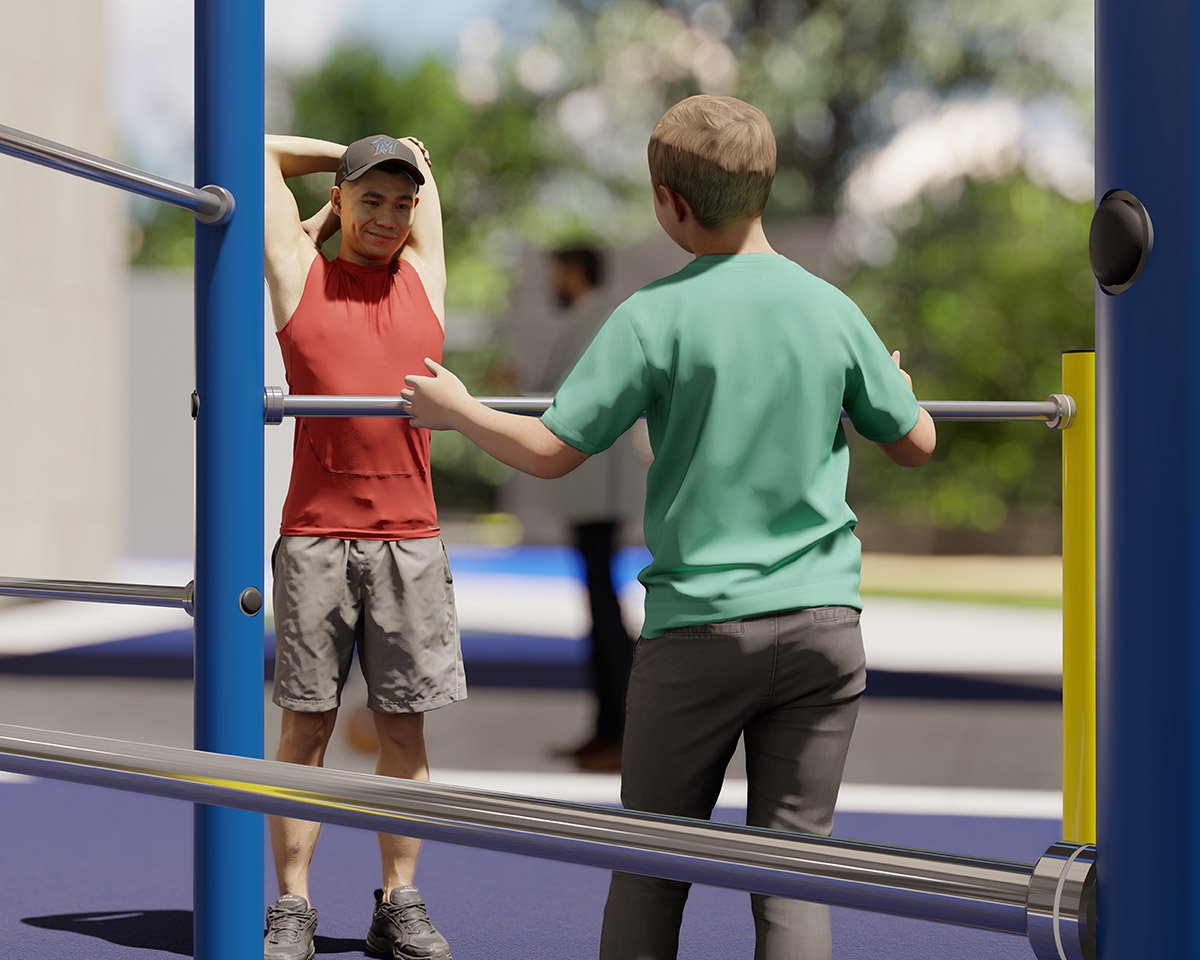

Users can engage in classic gymnastic exercises such as hanging, swinging or pull-ups, as well as coordinated partner activities and creative group play.

The structure promotes not only physical fitness but also social skills such as communication, consideration, and team spirit.

Thanks to its open, radial layout and carefully planned height variation, the combination creates an inclusive movement space that invites people of all abilities to participate actively.
The blend of functional diversity, clear design language, and safety-conscious planning makes this bar structure an ideal element for modern play environments that encourage movement and social interaction.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 8

smb Activity bar variant 8
No. 9710217
consisting of:

9x Activity bar
No: 9710010
Horizontal bar made of polished stainless steel tube Ø33.7 mm with a length of approx. 1372 mm, suitable for a post distance of 1500 mm (from post center to post center). The connection height can be individually defined.
The horizontal tube is mounted to the upright posts in a user-friendly way via a twist-proof, internal and protected screw connection.
Note: The posts for Horizontal Bar are not included and must be considered separately.

2x Post S length 0.95 m - connection height of the horizontal bar: 0.85 m
No: 9710020
The Post S (0.95 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 958 mm, with a total length of 1958 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

2x Post M length 1.25 m - connection height of the horizontal bar: 1.15 m
No: 9710021
The Post M (1.25 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 1258 mm, with a total length of 2258 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

2x Post L length 1.55 m - connection height of the horizontal bar:  0.85 m, 1.15 m und 1.45 m
No: 9710022
The Post L (1.55 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above play level is 1558 mm, with a total length of 2558 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

3x Post extended length 2.60 m - connection height of the horizontal bar:  0.85 m, 1.15 m und 1.45 m
No: 9710023
The extended Post (max. 3.1 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above play level is 3108 mm.
Note:
The structurally approved mounting height for the horizontal bar is limited to a maximum of 1.45 m. The extended post length serves exclusively for design variety and visual impact.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

1x Post extended length 3.10 m - connection height of the horizontal bar:  0.85 m, 1.15 m und 1.45 m
No: 9710023
The extended Post (max. 3.1 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above play level is 3108 mm.
Note:
The structurally approved mounting height for the horizontal bar is limited to a maximum of 1.45 m. The extended post length serves exclusively for design variety and visual impact.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

For layout and dimensions, see draft plan.
