Activity bar variant 7

No. 9710216

Unit space area2.71 x 2.36 m
Safety space area5.71 x 5.36 m
Height of unit1.56 m
Age range4+
Number of users3
Free fall height1.47 m
Heaviest component29 kg
Total weight117 kg
Assembly time1.00 hour
Installers2 persons
Foundations4 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete1.15 m³

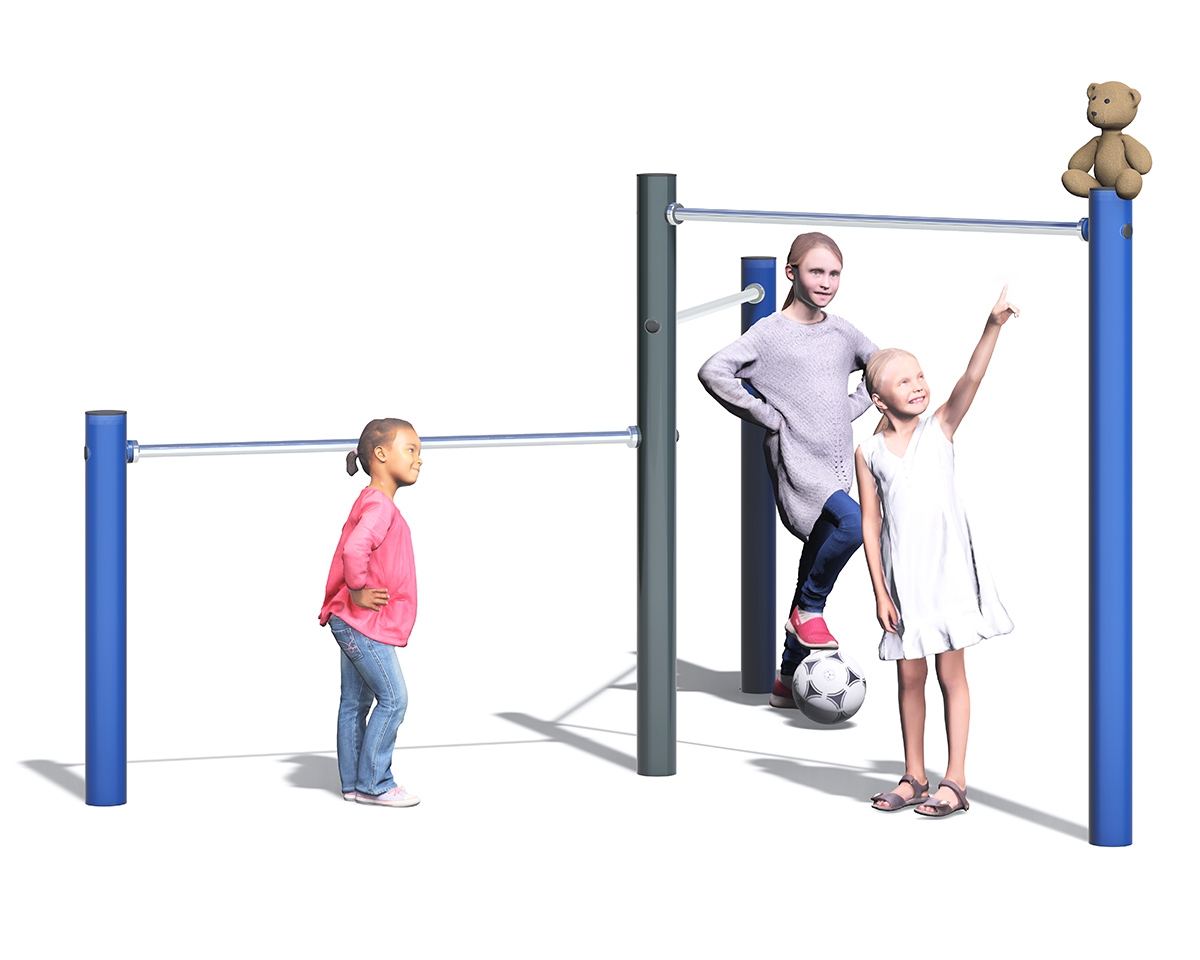

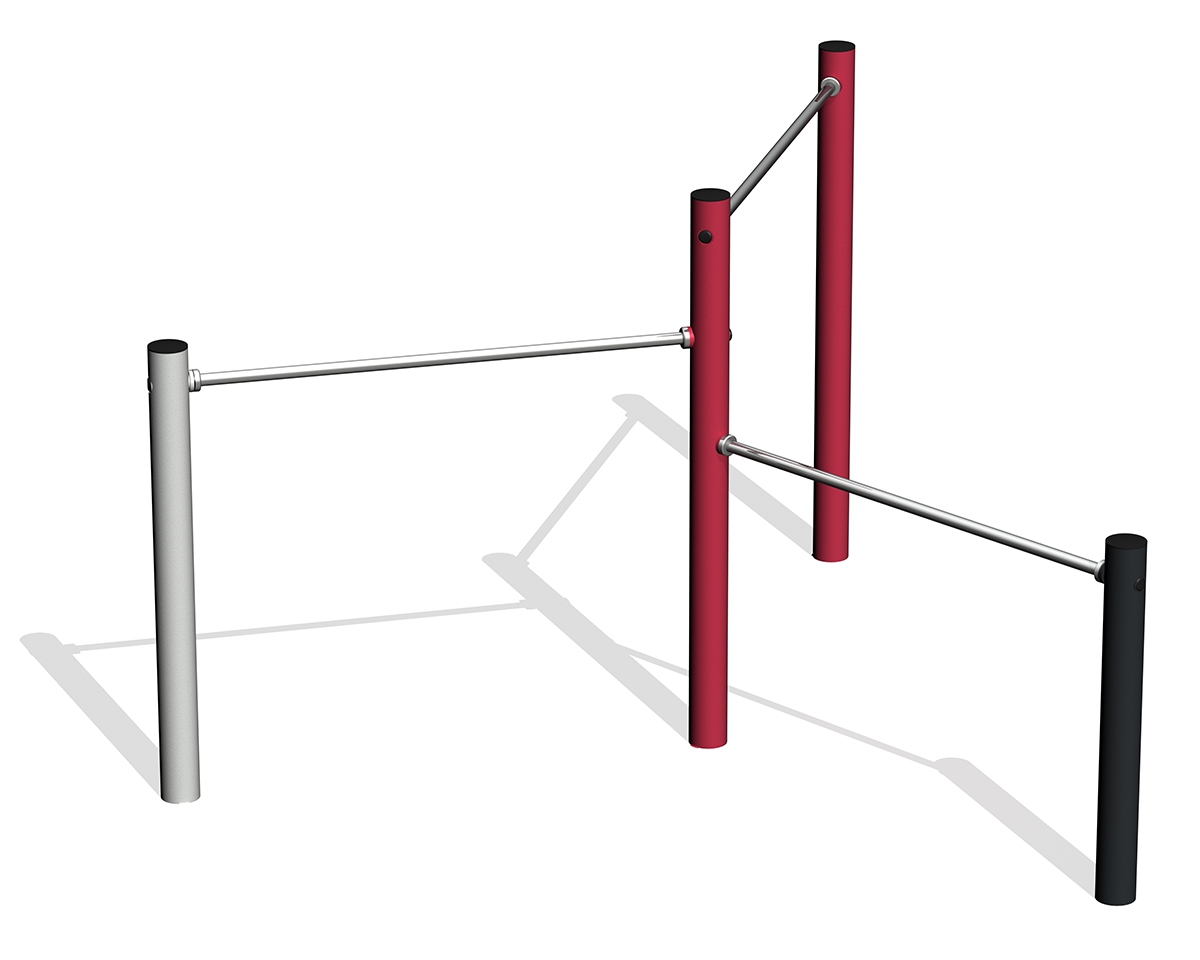

Activity bar variant 7 consisting of several individual components:
3x Activity bar
1x Post S (length 0.95 m - connection height of the horizontal bar: 0.85 m)
1x Post M (length 1.25 m - connection height of the horizontal bar: 1.15 m)
2x Post L (length 1.55 m - connection height of the horizontal bar: 0.85 m, 1.15 m and 1.45 m)

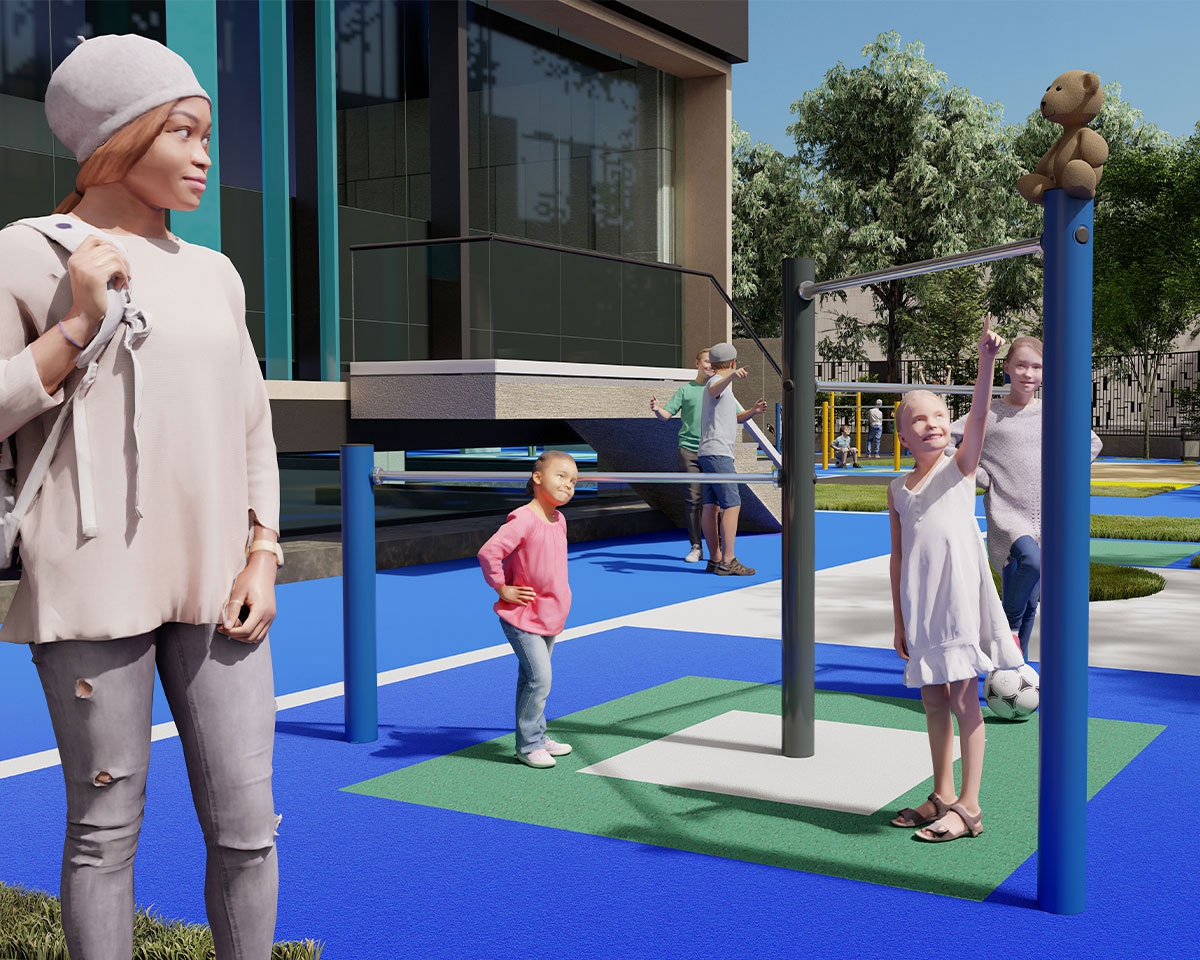

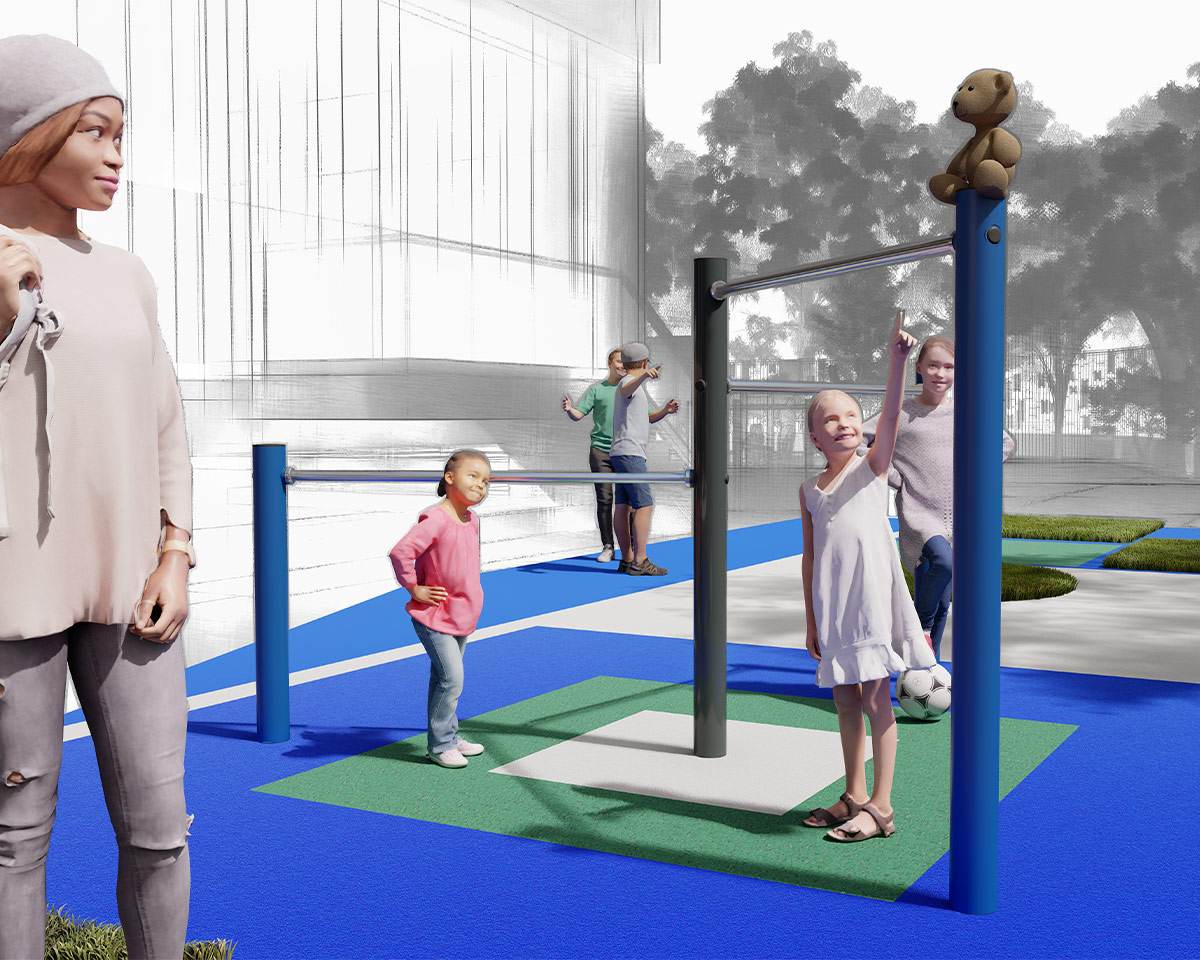

Radially arranged activity bar – Focus on coordination and communication

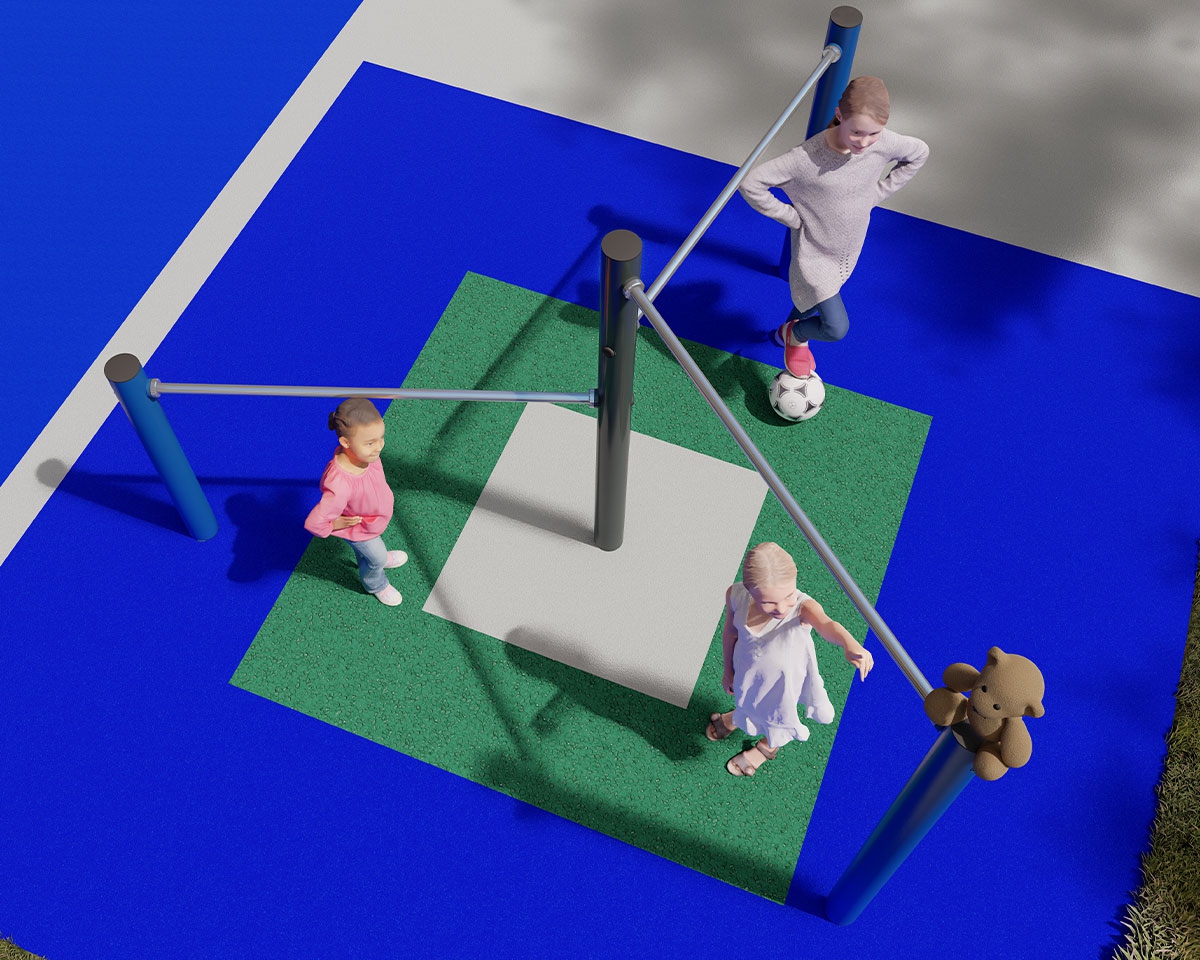

In this activity bar combination, the tallest post is positioned centrally, with the bars of varying heights – 0.85 m, 1.15 m and 1.45 m – arranged around it at 120° angles.

This setup particularly challenges coordination and communication. To perform the movements harmoniously, children, teenagers and adults must synchronize their actions and be mindful of one another. This interaction not only enhances physical control but also fosters social skills and mutual understanding. Through coordinated collaboration, team spirit and communication are playfully developed.

A targeted placement with guided pathways enables inclusive play and encourages participation by integrating supportive movements and exercises for people with different abilities.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 7

smb Activity bar variant 7
No. 9710216
consisting of:

3x Activity bar
No: 9710010
Horizontal bar made of polished stainless steel tube Ø33.7 mm with a length of approx. 1372 mm, suitable for a post distance of 1500 mm (from post center to post center). The connection height can be individually defined.

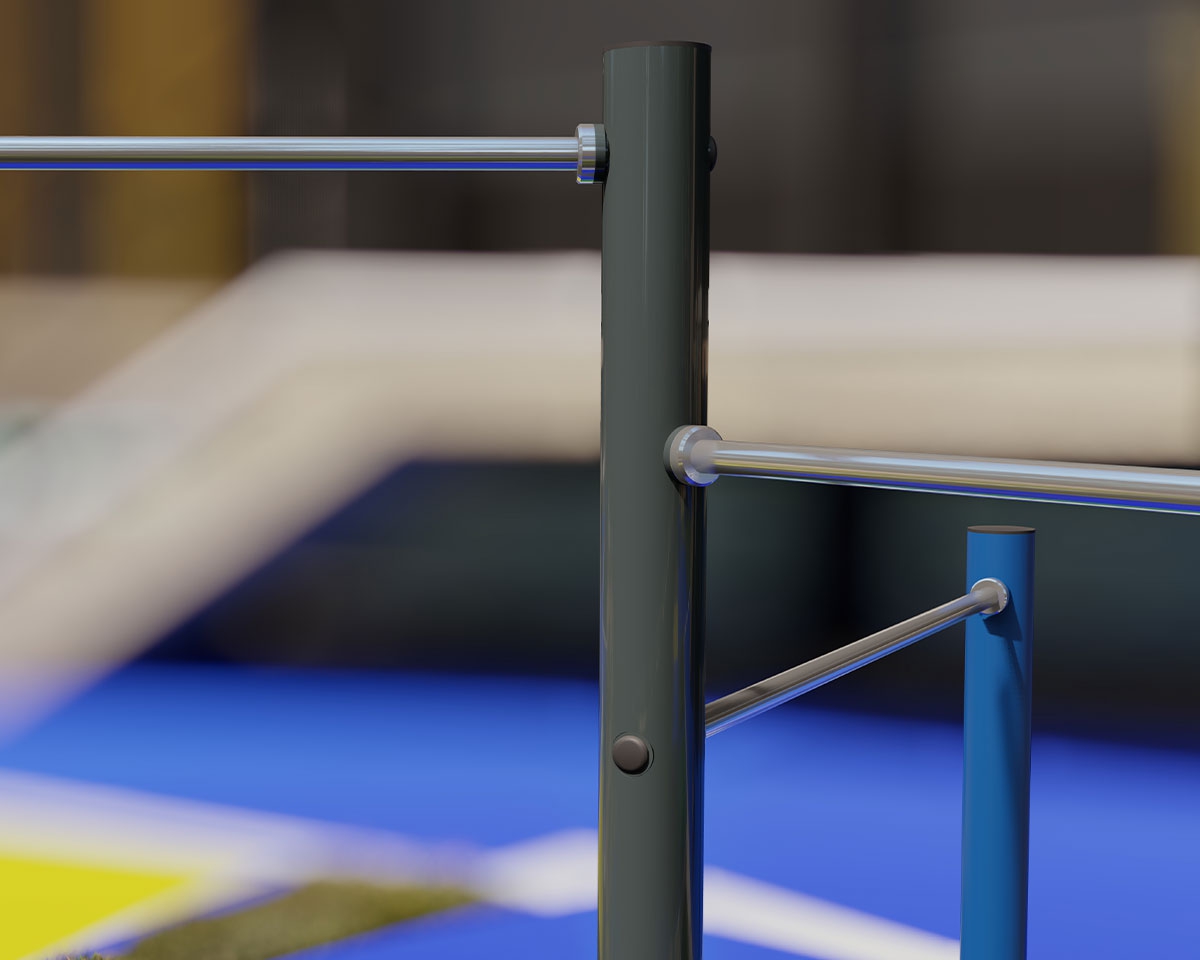

The horizontal tube is mounted to the upright posts in a user-friendly way via a twist-proof, internal and protected screw connection.
Note: The posts for Horizontal Bar are not included and must be considered separately.

1x Post S length 0.95 m - connection height of the horizontal bar: 0.85 m
No: 9710020
The Post S (0.95 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 958 mm, with a total length of 1958 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

1x Post M length 1.25 m - connection height of the horizontal bar: 1.15 m
No: 9710021
The Post M (1.25 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 1258 mm, with a total length of 2258 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

2x Post L length 1.55 m - connection height of the horizontal bar: 0.85 m, 1.15 m and 1.45 m
No: 9710022
The Post L (1.55 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above play level is 1558 mm, with a total length of 2558 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

For layout and dimensions, see draft plan.
