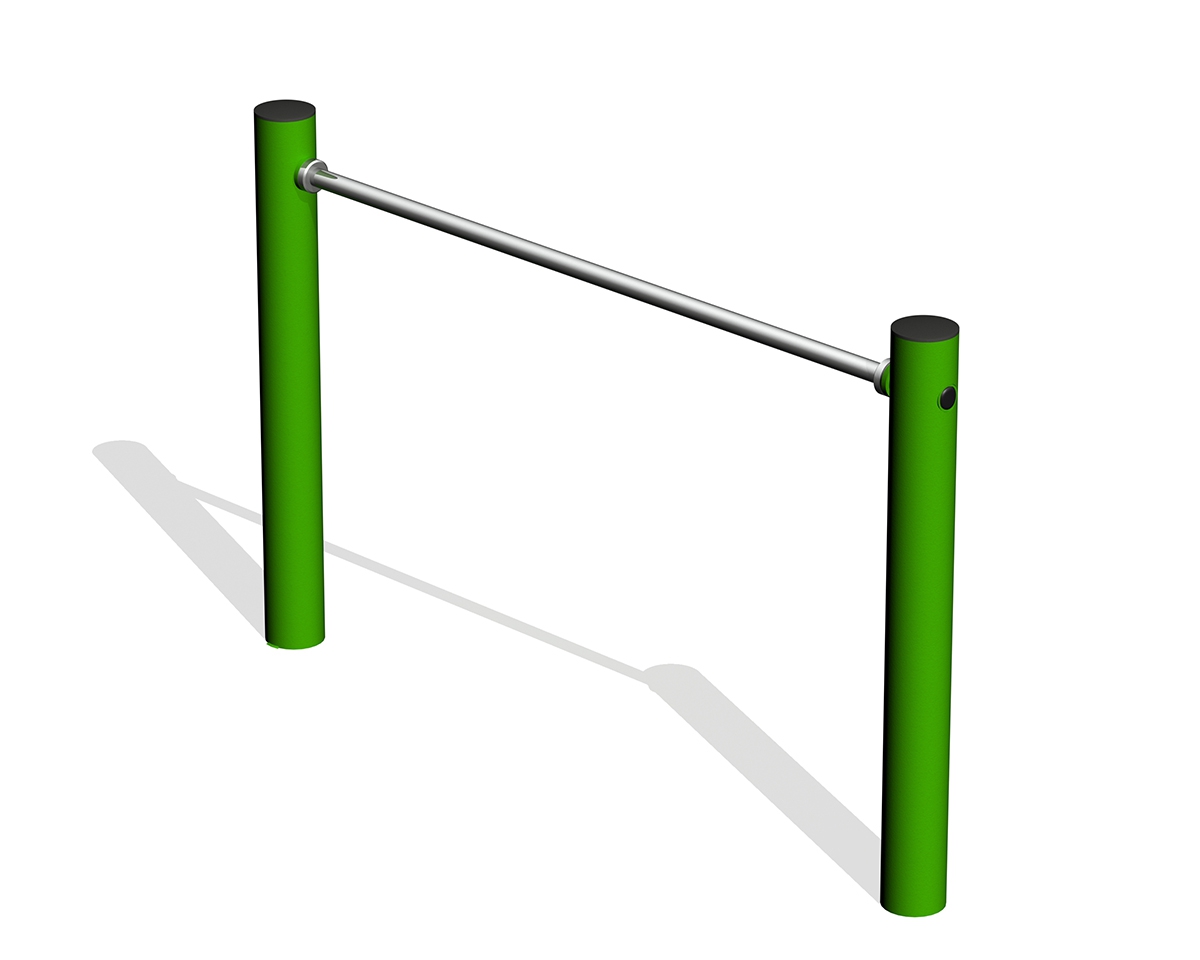

Activity bar variant 1

No. 9710110

Unit space area0.11 x 1.61 m
Safety space area3.11 x 4.61 m
Height of unit0.96 m
Age range4+
Number of users1
Free fall height0.87 m
Heaviest component22 kg
Total weight48 kg
Assembly time0.50 hours
Installers2 persons
Foundations2 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete0.60 m³

Activity bar variant 1 consisting of several individual components:
1x Activity bar
2x Post S (length 0.95 m - connection height of the horizontal bar: 0.85 m)


Movement and body control

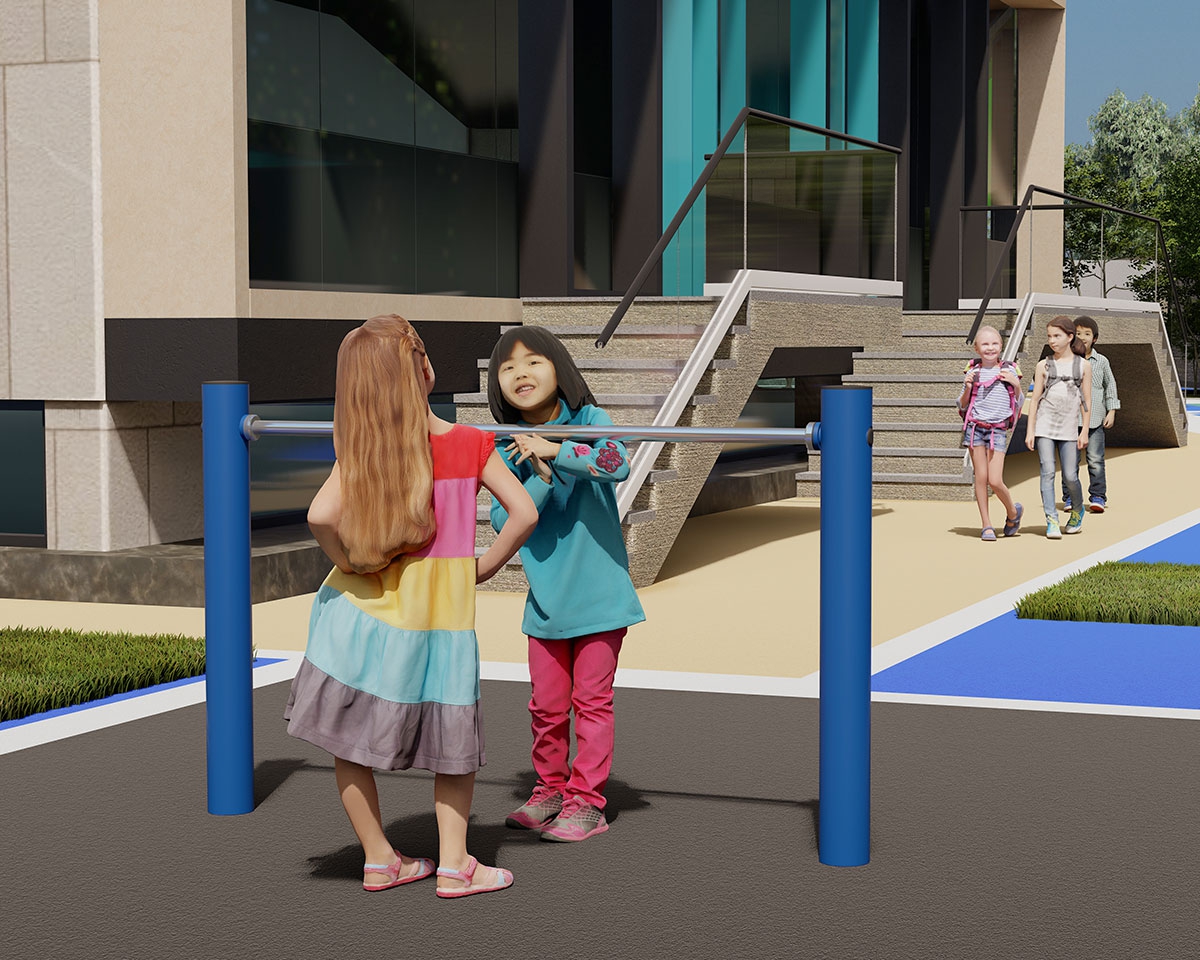

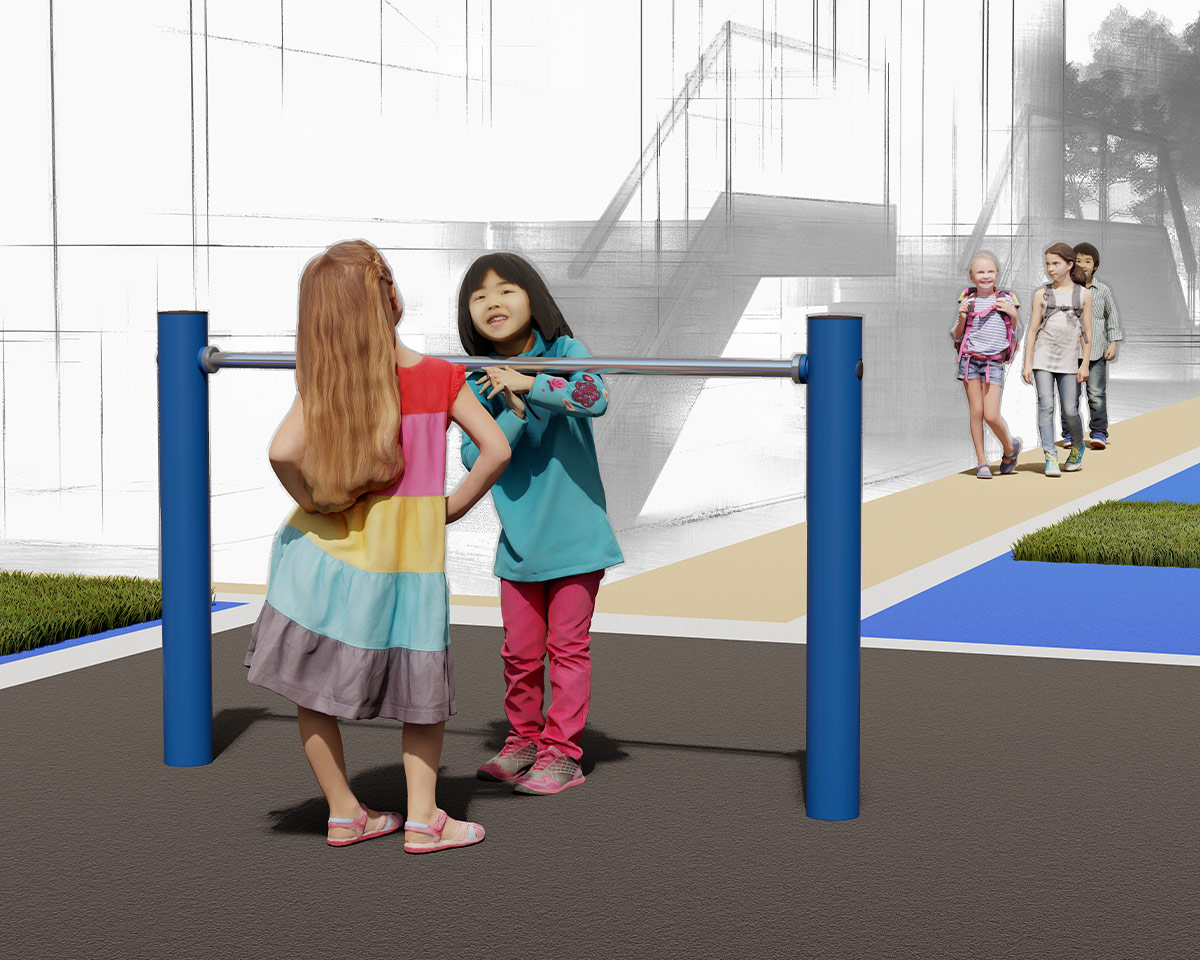

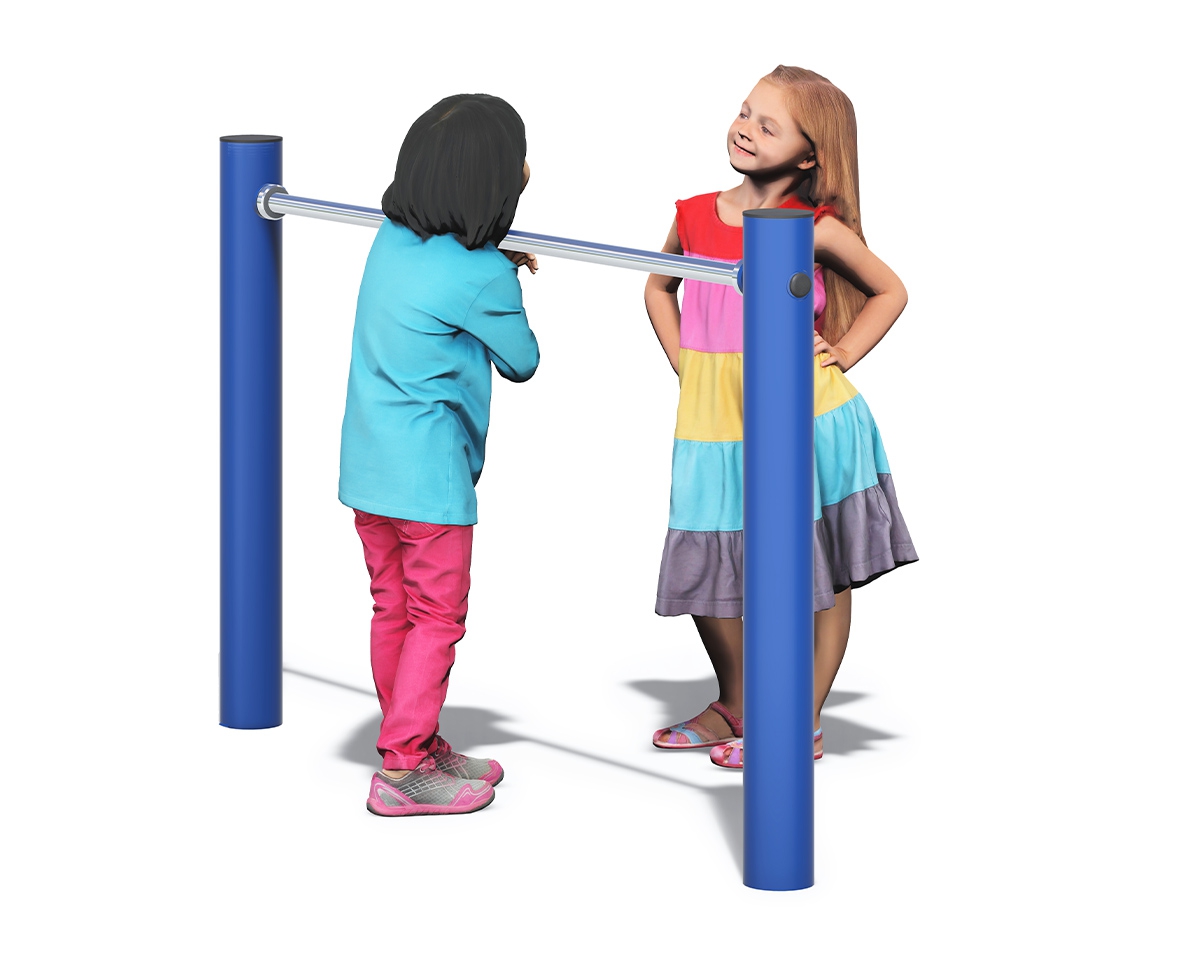

The low activity bar is ideal for first swinging and holding exercises. Children, teenagers and adults can train body control, strength and coordination by swinging, supporting themselves or climbing over the bar.

Thanks to its low height, it is easily accessible for many users and can be used as a support element or obstacle.

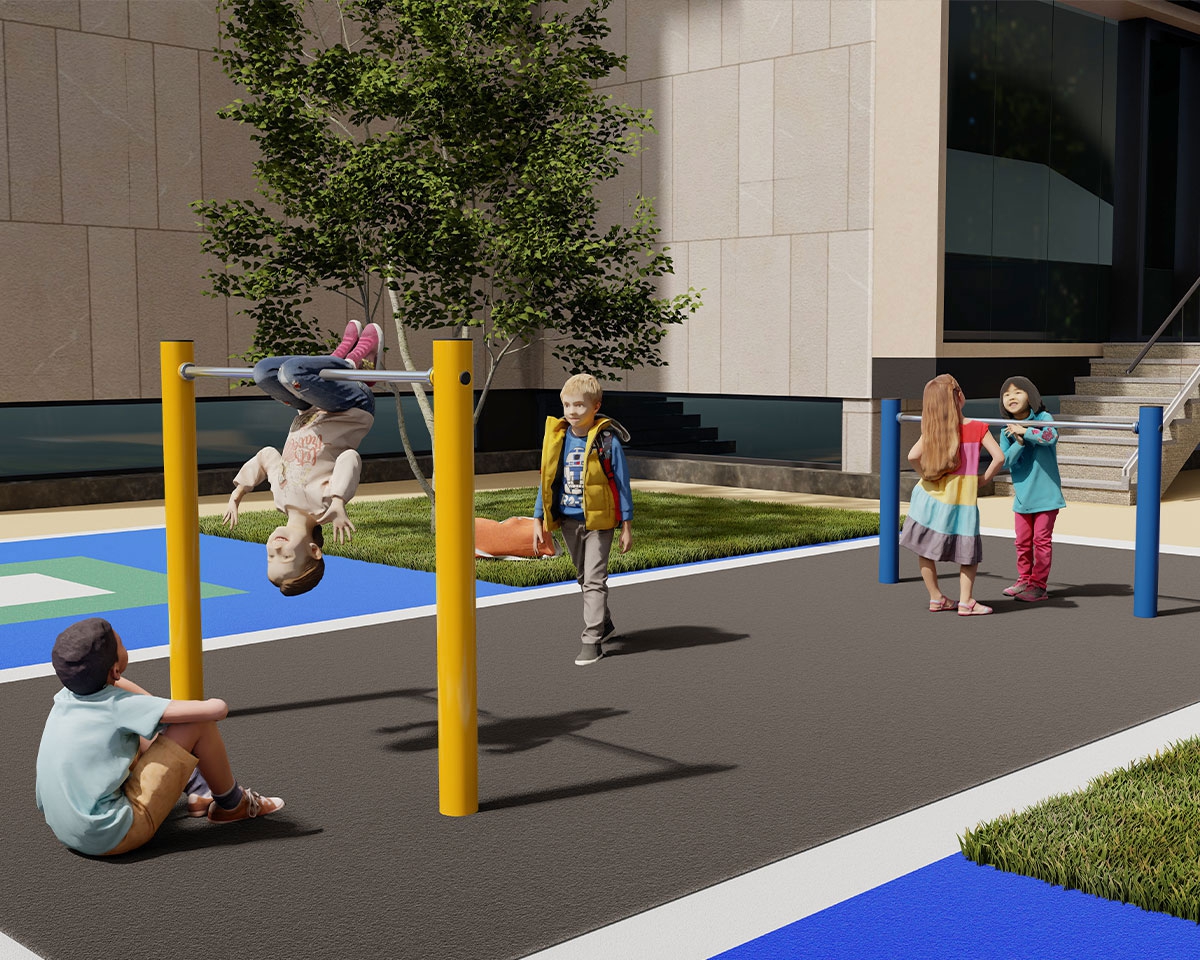

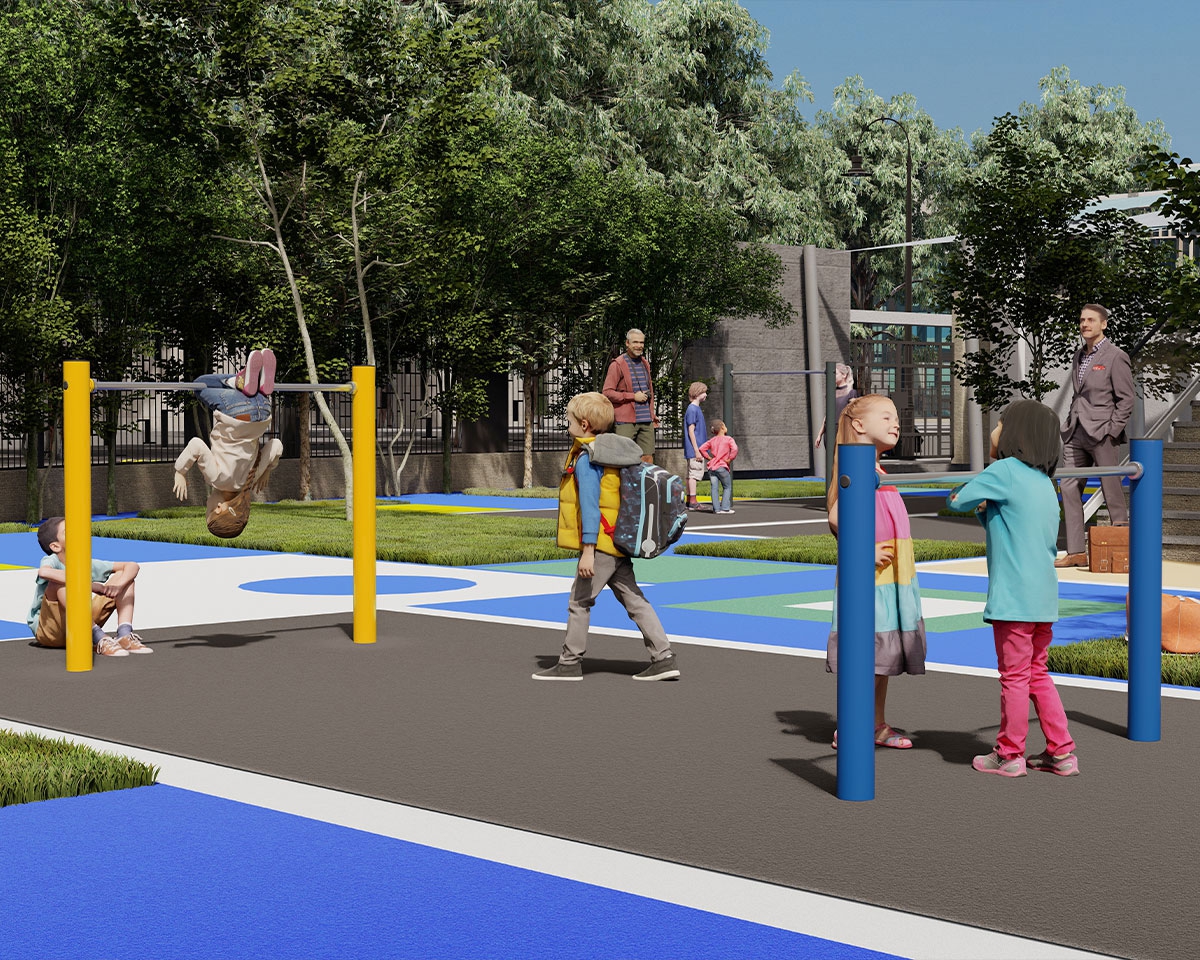

A targeted arrangement with guided pathways enables inclusive play with supportive movements or specific exercises.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 1

Activity bar variant 7 - consisting of:

1x Activity bar
No: 9710010

2x Post S length 0.95 m - connection height of the horizontal bar: 0.85 m
No: 9710020

For layout and dimensions, see draft plan.
