Post S

No. 9710020

Unit space area Ø 0.11 m
Height of unit0.96 m
Total weight 22 kg
Foundations0.60 x 0.60 x 0.80 m
Total quantity of concrete 0.30 m³

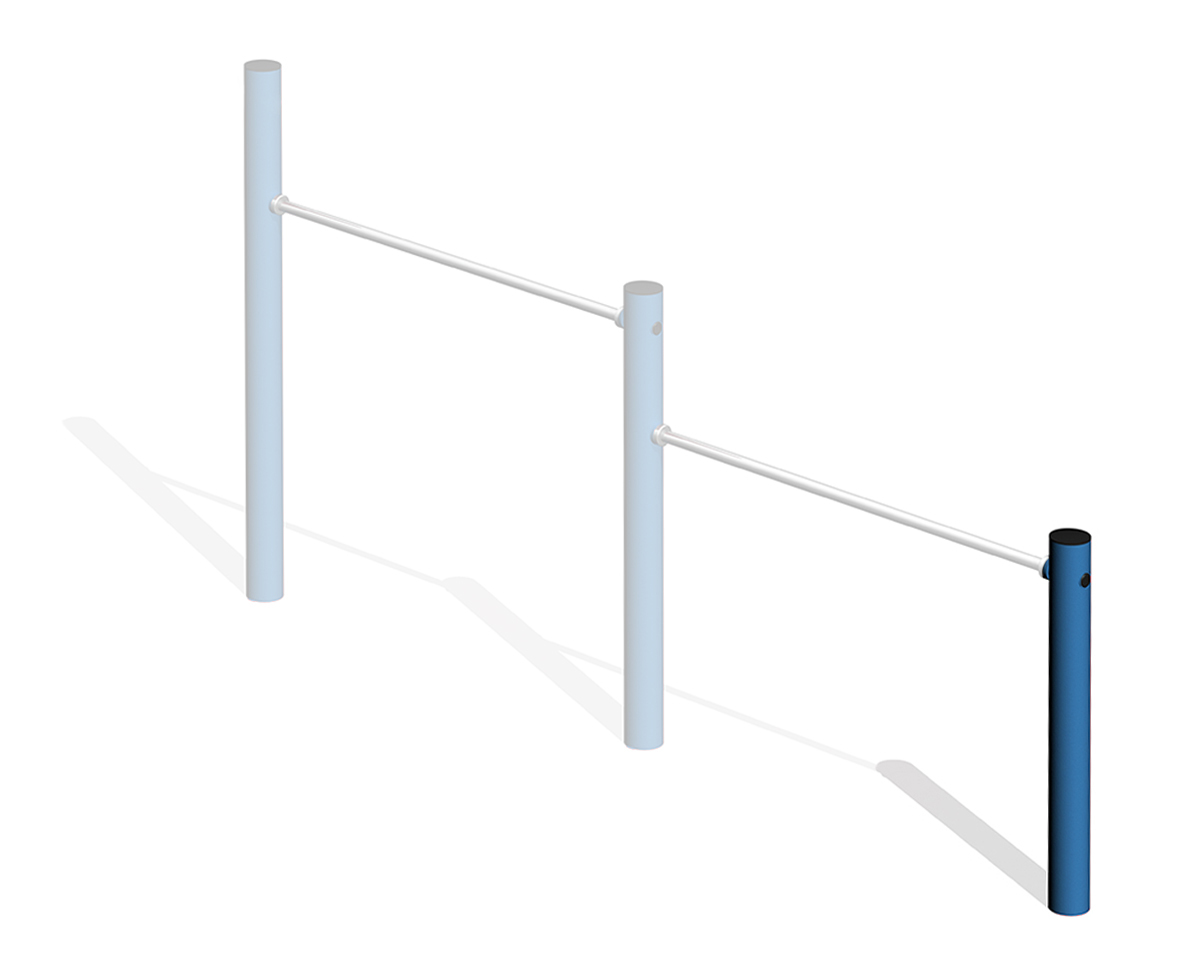

This activity bar post has a height of 0.95 m (from the play level) and a connection height of 0.85 m.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Post S

Post designed for a horizontal bar mounting height of 0.85 m.

The Post S (0.95 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).

The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 958 mm, with a total length of 1958 mm.

Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).

Color options:
A wide range of RAL colors is available for individual customization.
