Activity bar variant 6

No. 9710213

Unit space area0.86 x 4.35 m
Safety space area3.86 x 7.41 m
Height of unit1.56 m
Age range4+
Number of users3
Free fall height1.47 m
Heaviest component29 kg
Total weight117 kg
Assembly time1.00 hour
Installers2 persons
Foundations4 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete1.15 m³

Activity bar variant 6 consisting of several individual components:
3x Activity bar
1x Post S (length 0.95 m - connection height of the horizontal bar: 0.85 m)
1x Post M (length 1.25 m - connection height of the horizontal bar: 1.15 m)
2x Post L (length 1.55 m - connection height of the horizontal bar: 0.85 m, 1.15 m and 1.45 m)

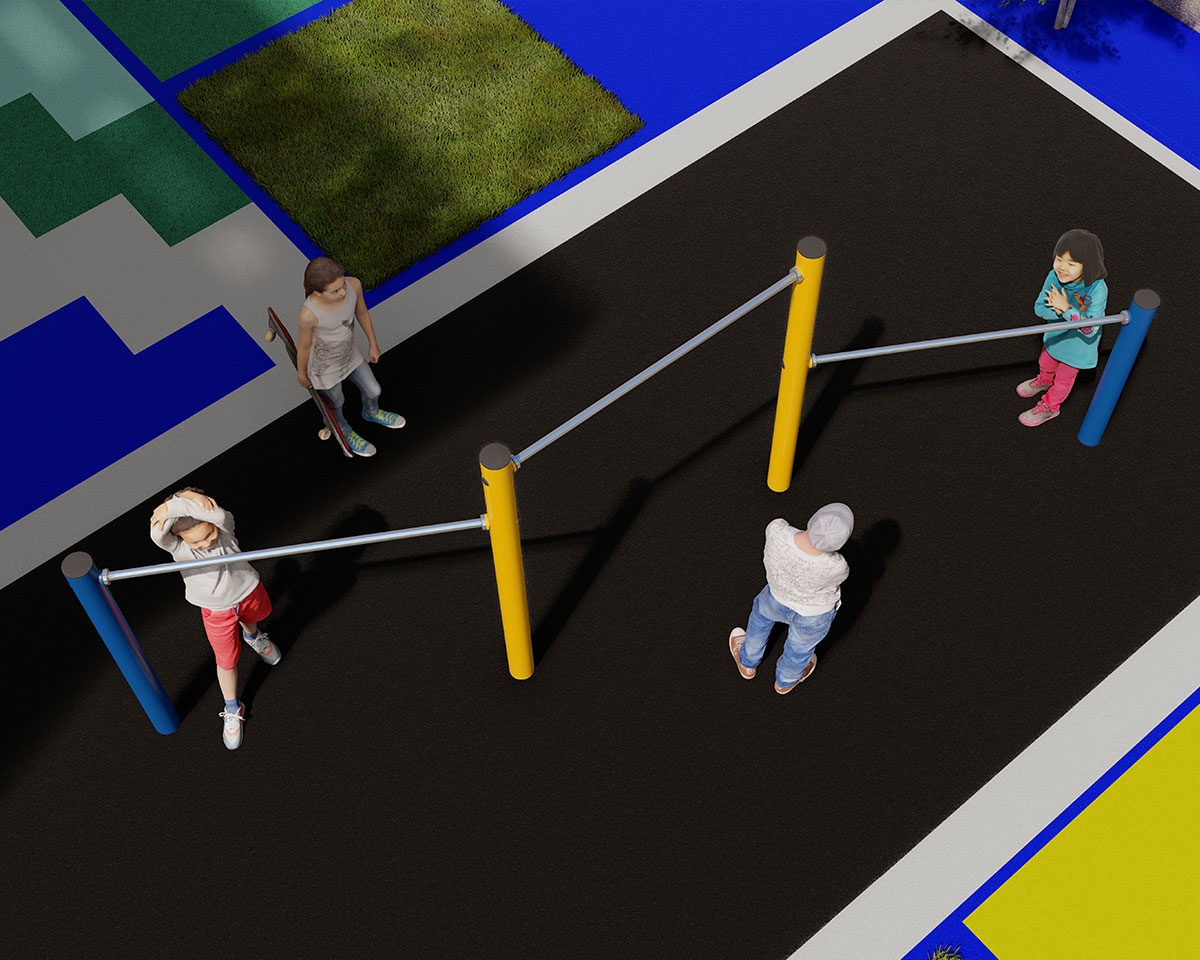

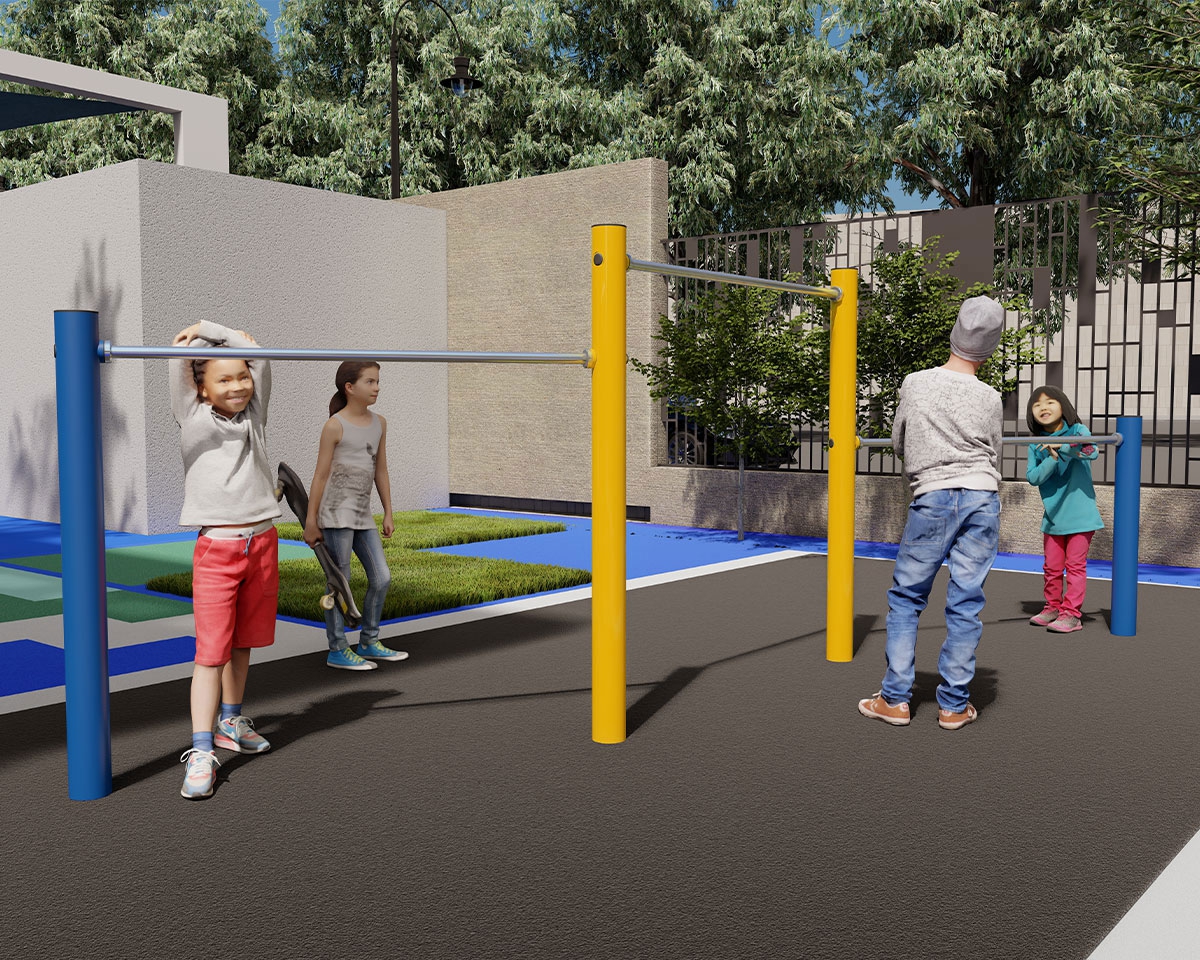

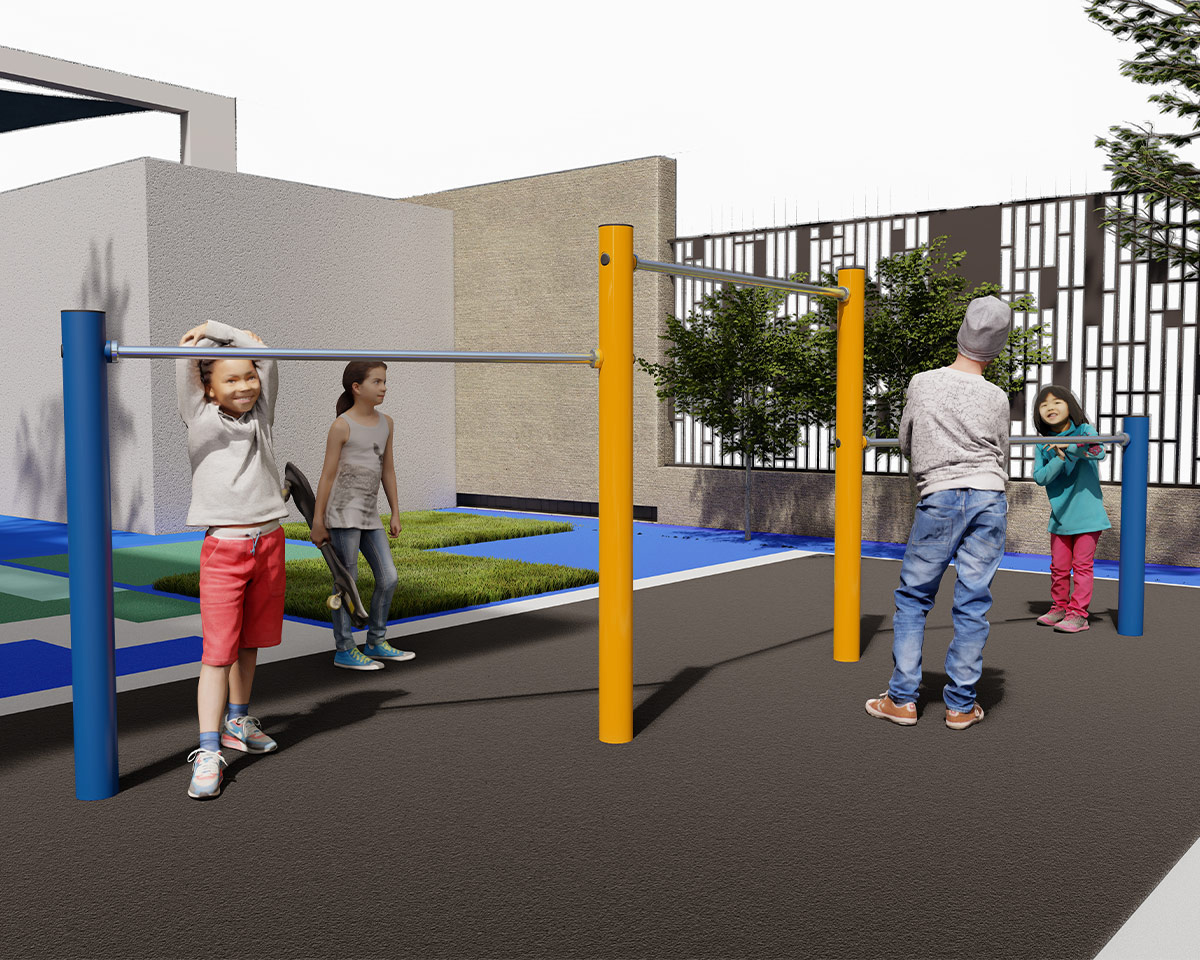

Activity bar combination in 150° Angles – Varied training from different directions

This activity bar combination starts with the lower 0.85 m bar, followed by the 1.45 m bar positioned at a 150° angle, and the 1.15 m bar also aligned at a different 150° angle.

The unique arrangement offers children, teenagers and adults the opportunity to train strength, body control and coordination in a diverse way. The varying heights and angles allow for creative movement sequences such as swinging, climbing, and a wide range of exercises. A targeted placement with guided pathways promotes inclusive play with supportive movements or specific exercises.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 6

smb Activity bar variant 6
No. 9710213
consisting of:

3x Activity bar
No: 9710010
Horizontal bar made of polished stainless steel tube Ø33.7 mm with a length of approx. 1372 mm, suitable for a post distance of 1500 mm (from post center to post center). The connection height can be individually defined.

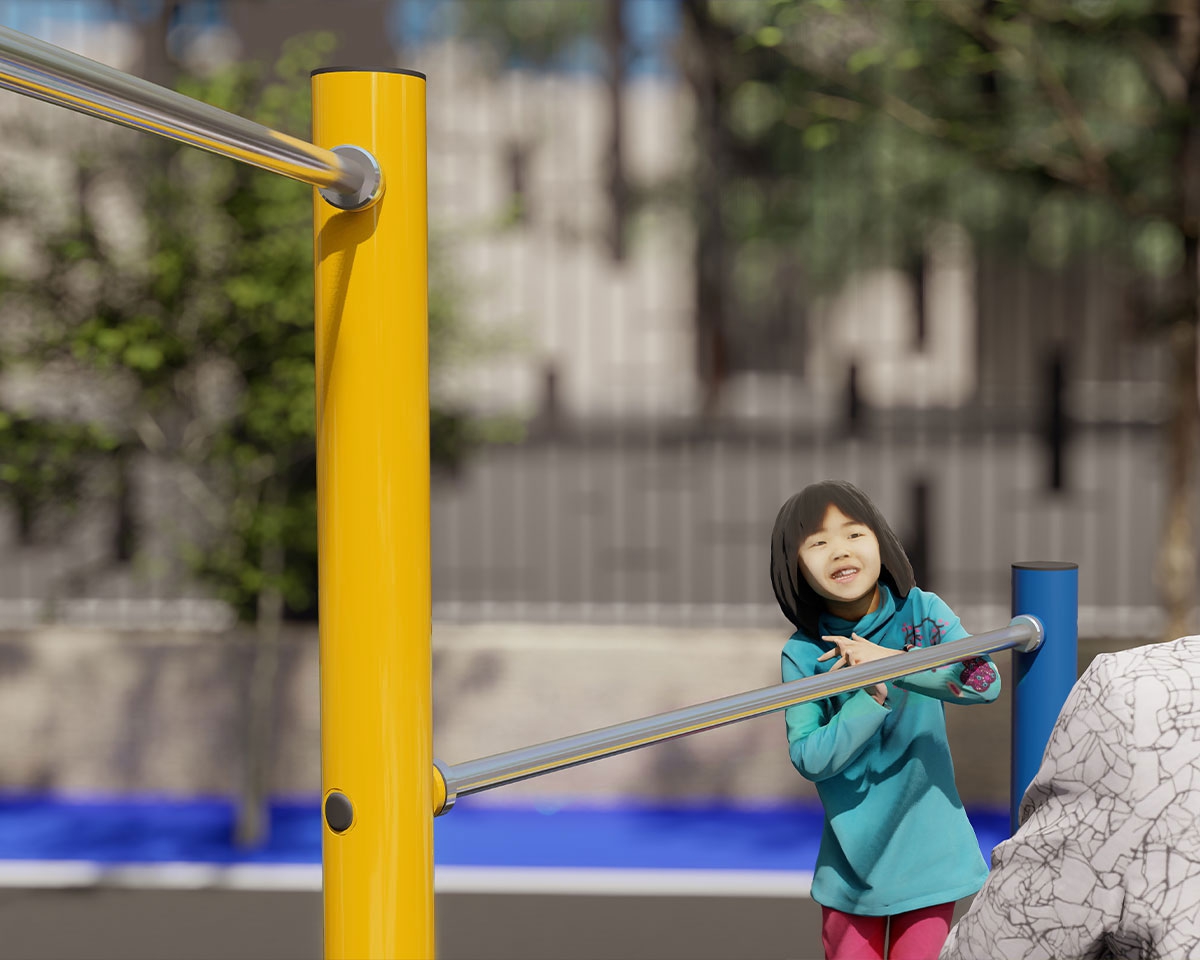

The horizontal tube is mounted to the upright posts in a user-friendly way via a twist-proof, internal and protected screw connection.
Note: The posts for Horizontal Bar are not included and must be considered separately.

1x Post S length 0.95 m - connection height of the horizontal bar: 0.85 m
No: 9710020
The Post S (0.95 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 958 mm, with a total length of 1958 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

1x Post M length 1.25 m - connection height of the horizontal bar: 1.15 m
No: 9710021
The Post M (1.25 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 1258 mm, with a total length of 2258 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

2x Post L length 1.55 m - connection height of the horizontal bar: 0.85 m, 1.15 m and 1.45 m
No: 9710022
The Post L (1.55 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above play level is 1558 mm, with a total length of 2558 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

For layout and dimensions, see draft plan.
