variotramp pure-fun variant 2
No. 7310021, 731002110 (insitu)
| Unit space area | 2.50 x 3.50 m |
| Jumping area | 3.75 m² |
| Safety space area | 6.00 x 7.00 m |
| Height of unit | 0,00 m |
| Age range | 3+ |
| Number of users | 4 |
| Free fall height | 0.90 m |
| Heaviest component | 216 kg |
| Total weight | 710 kg |
| Assembly time | 3.00 hours |
| Installers | 2 persons |
| Foundations | none |

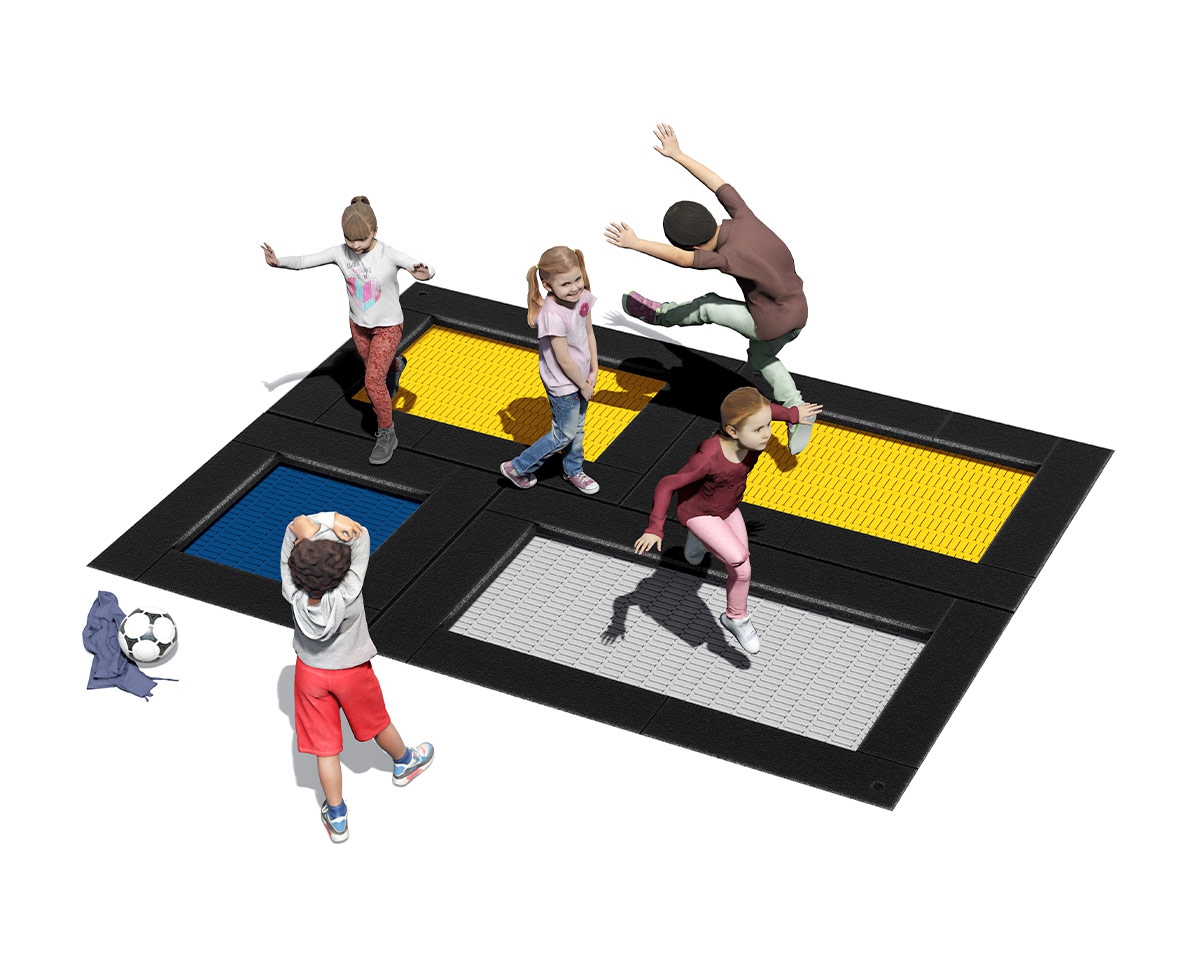

variotramp pure-fun variant 2 consisting of:
1x Trampoline S
2x Trampoline M
1x Trampoline L
Play value and experience

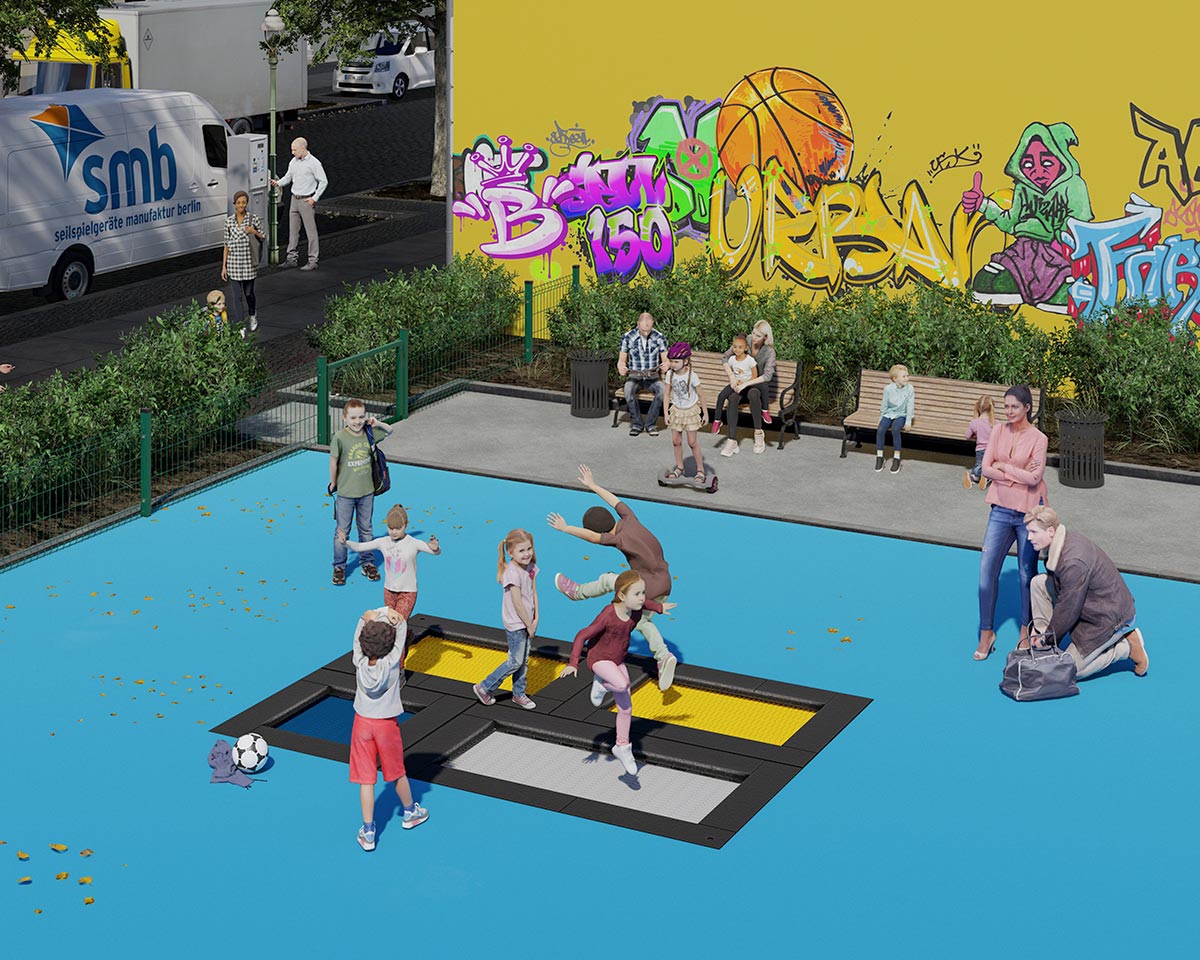

The variotramp pure-fun variant 2 combines multiple trampoline surfaces in a rectangular layout to create a dynamic jumping structure and offers lively movement and play experiences for up to four children and adolescents at the same time.
Its generous jumping area delivers an intense feeling of weightlessness with every jump and invites a wide range of engaging movements.
The varied jumping distances create exciting play opportunities that naturally support balance, body coordination, reaction skills and concentration as users adjust their movements to changing conditions.
The pure-fun design encourages children to try different jumping styles, discover creative movement patterns, and explore challenges together, fostering social interaction, cooperative play and teamwork.
With individually customizable jumping mat colors, the trampoline integrates harmoniously into any play and activity area while adding visual appeal to the space.
Perfect for schools, daycares and public playgrounds, the variotramp pure-fun variant 2 offers high play value and diverse movement experiences for children and adolescents of all ages.
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
colortramp® motif jumping mats trampoline S
Multicolor
Rainbow
Bear
Honey-Bee
Flash
Boat
Rocket
Skull
Devil
Ladybird
Butterfly
Letter A
Letter B
Letter C
Number 1
Number 2
Number 3
Custom motif
Individual colors and motifs possible on request.
flashtramp® motif jumping mats trampoline S
Rocket
Burning house
Fire engine
Police
Butterfly
Skull
Boat-
- Custom motif
Individual colors and motifs possible on request.
Tender specification Trampoline combination - variotramp pure-fun Variante 2
smb Trampoline combination - variotramp pure-fun Variante 2
No. 7310021
Jumping devices in a square design - unit space area 2.50 x 3.50 m, jumping area in total 3.75 m²,
consisting of:
1x smb Trampolin S - colortramp®
No. 7210001
Jumping device in a square design – unit space area 1.25 x 1.25 m, jumping area 0.75 x 0.75 m (0.56 m²). Frame made of durable, hot-dip galvanized steel construction.

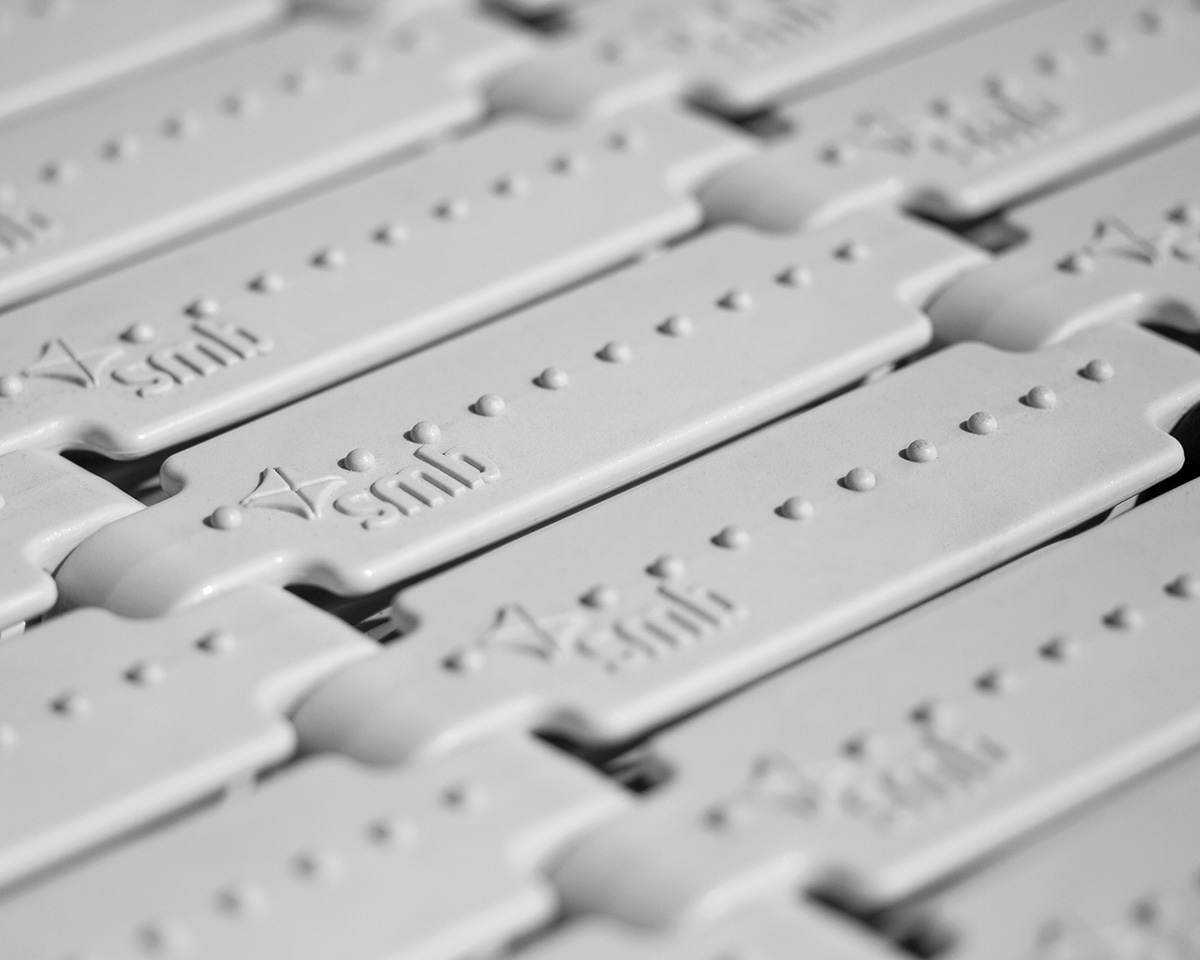

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 32 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
2x smb Trampolin M - colortramp®
No. 7210101
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
1x smb Trampolin L - colortramp®
No. 7210201
Jumping device in a rectangular design – unit space area 2.25 x 1.25 m, jumping area 1.75 x 0.75 m (1.31 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 52 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline combination - variotramp pure-fun Variante 2 - instu
smb Trampoline combination - variotramp pure-fun Variante 2 - insitu
No. 731002110
Jumping devices in a square design - unit space area 2.50 x 3.50 m, jumping area in total 3.75 m²,
consisting of:
1x smb Trampolin S - colortramp® - insitu
No. 721000110
Jumping device in a square design – unit space area 1.25 x 1.25 m, jumping area 0.75 x 0.75 m (0.56 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 32 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
2x smb Trampolin M - colortramp® - insitu
No. 721010110
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
1x smb Trampolin L - colortramp® - insitu
No. 721020110
Jumping device in a rectangular design – unit space area 2.25 x 1.25 m, jumping area 1.75 x 0.75 m (1.31 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 52 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
