Trampoline S
No. 7210001, 721000110 (insitu)
| Unit space area | 1.25 x 1.25 m |
| Jumping area | 0.75 x 0.75 m |
| = 0.56 m² | |
| Safety space area | 3.75 x 3.75 m |
| Height of unit | 0.00 m |
| Age range | 3+ |
| Number of users | 1 |
| Free fall height | 0.90 m |
| Heaviest component | 130 kg |
| Total weight | 130 kg |
| Assembly time | 1.00 hour |
| Installers | 2 persons |
| Foundations | none |
Play value and experience

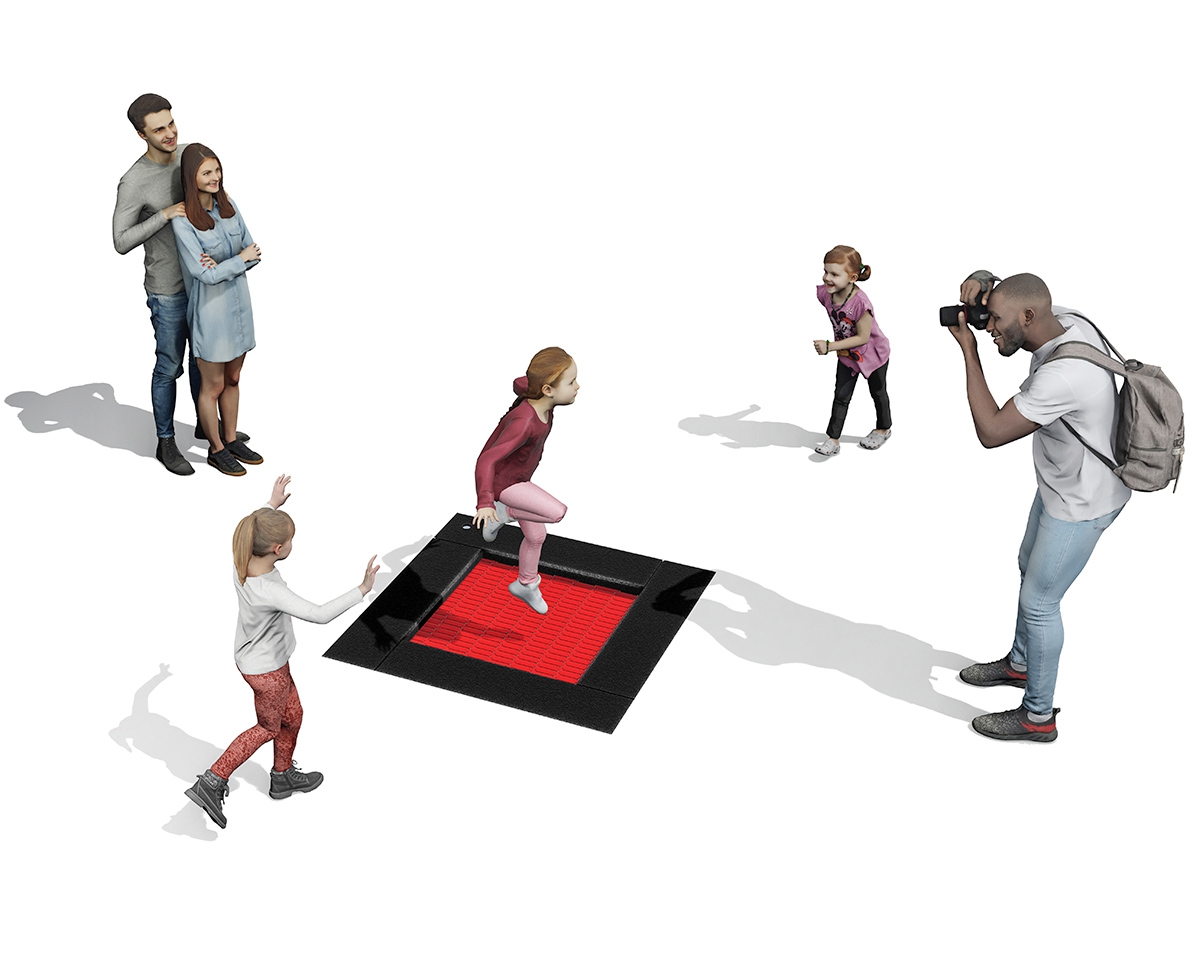

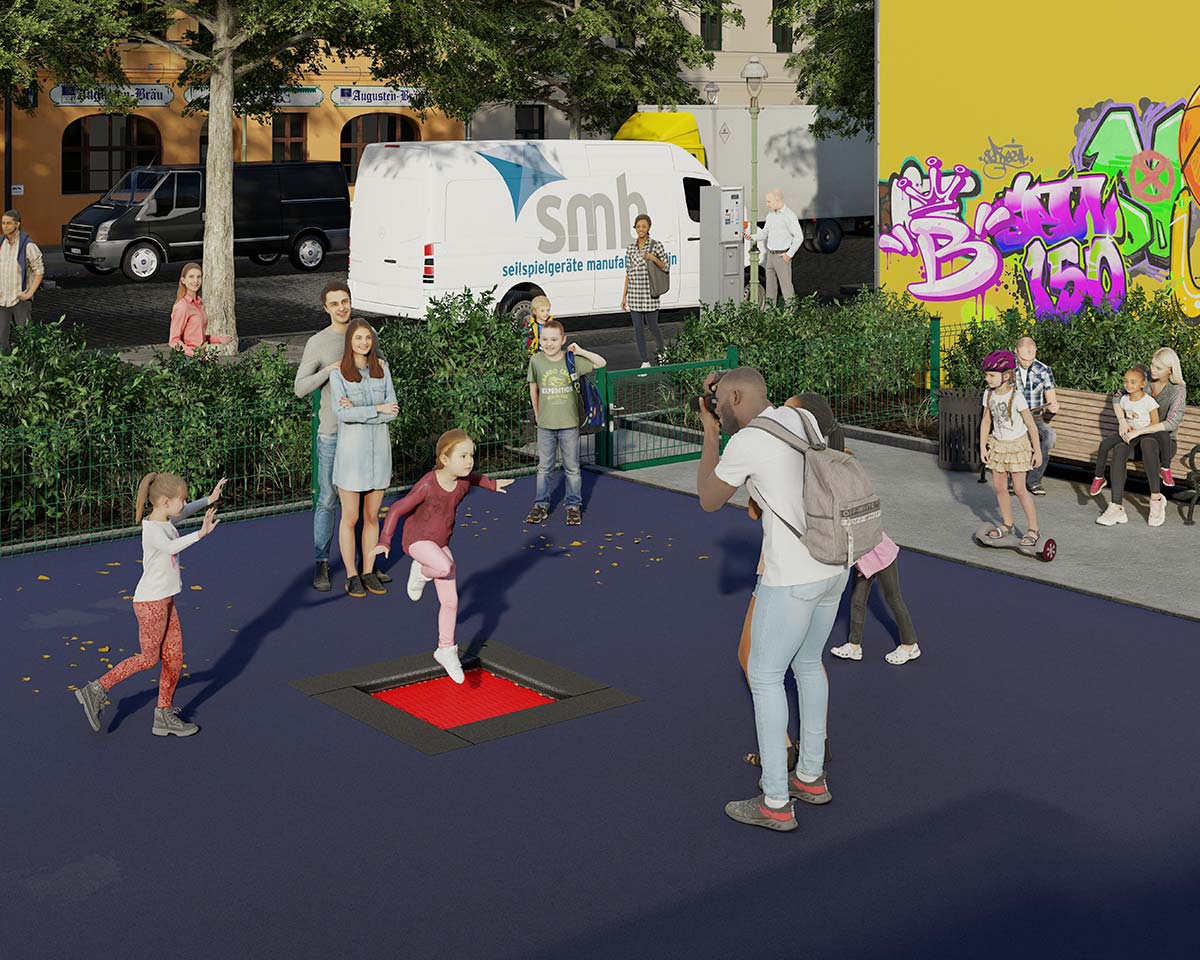

Unique play fun on a compact jumping device. Our Trampoline S gives children the feeling of floating and jumping in a small space. Despite its compact size, it offers high play value: both small and big children can jump, float, try balance exercises and discover their jumping power – all in a playful and safe way.
It promotes balance, body coordination and concentration, creating moments full of joy. Ideal for schools, kindergartens and public play areas, it impresses with robustness and excellent jumping dynamics. Discover the versatile play value of Trampoline S for yourself!
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
colortramp® motif jumping mats
Multicolor
Rainbow
Bear
Honey-Bee
Flash
Boat
Rocket
Skull
Devil
Ladybird
Butterfly
Letter A
Letter B
Letter C
Number 1
Number 2
Number 3
Custom motif
Individual colors and motifs possible on request.
flashtramp® motif jumping mats
Rocket
Burning house
Fire engine
Police
Butterfly
Skull
Boat-
- Custom motif
Individual colors and motifs possible on request.
Tender specification Trampoline S - colortramp®
smb Trampolin S - colortramp®
No. 7210001
Jumping device in a square design – unit space area 1.25 x 1.25 m, jumping area 0.75 x 0.75 m (0.56 m²). Frame made of durable, hot-dip galvanized steel construction.

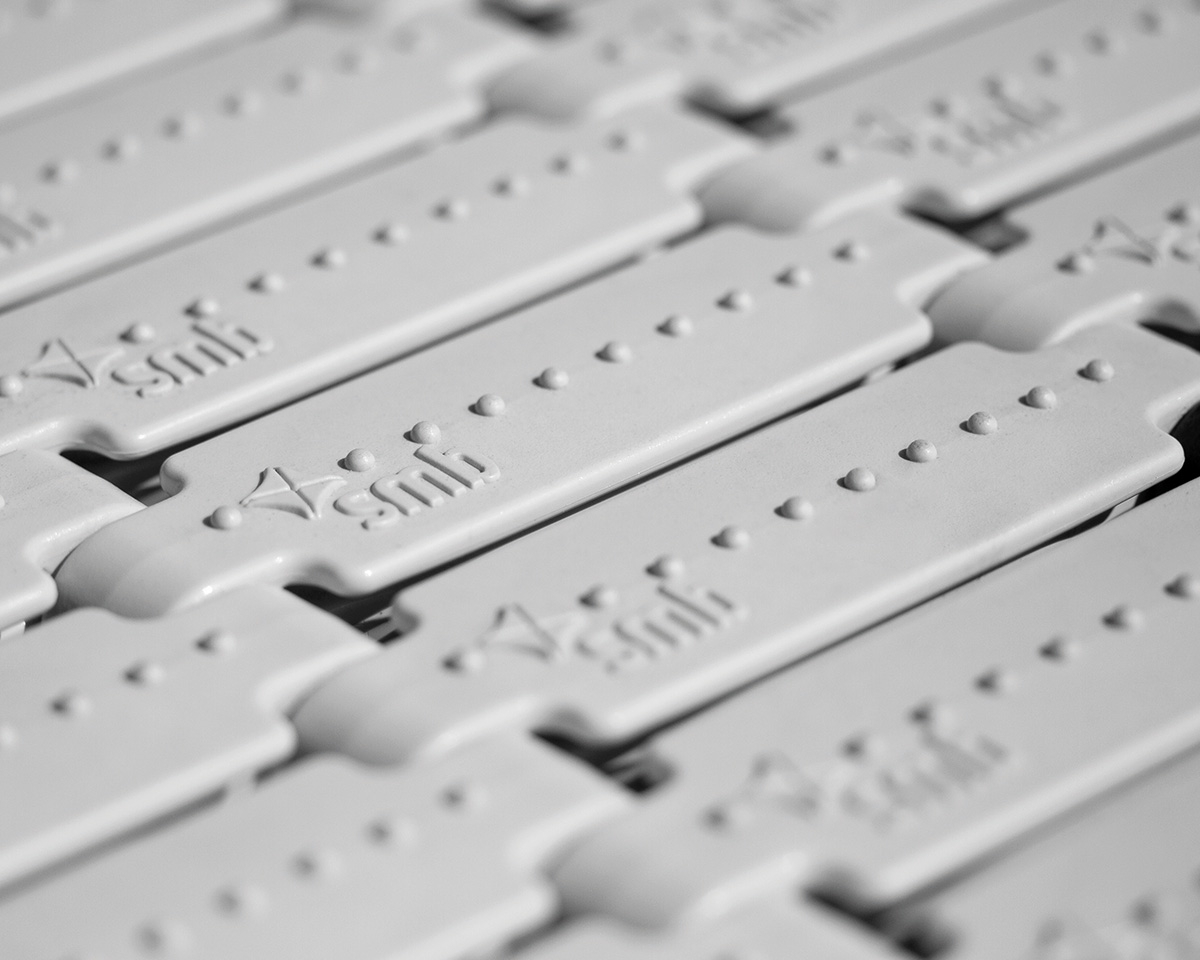

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.

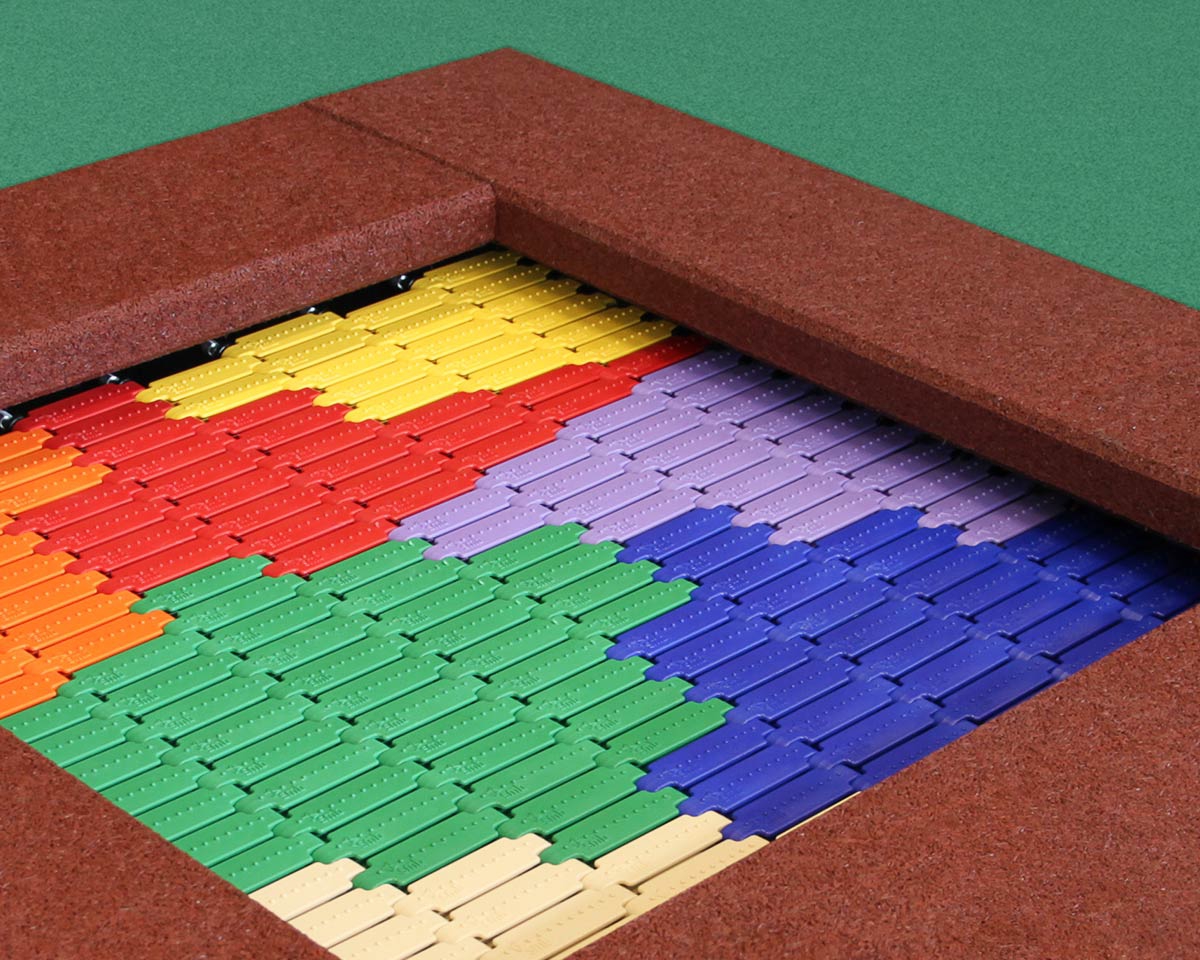

Rim with shock-absorbing fall protection plates. Including 32 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline S - colortramp® - insitu
smb Trampolin S - colortramp® - insitu
No. 721000110
Jumping device in a square design – unit space area 1.25 x 1.25 m, jumping area 0.75 x 0.75 m (0.56 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 32 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.

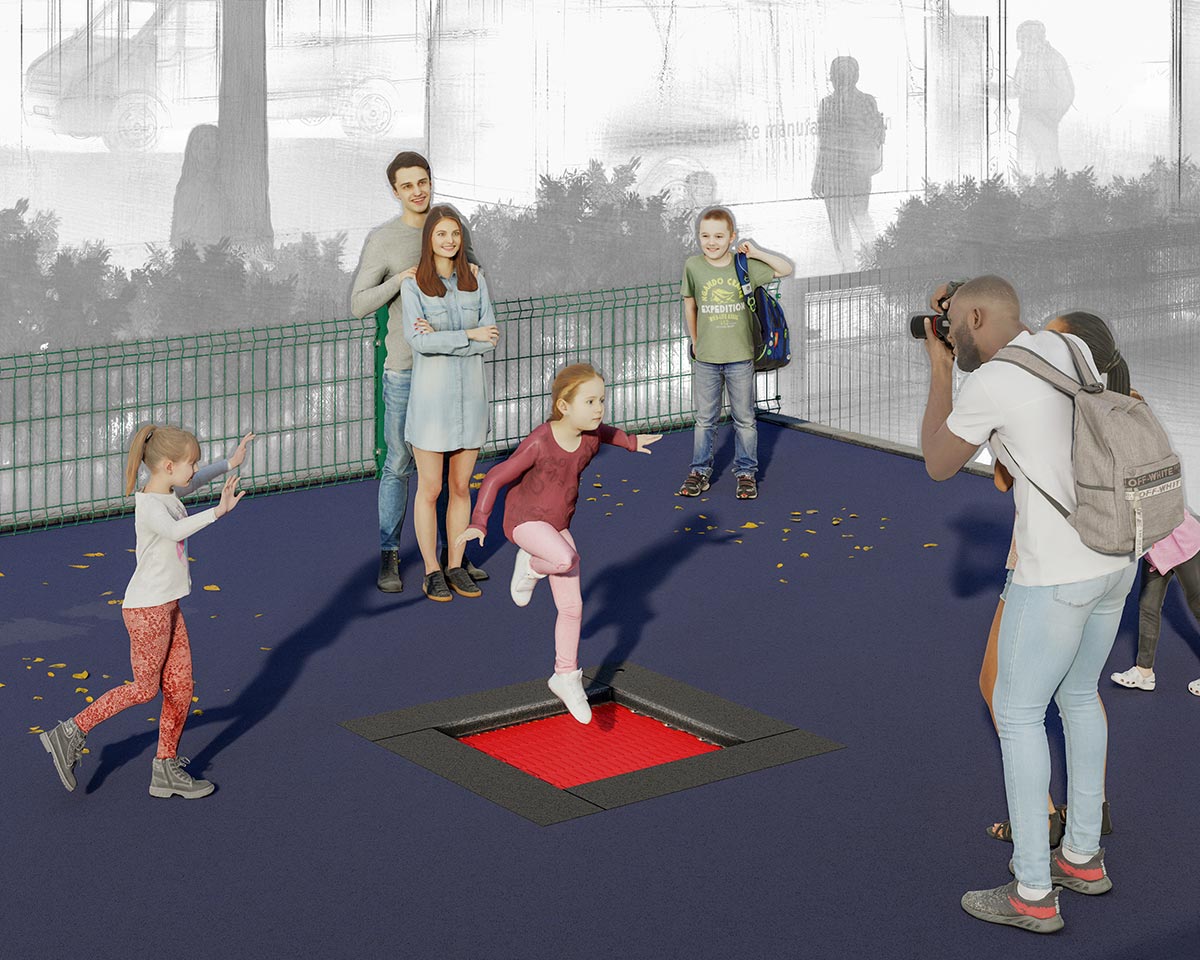

Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
