Trampoline M
No. 7210101, 721010110 (insitu)
| Unit space area | 1.75 x 1.25 m |
| Jumping area | 1.25 x 0.75 m |
| = 0.94 m² | |
| Safety space area | 4.25 x 3.75 m |
| Height of unit | 0.00 m |
| Age range | 3+ |
| Number of users | 1 |
| Free fall height | 0.90 m |
| Heaviest component | 182 kg |
| Total weight | 182 kg |
| Assembly time | 1.00 hour |
| Installers | 2 persons |
| Foundations | none |
Play value and experience
Versatile play fun for children of all ages makes the Trampoline M a compact and attractive movement element for schools, daycares and public playgrounds.
The rectangular, ground-level trampoline offers an engaging jumping experience and allows children to jump, float, practice safe landings and explore balance and coordination tasks while playfully developing body control, concentration and motor skills.
Continuous adjustment of body posture on the jumping surface strengthens physical awareness and supports healthy movement development.
Thanks to its compact design, the Trampoline M can be easily combined with other trampolines or movement equipment and integrated into diverse play and activity landscapes.
Robust construction, durable materials and dynamic jumping performance ensure a safe, motivating and long-lasting play experience.
Customizable colors for the jumping mat and safety edge allow visual adaptation to any playground or environment.
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
Tender specification Trampoline M - colortramp®
smb Trampolin M - colortramp®
No. 7210101
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.

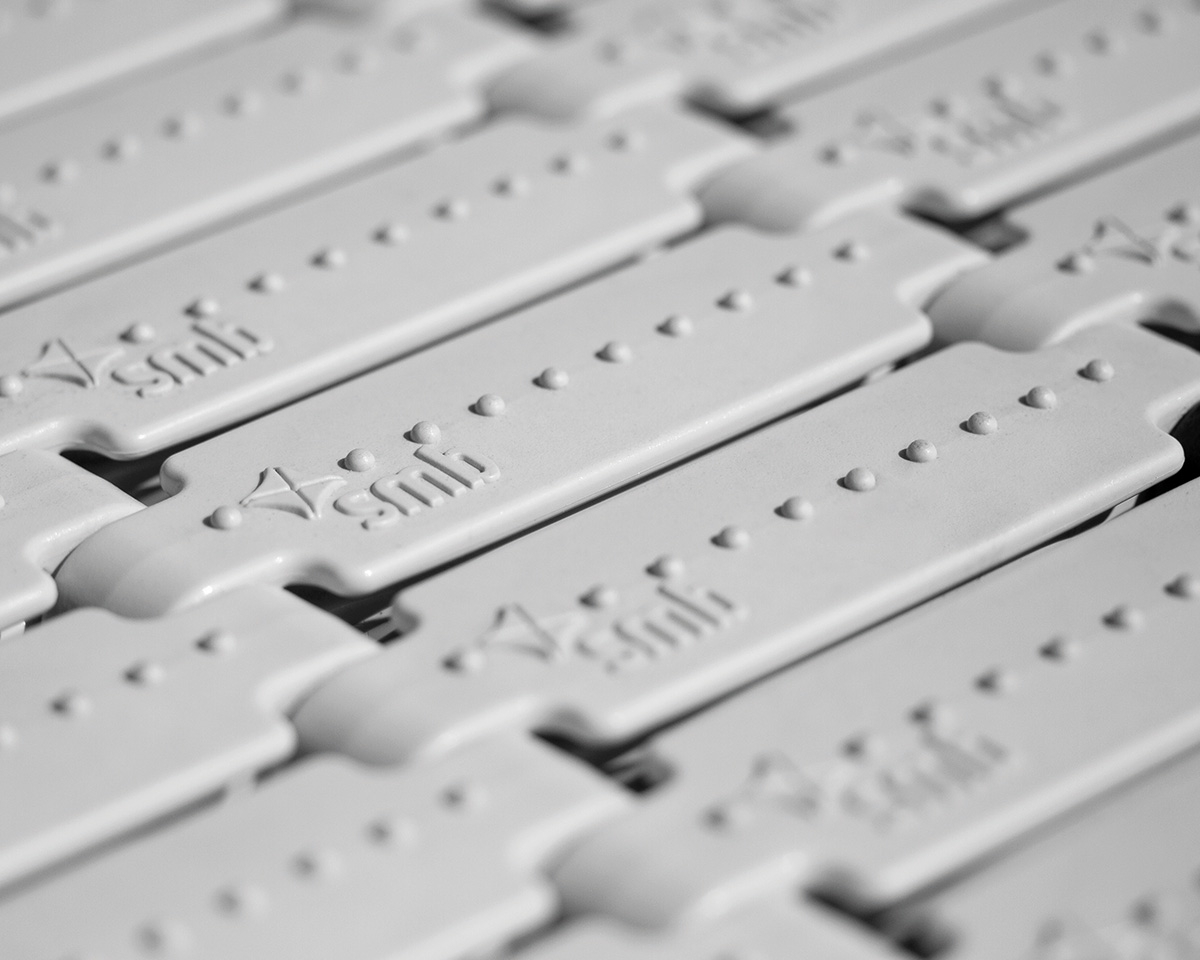

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline M - colortramp® - insitu
smb Trampolin M - colortramp® - insitu
No. 721010110
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
