Basic 1

No. 6906011

Grid dimension2.50 m
Height of post1.00 m
Mesh size60 x 120 mm
Heaviest component22 kg
Total weight76 kg
Foundations2x 0.60 x 0.60 x 0.90 m

Play value and experience

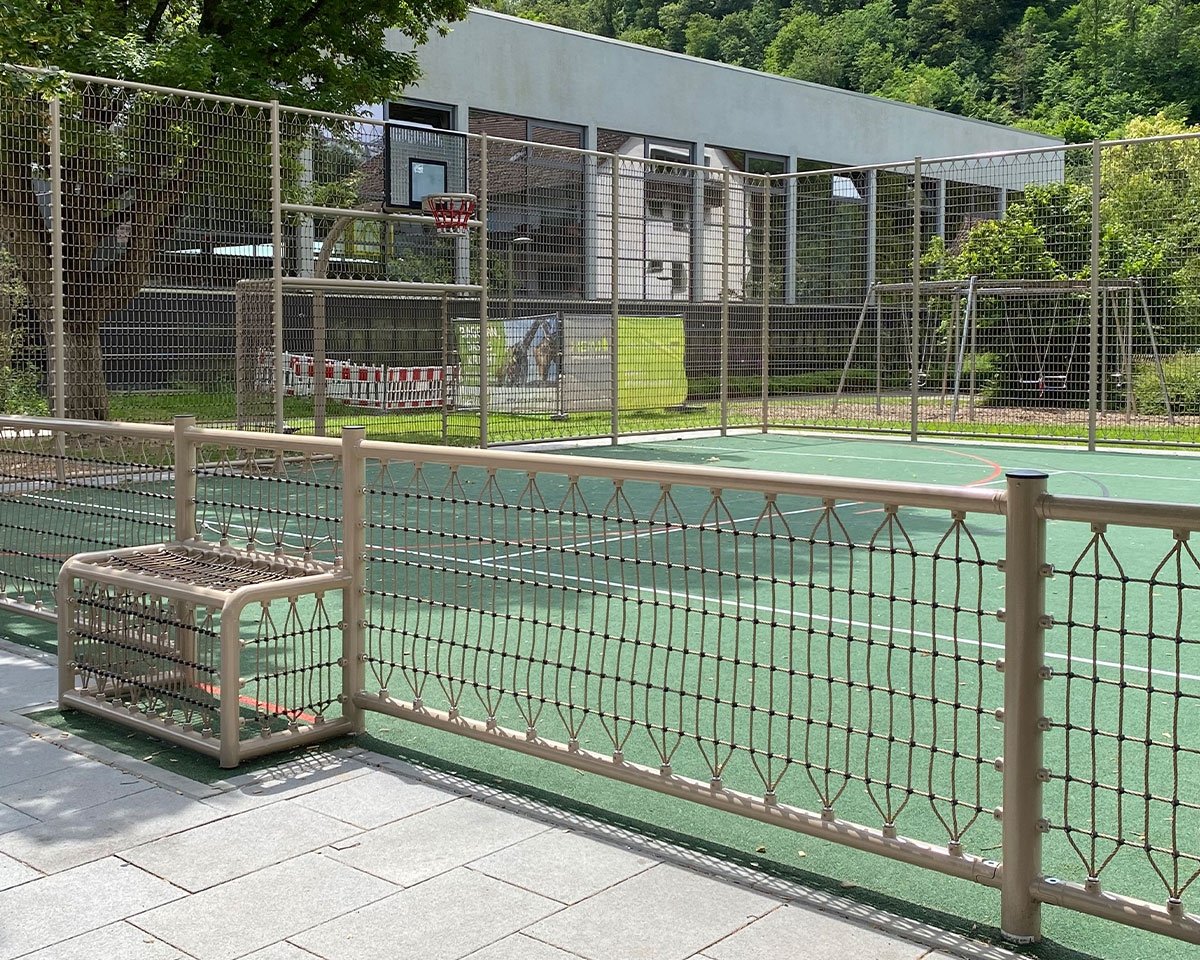

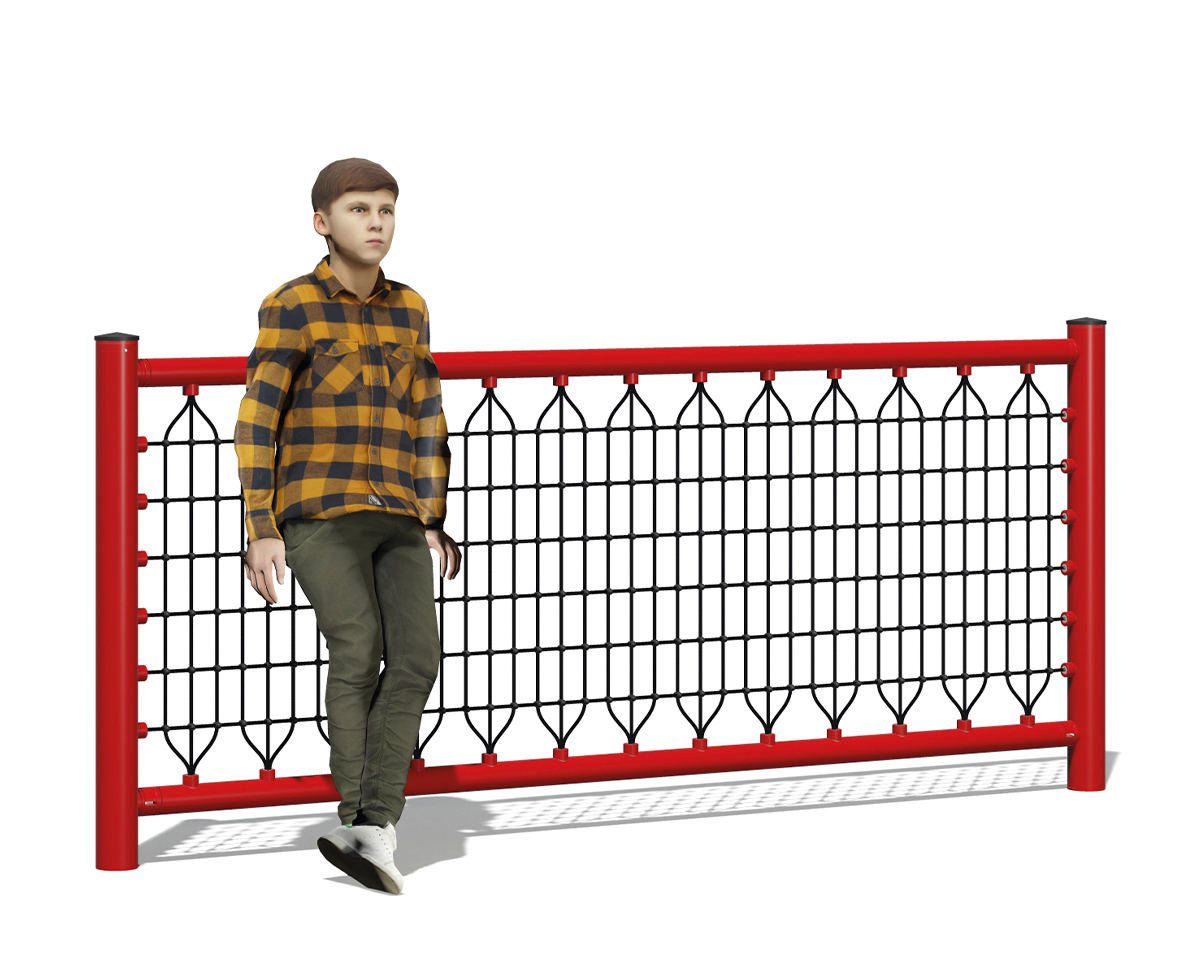

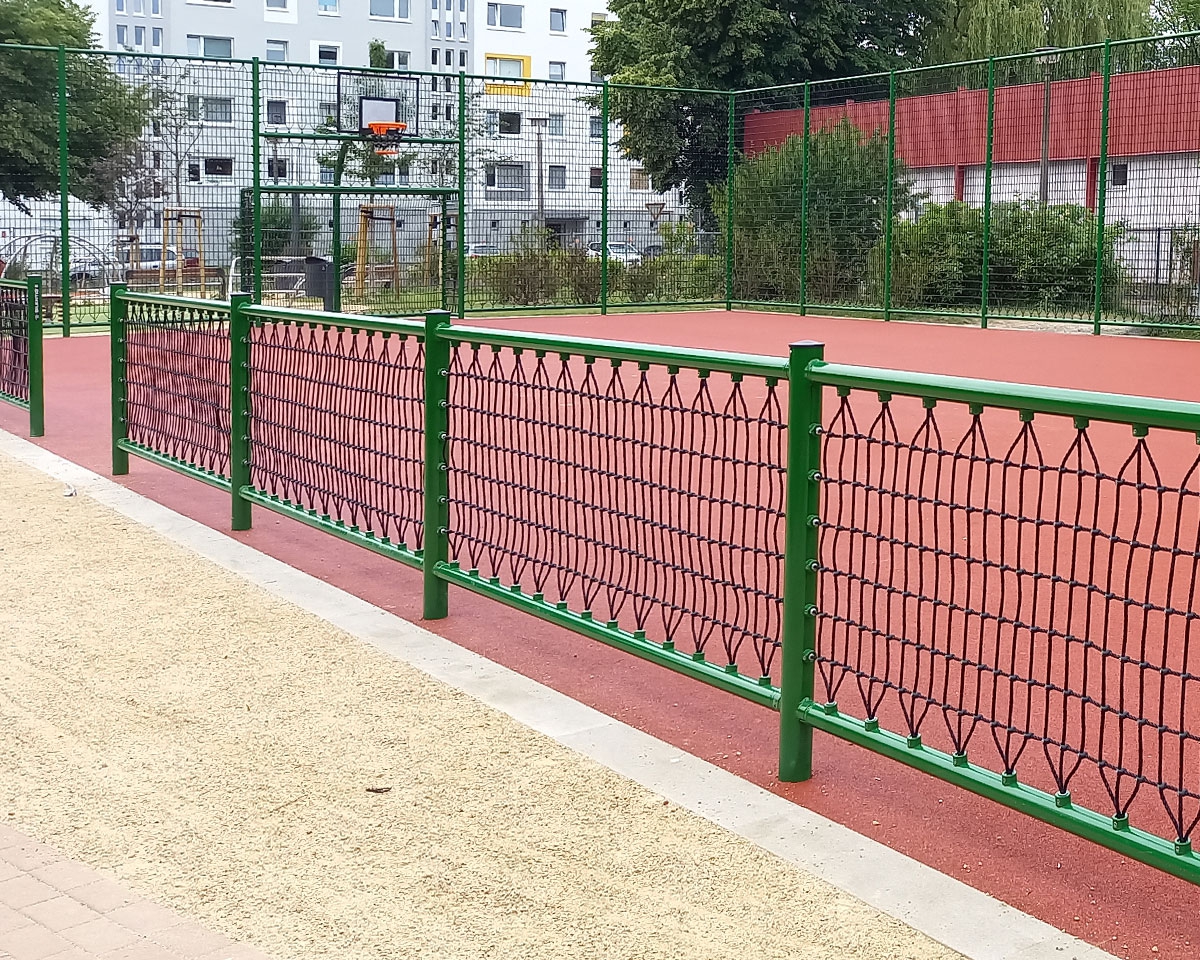

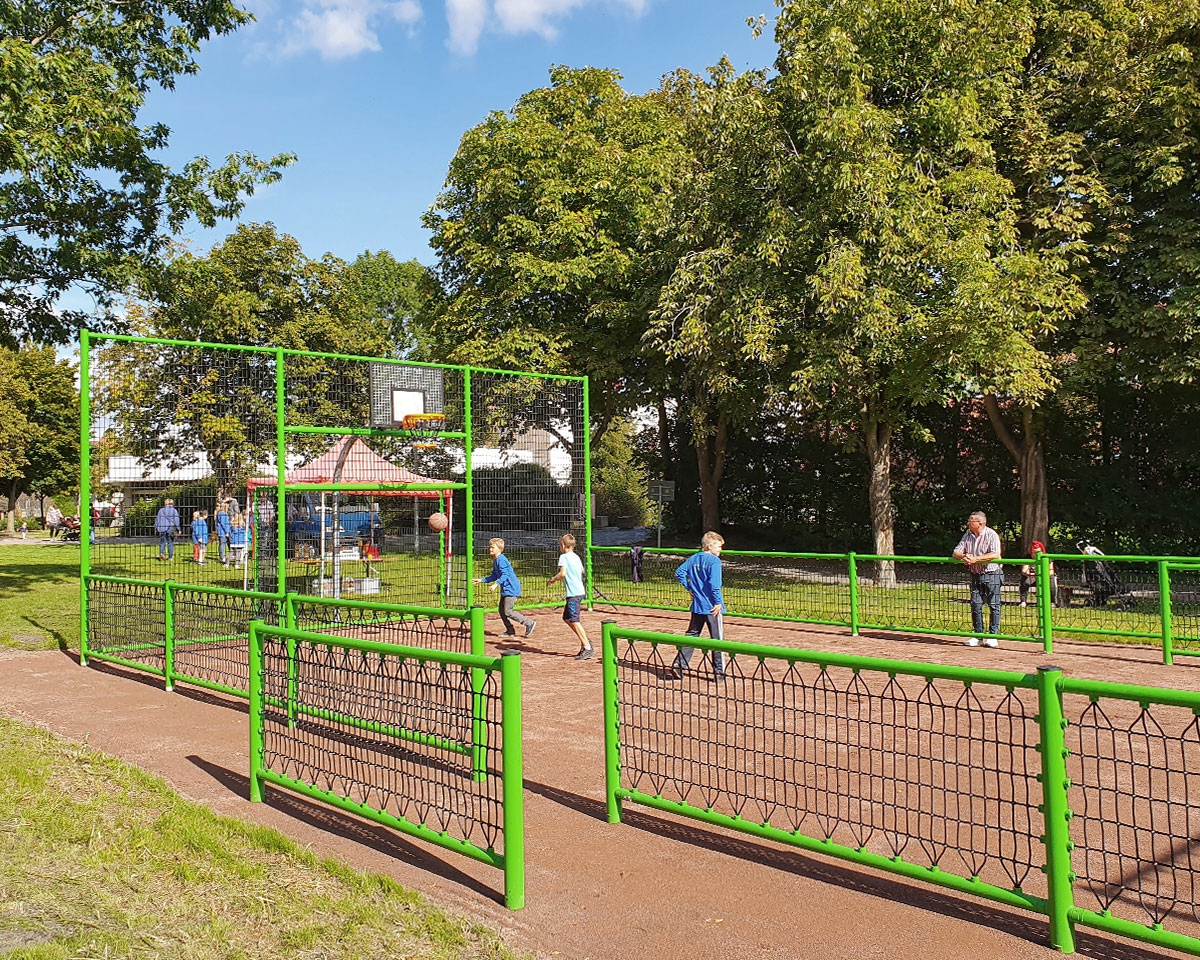

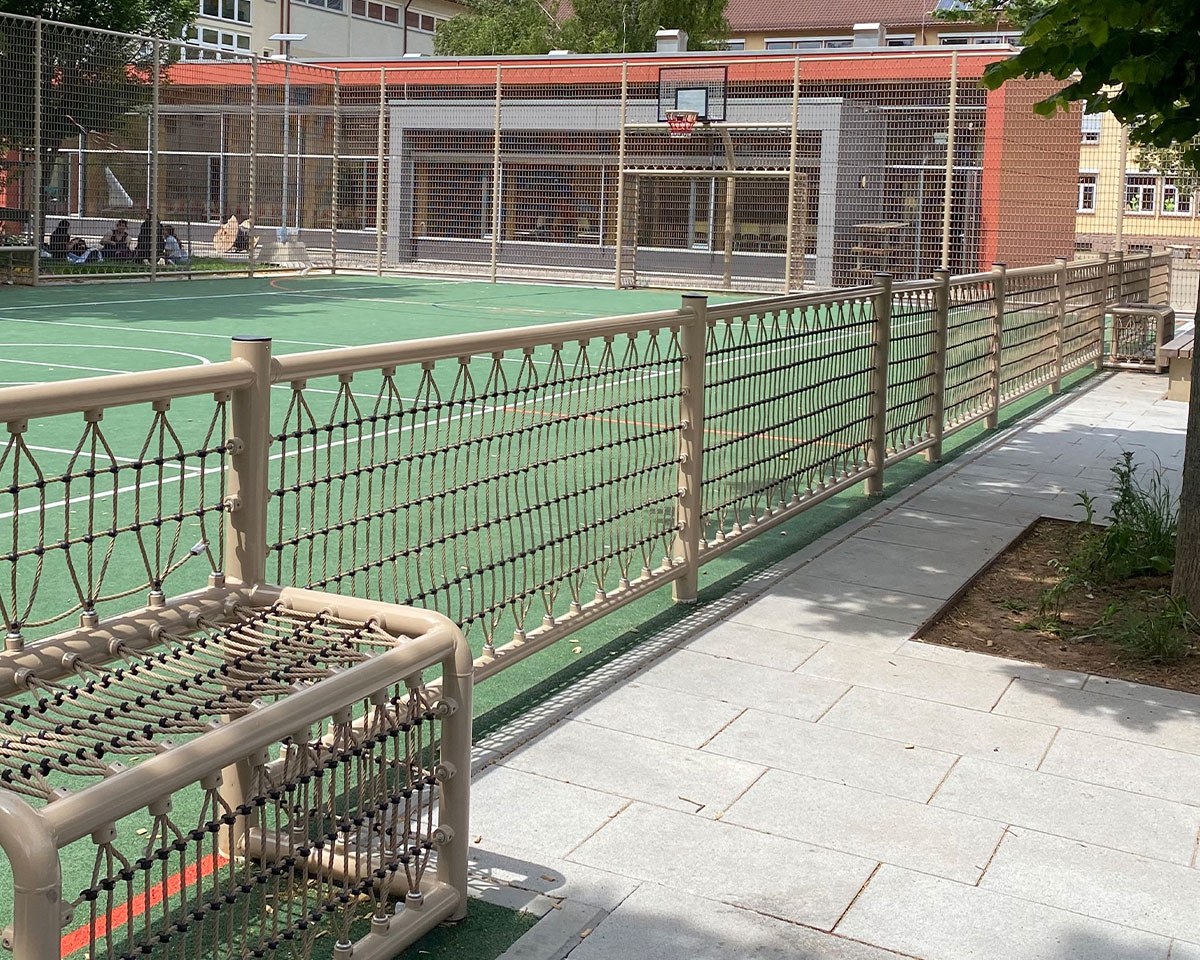

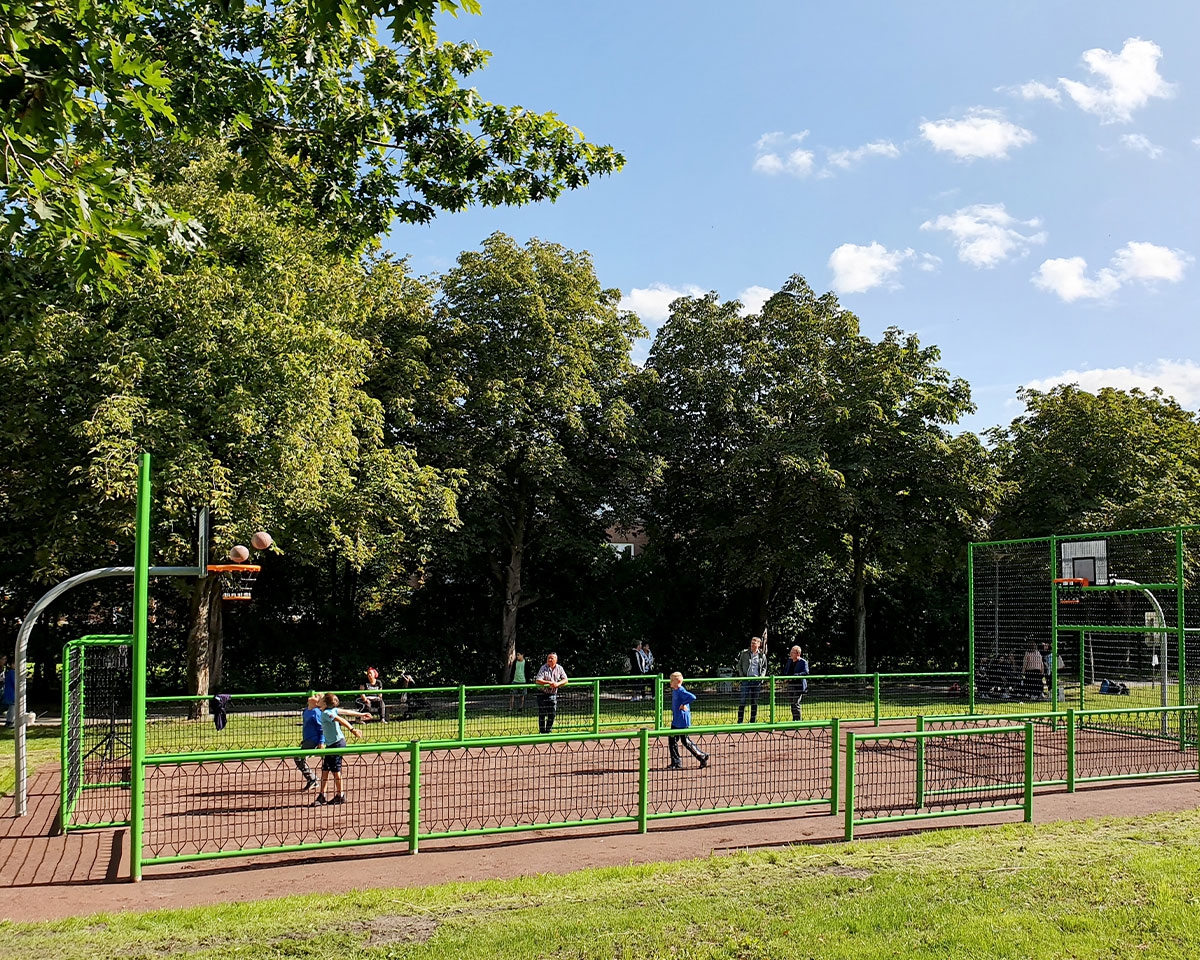

The Soccer Court SILENTIQ® Basic 1 fence element forms a low rope based field structure for ball game areas and is suitable as a lateral enclosure for soccer courts, streetball fields and multifunctional movement spaces.
The 1.00 m high design supports clear spatial structuring while maintaining open sight lines and promotes orientation, communication and fair play. In combination with higher elements fully enclosed playing fields can be created that keep the ball in play while maintaining open and inviting movement areas.
The ultra low noise net structure significantly reduces impact sounds and is TÜV certified as non climbable, making it especially suitable for noise sensitive locations.
Thanks to the individually selectable colour design of the steel construction, ropes and ellipse connectors the element can be visually highlighted and integrated into an overall site design.
As a modular system component it enables flexible combinations with other SILENTIQ® elements to create clearly structured and engaging ball game environments.

The SILENTIQ® basic elements are 2.50 m wide (axis to axis dimension) and are equipped with 90° or 180° angle connections, depending on planning requirements. The mesh size of the net elements is 60 x 120 mm (axis to axis dimension).
Special widths, heights and connection angles are possible. Please contact us if you need advice.
We will be happy to offer our advice if you have any questions in this regard. Contact possibilities can be found here.



Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • Classic redClassic red
  • Cosmos blackCosmos black
  • Silver greySilver grey


Information: More colors on request.

Selectable colors for elliptical nodes

  • WhiteWhite
  • BlackBlack
  • BeigeBeige
  • GreyGrey


Information: More colors are available on request.

Soccer Court SILENTIQ® Add-ons 1 m

  • Goal element compactGoal element compact


  • Goal element originalGoal element original


Soccer Court SILENTIQ® Add-ons 1-4-6 m

  • Goal element original V2Goal element original V2


  • Goal element original V3Goal element original V3


  • Combi element originalCombi element original


  • Door element V1Door element V1


  • Adjustment elementAdjustment element


  • Door element V2Door element V2


Features

Das Herkulesseil

The Hercules rope

Specialized ropes for specialized equipment. Find information about the structure of our ropes here.

Die ROWOCON®-Verbindung

The ROWOCON®-connection

The exclusive and optimal connection between our ropes and tubes or frames.

Der Ellipsenknoten

The elliptical node

Learn more about the knot element specially developed for our fence systems.

SILENTIQ® - Unsere Ansage - 60 dB(A)

SILENTIQ® - Our promise - 60 dB(A)

SILENTIQ® is quiet – certified by TÜV Nord.



SILENTIQ® - Inklusion

SILENTIQ® - Inclusion

Working together for the team spirit on the sports field.
