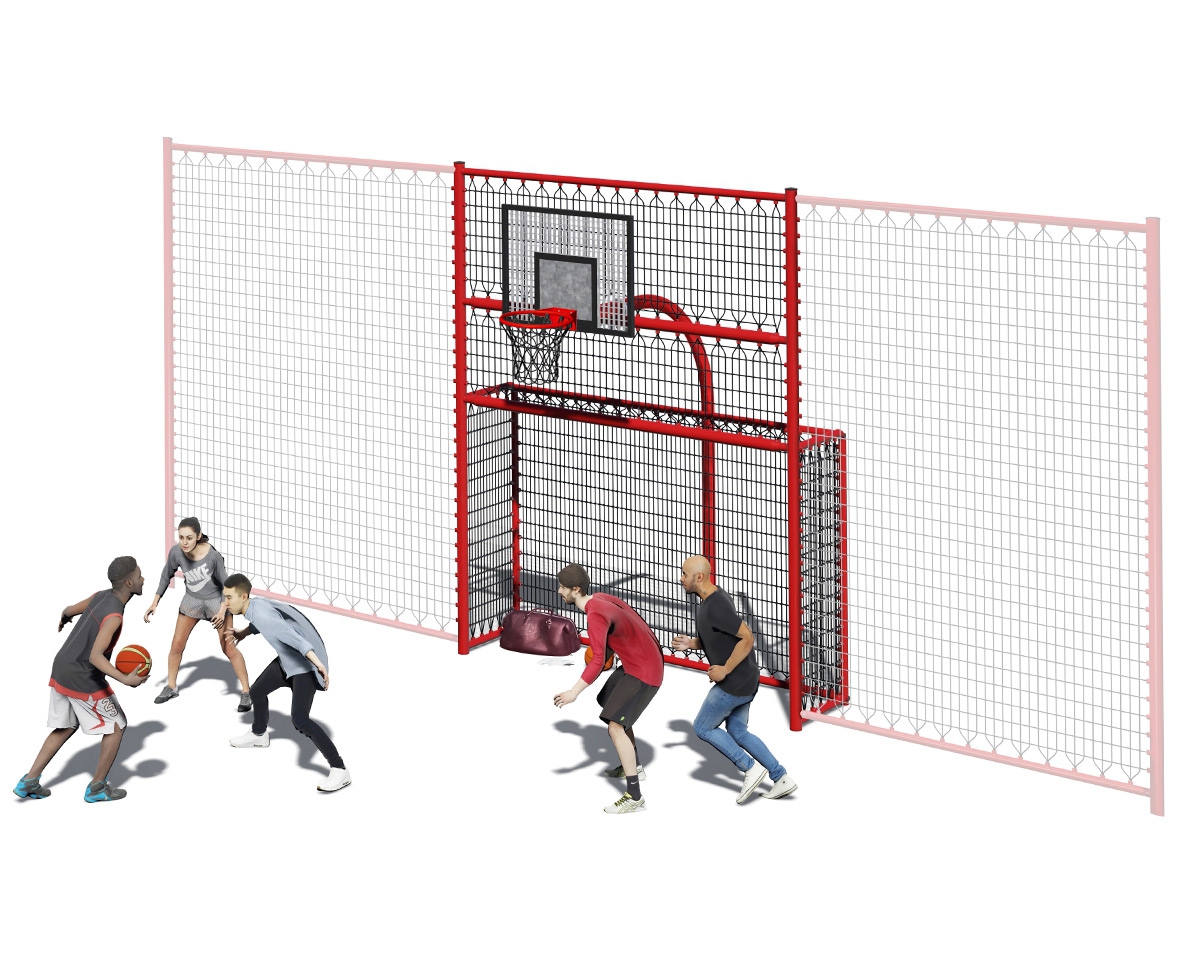

Combi element original

No. 6905211 (4 m) / No. 6905214 (6 m) + No. 7011116 / 7010106 (basket) + No. 7010002602 (Flange anchor)

Grid dimension3.08 m
Height of post4.00 m
Mesh size
Fence net60 x 120 mm
Goal net
Side40 x 130 mm
Back wall43 x 130 mm
Basket ring height3.05 m
Backboard dimensions1.20 x 0.90 m
Heaviest component75 kg
Total weight380 kg
Foundations
Goal element2x 1.50 x 0.60 x 0.90 m
Streetball equipment1x 0.80 x 0.80 x 0.90 m

The Combi element original consists of:
1x Combination element original, incl. powder-coated streetball column, without basket (No. 6905211)
1x Basket (Variant selectable, image shows "URBN HOOP®" (No 7011116), alternatively: "99 classic“ (No. 7010106))
1x Flange anchor for streeball equipment (No. 7010002602)

The elements can be combined with all basic fence modules „Basic 1, Basic 4 and Basic 6“. Please consider practicality when combining.
The combination element shown here is 4.00 m high. It is also available in 6.00 m height.

Play value and experience
The combi element original is an integrated multifunctional system component within Soccer Court SILENTIQ® installations combining a football goal, ball stop function and streetball unit in one compact element.
The goal opening supports accurate shooting, passing play and goalkeeper actions while developing coordination, reaction speed and team play.
The fence section above the goal retains high shots safely within the playing field and enables a continuous flow of play without interruptions.
The integrated streetball column with a freely selectable hoop expands the activity range with target throwing, jumping ability and hand eye coordination.
In combination with the URBN HOOP® with Swish effect the element becomes a modern, low noise and visually distinctive play feature for different age groups.
The element is designed for combination with SILENTIQ® basic fence modules and includes all required connections for full system integration into enclosed ball game courts. A roof net is omitted in accordance with DIN EN 15312.
As a clearly structured focal point it supports shared physical activity and parallel football and basketball play within one facility.


Selectable baskets

  • URBN HOOP URBN HOOP®
    Art.No. 7011116
  • Korb 99 classic 99 classic
    Art.No. 7010106

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes 8 mm (goal net / ball catch fence)

  • Classic redClassic red
  • Cosmos blackCosmos black
  • Silver greySilver grey


Information: More colors on request.

Selectable colors for ropes 8 mm (URBN HOOP®)

  • WhiteWhite
  • GoldGold
  • WalnutWalnut
  • GoldenrodGoldenrod
  • AquaAqua
  • Deep PurpleDeep Purple
  • Electric BlueElectric Blue
  • Imperial RedImperial Red
  • Army GreenArmy Green
  • BlackBlack
  • CamouflageCamouflage
  • Black rPETBlack rPET
  • Red rPETRed rPET

Visit the URBN HOOP® Customizer to create your personalized hoop.
Note: More colors are available upon request.

Selectable colors for ropes 16 mm ("99 classic")

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Note: Other colors are available on request.

Selectable colors for rope connectors and rope connector clips (URBN HOOP®)

  • WhiteWhite
  • RedRed
  • BlackBlack
  • WhiteWhite
  • RedRed
  • BlackBlack


Visit the URBN HOOP® Customizer to create your personalized hoop.
Note: More colors are available upon request.

Selectable colors for elliptical nodes

  • WhiteWhite
  • BlackBlack
  • BeigeBeige
  • GreyGrey


Information: More colors are available on request.
