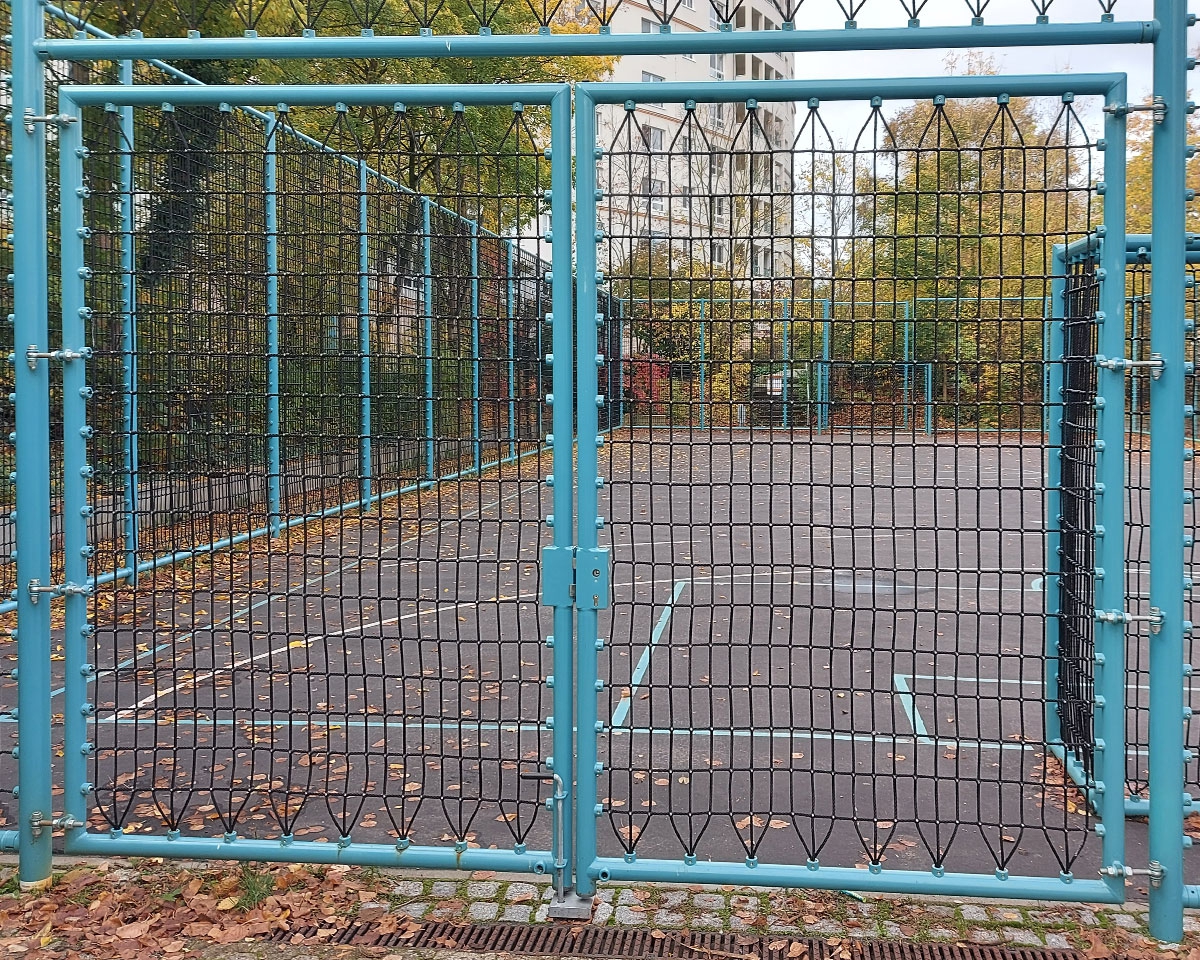

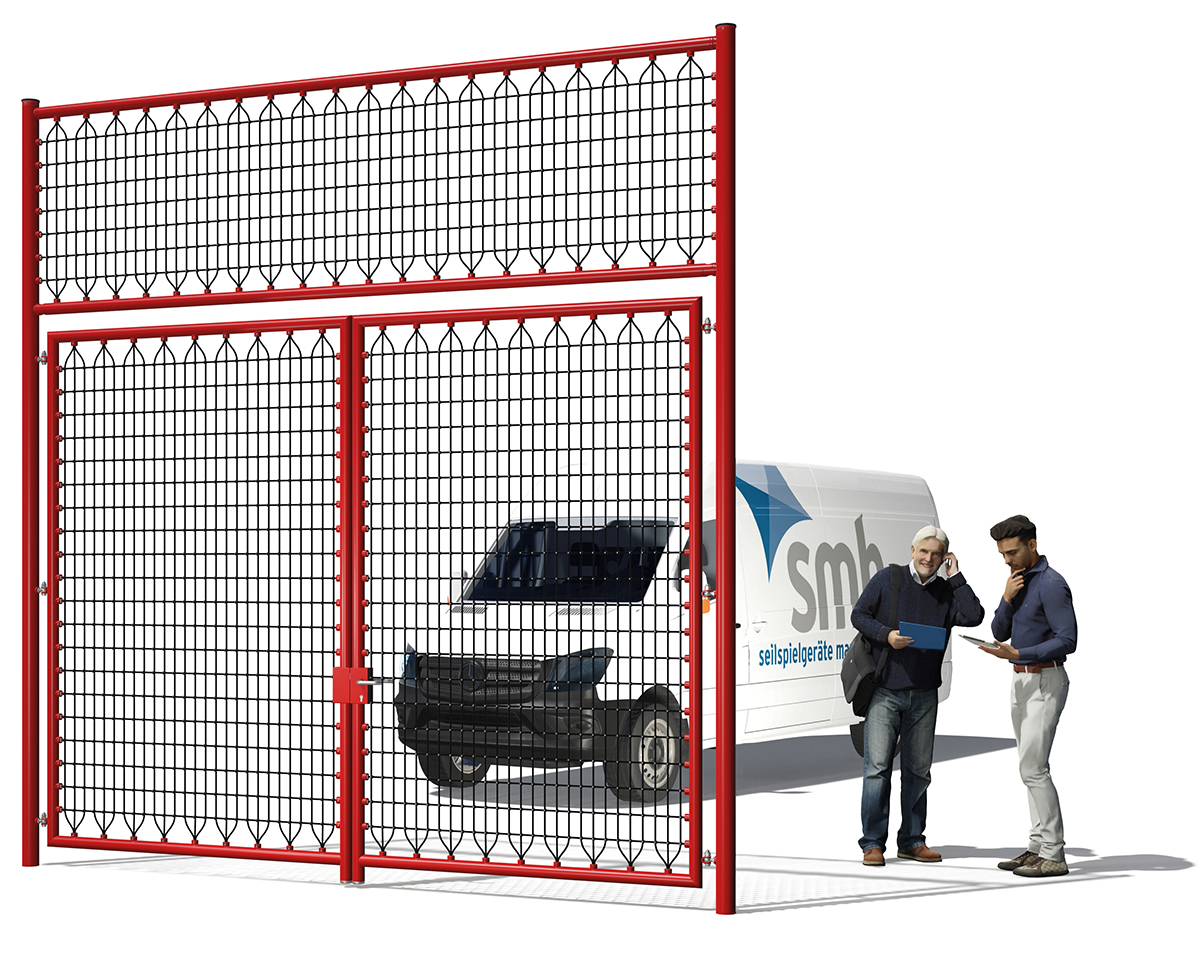

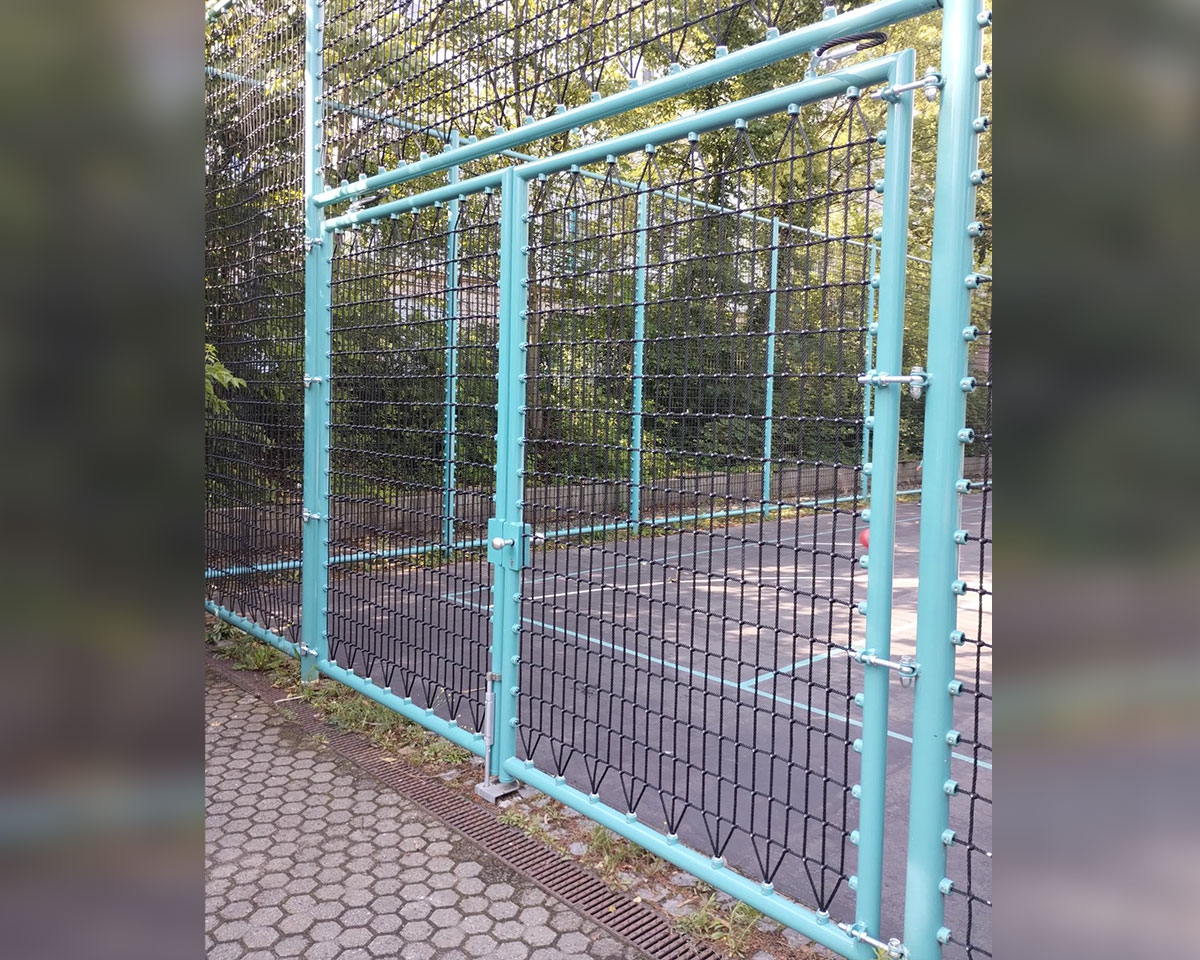

Door element V2

No. 6907110

Grid dimension3.75 m
Height of post4.00 m
Mesh size60 x 120 mm
Clear door width3.54 m
Clear door height2.86 m
Opening angle (to the outside)105°
Incl. cylinder lock
Heaviest component58 kg
Total weight220 kg
Foundations2x 0.90 x 0.90 x 0.90 m

The door element original V2 belongs to the add-ons - 1-4-6 m

The elements “Add-ons - 1-4-6 m” can be combined with all basic fence modules „Basic 1, Basic 4 and Basic 6“. Please consider practicality when combining.

The door element contains all the connections required to connect it to a basic fence module.

The door element shown here is 4.00 m high. It is also available in 6.00 m height.




Selectable colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • Classic redClassic red
  • Cosmos blackCosmos black
  • Silver greySilver grey


Information: More colors on request.

Soccer Court SILENTIQ® Basic elements

  • Basic 1Basic 1


  • Basic 4Basic 4


  • Basic 6Basic 6


Features

Das Herkulesseil

The Hercules rope

Specialized ropes for specialized equipment. Find information about the structure of our ropes here.

Die ROWOCON®-Verbindung

The ROWOCON®-connection

The exclusive and optimal connection between our ropes and tubes or frames.

Der Ellipsenknoten

The elliptical node

Learn more about the knot element specially developed for our fence systems.

SILENTIQ® - Unsere Ansage - 60 dB(A)

SILENTIQ® - Our promise - 60 dB(A)

SILENTIQ® is quiet – certified by TÜV Nord.



SILENTIQ® - Inklusion

SILENTIQ® - Inclusion

Working together for the team spirit on the sports field.

citytor® - Bodenanker quick&easy

citytor® - Ground anchor quick&easy

The quick&easy ground anchors enable simple and precise fitting of the foundations.
