Activity bar variant 4

No. 9710211

Unit space area0.11 x 3.11 m
Safety space area3.11 x 6.11 m
Height of unit1.26 m
Age range4+
Number of users2
Free fall height1.17 m
Heaviest component25 kg
Total weight80 kg
Assembly time0.75 hours
Installers2 persons
Foundations3 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete0.90 m³

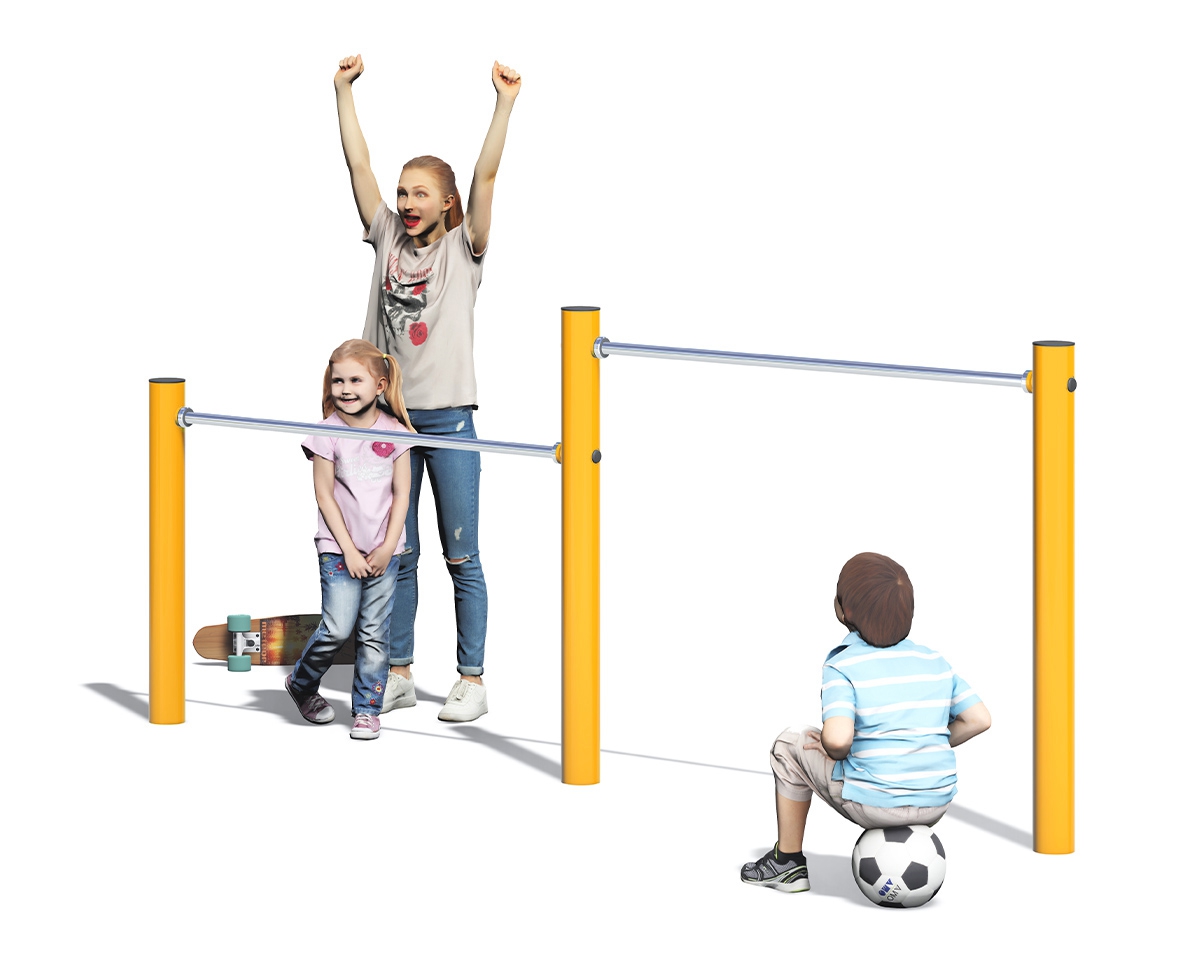

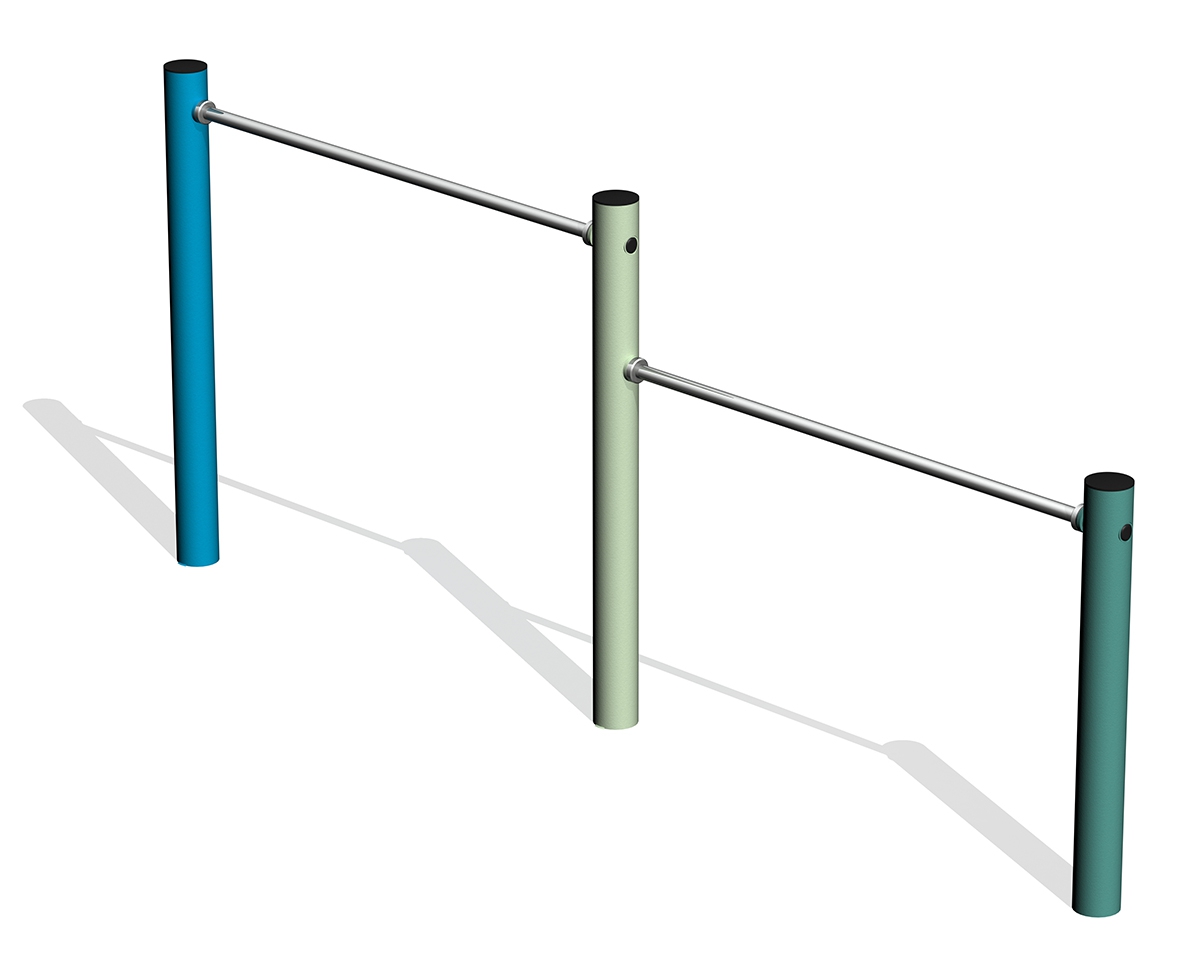

Activity bar variant 4 consisting of several individual components:
2x Activity bar
1x Post S (length 0.95 m - connection height of the horizontal bar: 0.85 m)
2x Post M (length 1.25 m - connection height of the horizontal bar: 0.85 and 1.15 m)

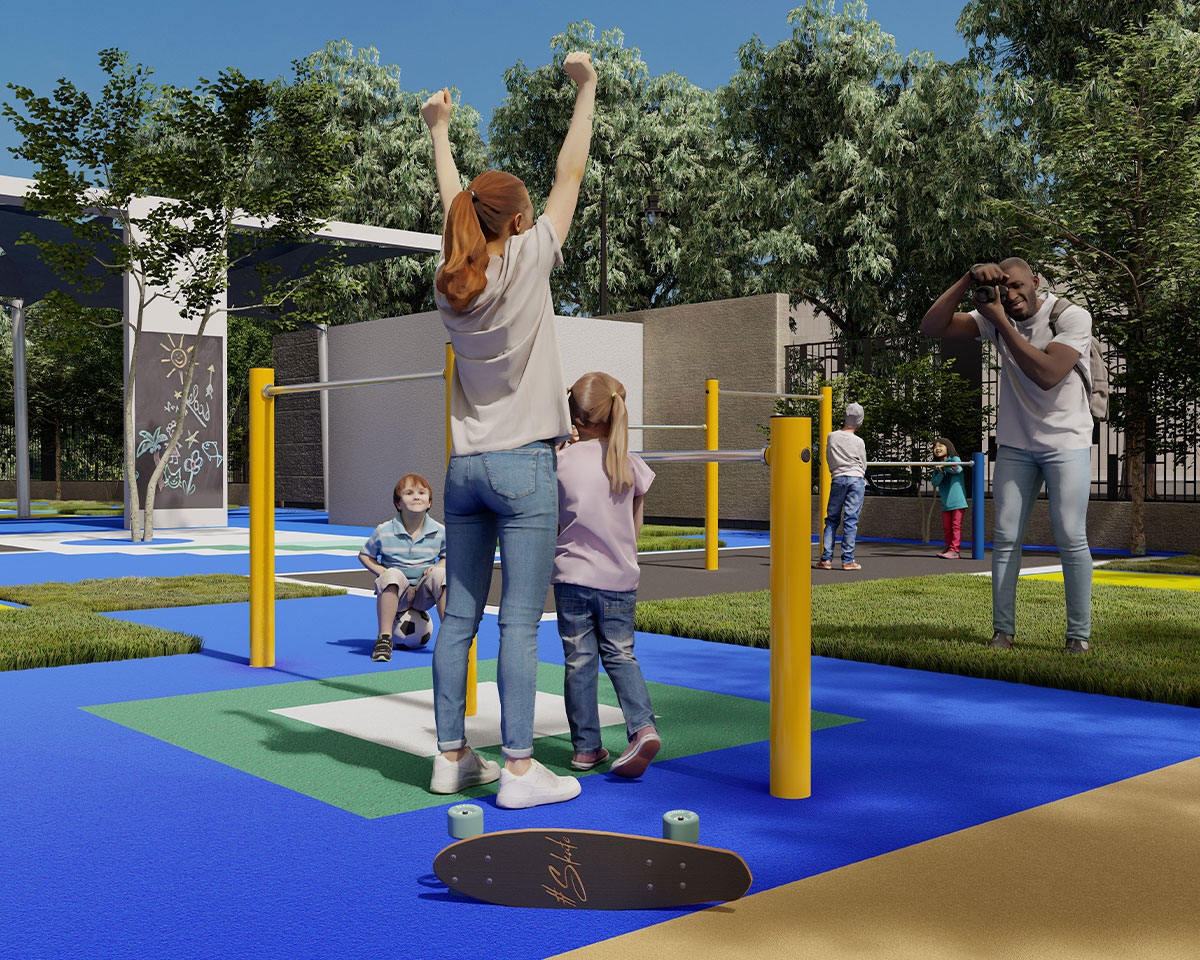

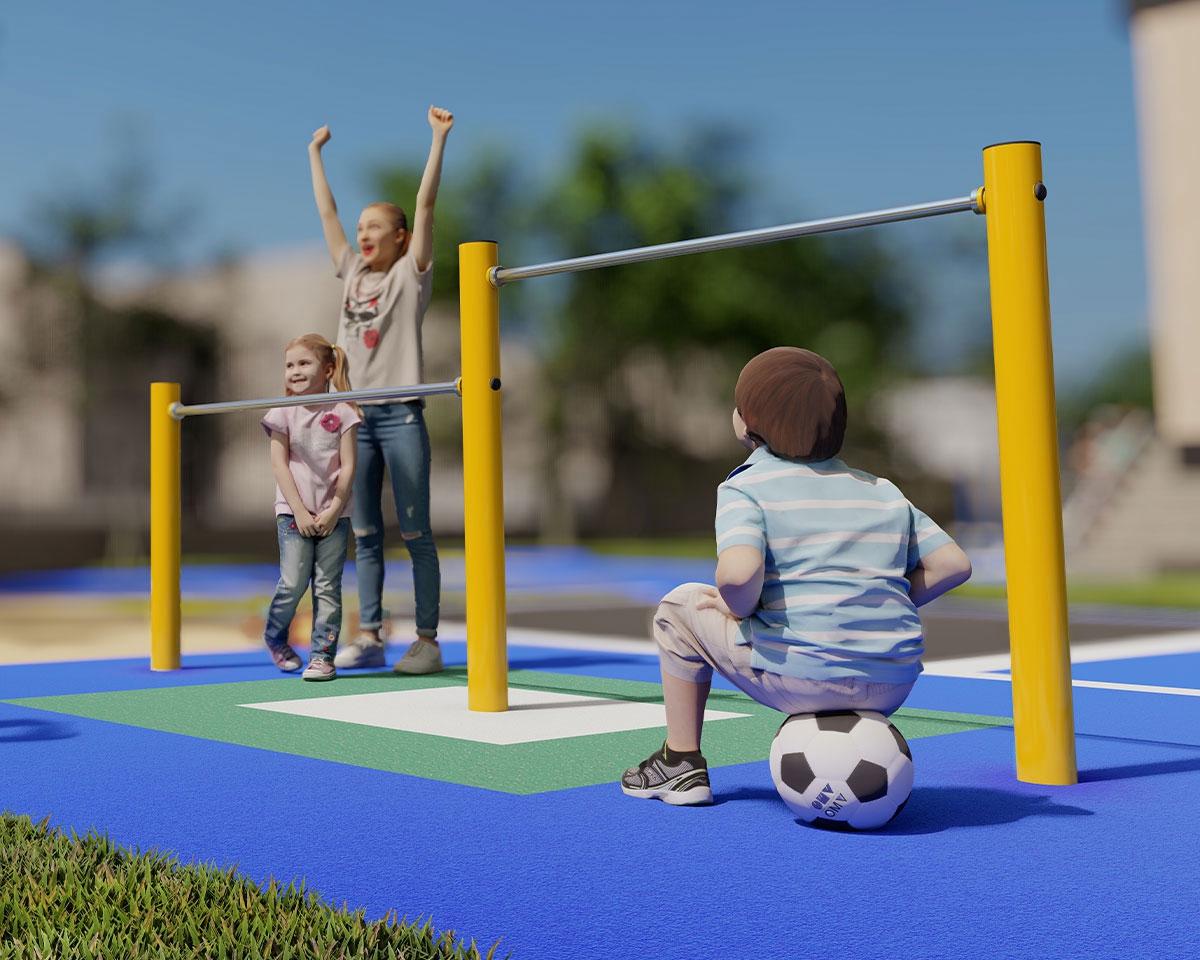

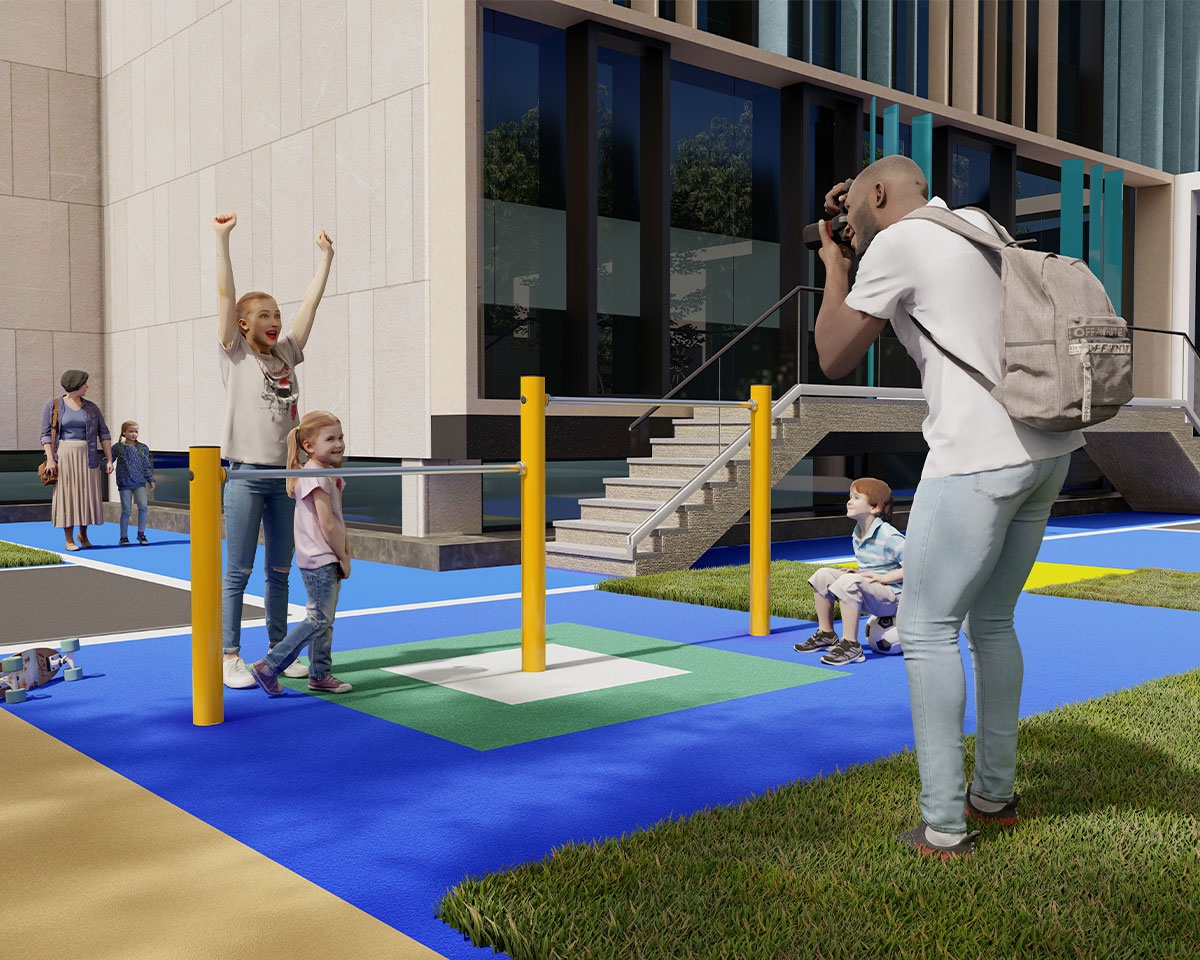

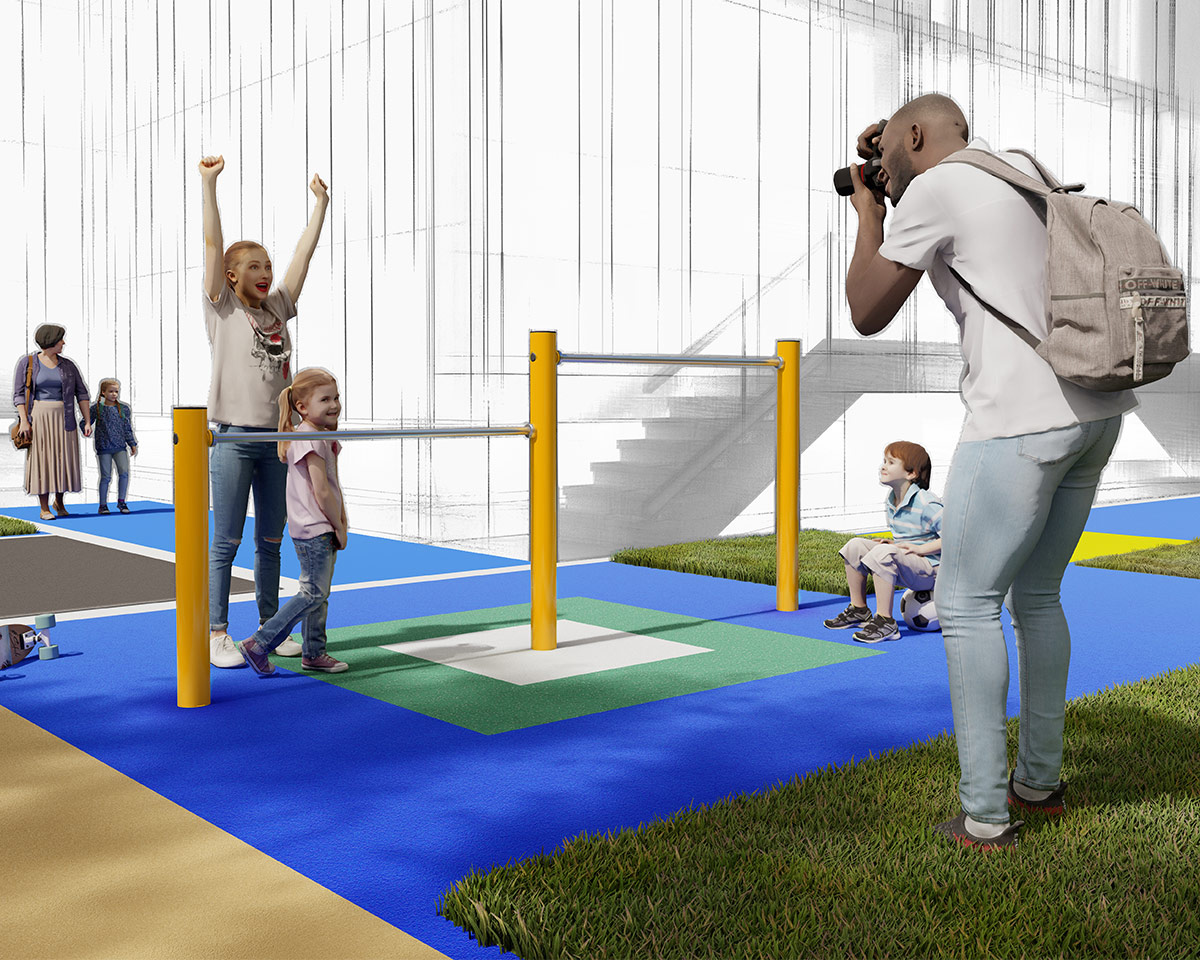

Versatile movement opportunities

The combination of two activity bars at different heights invites a variety of exercises. Swinging, climbing, supporting or vaulting – children, teenagers, and adults can playfully train their strength, coordination and body control.

The two heights allow for different levels of difficulty and shared movement sequences. A targeted placement with guided pathways promotes inclusive play with supportive movements or specific exercises.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 4

smb Activity bar variant 4
No. 9710211
consisting of:

2x Activity bar
No: 9710010
Horizontal bar made of polished stainless steel tube Ø33.7 mm with a length of approx. 1372 mm, suitable for a post distance of 1500 mm (from post center to post center). The connection height can be individually defined.
The horizontal tube is mounted to the upright posts in a user-friendly way via a twist-proof, internal and protected screw connection.
Note: The posts for Horizontal Bar are not included and must be considered separately.

1x Post S length 0.95 m - connection height of the horizontal bar: 0.85 m
No: 9710020
The Post S (0.95 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 958 mm, with a total length of 1958 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

2x Post M length 1.25 m - connection height of the horizontal bar: 0.85 and 1.15 m
No: 9710021
The Post M (1.25 m) for horizontal bars is made of a steel tube Ø 108×3.6 mm. It is permanently protected against corrosion through hot-dip galvanization followed by subsequent powder coating in a RAL color (please specify the desired color when ordering).
The top of the steel tube is permanently sealed with a flat, elegant, slatted cap made of black, weather-resistant plastic.
The post height above play level is 1258 mm, with a total length of 2258 mm.
Anchoring:
Anchoring is done via a concrete foundation measuring 0.6×0.6×0.8 m.
The minimum concrete quality required is C20/25 (B25).
Color options:
A wide range of RAL colors is available for individual customization.

For layout and dimensions, see draft plan.
