Activity bar variant 3

No. 9710112

Unit space area0.11 x 1.61 m
Safety space area3.11 x 4.61 m
Height of unit1.56 m
Age range4+
Number of users1
Free fall height1.47 m
Heaviest component29 kg
Total weight62 kg
Assembly time0.50 hours
Installers2 persons
Foundations2 (0.60 x 0.60 x 0.80 m)
Total quantity of concrete0.60 m³

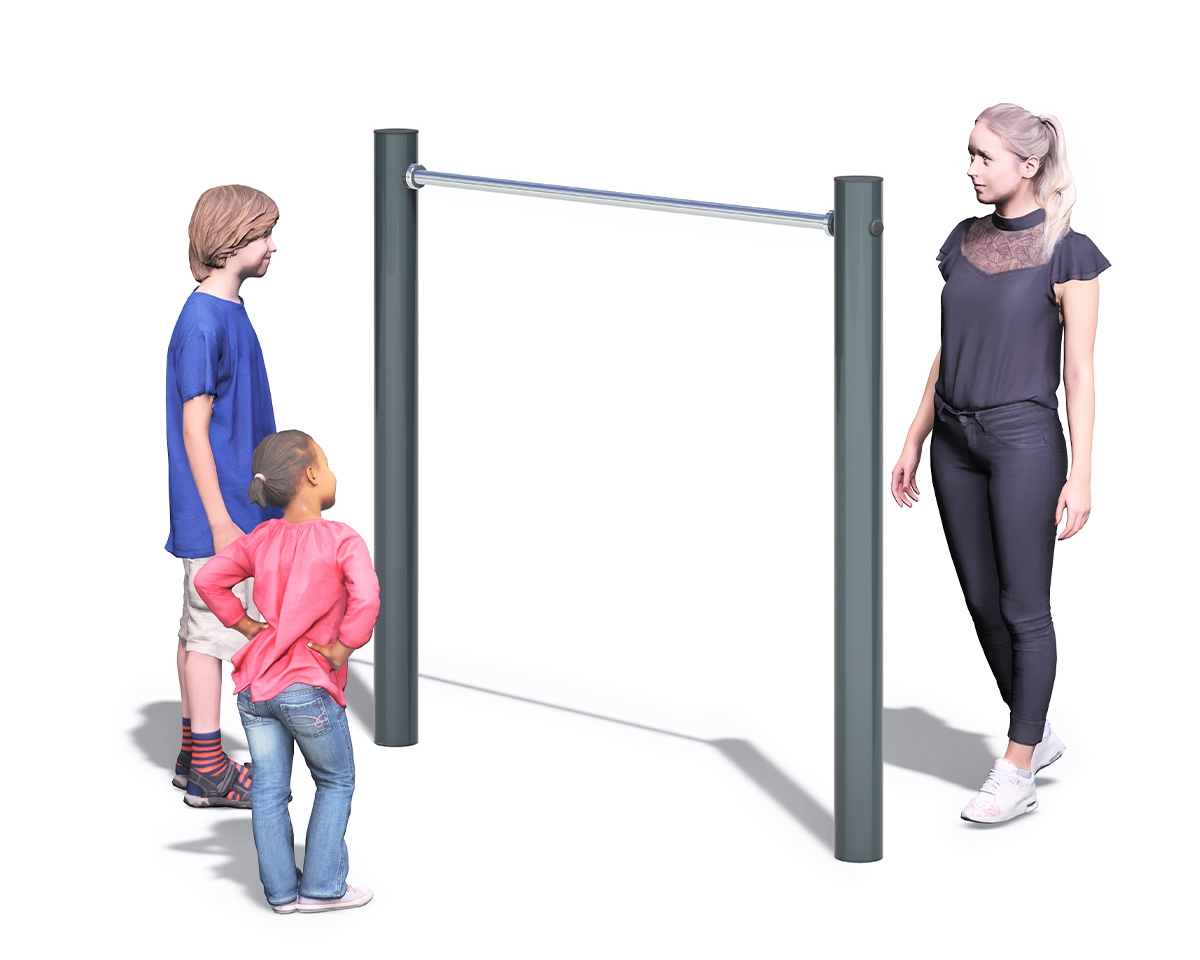

Activity bar variant 3 consisting of several individual components:
1x Activity bar
2x Post L (length 1.55 m - connection height of the horizontal bar: 1.45 m)


Swing, strength and challenge

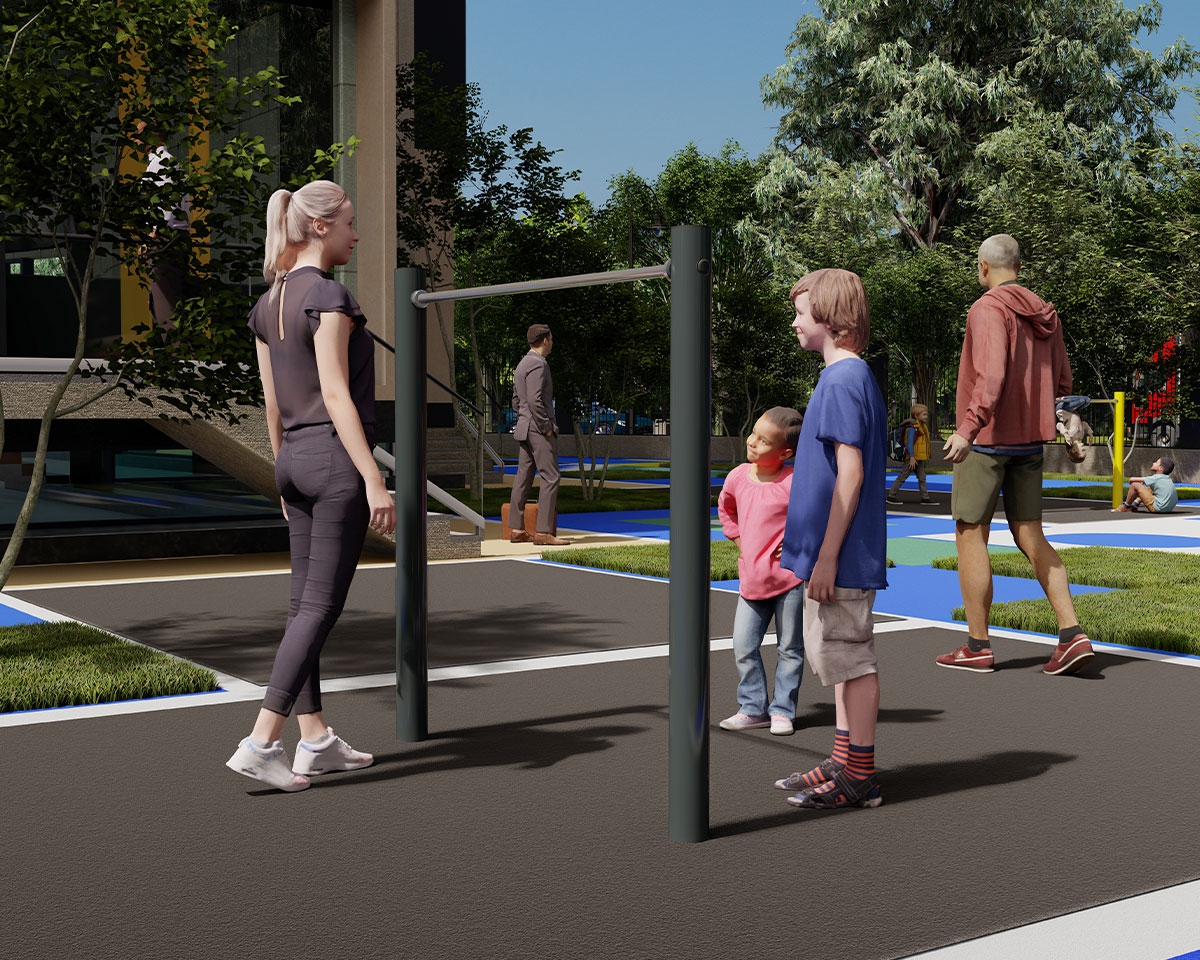

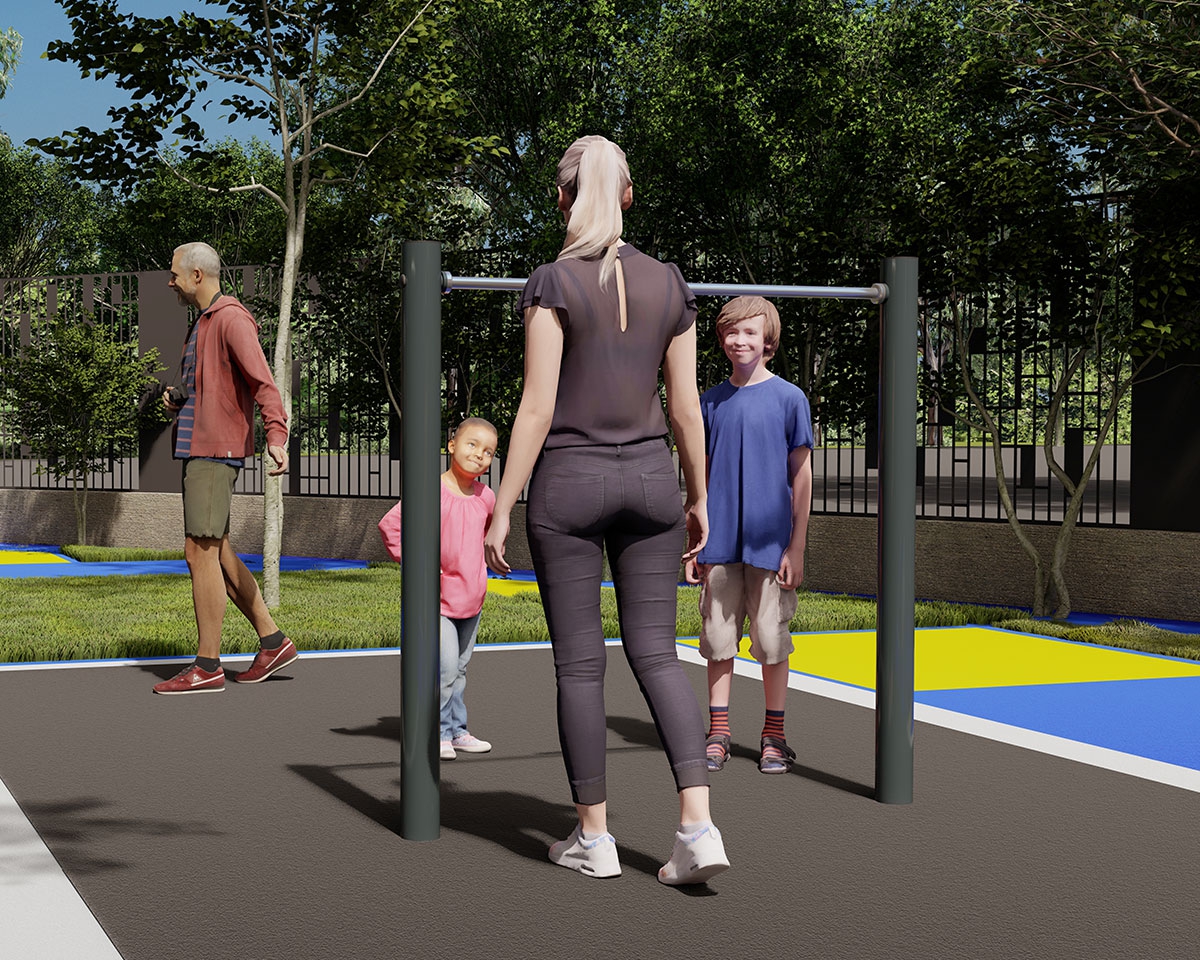

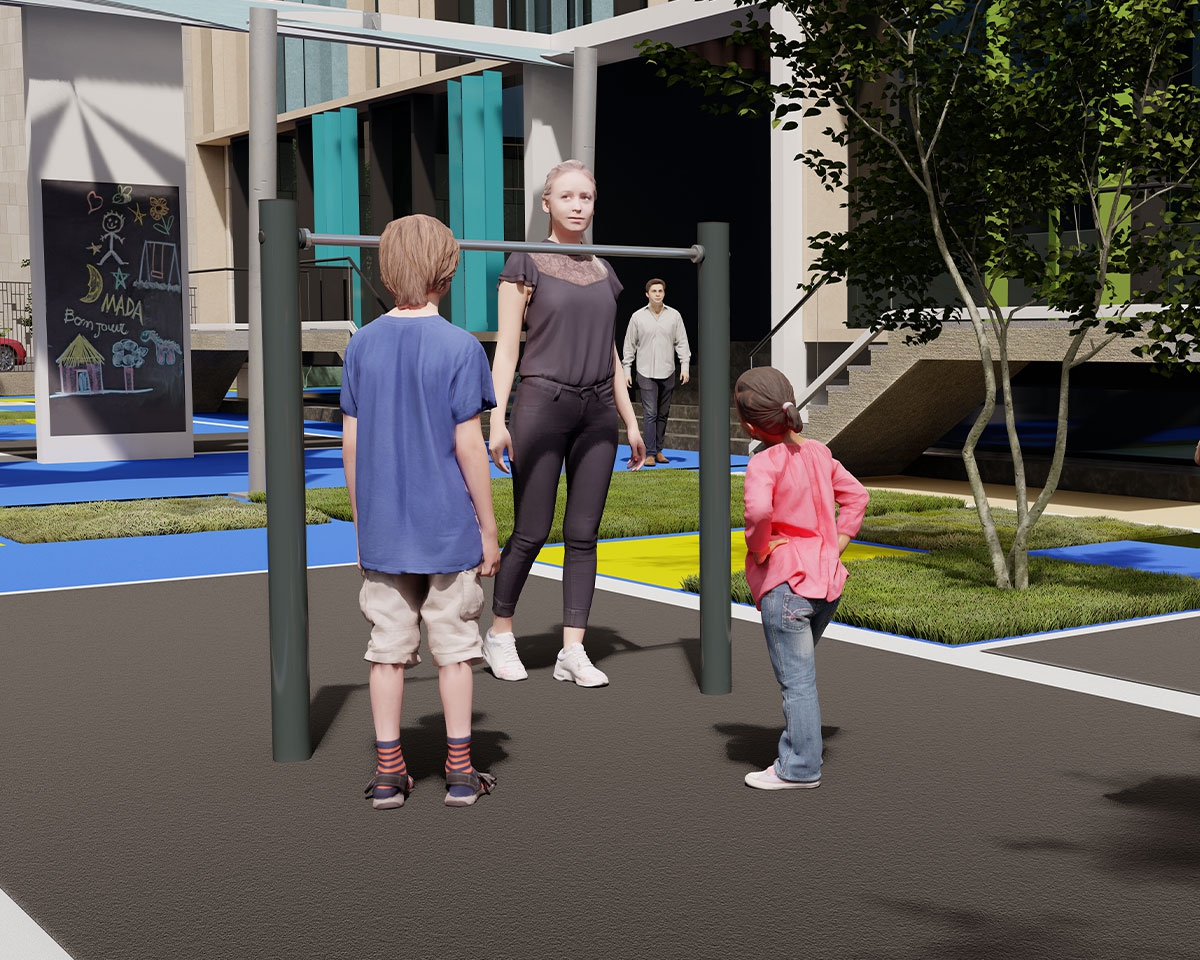

The activity bar at a height of 1.45 m invites users to engage in dynamic swinging and gymnastic exercises. Children, teenagers and adults can specifically train their strength, body control and agility.

The increased height allows for more demanding movement sequences such as swinging hand-over-hand, pull-ups or flips.

A well-considered placement with guided pathways can promote inclusive play by enabling supportive movements or targeted exercises.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Tender specification Activity bar variant 3

Activity bar variant 7 - consisting of:

1x Activity bar
No: 9710010

2x Post L length 1.55 m - connection height of the horizontal bar: 1.45 m
No: 9710022

For layout and dimensions, see draft plan.
