triple-fun M - Variant 1
No. 7210121, 721012110 (insitu)
| Unit space area | 1.75 x 3.75 m |
| Jumping area | 3x 1.25 x 0.75 m |
| = 2.82 m² | |
| Safety space area | 5.25 x 9.25 m |
| Height of unit | 0.00 m |
| Age range | 3+ |
| Number of users | 3 |
| Free fall height | 0.90 m |
| Heaviest component | 182 kg |
| Total weight | 546 kg |
| Assembly time | 2.50 hours |
| Installers | 2 persons |
| Foundations | none |
Play value and experience

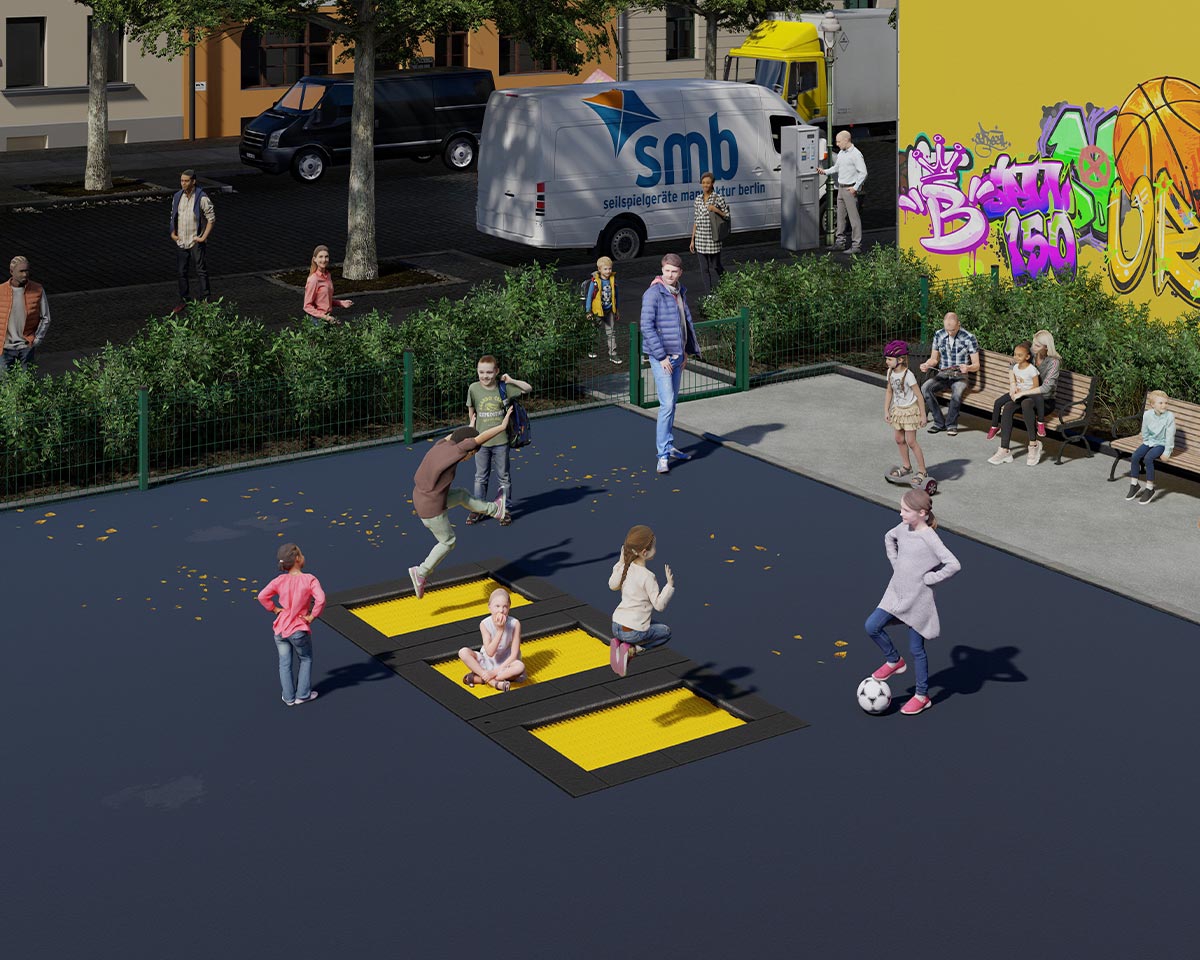

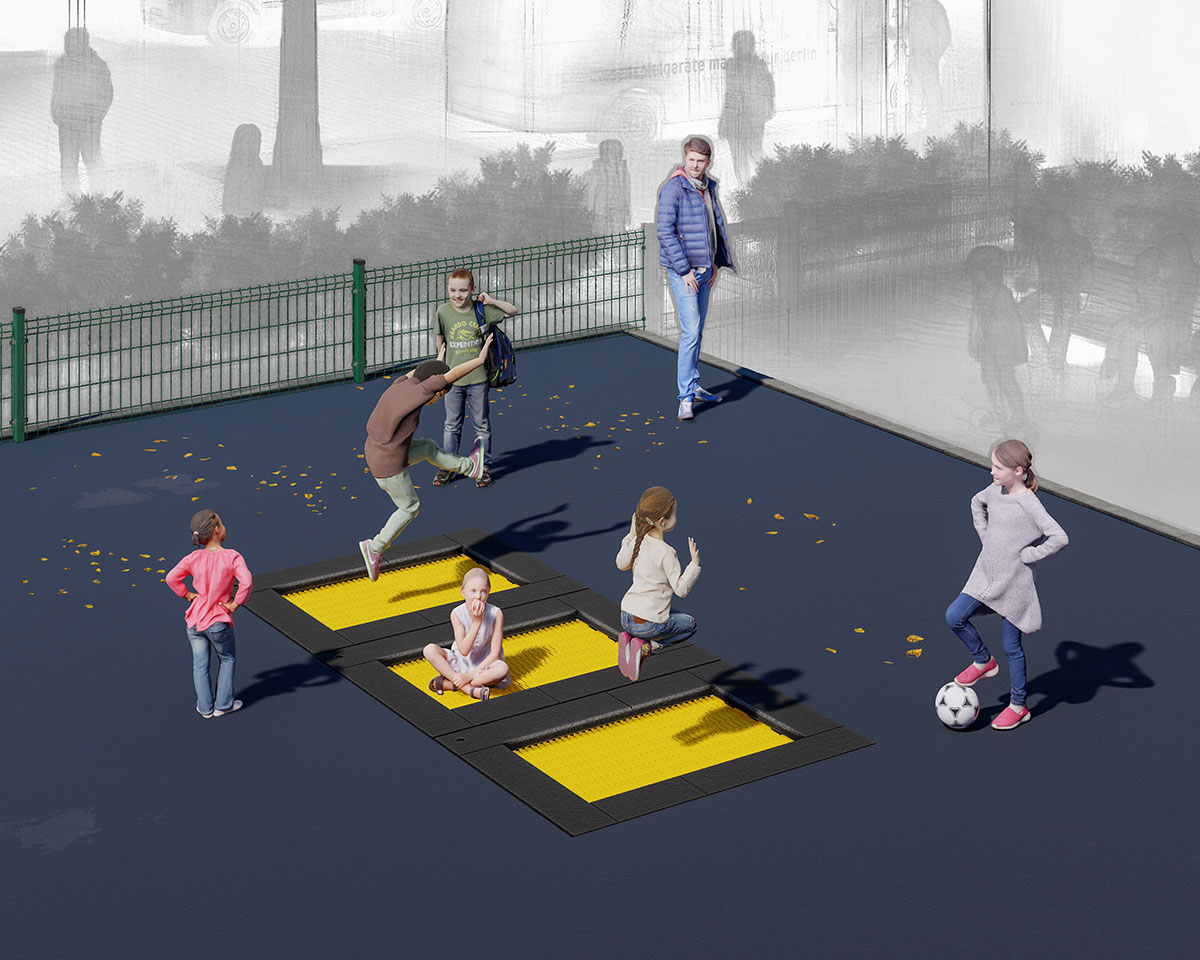

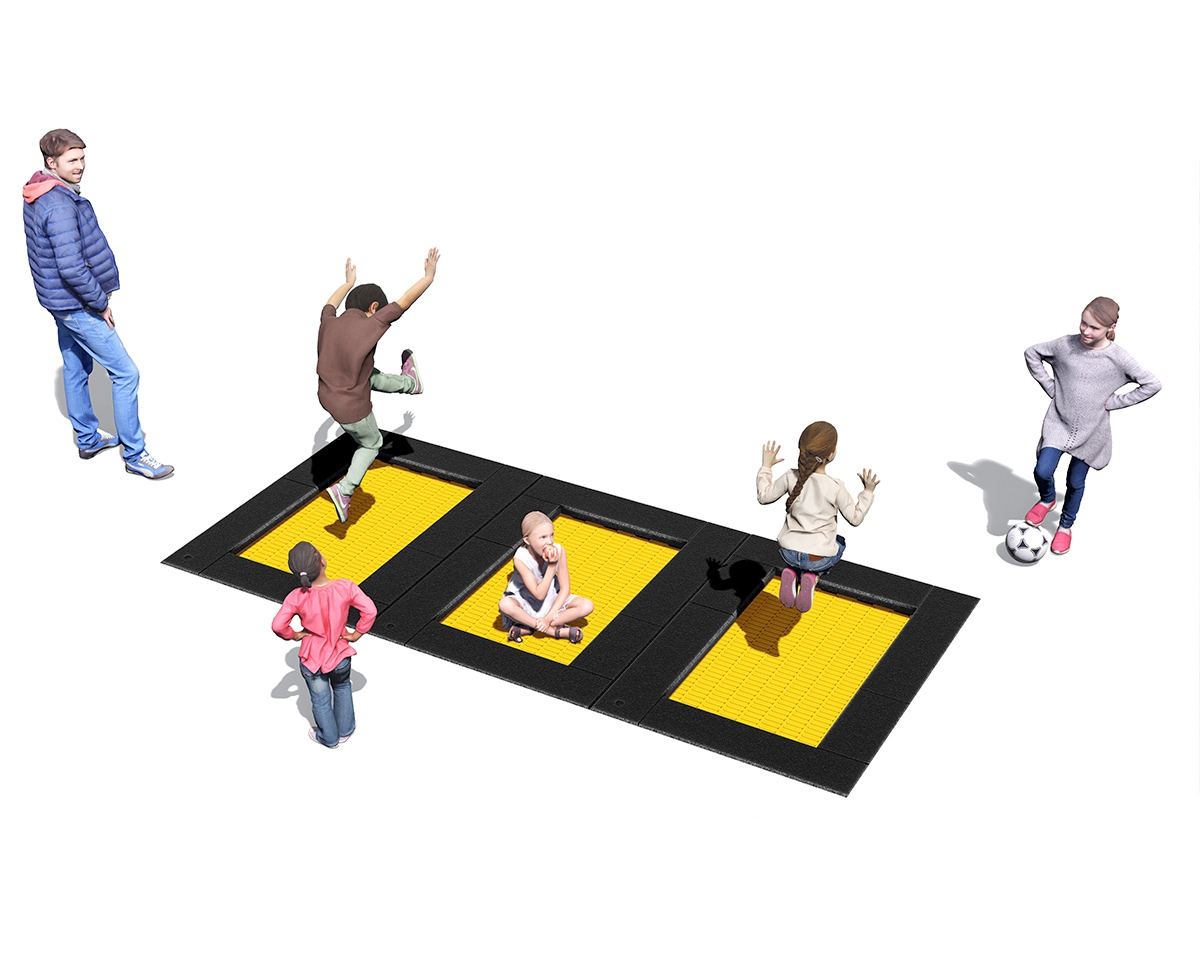

The triple-fun M Variant 1 is a rectangular combination of three Trampoline M surfaces and offers lively movement and jumping experiences for up to three children. The adjacent jumping areas invite children to explore different jump patterns and stay active together in playful ways.
Its generous effective jumping area delivers an intense feeling of weightlessness with every jump, while promoting balance, body coordination and concentration. Shared use across the connected surfaces naturally supports social interaction, consideration for others and teamwork.
With customizable jumping mat and safety edge colors, the triple-fun M integrates harmoniously into various play and activity areas. Perfect for schools, daycares and public playgrounds, the triple-fun M provides high play value and motivating movement experiences for children of all ages.
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
Tender specification Trampoline combination - colortramp® - triple-fun M - Variant 1
smb Trampoline combination - colortramp® - triple-fun M - Variant 1
No. 7210121
Jumping devices in a square design - unit space area in total 1.75 x 3.75 m, jumping area in total 2.82 m²,
consisting of:
3x smb Trampolin M - colortramp®
No. 7210101
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.

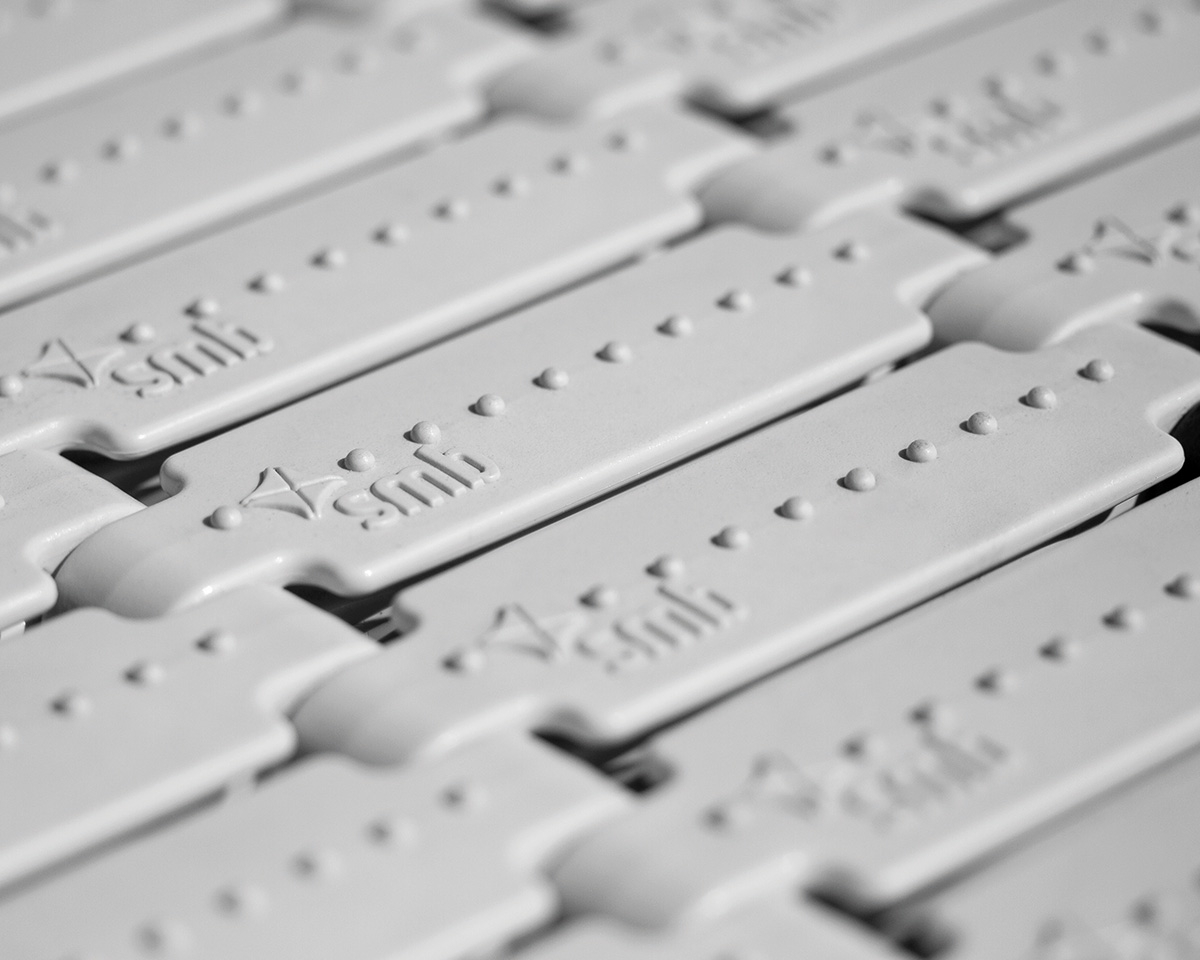

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline combination - colortramp® - triple-fun M - Variant 1 - insitu
smb Trampoline combination - colortramp® - triple-fun M - Variant 1 - insitu
No. 721012110
Jumping devices in a square design - unit space area in total 1.75 x 3.75 m, jumping area in total 2.82 m²,
consisting of:
3x smb Trampolin M - colortramp® - insitu
No. 721010110
Jumping device in a rectangular design – unit space area 1.75 x 1.25 m, jumping area 1.25 x 0.75 m (0.94 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 42 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
