Ropeway Flux 02

No. 7216016

Number of users3
Assembly time0.40 hours
Installers1 person

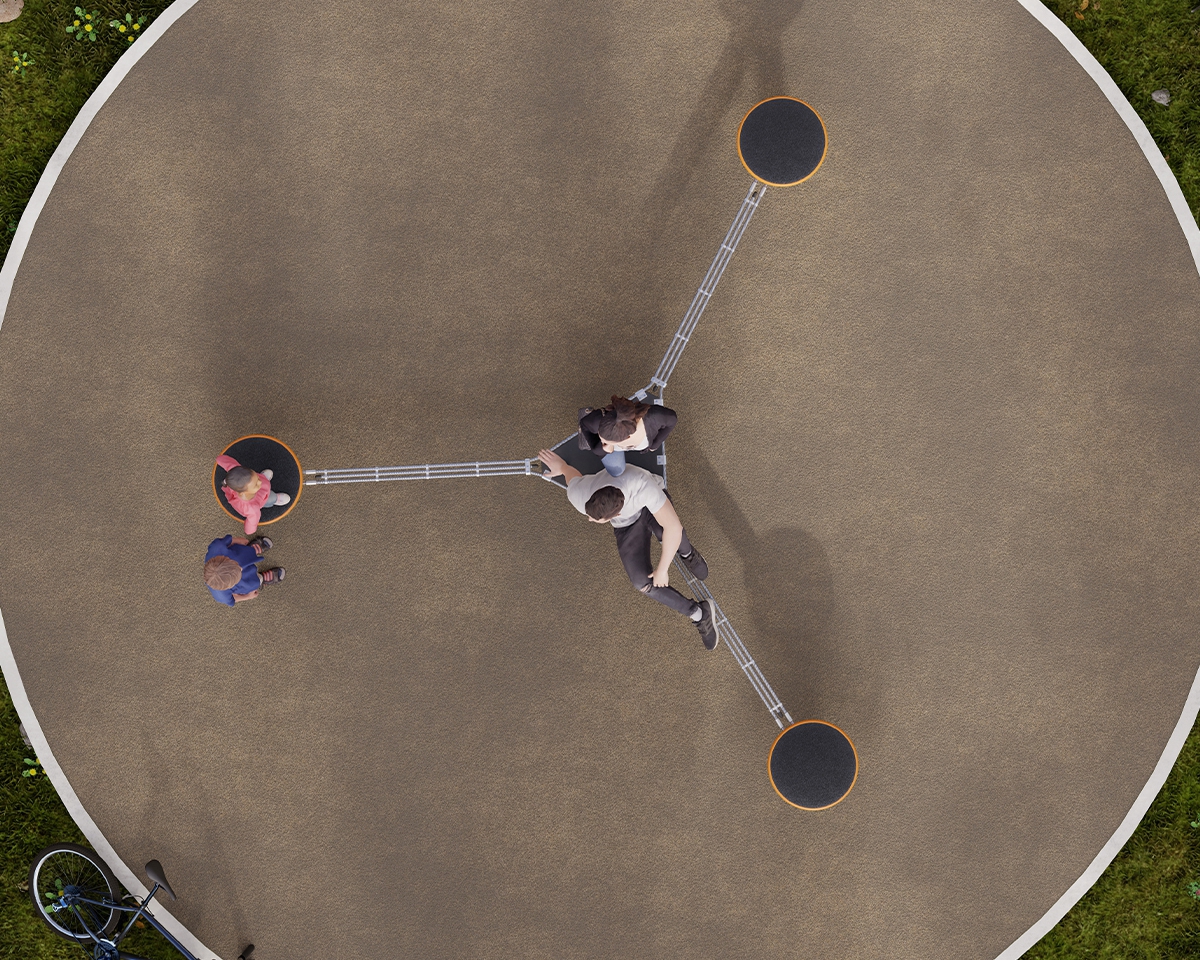

The Ropeway Flux 02 consists of three Ropeway sections extending at 120 degree angles, forming a star-shaped, dynamic balancing structure that functions without a central platform, creating an open and versatile space for movement. In the centre, the three rope groups meet on a triangular membrane, which acts as a floating, dynamic focal point and, through its tension and shape, adds an extra sense of play and balance - like a design-inspired "catapult" anchor that absorbs and transfers movement impulses.
Each of the three paths invites users to continuously rebalance their body weight, rhythm, and orientation, while the arrangement of the ropes and membrane provides visual clarity and tactile differentiation. Thoughtful color choices and contrasts support orientation and perception, making the installation engaging and accessible for children and people with diverse motor or sensory abilities.
Ropeway Flux 02 is ideal as an integrative element in public play and sport spaces, where movement, social interaction, and playful learning come together - promoting inclusive, varied play experiences for all.


The ropeway variant Flux

The ropeway playground equipment is great to train the sense of balance in a playful way.

The Flux variant of the smb-ropeway is special. The star-shaped arrangement of the ropeways needs no middle platform. This not only increases the motion, but also the fun – especially when several people try balancing together.

Integrate Flux elements into your ropeway set-up or as part of a smb-Adventure Park.

Ideal is the combination of several balancing bounds of the series Classic and Flux so that the construction is interesting for a wide range of age groups.

Please note when planning

Due to the low height of 400 mm, there are no requirements on the fall protection, so that the system can be installed on any surface.

Please bear in mind that the minimum degree between two balancing bounds that are connected to one platform has to be at least 72°!

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Ropeway Flux 02

smb Ropeway Flux 02
No. 7216016

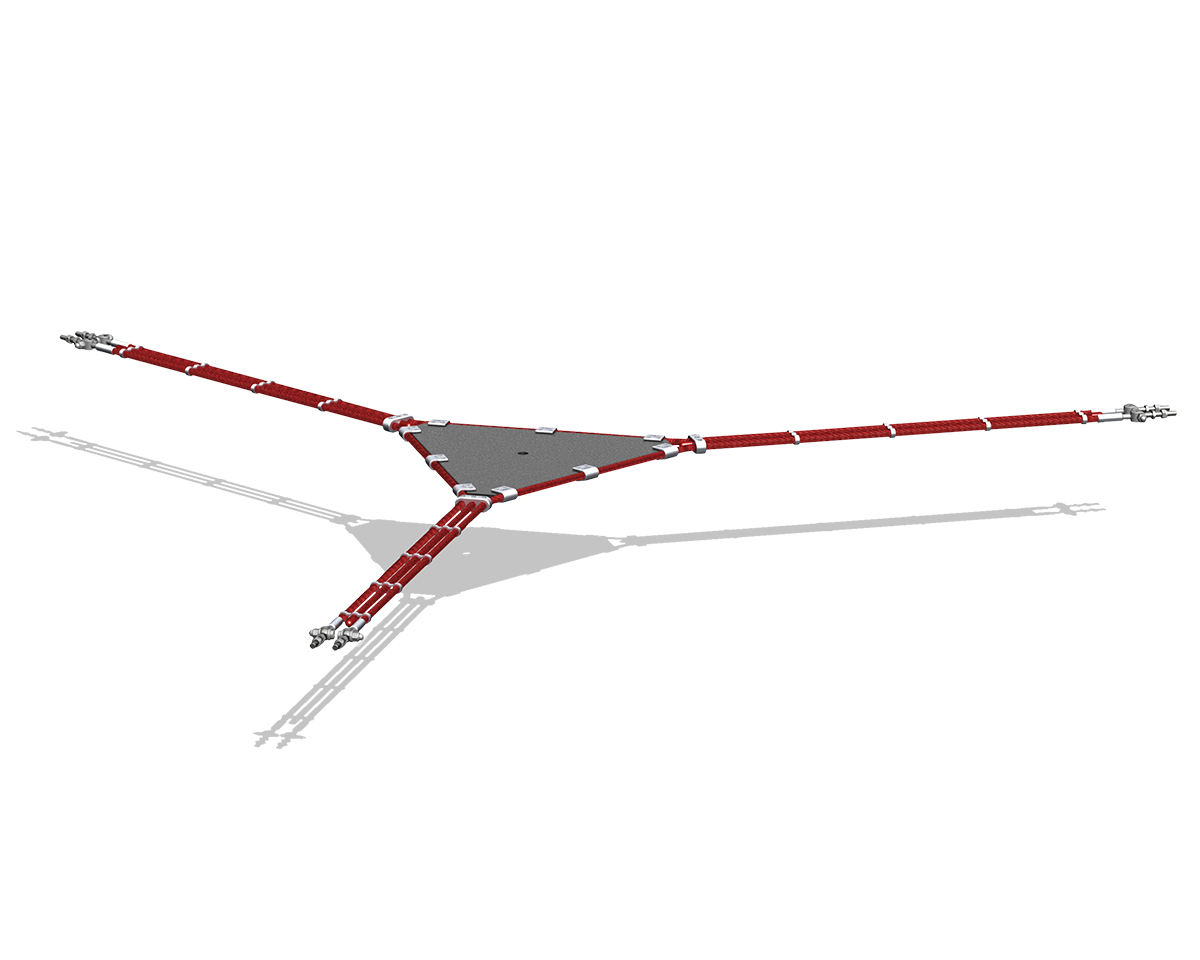

The ropeway FLUX 02 consists of 3 Schwebeband® sections that run in 3 directions at 120° each (consisting of 6 ropes in total).
The three Ø 20 mm ropes are arranged side by side, approx. 80 mm wide, with the outer ropes running centrally around the Flux membrane and leading to the next section.
The membrane is mounted with 9 fastening clamps.
The ropes are pressed together using special aluminum clamps.
The floating ribbon is fastened with articulated M16 x 110 mm fork eye bolt connections. This articulated connection ensures a long service life and enables optimum rope tension.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
