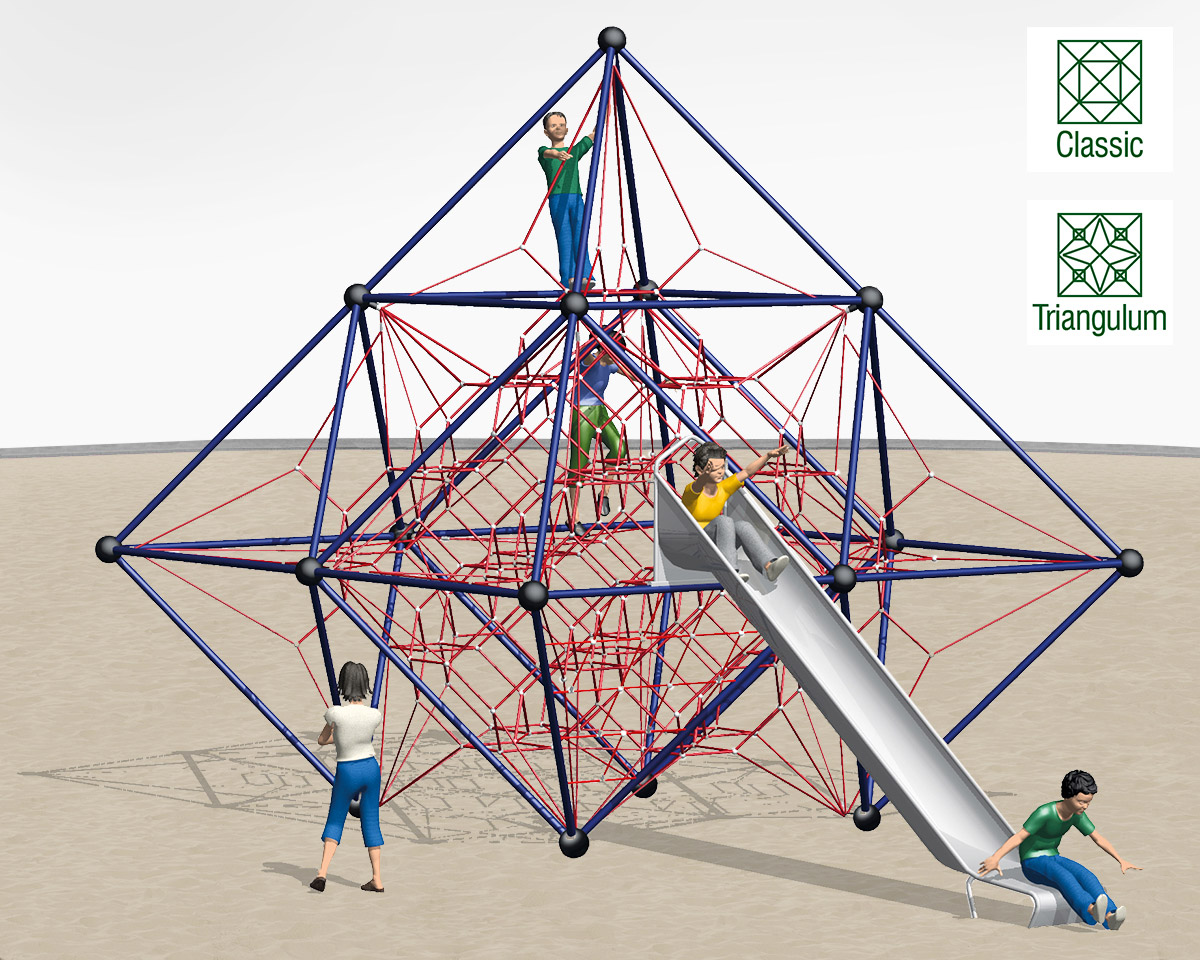

Mount Logan variant 3
No. 3153039, 3153339 (Triangulum)
| Unit space area | 8.70 x 5.20 m |
| Safety space area | 12.61 x 8.82 m |
| Height of unit | 5.50 m |
| Age range | 5+ |
| Number of users | 53 |
| Free fall height | 1.98 m |
| Heaviest component | 175 kg |
| Total weight | 1003 kg |
| Assembly time | 6.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | 4 (1.30 m³ total quantity of concrete) optional anchor frame |
| Additional elements | Anchor plate |
Mount Logan variant 3 consisting of the following individual components:
1 Basic unit
1 Slide small, narrow, with anchor plate included

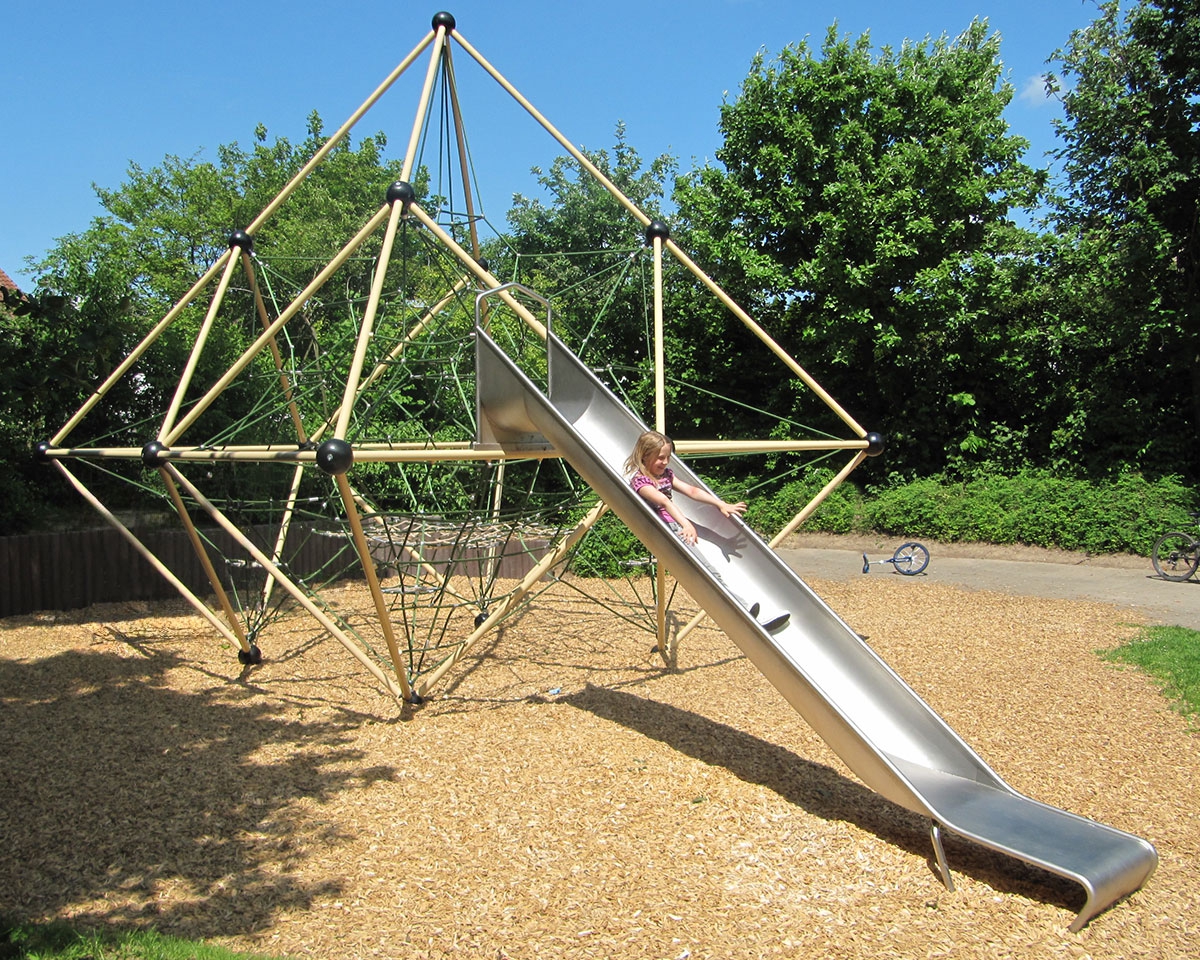

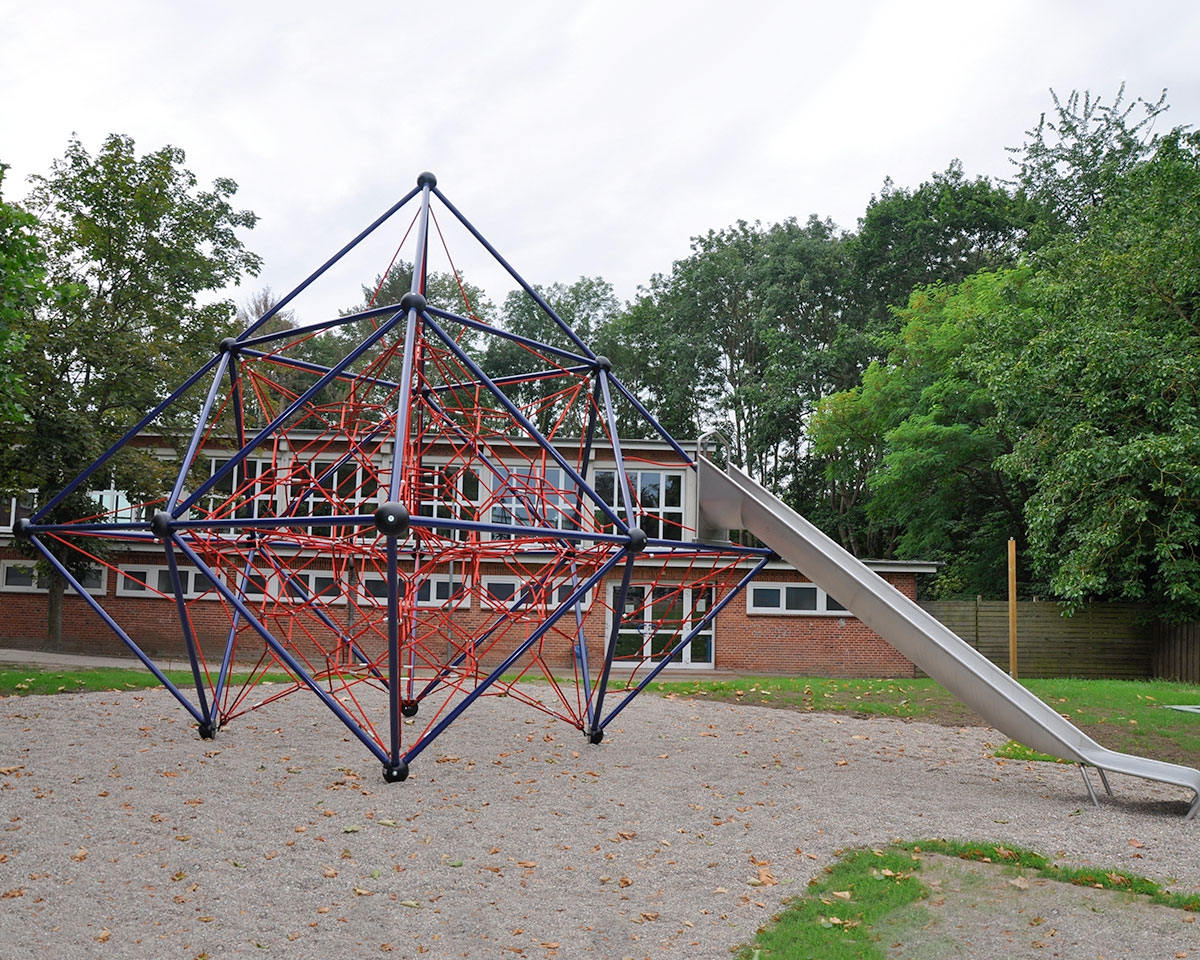

Here we added to the basic Mount Logan a stainless steel slide.
The 1.80 m high slide can be reached via the climbing or area net.
With this unit is a fast and easy installation through the anchor frame possible.
More information about the anchor frame
Features Download area
Selectable standard colors for steel parts:
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes:
