| Unit space area | 5.89 x 7.83 m |
| Safety space area | 9.42 x 10.71 m |
| Height of unit | 4.43 m |
| Age range | 4+ |
| Number of users | 44 |
| Free fall height | 2.69 m |
| Heaviest component | 220 kg |
| Total weight | 1080 kg |
| Assembly time | 7.00 hours |
| Installers | 4 persons |
| Foundations | |
| Basic unit | 4 (1.30 m³ total quantity of concrete) optional anchor frame |
| Additional elements | 5 (0.90 m³ total quantity of concrete) |

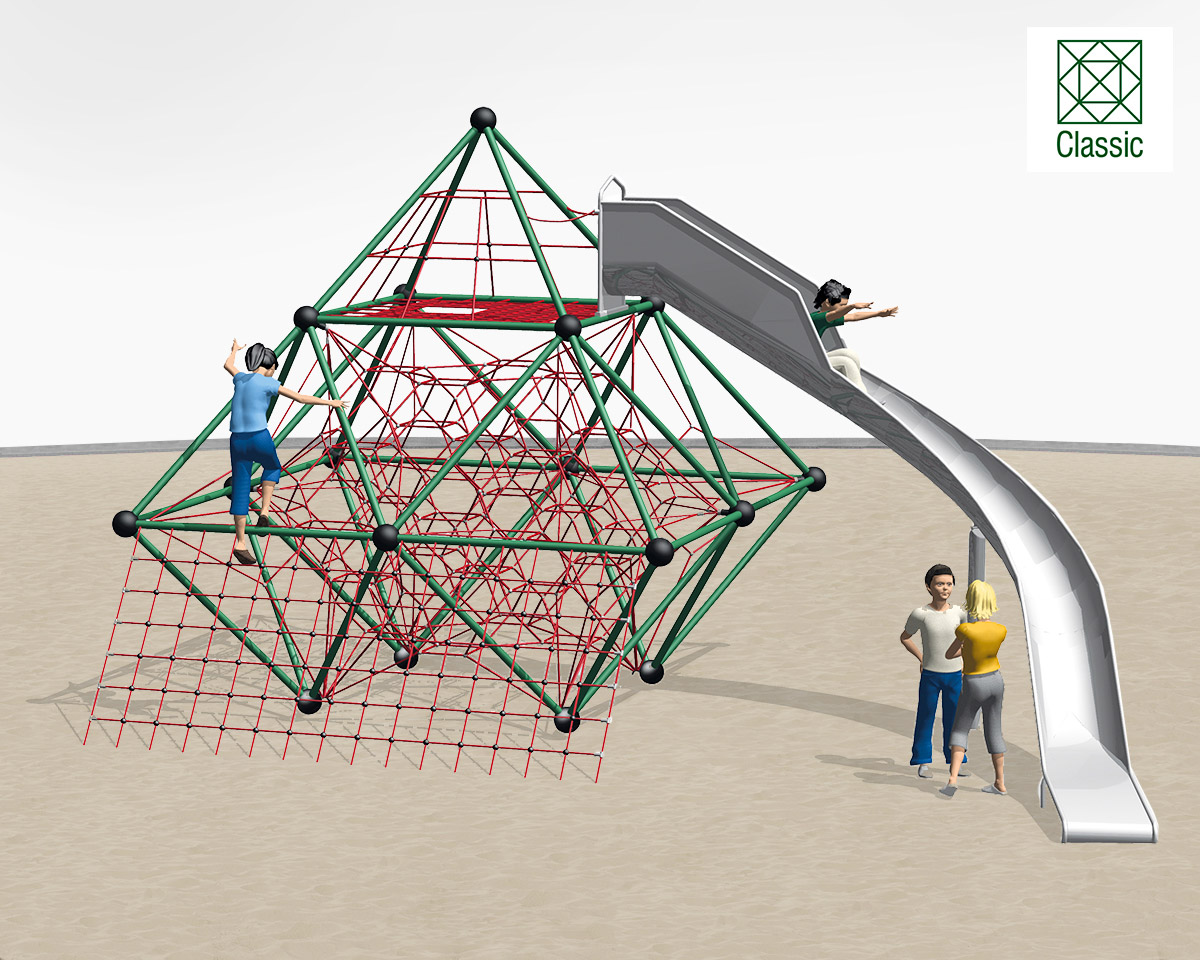

Monte Bianco variant 5 consisting of the following individual components:
1 Basic unit
1 Climbing net full-side
1 Slide, large, left or right curve (with extended side walls)
In addition to the slide, which has already been used in the Monte Bianco variant 3, this equipment was completed with a full-sided climbing net.
The approx. 3.80 m (length) and 1.80 m (height) net offers an interesting opportunity to assault the summit of the unit.
With friends or in competition with rivals - who is the first to reach the top?
With this unit is a fast and easy installation through the anchor frame possible.
More information about the anchor frame
Features Download area
Selectable standard colors for steel parts:
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes:
