Vaalserberg²
No. 1242061
| Unit space area | 7.36 x 12.31 m |
| Safety space area | 10.36 x 15.31 m |
| Height of unit | 3.80 m |
| Age range | 3+ |
| Number of users | approx. 48 |
| Free fall height | 0.90 m |
| Heaviest component | 240 kg |
| Total weight | 565 kg |
| Assembly time | 4.00 hours |
| Installation personnel | 3 persons |
| Foundations (amount of concrete) | |
| Mast | 2 (1.14 m³) |
| Tension points | 6 (5.04 m³) |
| Total amount of concrete | 6.18 m³ |

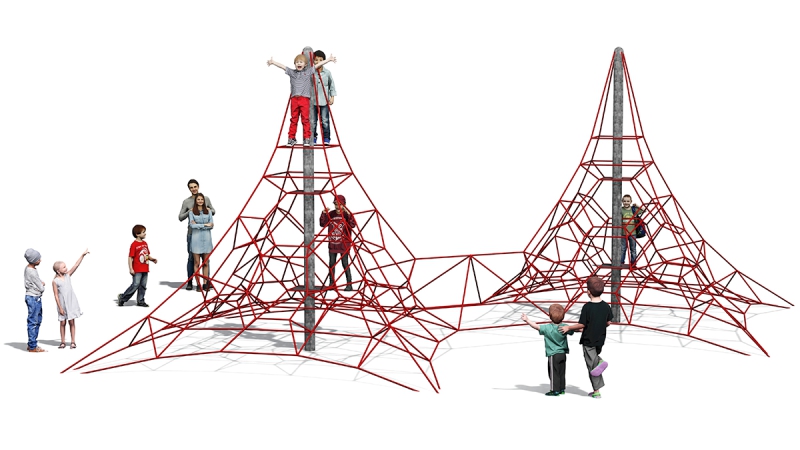

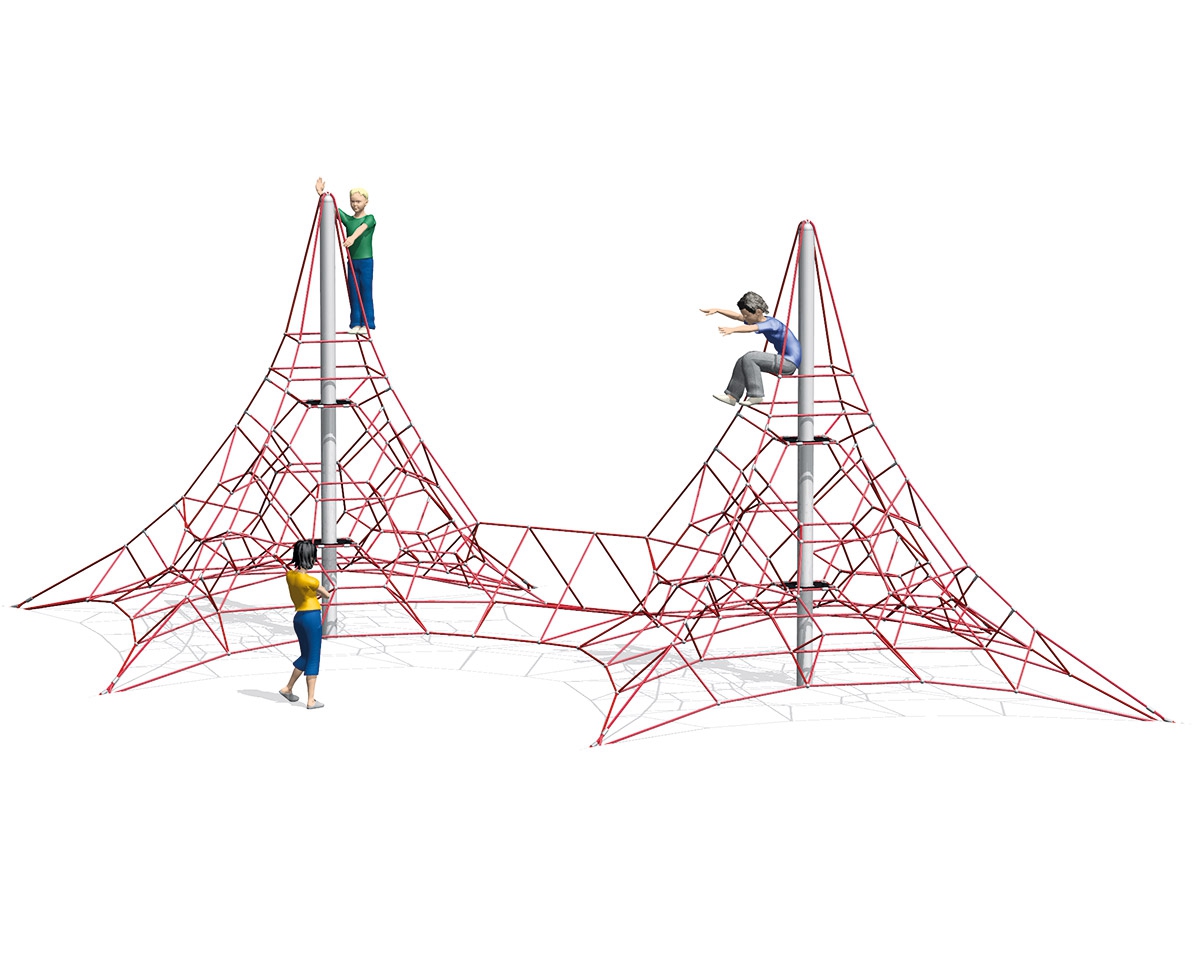

The two units are diagonal connected with each other, so that a double mast netclimber being built.
In the connection area arise due to the new ropes and rope tensioning an additional play facility.
When the kids hold onto the ridge rope in the connection area, then they are able to try the whole elastic force and buoyancy of the ropes.
Selectable colors for steel parts
The galvanized central mast is provided as standard. An individual color coating is possible at extra charge.
Selectable standard colors:
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Pearl copper
RAL 8029
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Selectable colors for ropes
Classic red
Missouri green
Royal blue
Cosmos black
Silver grey
Nature
Autumn yellow
Information: Autumn yellow is not available for border ropes or bracing ropes, but for the net.
Possible additional elements
Sitting net small
Loop bridge
V-bridge
Ropeway
colorball
Tensioning box
Central mast color coating
