Trampoline Pi
No. 7221001, 722100110 (insitu)
| Unit space area | Ø 1.74 m |
| Jumping area | Ø 1.20 m |
| = 1.13 m² | |
| Safety space area | Ø 4.20 m |
| Height of unit | 0.00 m |
| Age range | 3+ |
| Number of users | 1 |
| Free fall height | 0.90 m |
| Heaviest component | 220 kg |
| Total weight | 220 kg |
| Assembly time | 1.00 hour |
| Installers | 2 persons |
| Foundations | none |
Play value and experience
Circular fun for active play. Experience the special fun of our trampoline Pi, the only circular model in our range.
It offers an exceptional feeling of weightlessness and provides exciting jumping moments.
This trampoline promotes balance, body coordination and adds variety to any playground.
Perfect for schools, daycares and public playgrounds, the trampoline Pi brings joy and activity for people of all ages. Give it a try.
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
colortramp® motif jumping mats
Individual colors and motifs possible on request.
You can find many more motif ideas in our online catalog Trampoline motif jumping mats.
Multicolor
Rainbow
Bear
Frog
Honey Bee
Flash
Shell
Boat
Locomotive
Rocket
Skull
Devil
Pirate
Alien
Ladybird
Butterfly
Letter A
Letter B
Letter C
Number 1
Number 2
Number 3
Cat
Snake
flashtramp® motif jumping mats
Alien
Starlight
Honey Bee
Individual colors and motifs possible on request.
Tender specification Trampoline Pi - colortramp®
smb Trampolin Pi - colortramp®
No. 7221001
Jumping device in a circular design – device diameter 1.74 m, effective jumping area Ø 1.20 m (1.13 m²). Frame made of durable, hot-dip galvanized steel construction.

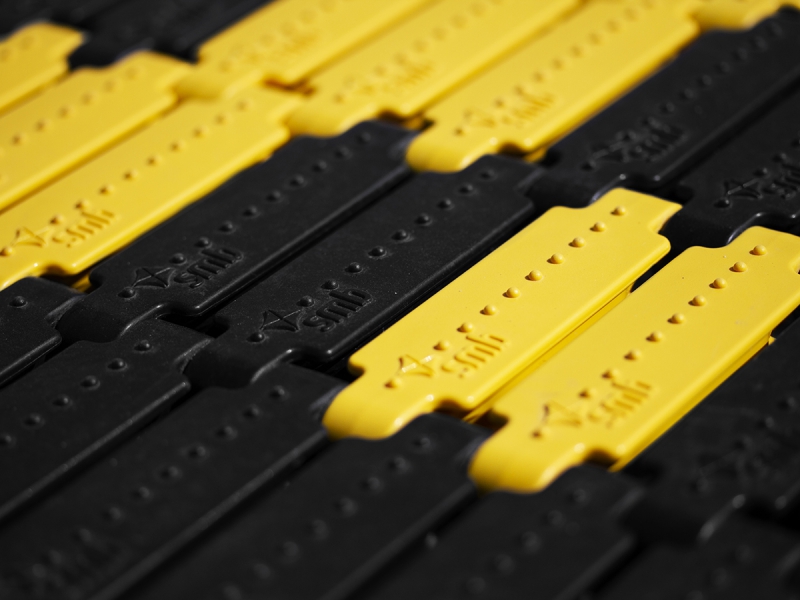

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 36 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline Pi - colortramp® - insitu
smb Trampolin Pi - colortramp® - insitu
No. 722100110
Jumping device in a circular design – device diameter 1.74 m, effective jumping area Ø 1.20 m (1.13 m²). Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 36 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
