modutramp® C
No. 7232201, 723220110 (insitu)
| Unit space area | Ø 3.70 m |
| Jumping area | 2.94 m² |
| Safety space area | Ø 7.14 m |
| Height of unit | 0.00 m |
| Age range | 3+ |
| Number of users | 3 |
| Free fall height | 0.90 m |
| Heaviest component | 230 kg |
| Total weight | 690 kg |
| Assembly time | 3.00 hours |
| Installers | 2-3 persons |
| Foundations | none |
modutramp® combination consists of:
3x modutramp® 90
Play value and experience

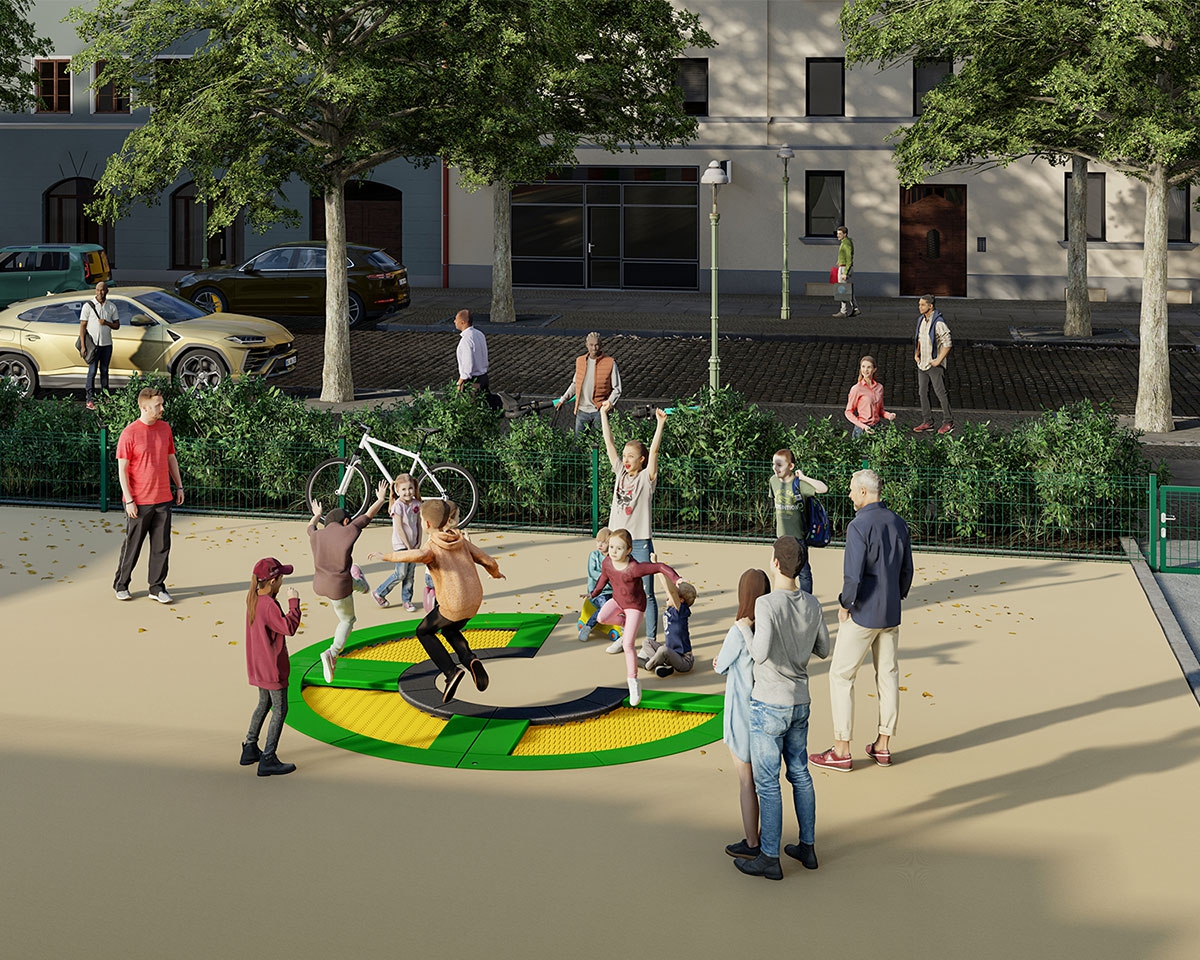

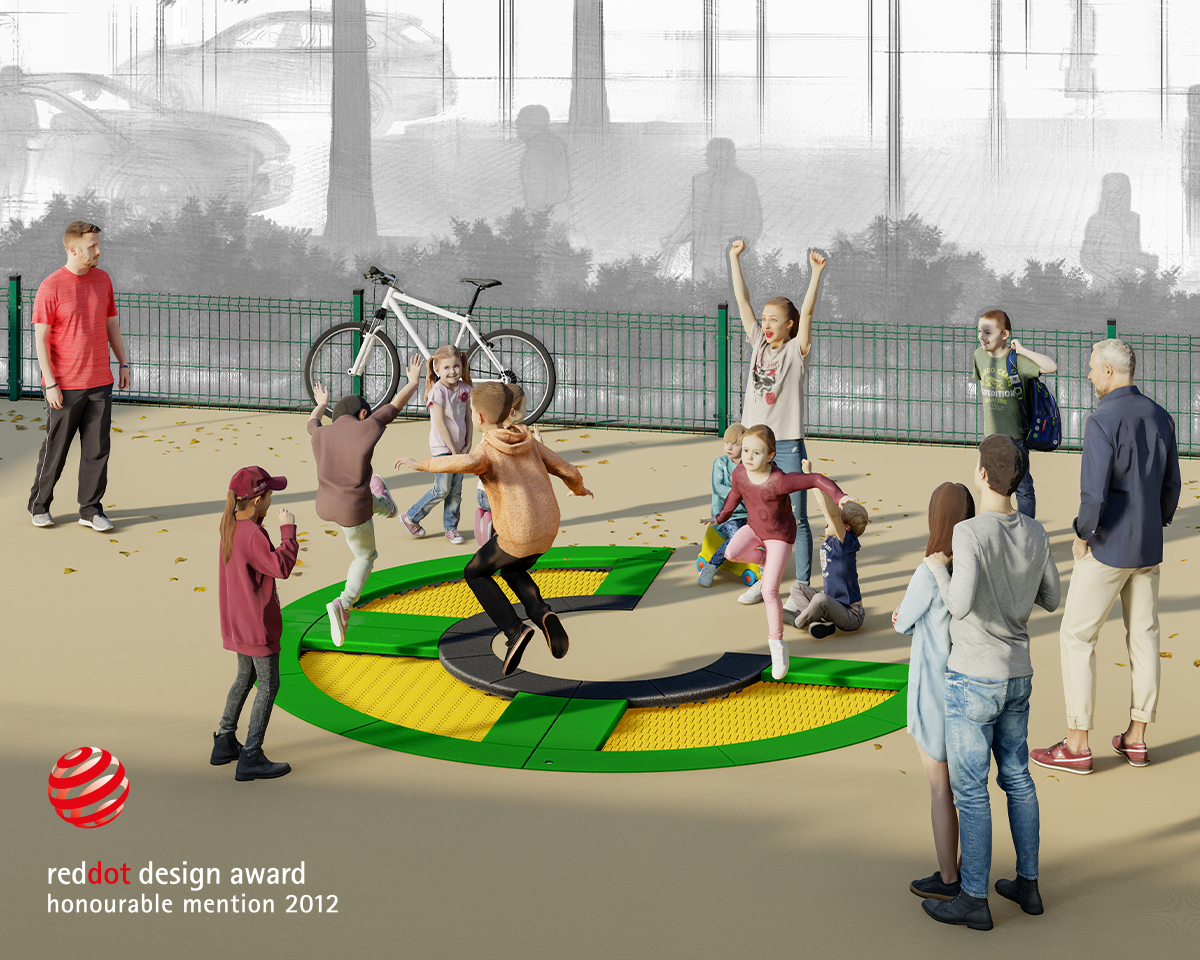

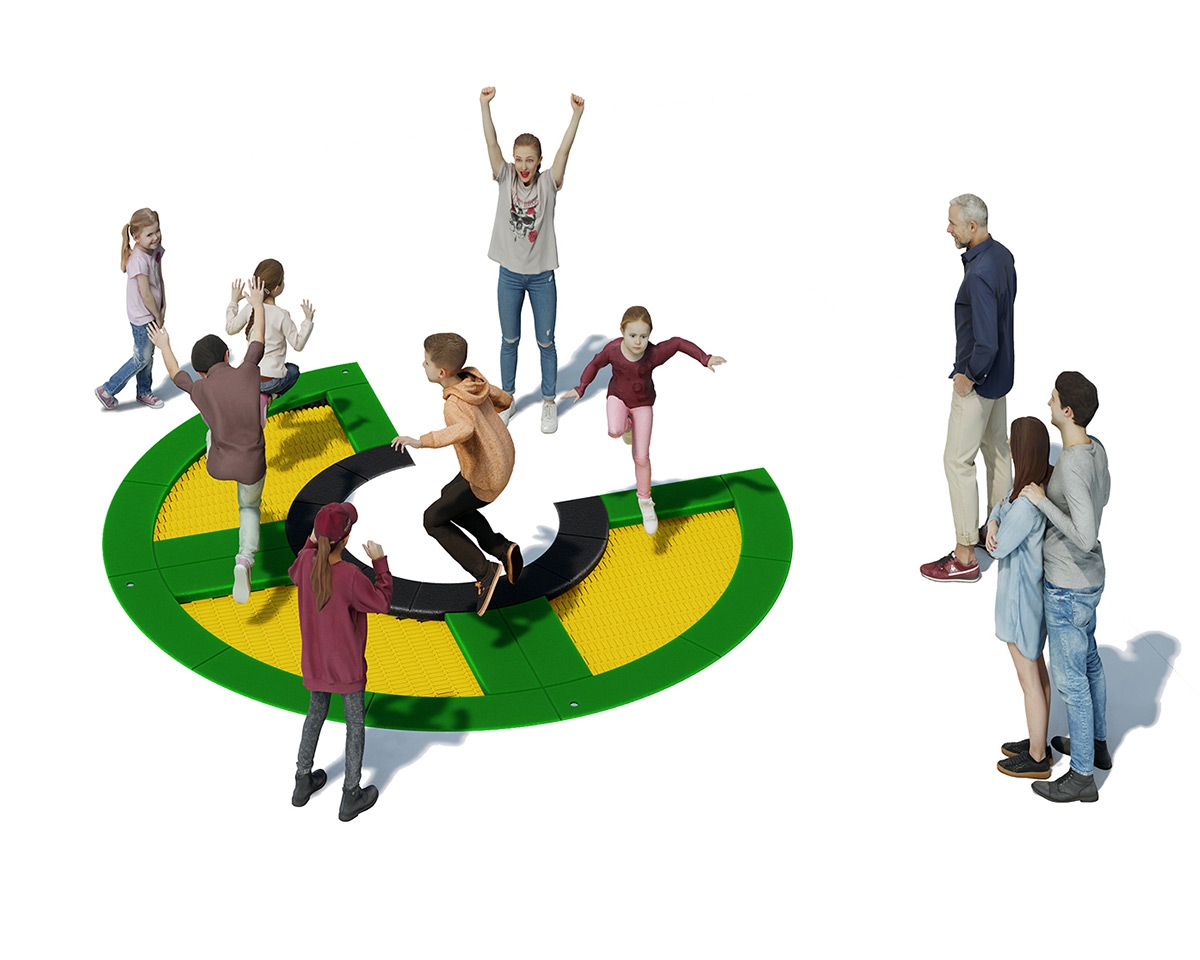

This modutramp® combination consists of three modutramp® 90 elements arranged in an open C-shaped jumping layout.
The configuration encourages children to explore different jumping paths while playfully supporting balance, coordination and body control.
The open structure allows for both individual play and shared activities, helping to develop social interaction and cooperation.
modutramp® C stimulates creativity and is well suited for schools, daycare centers and public play spaces focused on active and inclusive play.
The modutramp® concept
The modutramp® concept
Our new modutramp® trampoline system is unique, innovative and trendy. The quality, design and functionality are as pioneering as usual! Inspired by 20 years of positive experiences in trampoline production.
Three basic elements for an unlimited range of combinations.
Users' movements are seriously restricted on standard jumping devices due to small dimensions and the trampoline's structural form. Thanks to the modutramp® system developed by smb, it is possible to bounce in all directions, thus improving the users' sense of direction and balance in a playful manner, as well as their perception, sense of rhythm and ability to work in a team.
The modutramp® trampoline system has a unique range of combinations – using only three different base modules! Whether in a public space or on a school playing field – the modulus trampoline series makes bouncing fun!
Selectable colors for jump mats
Persidion black
Borneo green
Alpaca grey
Pearl blackberry
Bengal red
Jakarta orange
Mocha brown
Bali yellow
Lapis blue
Sand beige
Selectable colors for drop-protection rim
Black
Moos green
Reddish brown
Note: Other colors are available upon request.
Tender specification Trampoline combination - modutramp® - C
smb Trampoline combination - modutramp® - C
No. 7232201
Jumping device combination - unit space area Ø 3.70 m, jumping area in total 2.94 m²,
consisting of:
3x smb Trampoline modutramp® 90
No. 7232001
Jumping device describes an angle of 90 degrees - unit space area 1.85 x 1.85 m, effective jumping area 0.98 m². Frame made of durable, hot-dip galvanized steel construction.

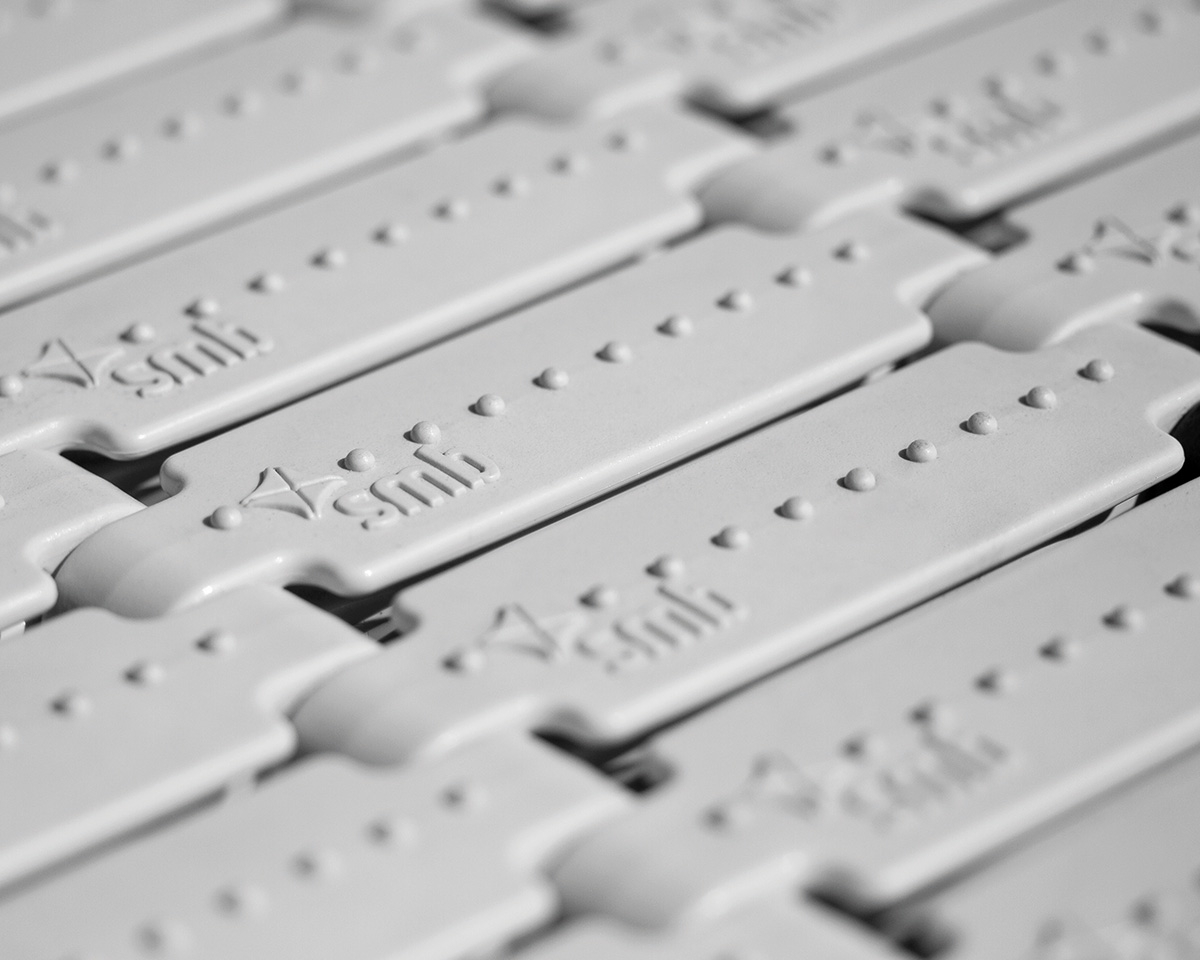

Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Rim with shock-absorbing fall protection plates. Including 40 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Installation depth: 0.45 m, at ground level.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Fall protection rim - in the standard colors Black, Moss green, Reddish brown. Special colors available on request.
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
Tender specification Trampoline combination - modutramp® - C - insitu
smb Trampoline combination - modutramp® - C - insitu
No. 723220110
Jumping device combination - unit space area Ø 3.70 m, jumping area in total 2.94 m²,
consisting of:
3x smb Trampoline modutramp® 90 - insitu
No. 723200110
Jumping device describes an angle of 90 degrees - unit space area 1.85 x 1.85 m, effective jumping area 0.98 m². Frame made of durable, hot-dip galvanized steel construction.
Closed jumping surface, made of dyed through polyamide wing lamellas with conical seat joints to reduce the load on the steel wire ropes and with nubby GRIPTEQ® surface for optimal grip in all directions of movement.
Including 40 highly robust DURAPTEQ® screw plate tension springs with noise-reducing plain bearing sleeves.
Special version without fall protection plates intended for installation in molded fall protection.
Top steel-plates with an enlarged surface and welded-on security round rod ø 8 mm on the inside edge. Optimized for the coating with EPDM fall protection granulate.
Height of device: 400 mm
Please note – the installation depth depends on the height of the EPDM fall protection granulate structure. The requirements of the DIN EN 1176 must be met for a maximum free fall height of 900 mm.
Foundations are not required - the jumping device is completely assembled at the factory and delivered ready for installation.
Maintenance and cleaning of the interior can be done quickly and easily via the jump mat. Hook notches on the DURAPTEQ® springs make work easier. Installation and operating costs are minimized!
Selectable colors:
Jump mat - available in the standard colors Persidion black, Borneo green, Alpaca gray, Pearl blackberry, Bengal red, Jakarta orange, Mocha brown, Bali yellow, Lapis blue and Sand beige or with motif variants from the colortramp® series.
Individual colors and motifs available on request.
