• „URBN HOOP®“

  Art.No. 7011116
• „99 classic“

  Art.No. 7010106
• Target board „standard“
  (90 x 120 cm)
  Art.No. 7010016
• Target board „tournament“
  (105,5 x 183 cm)
  Art.No. 7010030

• Powder coating
  "original"
  Art.No. 7010007
• Powder coating
  "extended"
  Art.No. 7010008
• Post protection pad
  with zipper
  Art.No. 7010040
• Shortening streetball posts
  max. 60 cm
  Art.No. 7010201

• Beige
  RAL 1001
• Colza yellow
  RAL 1021
• Pastel orange
  RAL 2003
• Flame red
  RAL 3000
• Cobalt blue
  RAL 5013
• Distant blue
  RAL 5023
• Leaf green
  RAL 6002
• Yellow green
  RAL 6018
• Anthracite grey
  RAL 7016
• Light grey
  RAL 7035
• Terra brown
  RAL 8028
• Jet black
  RAL 9005
• White aluminium
  RAL9006
• Pure white
  RAL 9010

Note: The mast of the streetball system is supplied hot-dip galvanized as standard.
A color coating is optionally available for an additional charge.

• White
• Gold
• Walnut
• Goldenrod
• Aqua
• Deep Purple
• Electric Blue
• Imperial Red
• Army Green
• Black
• Camouflage
• Black rPET
• Red rPET

Visit the URBN HOOP® Customizer to create your personalized hoop.
Note: More colors are available upon request.

• Classic red
• Missouri green
• Royal blue
• Cosmos black
• Silver grey
• Nature
• Autumn yellow

Note: Other colors are available on request.

• White
• Red
• Black
•
• White
• Red
• Black

Visit the URBN HOOP® Customizer to create your personalized hoop.
Note: More colors are available upon request.

• White
• Black
• Beige
• Grey

Information: More colors are available on request.

• Light blue
• Blue
• Red
• Green
• Yellow
• White
• Black
• Grey
• Orange

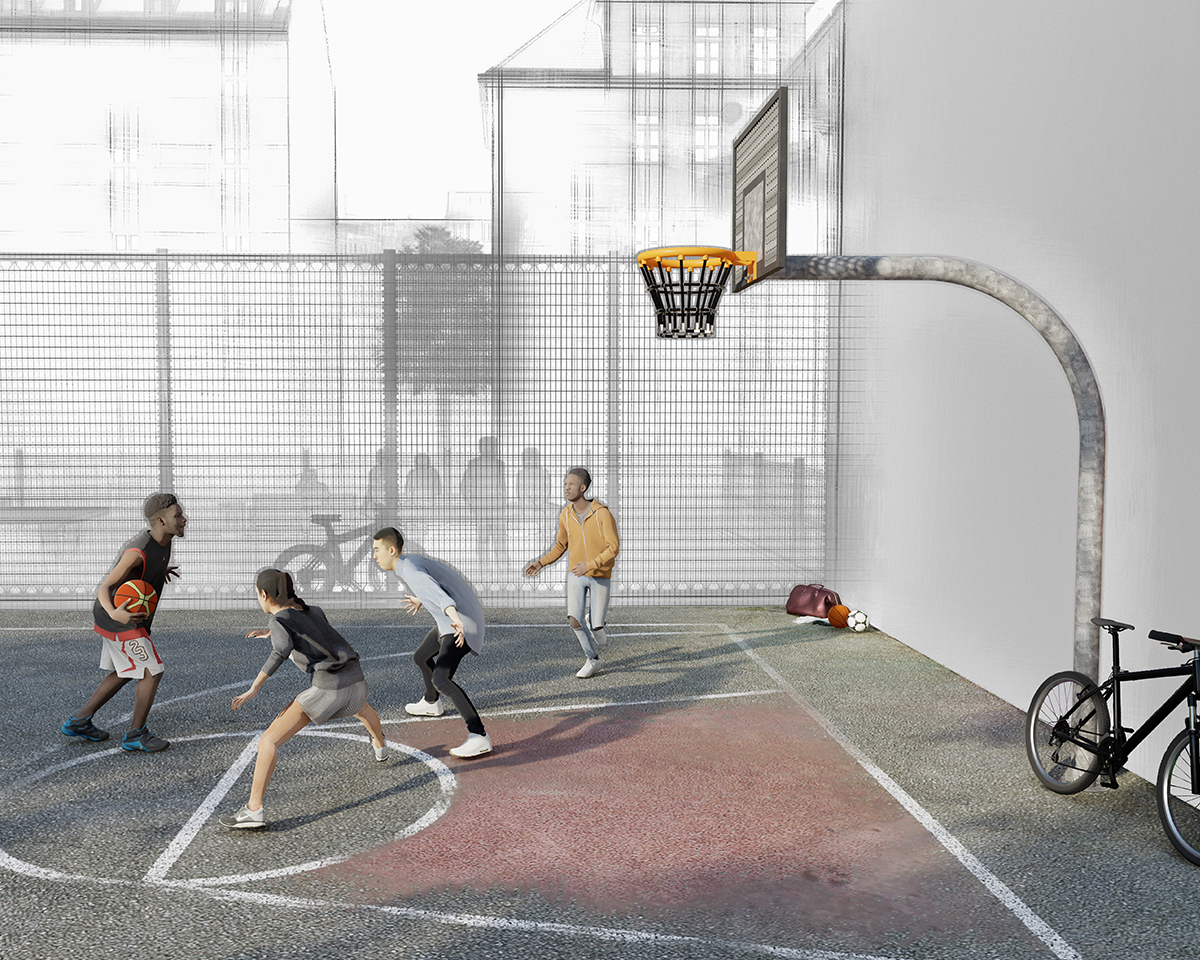

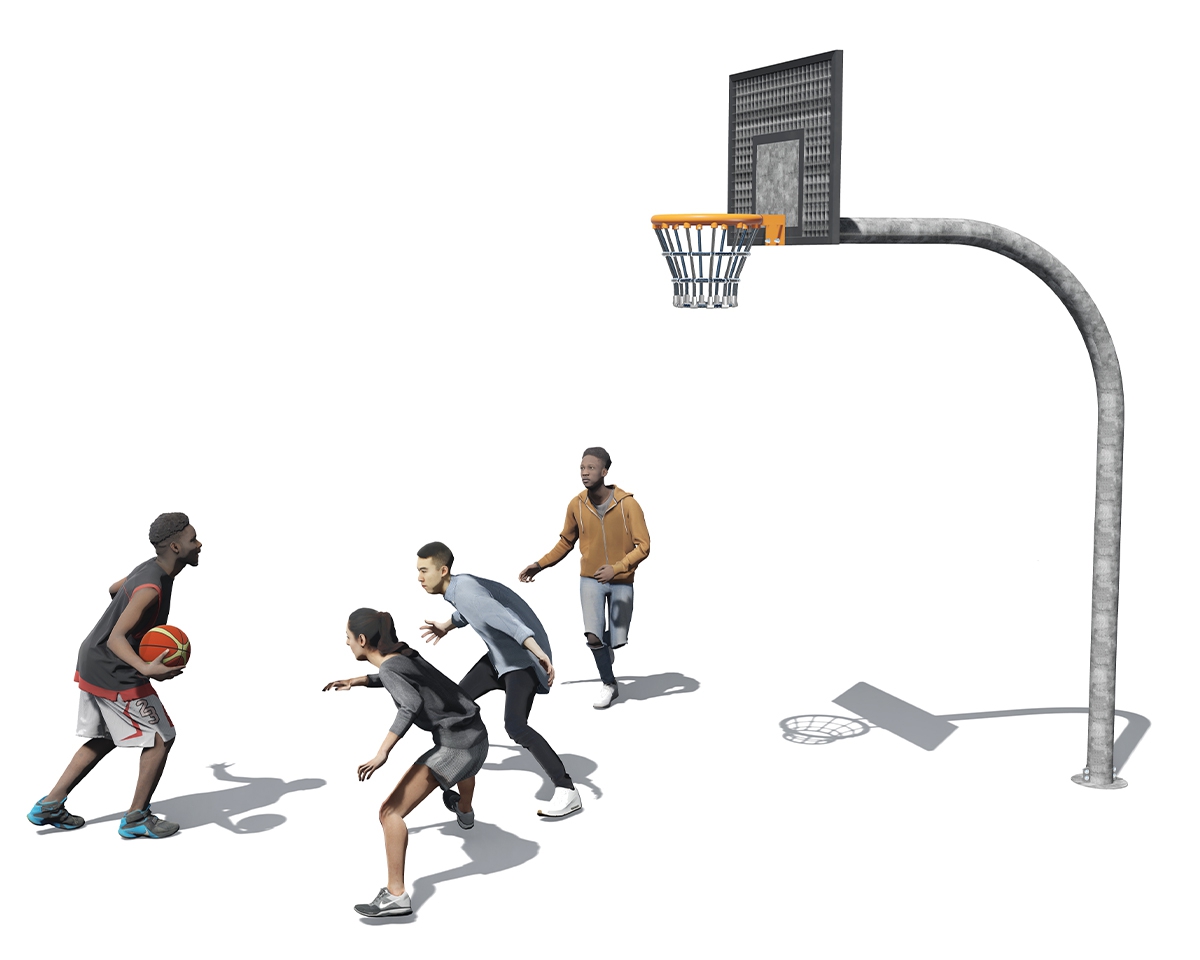

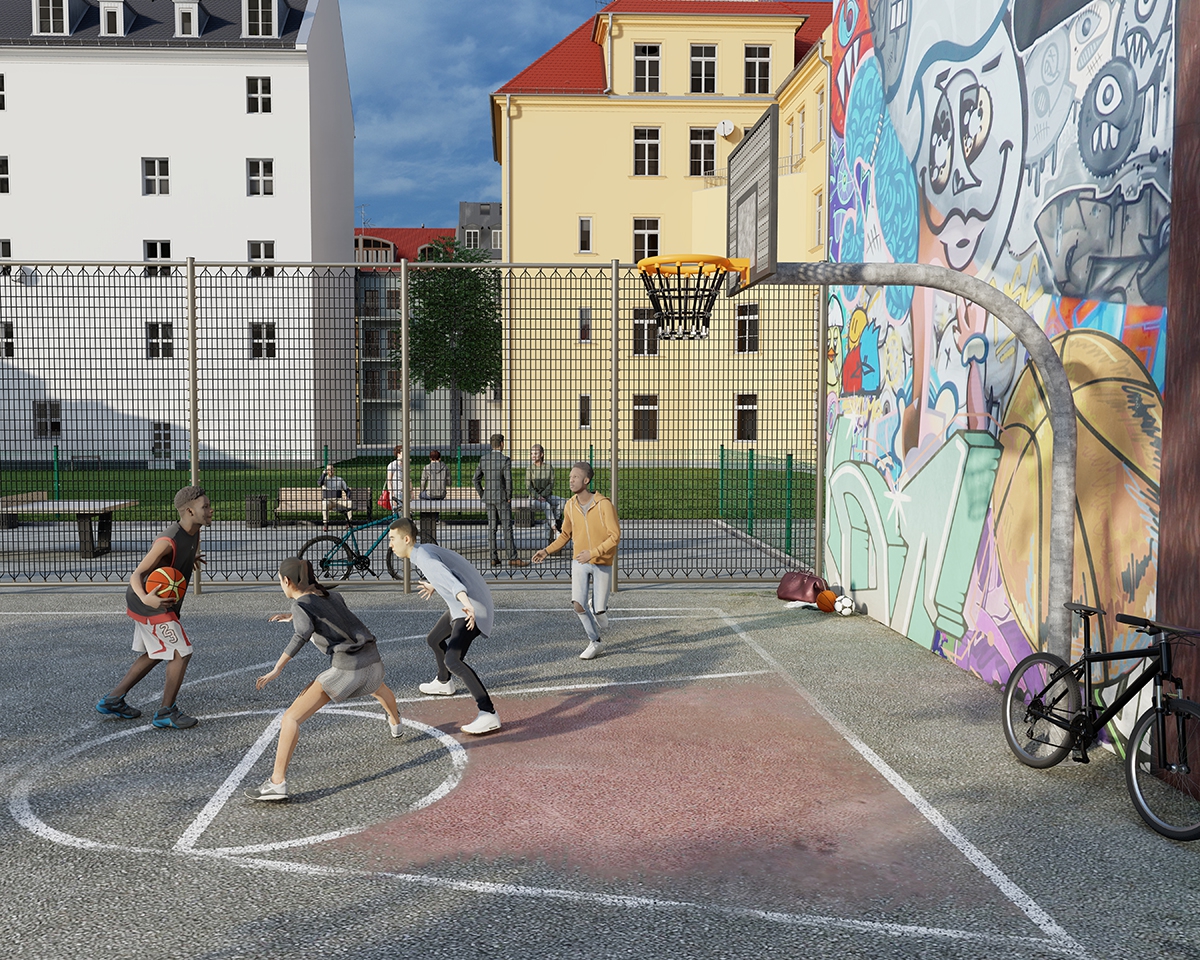

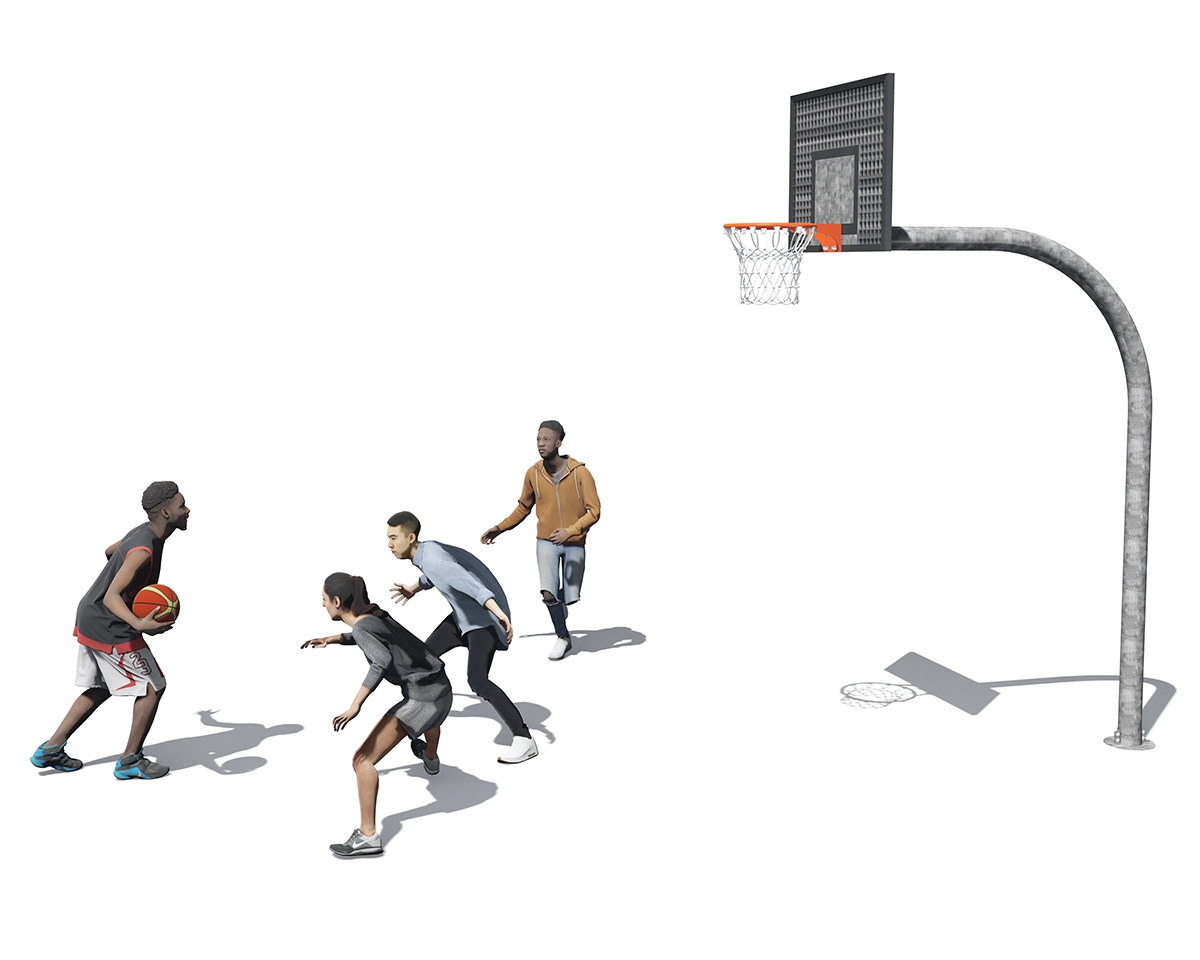

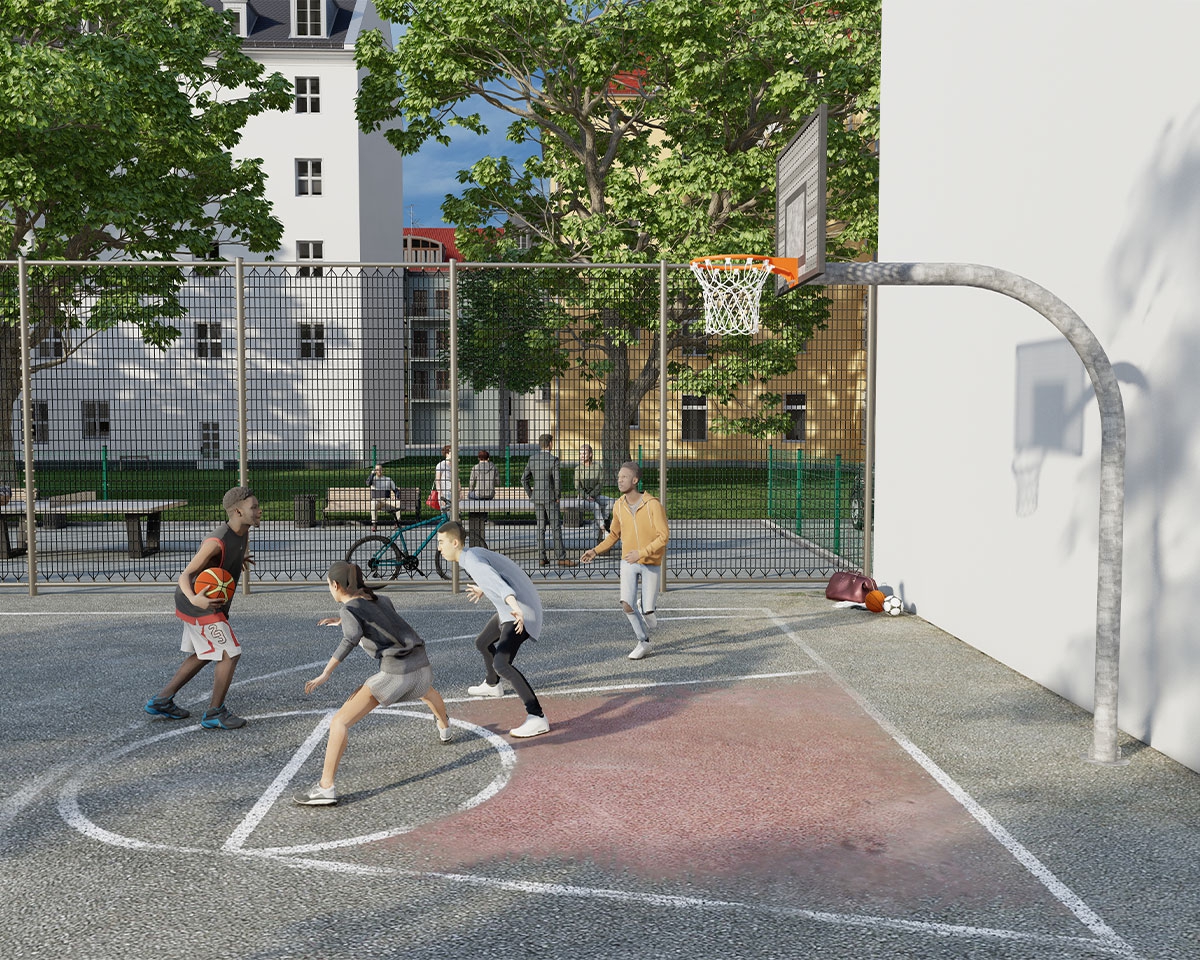

smb Streetball equipment extended
No. 7010026
Dimensions of the entire system
with backboard ‘standard’: 1.20 x 3.80 x 1.77 - 2.56* m (WxHxD), basket ring height: 3.05 m
with backboard ‘tournament’: 1.83 x 3.96 x 1.77 - 2.56* m (WxHxD), basket ring height: 3.05 m
*depending on the selected mast extension

consisting of:

1x Streetball stand tube extended
No. 7010037
Stand tube made of steel tubing Ø 133 x 5.6 mm with a mast extension between 102 and 179 cm (according to customer requirements).
Permanently protected against corrosion by complete hot-dip galvanisation.
A welded mounting plate with four M12 threaded bolts is attached to the stand tube for convenient installation of the backboard and streetball basket (basket ring height 3.05 m). The distance between the welded threaded bolts is 105 x 105 mm.

The stand tube is mounted 150 mm below the playing surface, with a welded pipe flange bolted to the flange anchor to be set in concrete; The dimensions of the required foundation are:
1.1 x 1.1 x 1.0 m (LxWxH).

Required mast extension:

A wide range of colors is available for the powder coating of the stand tube, including flange cover, in accordance with the smb ColorCard for urban sports equipment, at an additional cost.

1x Flange anchoring
No. 7010002602
Foundation anchor with support ring (Ø 245 mm, height 150 mm) which serves as a placeholder for the stand tube to be mounted. This allows the fall protection material to be applied effortlessly up to the height of the play level; the space required for mounting the flange screw connection remains free of fall protection material, effectively preventing the surrounding material from sagging.

Once the stand tube has been installed, the mounting opening is closed with the screw-on flange cover SBEM.

The hot-dip galvanisation of the flange anchoring and the flange cover ensure long-term corrosion protection and thus contribute to the lasting stability of the streetball facility.

***************
Note:
Please select your desired basket and backboard to complete the system.
***************

Selectable equipment for smb Streetball equipment extended

Streetball basket "99 classic"
No. 7010106
Extremely robust design with an upper tube ring and a basket net mounted on it.
The tube ring has a standard inner diameter of 450 mm and is made of steel tube Ø 48.3 x 2.6 mm. The basket net is firmly screwed into the 12 ROWOCON® sleeves located on the tube ring. The retaining plate welded to the tube ring has 4 holes Ø 14 mm (hole pattern 105 x 105 mm).

The streetball basket is protected against corrosion by spray galvanisation followed by powder coating in RAL colours. The basket net is made of Hercules rope Ø 16 mm, with the rope intersections permanently hydraulically pressed using smb stainless steel wire rope clamps.
The 12 vertical ropes have a rope ring at their ends, which is firmly attached to the vertical ropes using hydraulically pressed smb aluminium T-clamps.

A wide range of colors is available for the steel parts and ropes in accordance with the smb ColorCard for urban sports equipment.
Color of tube ring for streetball basket:
Color of ropes for streetball basket:

***************
Notes on use as a spare part:
The streetball basket ’99 classic’ is an original spare part for smb streetball facilities.
Combination with third-party systems is at your own risk with regard to the safety and operational reliability of the system;
smb excludes any warranty when combining smb components with third-party equipment and/or modifying smb play and sports equipment, spare parts and system components. Technical information, TÜV certificates and the underlying structural analyses are no longer valid in this case of use.
***************

or

Streetball basket URBN HOOP®
No. 7011116
- The ISPO-AWARD Winner 2025 -
From Steel to Style – URBN HOOP® - for outdoor use.
The robust streetball basket is protected against corrosion by spray galvanisation followed by powder coating in RAL colours. The attached basket net, made from weatherproof and durable paracord rope, was specially developed by smb for the perfect swish effect – clear sound, real court feeling. Perfect for school playgrounds, parks and urban sports fields.

Technical data:
– Basket: steel tube Ø 26.9 x 4.0 mm, spray galvanised and powder coated,
inner diameter in accordance with regulations Ø 450 mm;
– Retaining plate (smb basic): hole pattern in the retaining plate 105 x 105 mm,
4 boreholes Ø 14 mm;
– Basket net: Paracord rope Ø 8 mm, net breaking load approx. 500 kg,
rope breaking load approx. 750 kg;

Special features:
– Special elliptical knot as rope knot element;
– Rope connector for stable, clean and standard-compliant net fastening;
– Smart design for easy net replacement (should this ever be necessary);
– Specially designed for outdoor use (weather and UV resistant);

A wide range of colors is available for your individual design in our URBN HOOP online configurator: www.urbnhoop.com/en/customizer
Configurator code:
Serial number:
Color scheme: according to online customiser configuration / PDF file

***************
Notes on use as a spare part:
The streetball basket URBN HOOP® is an original spare part for smb streetball facilities.
Combination with third-party systems is at your own risk with regard to the safety and operational reliability of the system;
smb excludes any warranty when combining smb components with third-party equipment and/or modifying smb play and sports equipment, spare parts and system components. Technical information, TÜV certificates and the underlying structural analyses are no longer valid in this case of use.
***************

******************************

Streetball backboard "standard"
No. 7010016
Dimensions: 1200 x 900 x 40 mm (WxHxD);
Robust, welded construction consisting of a square tube frame (steel tube 40 x 40 x 2 mm) with enclosed grating (mesh size approx. 44 x 44 mm), impact area made of sheet steel, thickness 5 mm.
With constructive noise reduction: the grid structure minimizes the ball's impact surface, effectively reducing the resulting impact noise.
Permanently protected against corrosion by complete hot-dip galvanization with black painted markings on the frame and in the impact area.
Includes 4 boreholes for mounting with the streetball basket on the stand tube (holes Ø 14 mm, hole pattern 105 x 105 mm).

or

Streetball backboard "tournament"
No. 7010030
Dimensions: 1830 x 1055 x 40 mm (WxHxD)
- this backboard size complies with DBB and FIBA specifications for competitive sport -
Robust, welded construction consisting of a square tube frame (steel tube 50 x 40 x 2 mm) with enclosed grating (mesh size approx. 44 x 44 mm), impact area made of sheet steel, thickness 5 mm.
With constructive noise reduction: the grid structure minimizes the ball's impact surface, effectively reducing the resulting impact noise.
Permanently protected against corrosion by complete hot-dip galvanization with black painted markings on the frame and in the impact area.
Includes 4 boreholes for mounting with the streetball basket on the stand tube (holes Ø 14 mm, hole pattern 105 x 105 mm).

******************************

Additional equipment for smb Streetball equipment extended

Streetball stand tube extended and flange cover additionally powder-coated
No. 7010008
Includes additional packaging to protect the colour coating.
A wide range of colors is available in accordance with the smb ColorCard for urban sports equipment.

Shortening streetball stand tube
No. 7010201
Recommended reduction according to DBB and FIBA for junior basketball under 12 years of age:
0.45 m – corresponds to a basket ring height of 2.60 m / lower edge of backboard 2.45 m;
Max. possible reduction: 0.90 m – corresponds to a basket height of 2.15 m / lower edge of backboard 2.0 m.
Reduced here by:_______m

Post protection pad with zipper
No. 7010040
Post protection pad for smb-streetball facilities, suitable for stand tubes with a diameter of 133 mm (also available for older stand tubes with a diameter of 108 mm), protective padding height 2000 mm. Fitted with a zip for easy installation and optimal maintenance accessibility.
Robust foam padding made from a strong, closed-cell polymer mixture.
Special product features: high shock absorption quality, UV and weather resistant, mould repellent and pest resistant (specially designed for outdoor use).
Certifications: Shock absorption according to EN 913:2009 Annex C, free of harmful substances according to toy standard EN 71 and REACH regulation (PAH), impact and fall certified according to DIN 18032-7:2020-09.
A wide range of colors is available: light blue, blue, red, green, yellow, white, black, grey and orange.
