Ropeway Flux 05

No. 7216019

Number of users3
Assembly time0.40 hours
Installers1 person

Play value and experience

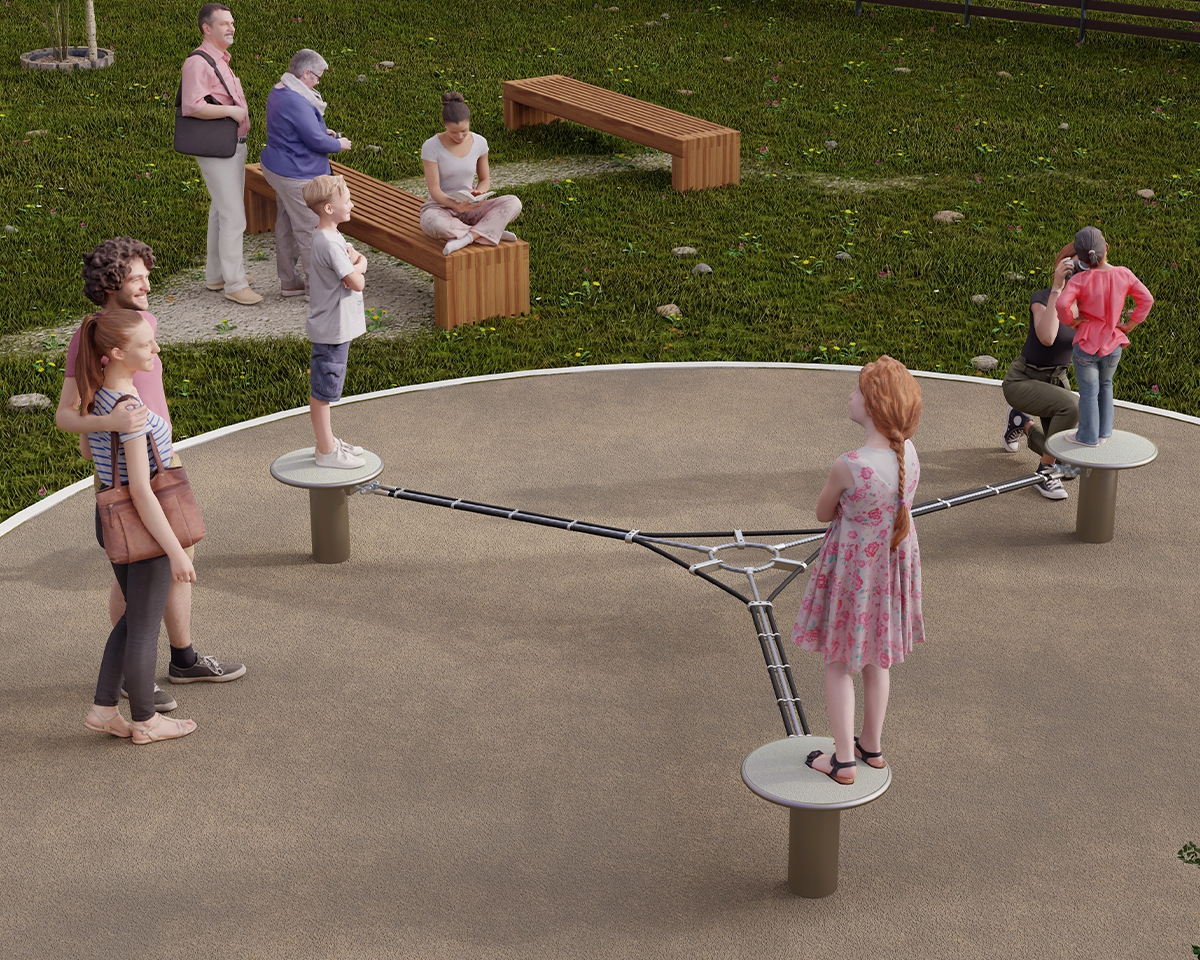

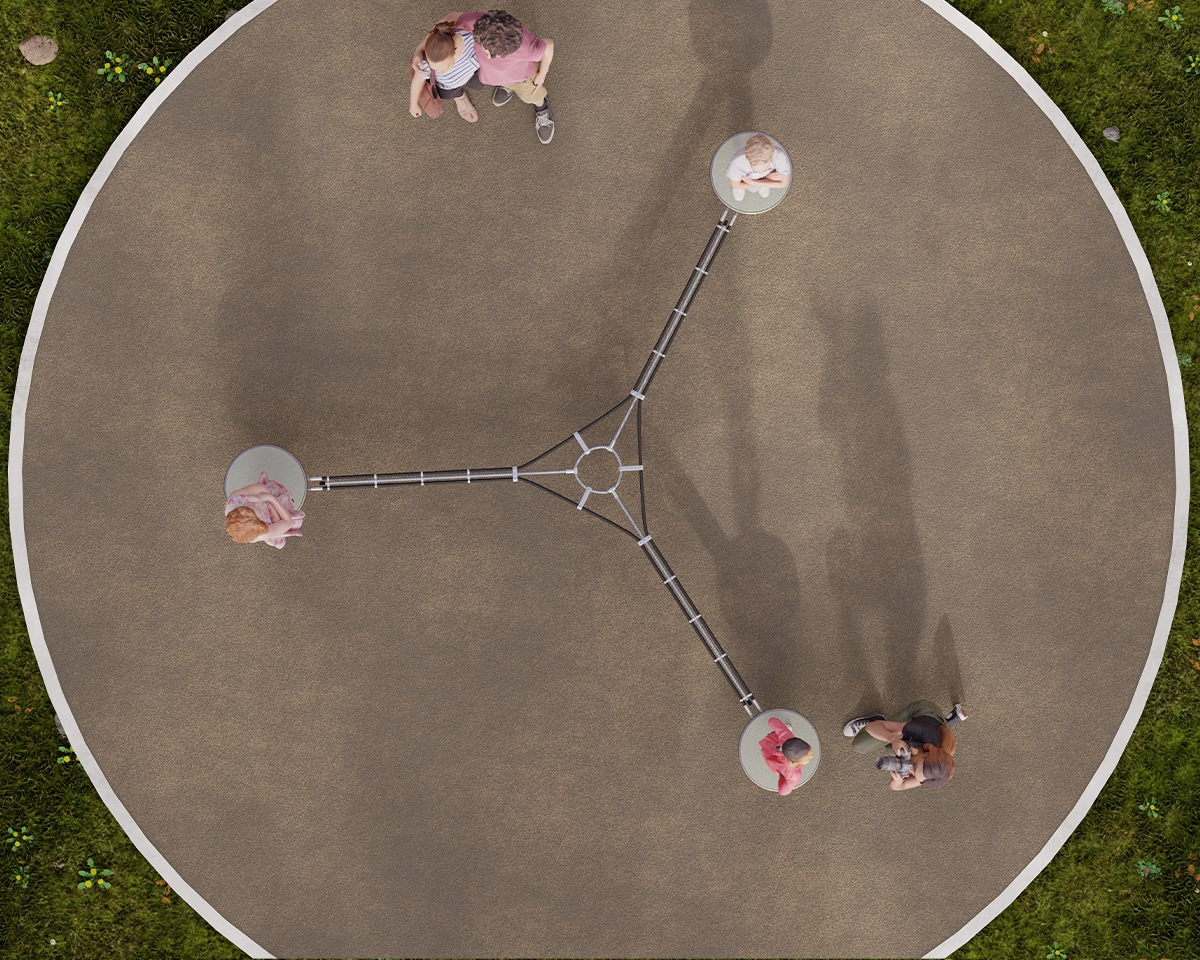

The Ropeway Flux 05 consists of three rope arms made of Ropeway Original arranged at 120° to each other, forming a star shaped balancing structure. Each arm is composed of three parallel ropes with a width of approximately 80 mm.

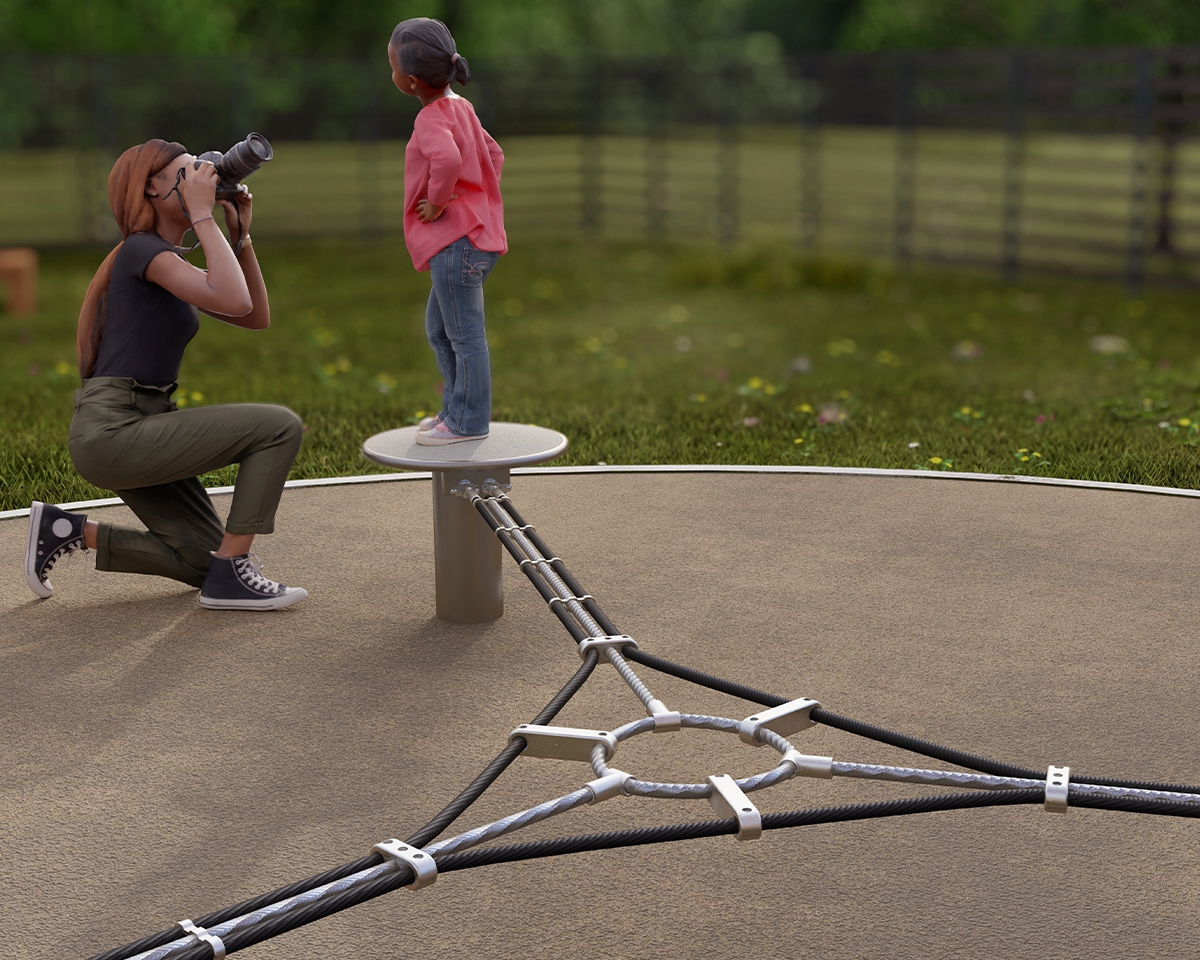

At the centre the arms are connected by a rope ring, with the outer ropes running centrally around the ring into the next section while the inner ropes are fixed to the ring with T clamps, creating a responsive balance point in the suspended middle.
This creates an open triangular movement space without a platform that invites users to meet, stabilise and change direction.
The star shaped layout challenges balance, coordination and body awareness and encourages users to consciously choose movement paths and continuously readjust their body weight.
The clear geometry supports visual orientation and enables both cooperative and individual play in inclusive movement spaces.


The ropeway variant Flux

The ropeway playground equipment is great to train the sense of balance in a playful way.

The Flux variant of the smb-ropeway is special. The star-shaped arrangement of the ropeways needs no middle platform. This not only increases the motion, but also the fun – especially when several people try balancing together.

Integrate Flux elements into your ropeway set-up or as part of a smb-Adventure Park.

Ideal is the combination of several balancing bounds of the series Classic and Flux so that the construction is interesting for a wide range of age groups.

Please note when planning

Due to the low height of 400 mm, there are no requirements on the fall protection, so that the system can be installed on any surface.

Please bear in mind that the minimum degree between two balancing bounds that are connected to one platform has to be at least 72°!

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Tender specification Ropeway Flux 05

smb Ropeway Flux 05
No. 7216019

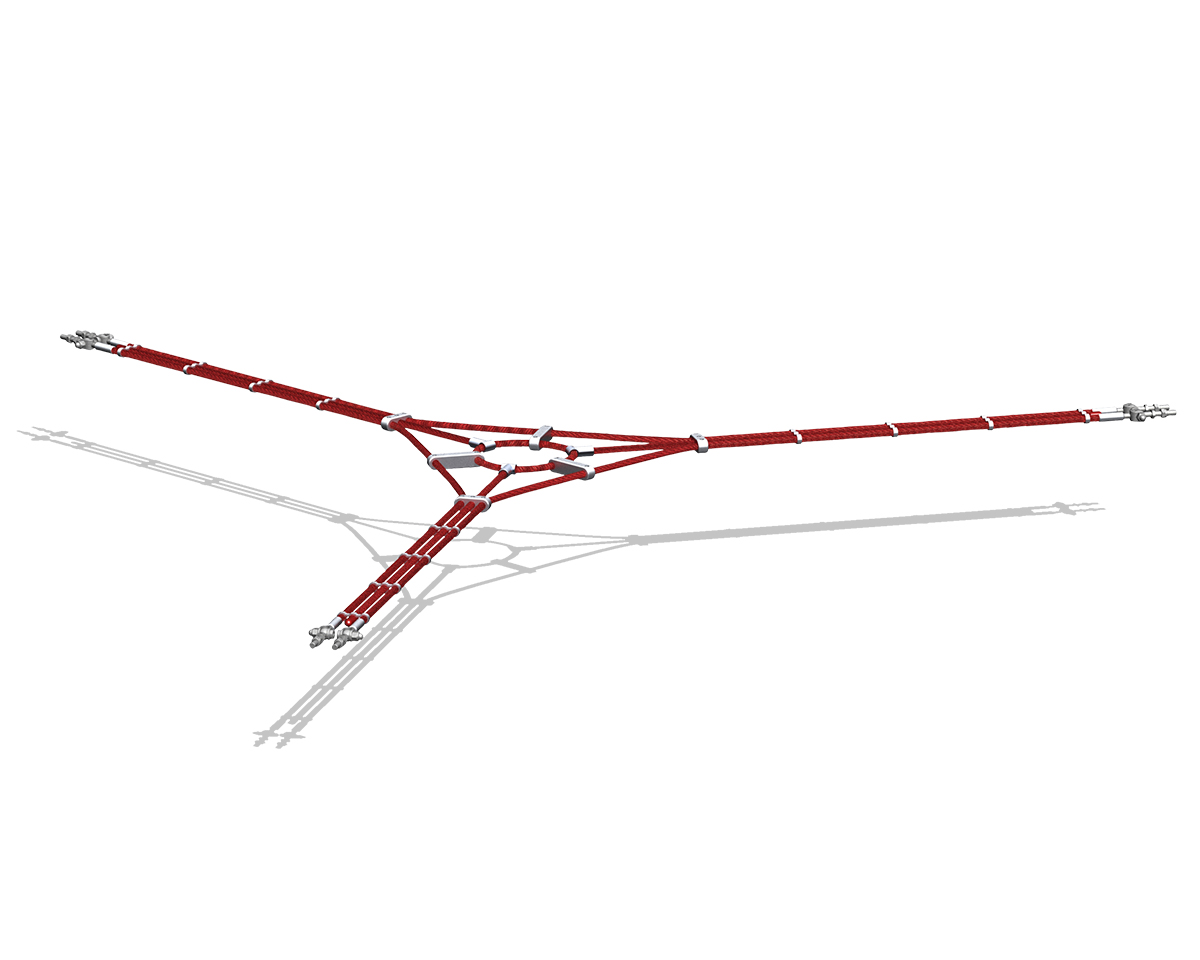

The ropeway Flux 05 consists of 3 ropeway sections that run in 3 directions at 120° each (consisting of 7 ropes in total).
The three Ø 20 mm ropes are arranged side by side, approx. 80 mm wide, with the outer ropes running centrally around a rope ring and leading to the next section.
The inner ropes are attached to the rope ring with T-clamps, which is pressed together with 3 aluminum round rods L = 100 mm using T-clamps.
The ropeway Flux 05 is attached with articulated M16 x 110 mm fork eye bolt connections. This articulated connection ensures a long service life and enables optimum rope tension.
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

Color options: A wide range of rope and panel colors is available for individual design preferences.
