Big beetle

No. 7216401 (Sleeve foundation), 7216501 (Flange variant)

Unit space areaØ 0.50 m
Safety space areaØ 3,50 m
Height of unit0.20 / 0.30 / 0.40 m
Age range3+
Number of users1
Free fall height0.20 / 0.30 / 0.40 m*
Heaviest component
     Sleeve foundation13.59 - 15.89 kg*
     Flange variant13.51 - 15.79 kg*
Total weight
     Sleeve foundation25.58 - 27.86 kg*
     Flange variant25.11 - 27.39 kg*
Assembly time0.25 hours
Installers1 person
Foundations 0.60 x 0.60 x 0.40 m
Total quantity of concrete0.14 m³
* depending on installation height

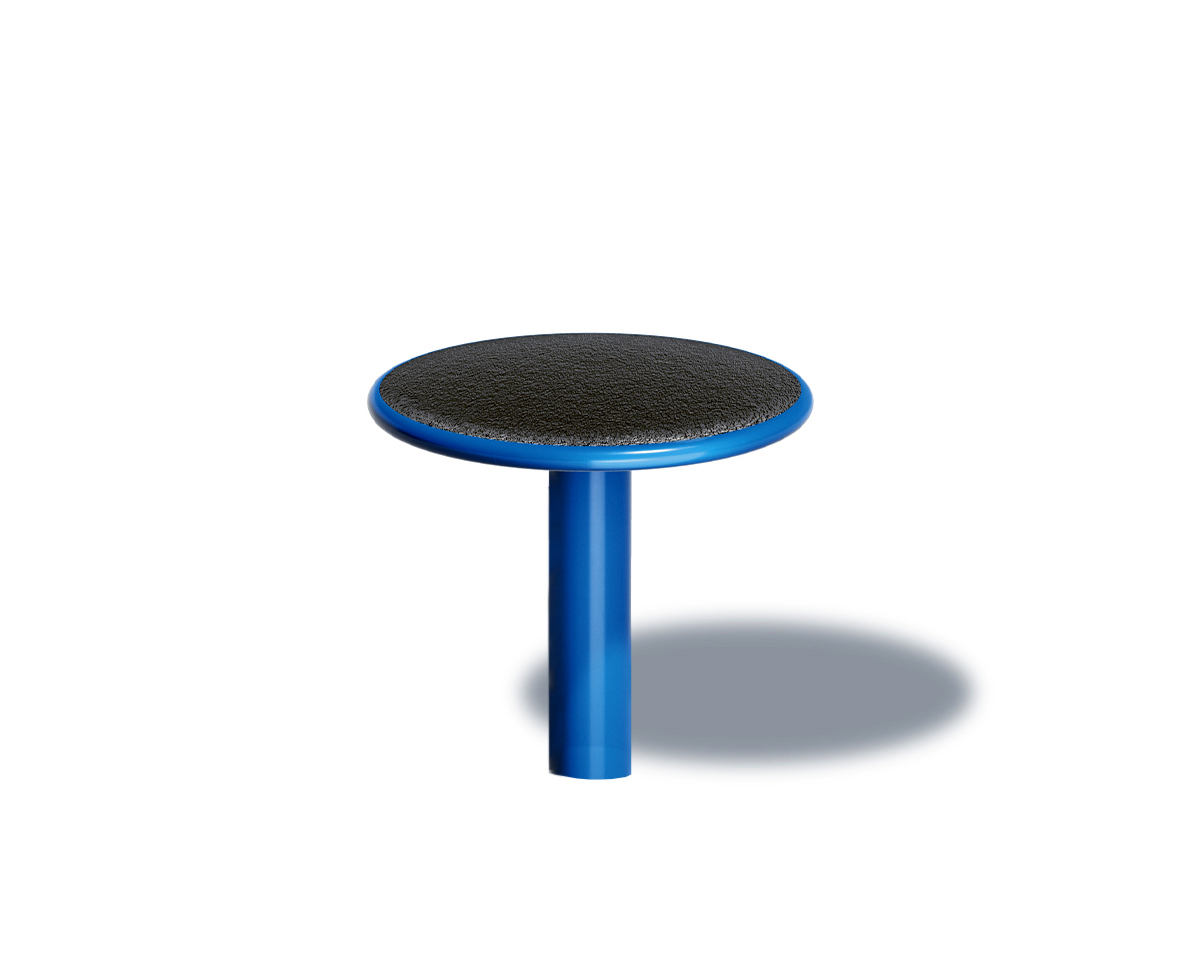

The big beetle has a round base with a diameter of 504 mm and is coated with rubber granulate.
The tubular steel column Ø 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable granulate colors for platforms

  • 290Pearl white
    ≈ RAL 1013
  • 210Beige
    ≈ RAL 1001
  • 000Brick red
    ≈ RAL 3016
  • 180Sky blue
    ≈ RAL 5015
  • 410May green
    ≈ RAL 6017
  • 390Black
    ≈ RAL 9004


Information: A large number of further colors are possible.

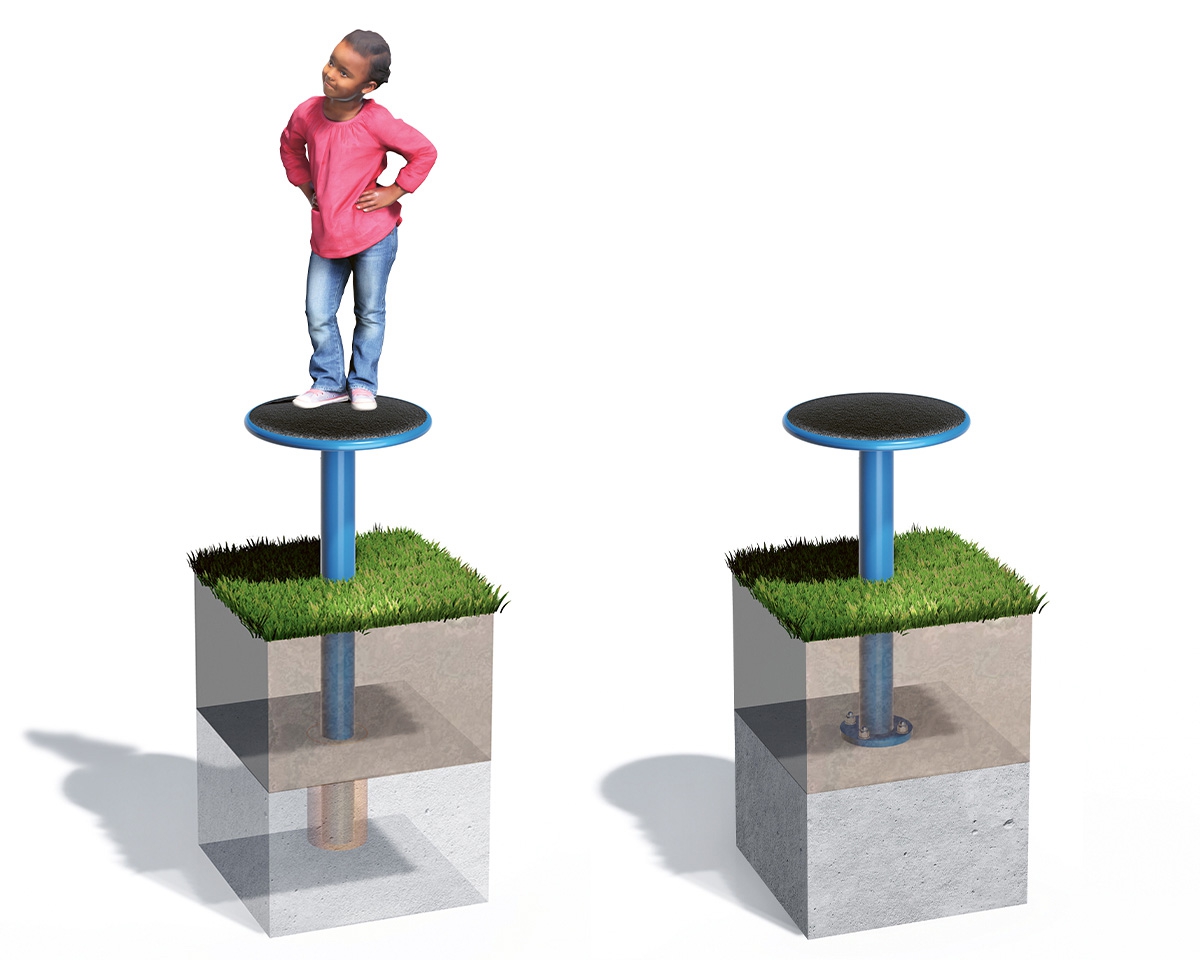

Tender specification Big beetle (Concrete foundation)

smb Big beetle (Concrete foundation)
No. 7216401

The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tube with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary. The height above the play level is between 100 and 500 mm.

Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.

Tender specification Big beetle (Flange anchorage)

smb Big beetle (Flange anchorage)
No. 7216501

The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The steel tube stand column (Ø 88.9 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are bolted together.

The height above the play level is between 200 and 400 mm, depending on the design requirements.

The four necessary dowels and the fastening material are included in the scope of delivery.

Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
